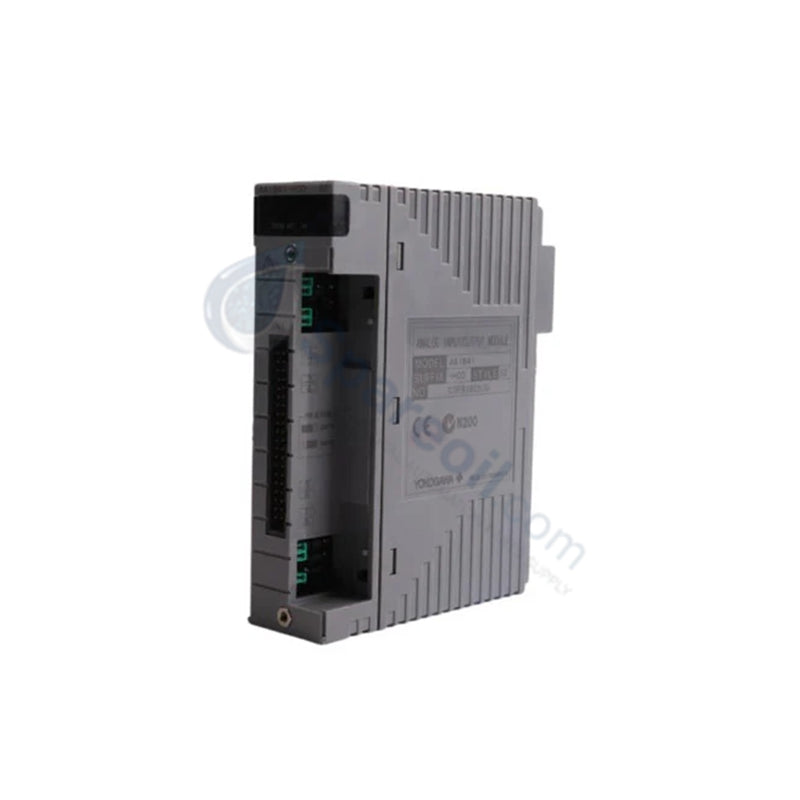

Yokogawa ADV561-P51 FIO Series Digital Output Module

The Yokogawa ADV561-P51 serves as the primary ADV561 Digital Output Module utilized to execute discrete ON/OFF signal routing across CENTUM VP control platforms. The hardware processes 64 isolated current sink channels to actuate external loops by manipulating 24 VDC industrial field loads directly from the internal system architecture.

Suffix Breakdown & Model Matrix

  • Base Model (ADV561): Specifies the 64-channel, 24 VDC isolated high-density digital output architecture.
  • P Suffix: Designates the integration of a dedicated pushbutton input function block on the module framework.
  • 5 Suffix: Denotes a physical housing baseline built without status display LEDs and lacking explosion protection certification.
  • 1 Suffix: Confirms the factory application of ISA Standard G3 conformal coating for operations in corrosive environments.

Hardware Specifications

Parameter Specification
Model ADV561-P51
Brand Yokogawa Electric Corporation
Origin Japan
Weight 0.3 kg (Shipping Weight: 1.5 kg)
Dimensions 130 x 119.9 x 32.8 mm
Operating Temp 0 to +55 deg C
Storage Temp -40 to +85 deg C
Power Consumption 700 mA at 5 VDC (system backplane), 120 mA at 24 VDC (external supply)
Output Channels 64 isolated digital outputs
Output Voltage 24 VDC nominal (operational range: 20.4 to 26.4 VDC)
Output Type Current sink topology
Max Load Current 100 mA per channel
Response Time Status output less than or equal to 3 ms; mixed outputs less than or equal to 10 ms
Isolation Voltage 2 kV AC (signal-to-system for 1 minute), 500 V AC (between commons per 16 channels)
Leak Current (OFF State) Less than or equal to 0.1 mA
Pulse Width Output Range 8 ms to 7200 s
External Connection MIL connector cable (AKB337 alignment)

Process Control & DCS Instrumentation

The Yokogawa ADV561-P51 incorporates channel-to-channel isolation parameters to separate high-density field nodes, blocking transient feedback spikes using a 2 kV AC signal-to-system electrical barrier. Technicians deploy the 64 output loops across isolated common minus nodes partitioned every 16 channels, which isolates independent field zones from cross-channel current interference. The internal microcode structures asynchronous pulse width modifications from 8 ms up to 7200 s, allowing local current loops to modulate output execution metrics without inducing bus processing overhead inside the primary node rack.

Frequently Asked Questions

Q: How does the lack of external faceplate status display LEDs alter module diagnostics?

A: The configuration processes all internal health checks and channel state tracking directly through the system backplane interface, enabling engineers to inspect real-time loop logic via the engineering workstation console.

Q: What mitigation does the card utilize when exposed to industrial airborne contaminants?

A: The circuit board assembly features a standard factory-applied ISA Standard G3 conformal coating, which prevents moisture, dust, and corrosive gas concentrations from degrading the electrical traces.

Q: Can the current sink outputs tolerate a reverse voltage hookup from the field supply?

A: No. The internal transistor sink network requires strict adherence to polarity designations; reverse connections risk puncturing the blocking diodes and compromising the 500 V AC isolation boundary between common nodes.

Field Installation Guidelines

  • MIL Connector Alignment: Route field connections through the standard AKB337 MIL connector assembly. Secure the retention clips firmly to prevent electrical discontinuity caused by structural rack vibration.
  • Isolation Ground Tracking: Ground the system rack to the master instrument earth bar. Ensure that total ground loop resistance reads below 1 Ohm to preserve the 2 kV AC electrical isolation limit between field lines and system logic.
  • Current Load Matching: Verify that the continuous electrical load current does not surpass 100 mA per channel under peak 26.4 VDC operating conditions to prevent thermal breakdown within the high-density output blocks.
  • Conduit Isolation Separations: Lay out all 64 discrete field paths in separate metallic wiring trays positioned away from high-current AC motor supply circuits to prevent electromagnetic interference from inducing false ON signals.
