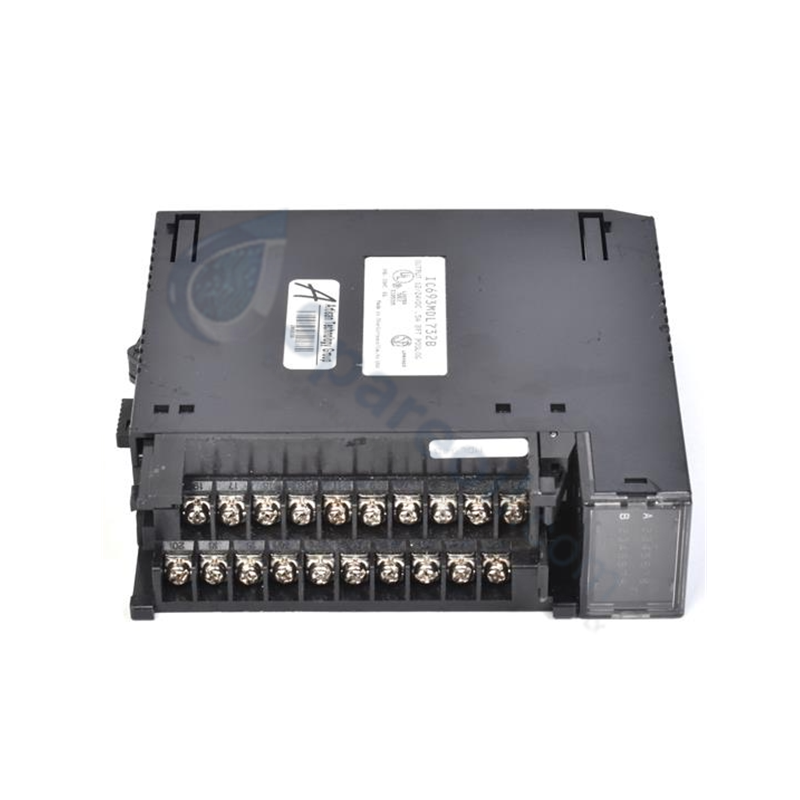

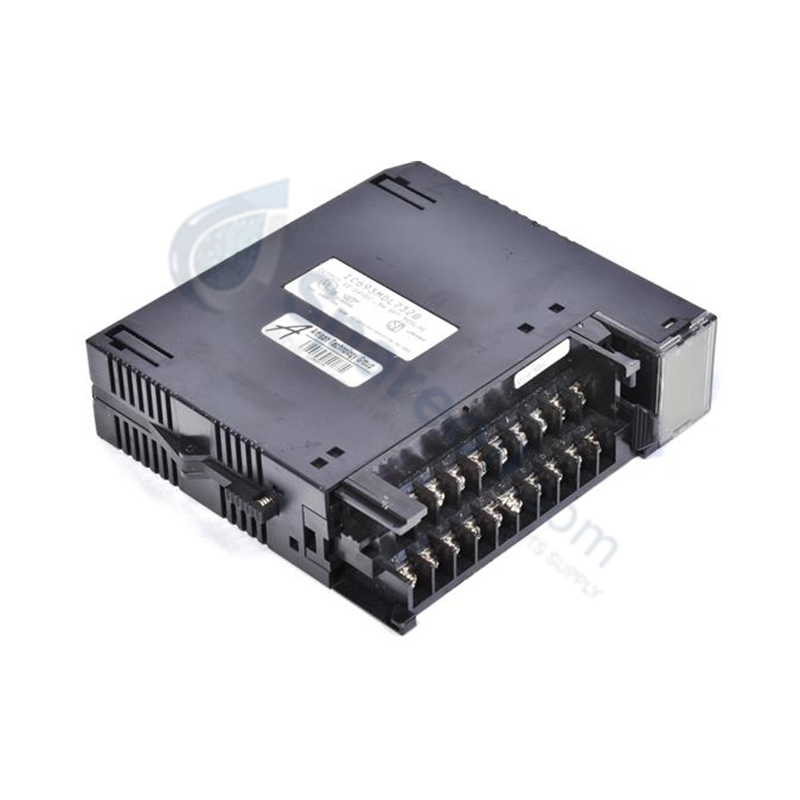

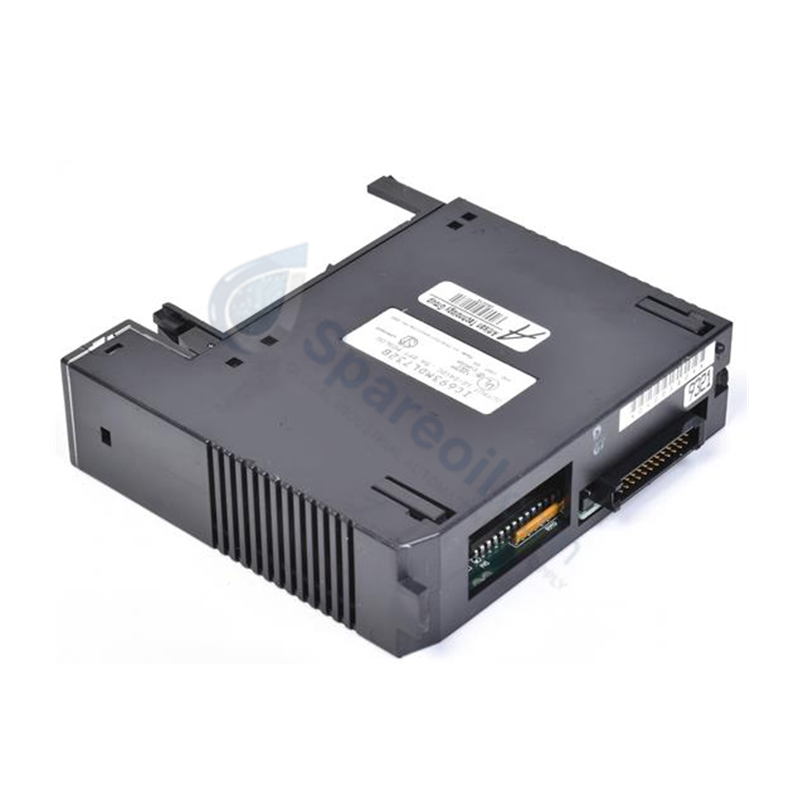

GE Fanuc IC693MDL732 Series 90-30 Digital Output Module

GE Fanuc IC693MDL732 Series 90-30 Digital Output Module

Disponibilidad: 10 Quedan en stock

The GE Fanuc IC693MDL732, also cataloged as the IC693MDL732 DC Voltage Output Module, operates as a dedicated hardware component for...

Código: IC693MDL732

Manufacturer: GE Fanuc
Product No.: IC693MDL732
Product Type: Digital Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 790g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The GE Fanuc IC693MDL732, also cataloged as the IC693MDL732 DC Voltage Output Module, operates as a dedicated hardware component for discrete DC switching within GE Fanuc Series 90-30 PLC platforms.

Hardware Specifications

Parameter	Specification
Model	IC693MDL732
Brand	GE Fanuc Emerson
Origin	United States
Weight	1.75 lbs (0.79 kg)
Dimensions	Single-slot Series 90-30 I/O form factor
Operating Temp	0 to 60 deg C
Power Consumption	50 mA at 5 VDC (backplane, all outputs ON)
Rated Output Voltage	12 to 24 VDC
Output Points	8 points (positive logic / sourcing)
Output Current	0.5 A maximum per point
Output Current Common	2 A peak per common
Inrush Current	4.78 A for 10 ms
Output Voltage Drop	1 VDC maximum
Off-State Leakage	1 mA maximum
Response Time	2 ms maximum (ON), 2 ms maximum (OFF)
Protection	Unfused outputs
Status Indicators	8 LED indicators for output point states

Backplane Bus Communication Velocity and Signal Properties

The IC693MDL732 provides 8 discrete sourcing outputs controlled via high-speed logic commands across the Series 90-30 backplane. By isolating internal logic processing from 12/24 VDC field loads, the module preserves backplane bus communication velocity and system timing deterministic characteristics. Field loads like solenoids and motor starters interface directly between the output terminals and the negative DC bus, while onboard LEDs provide immediate channel-level optical verification without imposing CPU firmware execution delays.

Frequently Asked Questions

Q: Does the IC693MDL732 module feature internal fusing for output overload protection?

A: No. The IC693MDL732 module contains no internal fuses. External current-limiting devices or fast-acting fuses must be installed on field supply lines to prevent output stage damage during short-circuit conditions.

Q: What is the backplane current draw when all 8 output channels are activated?

A: The module draws 50 mA from the 5 VDC backplane power rail when all output channels are fully energized.

Q: Can the IC693MDL732 operate in a sinking configuration?

A: No. The module is engineered strictly for positive logic (sourcing) operation, where current flows from the active output point to the load connected to the negative DC reference bus.

Field Installation Guidelines

Isolate main system power and turn off field supply voltages prior to inserting or removing the IC693MDL732 module from the rack baseplate.
Seat the module bottom hook into the targeted Series 90-30 backplane slot and push the top latch until it firmly locks into place.
Wire the external 12 to 24 VDC power supply to the field terminal board, ensuring the positive bus feeds the module common and loads wire to the negative supply rail.
Route field output wiring in dedicated raceways separated from sensitive analog or high-voltage AC cables to prevent inductive noise pickup.
Verify that all field connections match positive logic sourcing requirements before applying field power and monitoring the top-panel status LEDs.
