1794-IB16D Allen-Bradley Flex I/O Module

1794-IB16D Allen-Bradley Flex I/O Module | New & Original Stock

Availability: 20 left in stock

Allen-Bradley 1794-IB16D Flex I/O Digital Input Module Configured for monitoring 16 DC input signals with built-in diagnostics for wiring and...

SKU: 1794-IB16D

Manufacturer: Allen Bradley
Product No.: 1794-IB16D
Product Type: Digital I/O Cards
Product Origin: USA
Payment:T/T, Western Union
Weight: 110g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

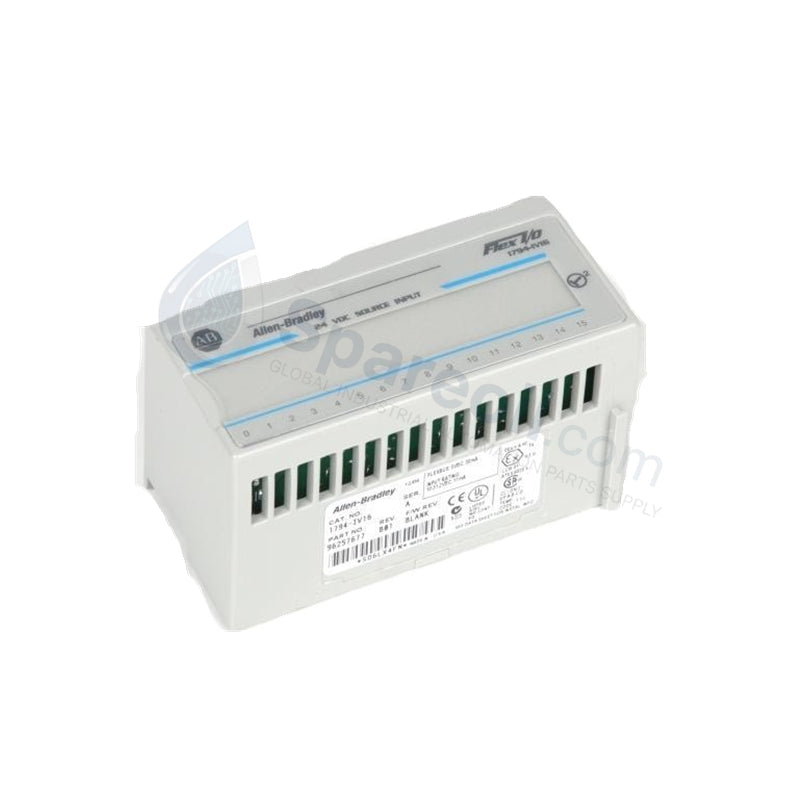

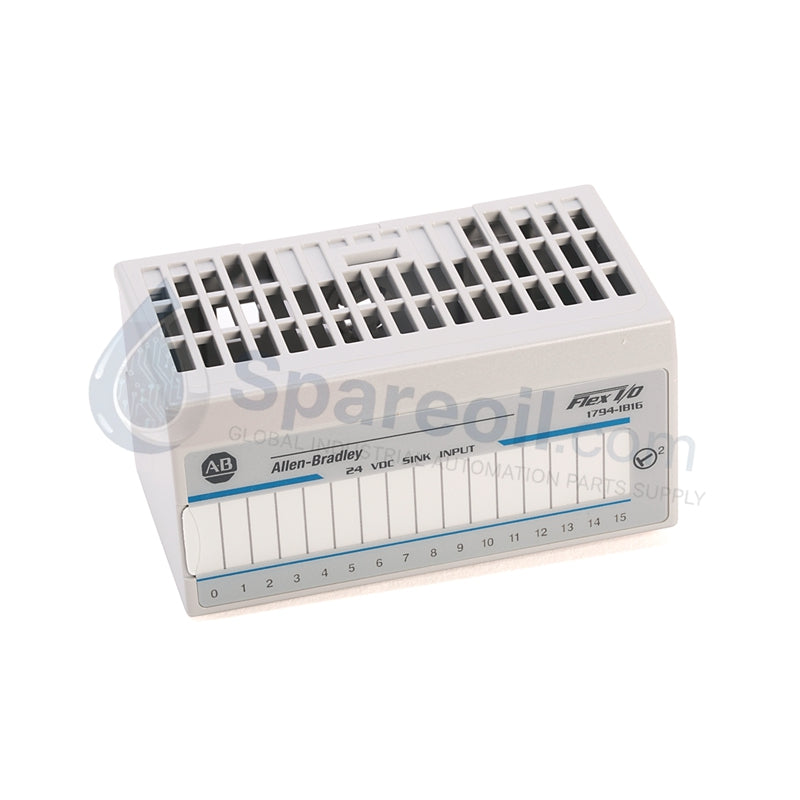

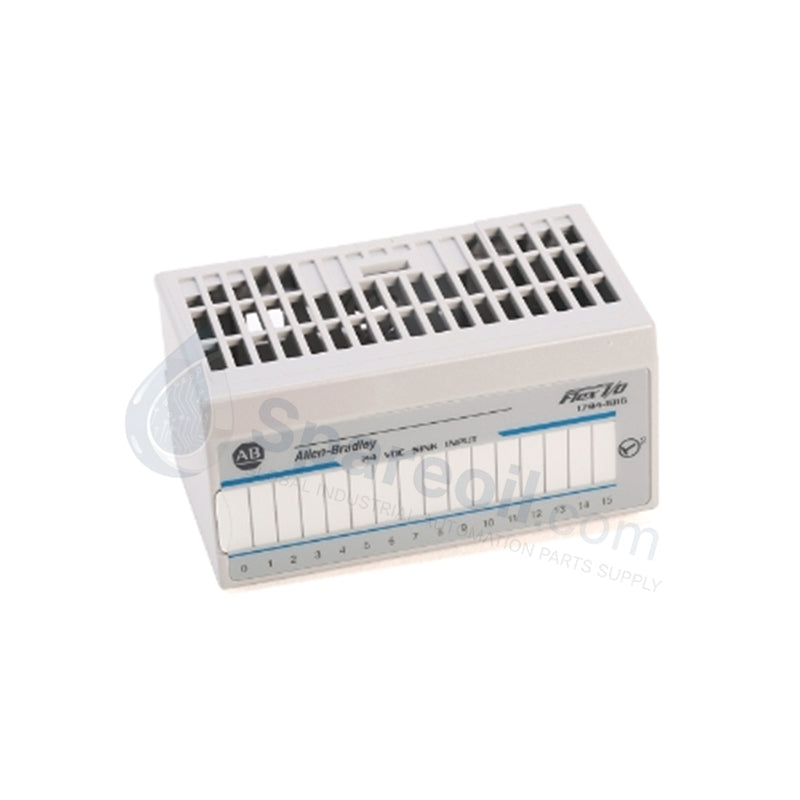

Allen-Bradley 1794-IB16D Flex I/O Digital Input Module

Configured for monitoring 16 DC input signals with built-in diagnostics for wiring and signal integrity in FLEX I/O platforms, the Allen-Bradley 1794-IB16D (1794-IB16D Flex I/O Digital Input Module w/ Diagnostics) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	1794-IB16D
Brand	Allen-Bradley
Origin	United States
Weight	0.25 lbs (0.11 kg)
Dimensions	Standard 1794 series module form factor
Operating Temp	0 deg C to +55 deg C
Power Consumption	Flexbus Current: 30 mA @ 5 V DC; Power Requirements: 24 V DC, 250 mA
Input Channels	16 sinking current inputs
On-state Voltage	24 V DC nominal (10-31.2 V DC range)
On-state Current	1.5 mA maximum
Nominal Input Impedance	3.1 kohm
Sensor Power Current	50 mA maximum
Sensor Power Voltage Drop	2.2 V DC maximum
Isolation Voltage	50 V continuous (between field side and system)
Power Dissipation	8.5 W @ 31.2 V DC maximum
Thermal Dissipation	29 BTU/hr @ 31.2 V DC maximum
Diagnostic Capability	Detects open-wire, short-circuit, and input status
Required Terminal Base	1794-TB3, 1794-TB3S, or compatible 1794 terminal bases

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The Allen-Bradley 1794-IB16D processes discrete field states that populate communication packets designated for higher-level adapters operating over Profinet / EtherNet/IP deterministic networks. The 16 sinking channels utilize a 3.1 kohm internal impedance profile to bound incoming signal currents while maintaining strict logic threshold separation. When expanding a distributed bus assembly, the module maps its internal diagnostics directly into the controller image. This dense sensor-power distribution structure imposes a maximum 50 mA power circuit drop, requiring calculated current management across the local rail to maintain target I/O density scaling without altering backplane communication velocities.

Frequently Asked Questions

Q: What specific field faults can the integrated diagnostic circuitry identify on the 1794-IB16D?

A: The onboard diagnostics track real-time electrical boundaries to detect open-wire conditions and short-circuit faults across the field wiring loops. These statuses are converted into specific bit flags and transferred over the backplane bus for immediate fault isolation.

Q: Can this digital input module be inserted or extracted under power during system operation?

A: Removal and Insertion Under Power (RIUP) is supported only if the terminal base assembly is fully anchored and the surrounding atmosphere is known to be non-hazardous. Breaking connections under field-side load when an explosive environment is present can cause electrical arcing, which violates intrinsic safety parameters.

Field Installation Guidelines

Terminal Base Engagement: Align the module keys with the corresponding slots on the pre-installed 1794 terminal base (e.g., 1794-TB3). Press downward firmly until the side-latching mechanisms lock the module housing onto the backplane connector.
Sinking Configuration Wiring: Connect the field device outputs to the designated input terminals on the terminal base. Ensure the common return line of the external power supply is wired to the positive terminal reference to complete the input sinking current loop.
Shield Continuity and Grounding: Terminate instrument cable shields to a dedicated, unpainted earth ground bus bar within the enclosure panel. Do not loop ground conductors across adjacent terminal bases to avoid generating parallel ground loops.
Conductor Separation Rules: Maintain clear spatial routing separation inside the wire ducts by separating low-voltage 24 V DC diagnostic input lines from high-voltage AC motor starter cables to prevent inductive noise coupling.
