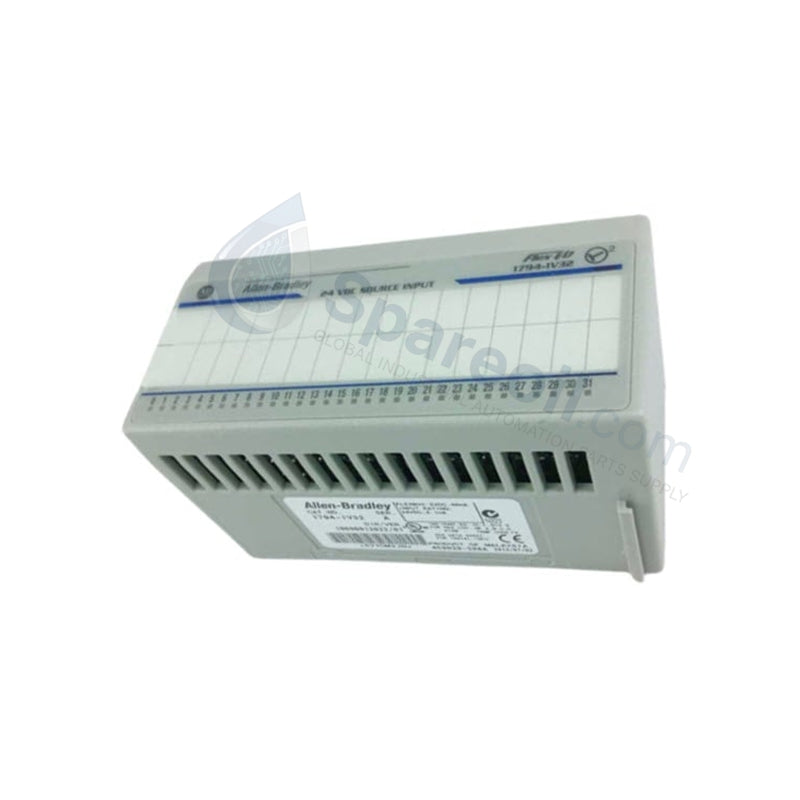

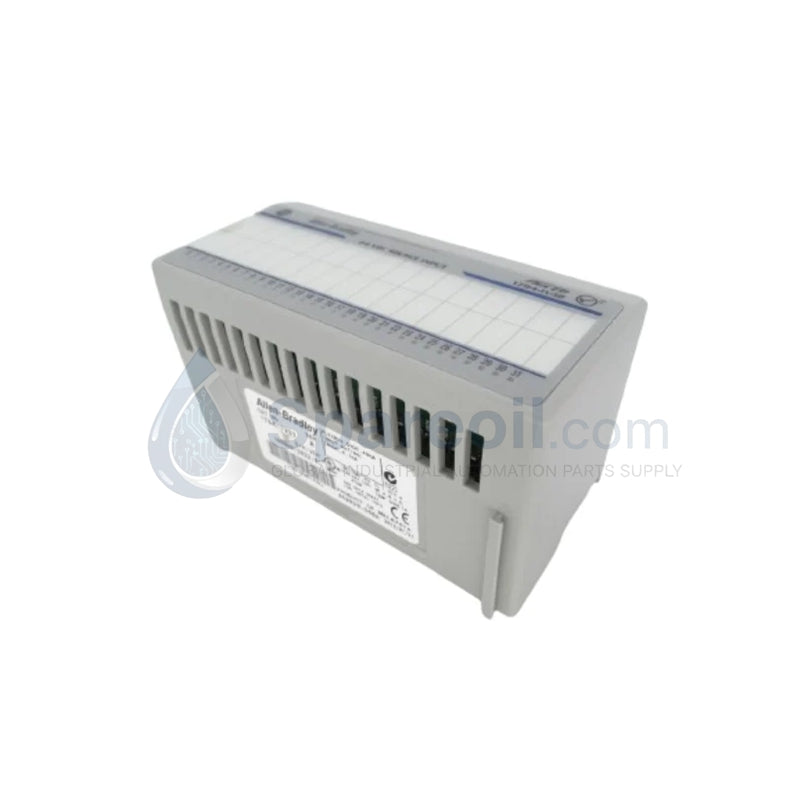

Allen-Bradley 1794-IV32 Flex I/O Module

The Allen-Bradley 1794-IV32, also cataloged as the 1794-IV32 FLEX I/O module, operates as a dedicated hardware component for monitoring up to 32 DC input signals within industrial automation systems.

Hardware Specifications

Parameter Specification
Model 1794-IV32
Brand Allen-Bradley
Origin United States
Weight 0.56 lbs (0.26 kg)
Dimensions Standard 1794 open-style module form factor
Operating Temp 0 deg C to +55 deg C
Power Consumption FlexBus current draw: 40 mA @ 5 VDC
Number of Inputs 32 sourcing points
Nominal Input Voltage 24 VDC
Input Voltage Range 19.2 to 31.2 VDC
Minimum On-state Voltage 19.2 VDC
On-state Current 2.0 mA minimum, 4.1 mA nominal @ 24 VDC, 6.0 mA maximum
Input Filter Selection 0.25 ms, 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms
Isolation Voltage 50 V continuous (Basic Insulation Type, tested at 850 V DC for 60 s between field side and system)
Status Indicators 32 yellow status LEDs
Protection Rating IP20
Environmental Limits Pollution Degree 2, Overvoltage Category II, up to 6562 feet altitude
Mounting Base 1794 Mounting Base (e.g., 1794-TB3, 1794-TB3S)
System Compatibility PLC-5, SLC 500, CompactLogix, ControlLogix controllers

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The Allen-Bradley 1794-IV32 converts discrete 24 VDC electrical transitions into multi-point register maps distributed over Profinet / EtherNet/IP deterministic networks via standard network adapters. Featuring a high-density 32-point sourcing architecture, this component allows tight I/O density scaling inside compact remote junctions. The onboard electronic filtering engine enables programmable software debounce selections down to 0.25 ms to regulate signal noise before backplane transmission. This high density is sustained while limiting continuous bus load to a nominal 40 mA draw across the localized FlexBus interface.

Frequently Asked Questions

Q: What are the restrictions regarding Removal and Insertion Under Power (RIUP) for the 1794-IV32 module?

A: RIUP is supported only if the module is mounted inside a terminal base assembly and the local zone is verified as non-hazardous. Removing or inserting modules under field-side voltage within a designated explosive environment can generate spark discharges, compromising mechanical safety ratings.

Q: How must the input filter configuration be managed to prevent pulse skipping on fast digital inputs?

A: The input filter times are adjustable across 8 hardware increments from 0.25 ms up to 32 ms. The software configuration within the controller must match the pulse width of the field device; selecting a filter time greater than the field pulse width will suppress valid input transitions.

Field Installation Guidelines

  • Terminal Base Insertion Alignment: Place the module over the specified 1794 terminal base unit. Align the integrated keyway guides exactly before pressing downward to ensure the multi-point terminal pin field mates securely without deformation.
  • Sourcing Configuration Wiring: Terminate the 24 VDC external voltage lines directly to the input channels. Ensure the common return path of the sensors connects back to the common terminal block of the sourcing circuit layout to complete the input monitoring loop.
  • Environmental Enclosure Demands: Install the module inside an IP54 or better enclosure that requires a specialized tool to open. This maintains the mandatory Pollution Degree 2 rating by shielding the active components from airborne metallic dust and moisture condensation.
  • Cable Pathway Isolation: Route low-voltage DC input cables through separate wire ducts away from high-voltage AC three-phase supply lines to mitigate inductive cross-talk and prevent false signal toggling on the 32 discrete points.
