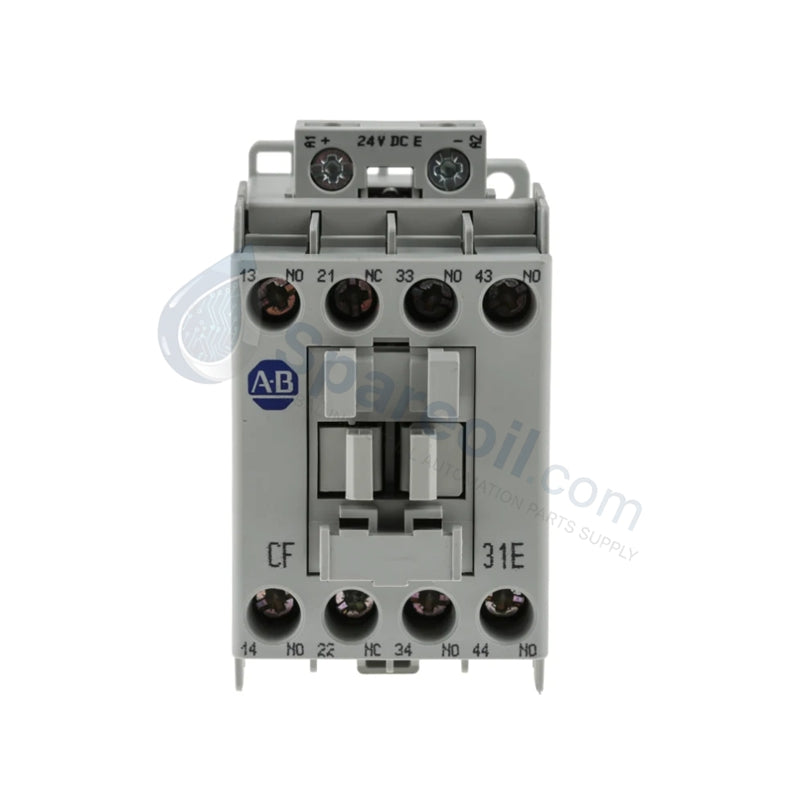

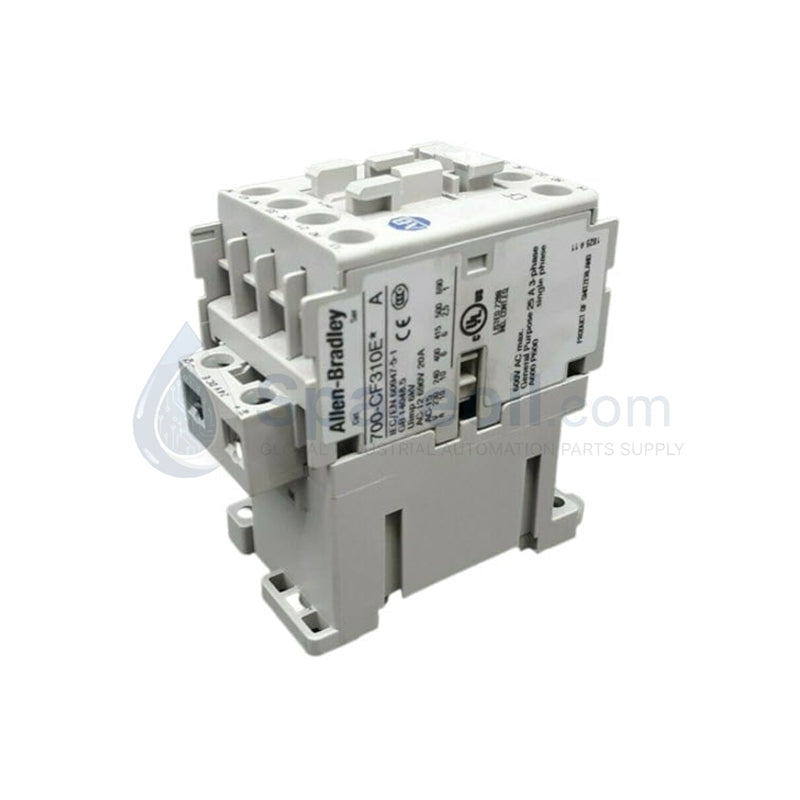

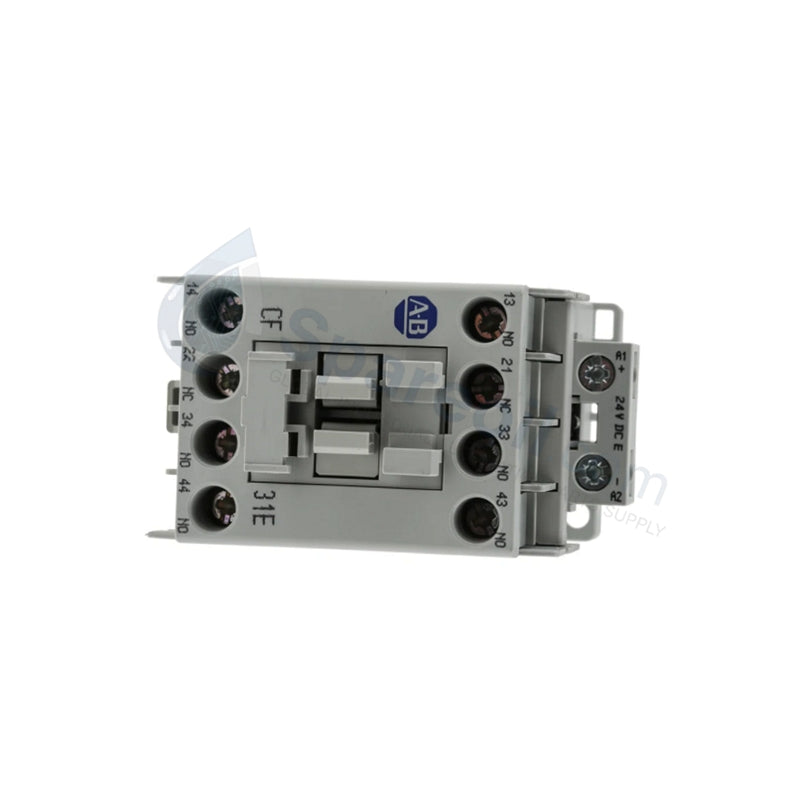

Allen-Bradley 700-CF310EJ 700-C Series Control Relay

Configured for motor control and auxiliary switching in industrial automation systems, the Allen-Bradley 700-CF310EJ (700-CF310EJ Control Relay) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model 700-CF310EJ
Brand Allen-Bradley
Origin United States
Weight 0.79 lbs (0.45 kg)
Dimensions 81 mm (L) x 45 mm (W) x 113 mm (D)
Operating Temp -25 deg C to +60 deg C
Power Consumption 24 VDC electronic coil driven
Contact Configuration 3 N.O. / 1 N.C.
Rated Operational Voltage Up to 690 VAC
Rated Operational Current 25 A (AC-1 duty), 10 A @ 240 VAC (AC-15 duty)
Number of Poles 4
Terminal Type Screw terminals
Mounting Type DIN-rail mountable
Certifications CE, cULus, CCC

Deterministic Network Infrastructure and I/O Density Scaling

Operating within advanced Rockwell Automation architectures, the 700-C series platform interfaces with remote I/O subsystems linked to Profinet / EtherNet/IP deterministic networks. Auxiliary contact monitoring on the Allen-Bradley 700-CF310EJ provides real-time state feedback to the master programmable logic controller (PLC). This deterministic signal loop allows accurate execution of interlock logic. Optimal I/O density scaling is maintained via the integrated electronic coil design, which minimizes thermal emission profiles within compact control enclosures, allowing high-density side-by-side DIN-rail mounting without localized overheating or signal degradation.

Frequently Asked Questions

Q: What are the installation restrictions regarding the 24 VDC electronic coil wiring?

A: The device features reversible coil terminations to accommodate varying physical wiring vectors inside the enclosure. However, polarity must strictly match the designated terminal markings to guarantee internal electronics actuation.

Q: Can this control relay interface directly with standard 100-C series accessories?

A: Yes. The 700-CF310EJ shares structural compatibility with the Allen-Bradley 100-C contactor family, permitting direct mechanical interlocking of standard auxiliary contact blocks, pneumatic timers, and surge suppressors.

Q: What is the maximum physical mechanical vibration threshold permitted before contact chatter occurs?

A: According to standard laboratory validation, static vibration resistance is rated greater than 2 G with zero functional malfunction up to 5 G. Mechanical shock resistance complies with IEC 60068-2 limits up to 30 G half-sine for an 11 ms duration.

Field Installation Guidelines

  • DIN-Rail Alignment: Mount the device horizontally or vertically onto standard 35 mm DIN rails. Ensure the locking clip fully engages with the rail profile to prevent axial displacement during high-vibration events.
  • Terminal Torque Specifications: All screw terminals must be tightened using calibrated instruments to specified industrial torque values to mitigate resistive heating risks. Do not exceed the structural limit of the terminal cage.
  • Conductor Separation: Maintain separate physical pathways for high-voltage AC load wiring (up to 690 VAC) and low-voltage DC control logic (24 VDC) to eliminate electromagnetic cross-talk or parallel capacitive coupling.
  • Coil Suppression: While the electronic coil features inherent damping, inductive load suppression devices must be installed across auxiliary contact terminals when breaking heavy inductive circuits to eliminate voltage spikes.
