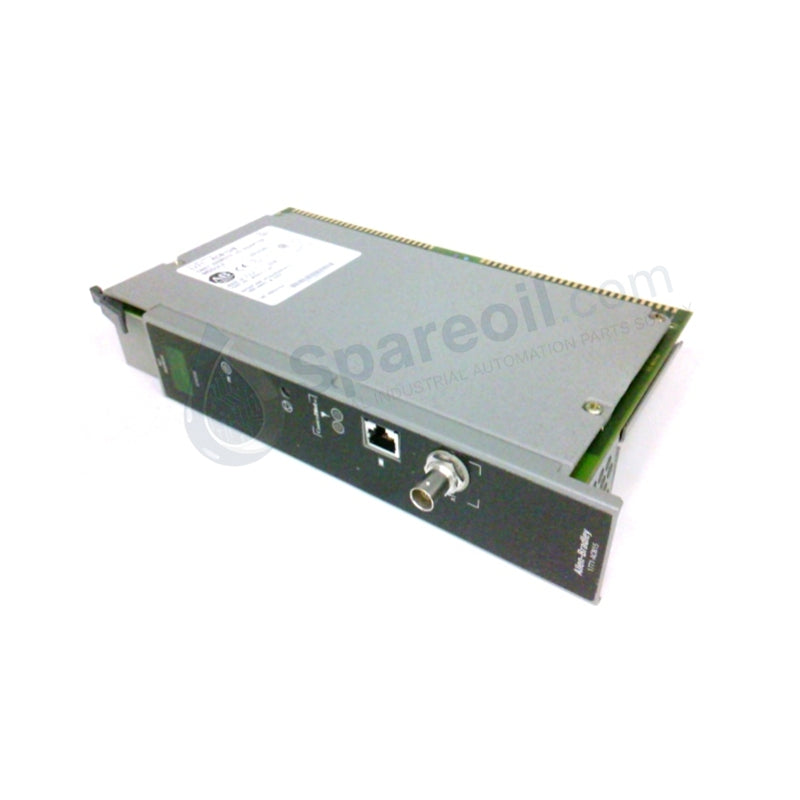

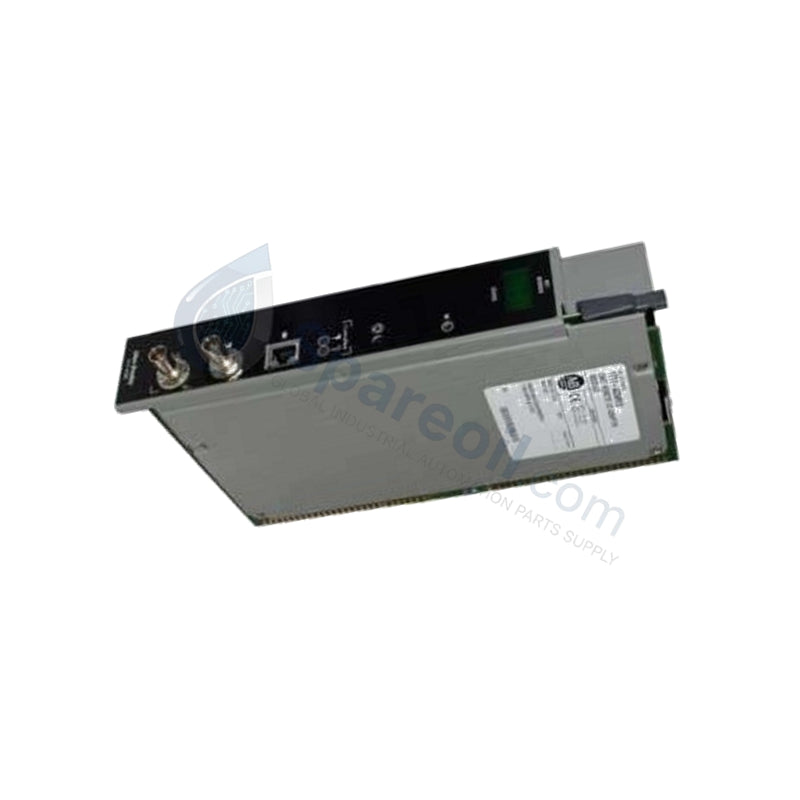

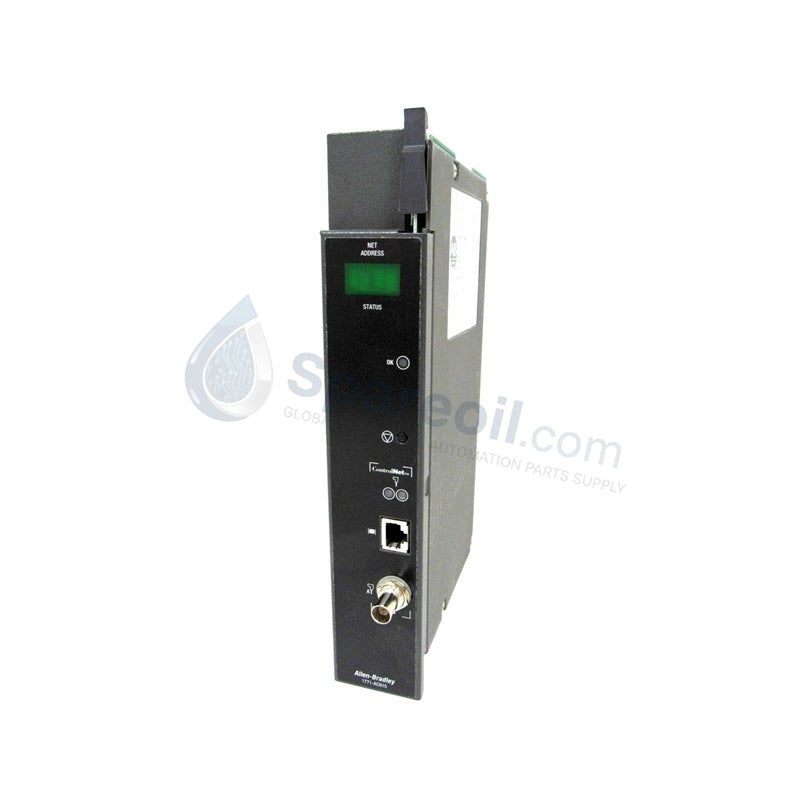

Allen-Bradley 1771-ACN15 I/O Adapter Brand New Original

Availability: 20 left in stock

Product Overview The Allen-Bradley 1771-ACN15 serves as a high-performance communication gateway between a ControlNet network and a 1771 I/O chassis. This Series...

SKU: 1771-ACN15

Manufacturer: Allen Bradley
Product No.: 1771-ACN15
Product Type: ControlNet Adapters
Product Origin: USA
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Allen-Bradley 1771-ACN15 serves as a high-performance communication gateway between a ControlNet network and a 1771 I/O chassis. This Series B module enables a PLC-5 processor to control and monitor remote I/O modules over a deterministic ControlNet link. It bridges the gap between centralized processing and distributed field devices, maintaining high-speed data integrity across long distances. By utilizing coaxial quad-shield RG-6 cabling, the 1771-ACN15 ensures predictable, repeatable performance for mission-critical industrial automation loops.

Technical Specifications

We supply this module as 100% Brand New factory-sealed hardware, ensuring original timing specifications and component reliability.

Parameter	Specification
Communication Rate	5 Mbit/s
Backplane Current	1.0 Ampere at 5 Volts DC
Power Dissipation	5.0 Watts
Thermal Dissipation	17.06 BTU/hr
Network Media	Coaxial Quad-Shield RG-6
Connectors	BNC (Media) and RJ-45 8-Pin (NAP)
Operating Temp	0 to 60 degrees C
Upper Connector Keying	Positions 54 to 56
Lower Connector Keying	Positions 16 to 18
Network Access Port	Local RJ-45 with shield

Engineering Advantages

The 1771-ACN15 solves specific networking and maintenance challenges in legacy automation environments:

Deterministic Data Delivery: Unlike standard Ethernet, ControlNet provides scheduled data transfers. This module guarantees that critical I/O updates reach the processor at exact intervals, eliminating network collisions and jitter.
Ruggedized Physical Layer: The BNC interface utilizes quad-shielded coaxial cable. This architecture provides superior protection against high-frequency electromagnetic interference (EMI) generated by variable frequency drives (VFDs) and heavy machinery.
On-the-Fly Diagnostics: The integrated Network Access Port (NAP) allows technicians to plug in a laptop or programming terminal directly at the chassis. This feature enables real-time troubleshooting of the entire ControlNet branch without disturbing the primary BNC connections.
Simplified Addressing: Two rotary switches on the module faceplate provide clear, hardware-based node addressing (01-99). This physical configuration prevents software-based IP conflicts and simplifies module replacement during downtime events.

FAQs

Does the 1771-ACN15 support redundant media?

No. The 1771-ACN15 features a single BNC port for non-redundant media. For applications requiring dual-cable redundancy for failover protection, you must install the 1771-ACNR15 module.

What is the function of the RJ-45 NAP port?

The Network Access Port (NAP) provides a local connection point for configuration tools and diagnostic software. It does not replace the BNC port for permanent network communication; rather, it facilitates temporary access for commissioning and maintenance.

Can I replace a Series A module with a Series B 1771-ACN15?

Yes. Series B modules maintain full backward compatibility with Series A installations. Series B units offer improved internal hardware components and enhanced durability while retaining the same form factor and configuration requirements.

How does the module receive power?

The 1771-ACN15 draws its required 1.0A current directly from the 1771 chassis backplane. You must ensure the chassis power supply (e.g., 1771-P4 or 1771-P7) has sufficient overhead to support the adapter and all installed I/O modules.
