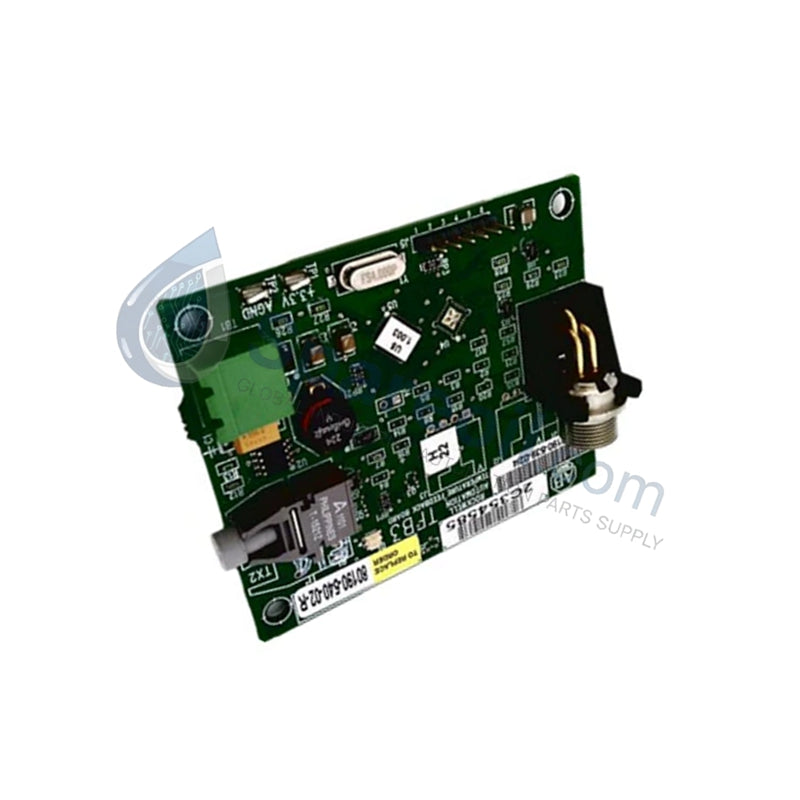

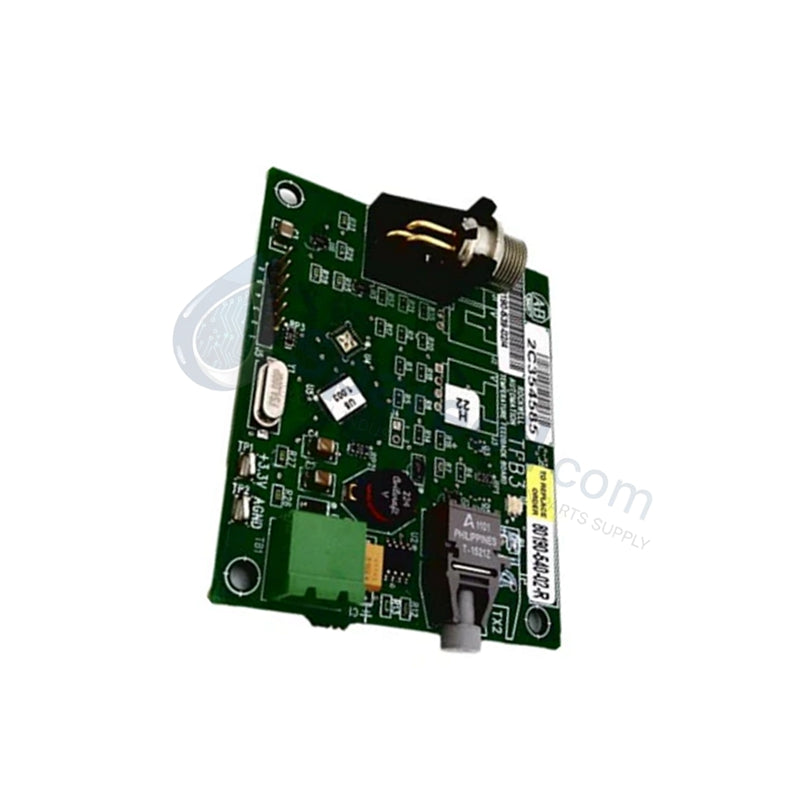

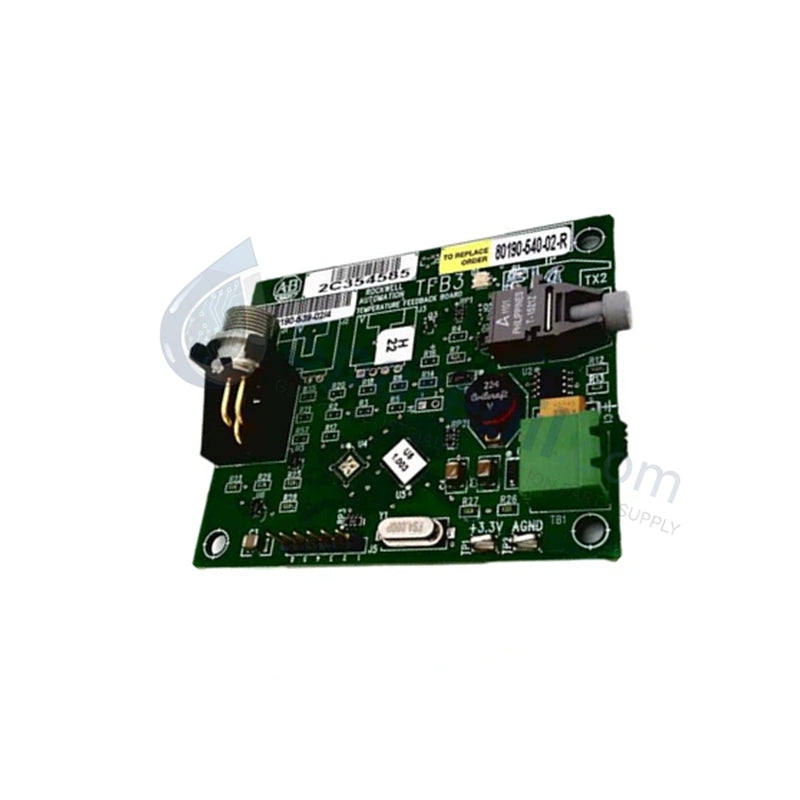

Allen-Bradley 80190-540-02-R 24VDC Control Module

Availability: 20 left in stock

Product Overview The Allen-Bradley 80190-540-02-R serves as a precision sensing and signal conditioning component within the Rockwell Automation industrial ecosystem. This module...

SKU: 80190-540-02-R

Manufacturer: Allen Bradley
Product No.: 80190-540-02-R
Product Type: Signal Conditioning
Product Origin: USA
Payment:T/T, Western Union
Weight: 110g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Allen-Bradley 80190-540-02-R serves as a precision sensing and signal conditioning component within the Rockwell Automation industrial ecosystem. This module bridges the gap between field-level physical variables and PLC/SCADA systems by providing a highly stable 4-20 mA current loop output. Engineered for high-stakes automation, it maintains signal integrity across long distances while protecting sensitive control electronics from industrial electrical noise.

Guaranteed Quality: We supply this product as 100% Brand New original equipment, ensuring full compatibility with your existing Allen-Bradley control architecture.

Technical Specifications

The 80190-540-02-R utilizes high-grade solid-state components to deliver deterministic feedback in real-time:

Specification	Details
Operating Voltage	24 VDC (Nominal)
Current Draw	10 mA
Output Signal	4-20 mA (Analog Current Loop)
Accuracy	±0.5°C / ±0.5% Full Scale
Resolution	0.1°C / 12-16 Bit (Integration Dependent)
Response Time	< 5 Seconds
Operating Temperature	-40°C to +85°C
Dimensions	2.75 x 2.25 x 0.75 inches (70 x 57 x 19 mm)
Weight	0.25 lbs (0.11 kg)
Certification	UL, CE, Class I Div 2

Engineering Advantages

Extreme Thermal Resilience: The module operates across a vast temperature gradient (-40°C to +85°C). This wide window allows for installation in unconditioned outdoor enclosures or near heat-intensive machinery without risking signal drift.
Conformal Coating Protection: Rockwell Automation applies a professional-grade conformal coating to the internal circuitry. This barrier repels moisture, dust, and corrosive airborne contaminants, significantly extending the mean time between failures (MTBF) in chemical or textile plants.
Compact DIN-Rail Integration: The ultra-slim 0.75-inch profile maximizes rail density. You can pack multiple units into tight control cabinets, reducing the overall footprint of your I/O subsystem.
Universal Signal Standardization: By utilizing the industry-standard 4-20 mA loop, this sensor ensures seamless communication with almost any modern PLC or DCS, eliminating the need for expensive proprietary signal converters.

FAQs

Q1: Can I install the 80190-540-02-R in hazardous locations?

A: Yes. The module carries Class I Division 2 certification, making it suitable for environments where flammable gases or vapors may be present under abnormal conditions, provided it is installed according to local electrical codes.

Q2: Is this module hot-swappable?

A: While the 24VDC power supply is robust, we recommend powering down the specific I/O branch before removal to prevent signal spikes or potential damage to the PLC input card.

Q3: How often does this sensor require calibration?

A: Thanks to its high-precision ±0.5% accuracy and low-drift components, the 80190-540-02-R typically requires only annual verification. In stable environments, many engineers extend this interval based on system performance data.

Q4: Does this unit ship with a mounting bracket?

A: The module features an integrated housing designed for direct DIN-rail mounting, allowing for tool-free installation and removal.
