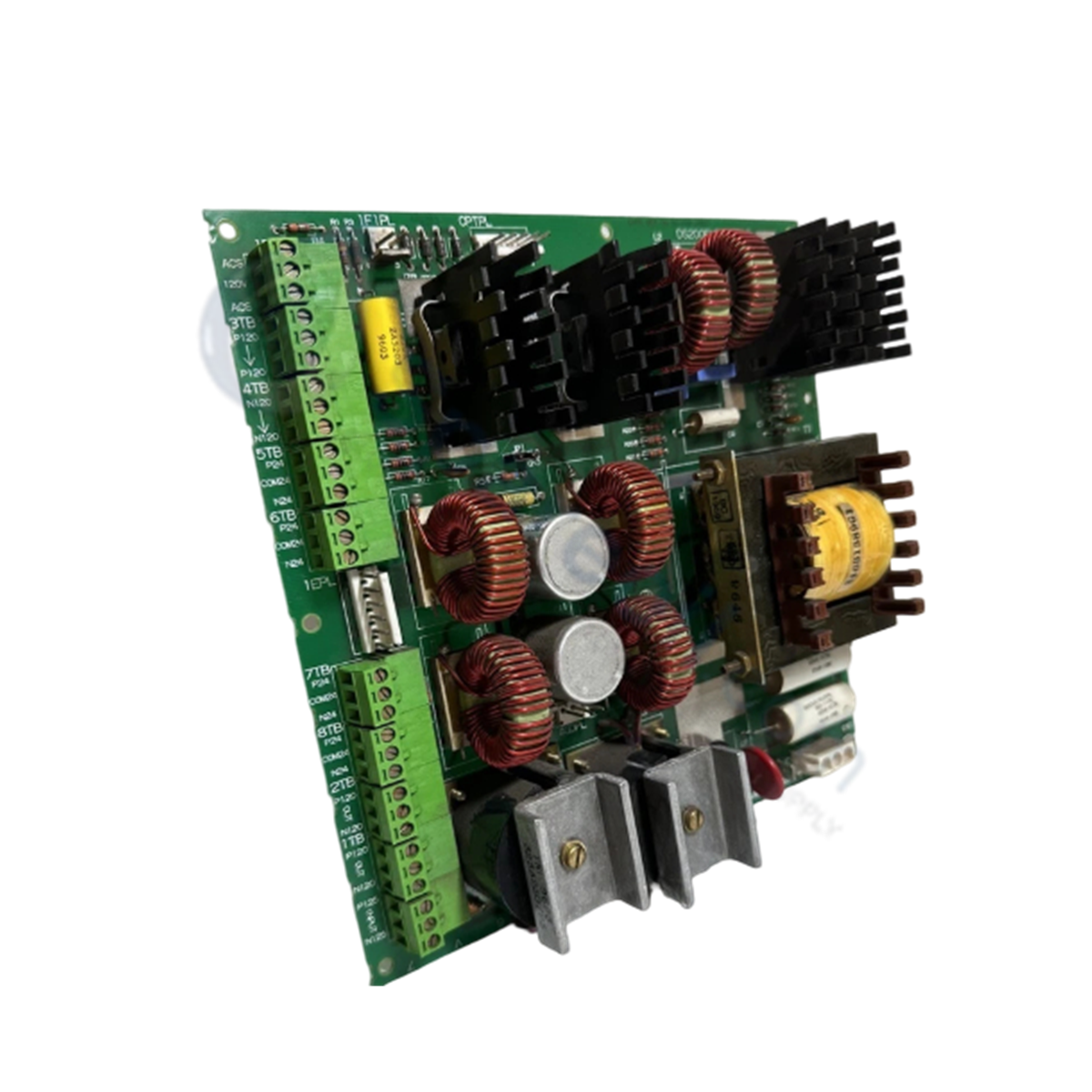

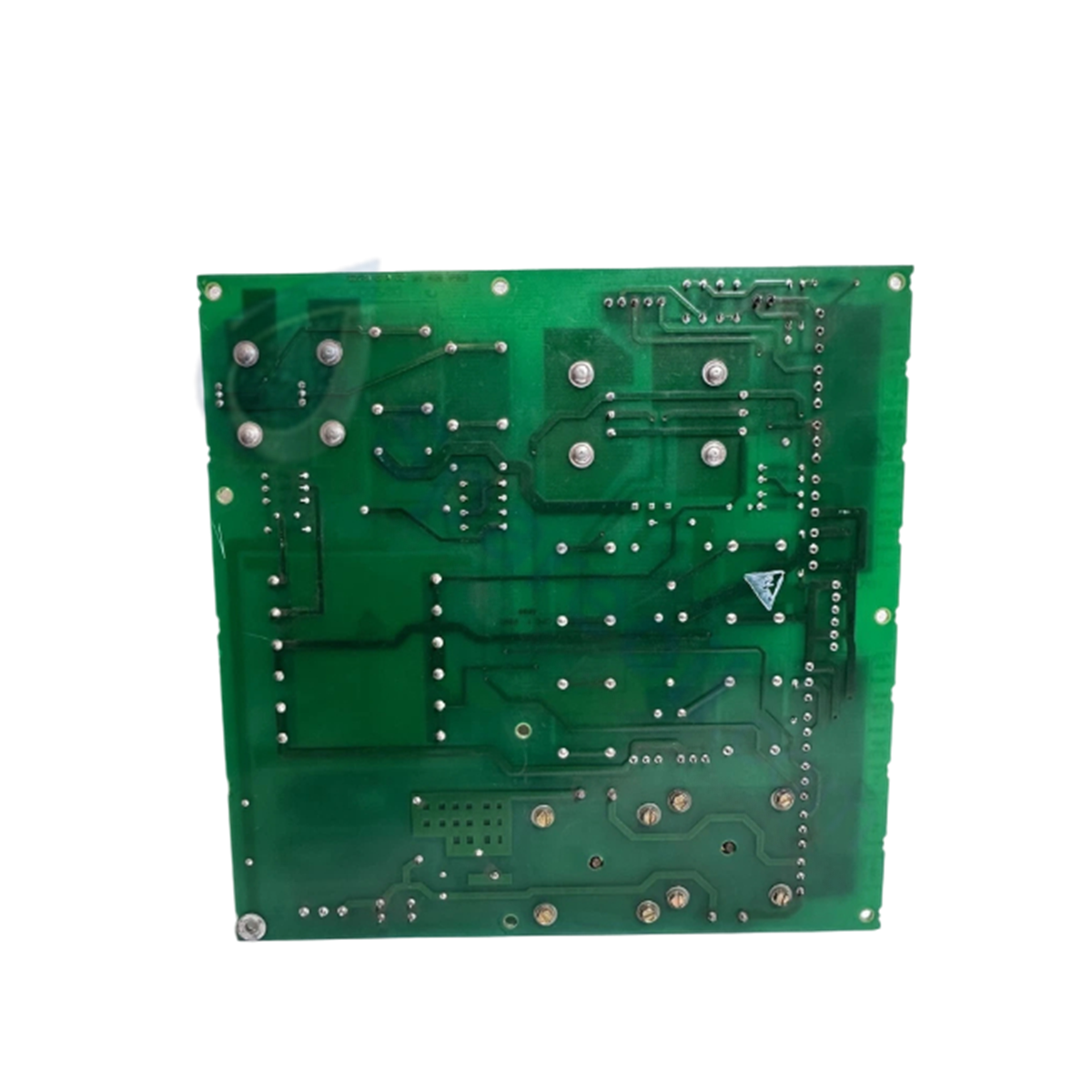

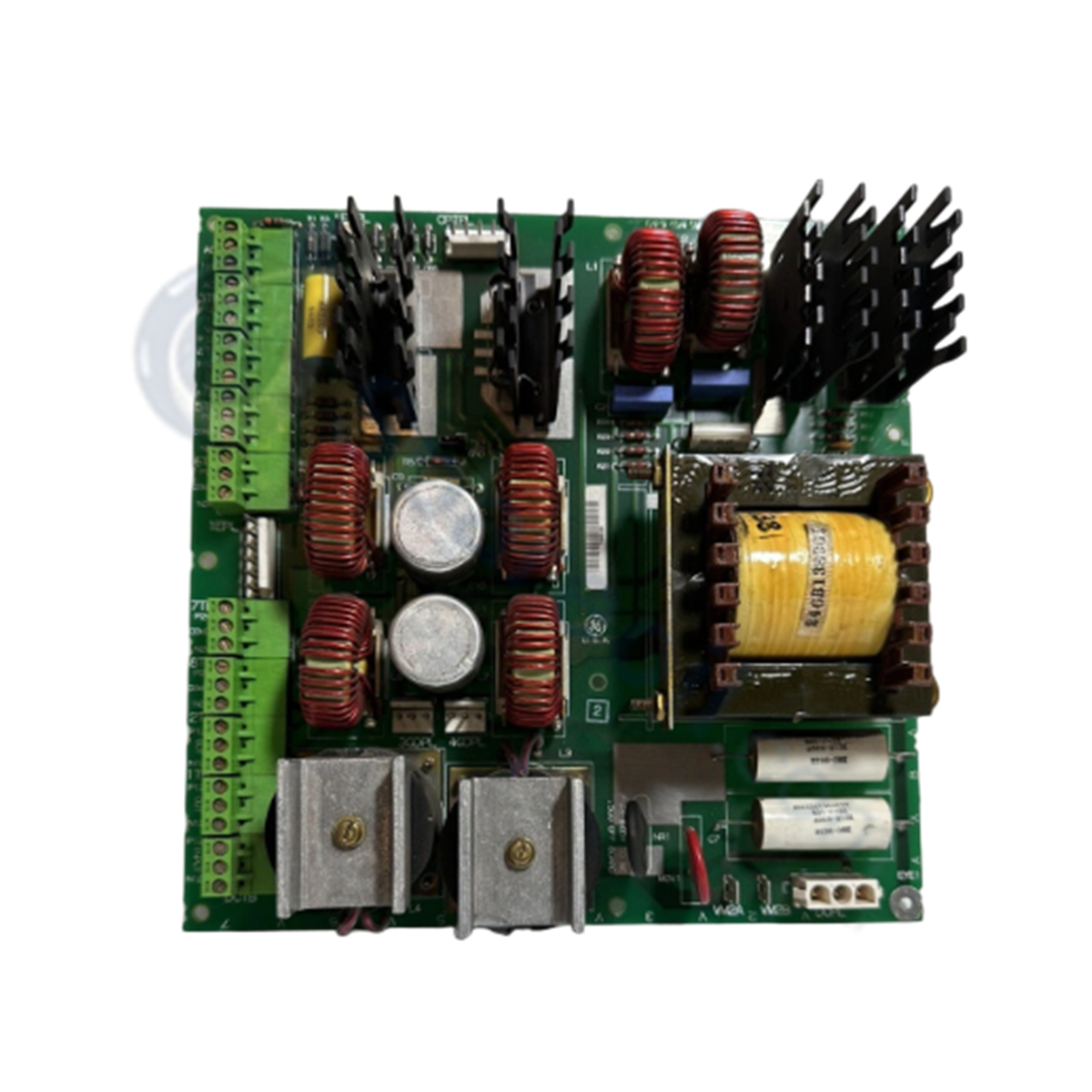

The GE DS200EXPSG1ABB, also cataloged as the EXPS Power Supply Board, operates as a dedicated hardware component for power supply regulation and current-limiting protection within GE EX2000 excitation system platforms.

Hardware Specifications

Parameter Specification
Model DS200EXPSG1ABB
Brand GE (General Electric)
Origin USA
Operating Temp 0 to 60 deg C
Power Consumption Bus-powered / Station battery input conversion
Product Series EX2000 Excitation System
Circuit Functionality AC and DC input power measurement signal generation, power supply regulation, station battery current limiting

Industrial Control & Processing Architecture

The DS200EXPSG1ABB conditions and distributes regulated internal voltages to drive core EX2000 processing and interface hardware. Built-in current-limiting circuitry protects against overcurrent conditions and transients when operating on station battery power. The board outputs precise analog telemetry signals for AC and DC input power measurement, maintaining backplane bus communication velocity and I/O density scaling while ensuring firmware flash compatibility across connected excitation control racks.

Frequently Asked Questions

Q: How does the DS200EXPSG1ABB safeguard components when powered by a station battery?

A: The board contains integrated current-limiting circuitry designed to restrict excessive current flow and prevent damage from unexpected power surges during battery operation.

Q: What primary measurement signals are generated by this module?

A: The module provides isolated measurement feedback signals for monitoring incoming AC and DC input power levels within the EX2000 excitation system.

Q: What is the operating temperature threshold for the board?

A: The module is rated for continuous operation across a temperature range of 0 to 60 deg C.

Field Installation Guidelines

  1. Disconnect all primary AC feeder circuits and station battery power connections to the EX2000 enclosure before servicing the card.
  2. Put on an ESD grounding wrist strap attached to an unpainted chassis earth connection prior to handling the module.
  3. Slide the board carefully into its card cage slot along the guide rails until all backplane interconnects align and seat completely.
  4. Secure the front panel mounting screws to establish mechanical retention and ensure proper grounding to the rack chassis.
  5. Verify all auxiliary wiring connections for power monitoring feedback before re-energizing the excitation panel.
