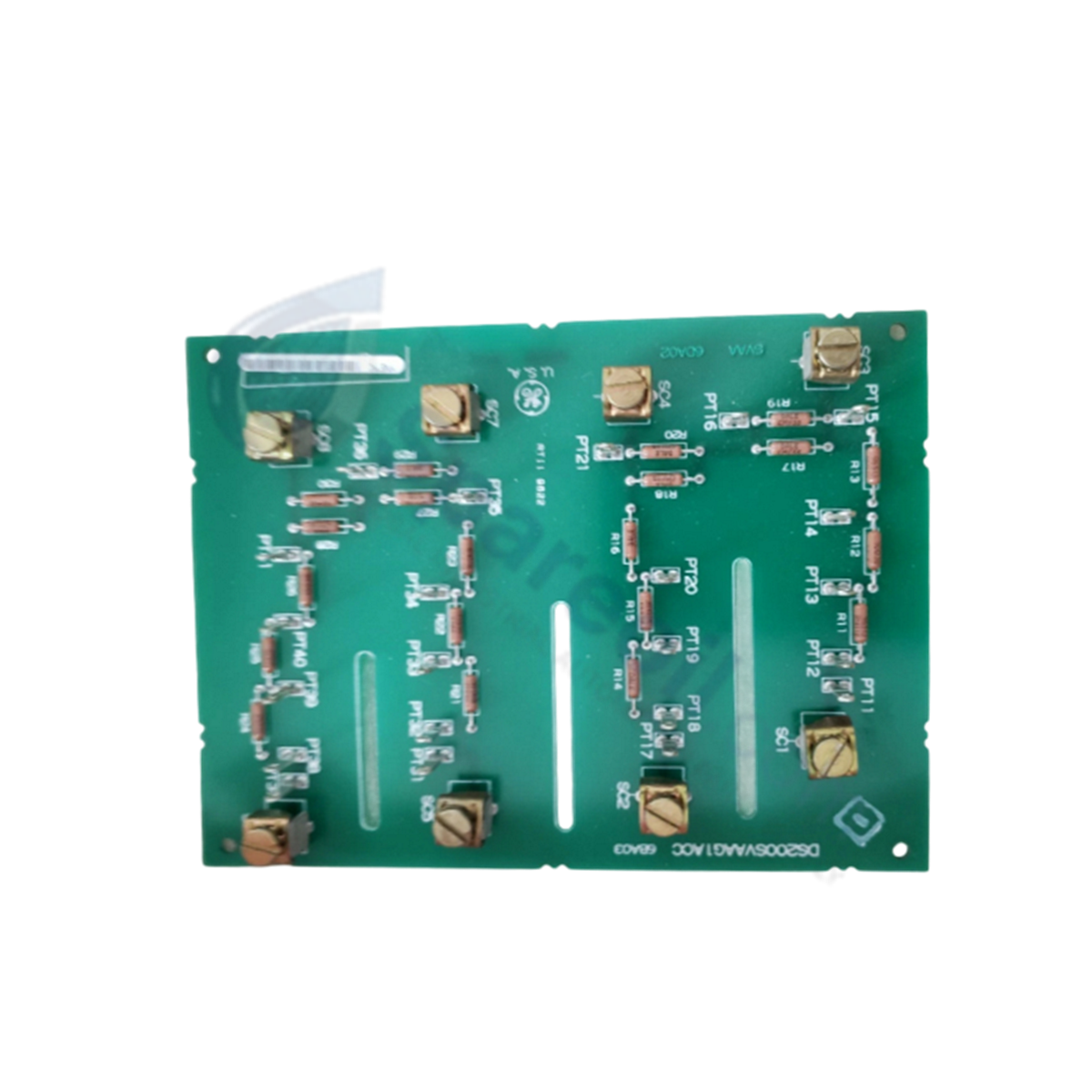

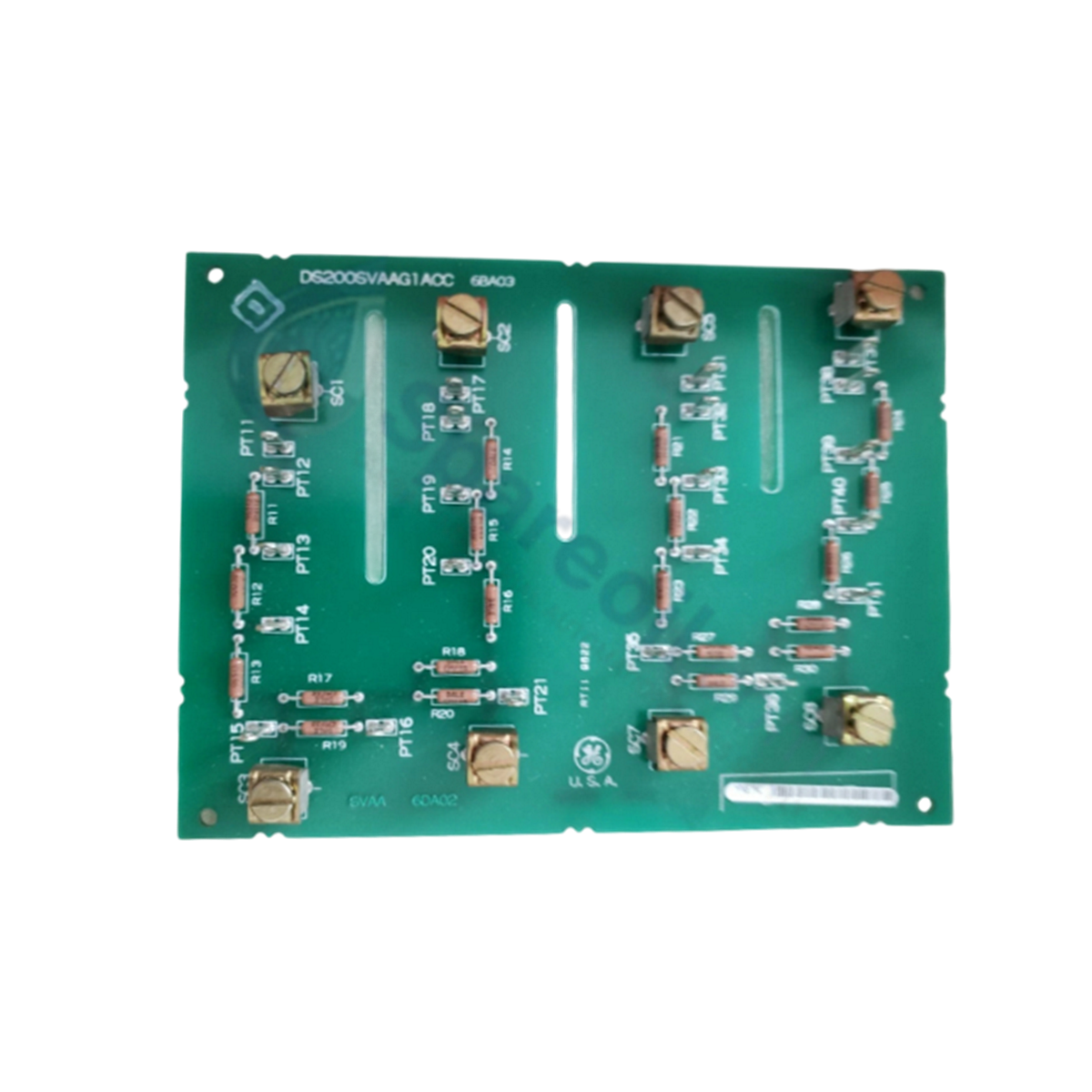

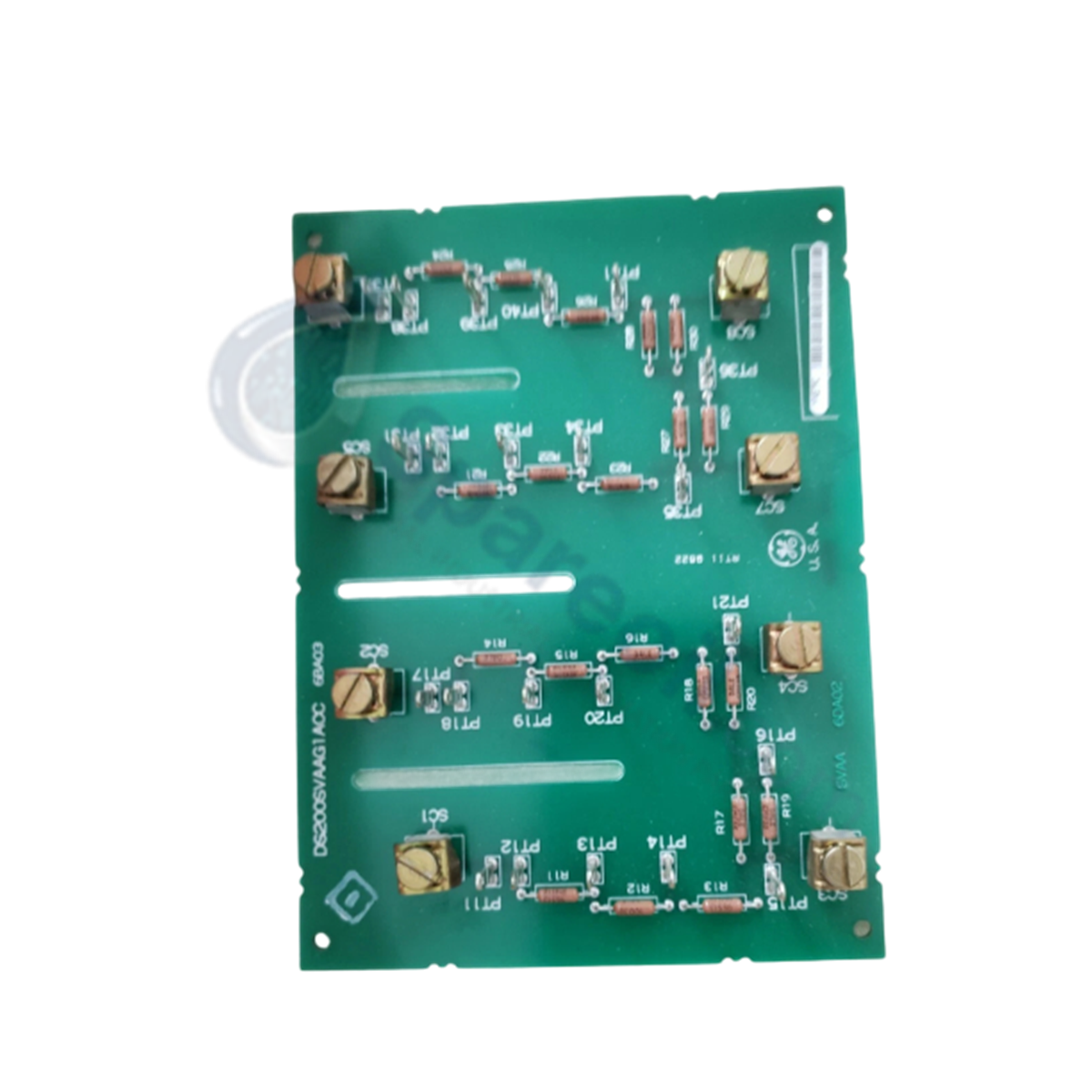

The GE DS200SVAAG1A, also cataloged as the DS200SVAA Voltage Attenuator Card, operates as a dedicated hardware component for high-voltage signal step-down attenuation and analog feedback isolation within Speedtronic Mark V control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200SVAAG1A |
| Brand | GE General Electric |
| Origin | USA |
| Weight | 0.45 kg (0.99 lbs) |
| Dimensions | Standard Mark V Board Profile |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive attenuation network (< 5.0 W) |
| Primary Function | Voltage attenuation and signal scaling |
| Assembly Type | Normal Assembly |
| PCB Coating | Normal Conformal Coating |
| Backward Compatibility | Fully compatible with base model DS200SVAA |
Backplane Bus & Firmware Architecture
The DS200SVAAG1A attenuates field-level feedback voltages into scaled, low-voltage control signals suitable for analog processing loops. Scaled voltage channels pass directly to downstream processing boards across high-density ribbon connectors, maintaining backplane bus communication velocity and preventing signal clipping. Resistor ladder precision and board-level trace routing maintain deterministic channel isolation to support precise I/O density scaling across Mark V control cores. Firmware flash compatibility is managed dynamically by the host Mark V central processor, eliminating the need for onboard software programming or local flash updates during field installation.
Frequently Asked Questions
Q: Does the DS200SVAAG1A require local firmware configuration during replacement?
A: No. The DS200SVAAG1A functions as a hardware voltage attenuation board. Firmware flash compatibility and calibration constants are handled directly by the host Mark V control processor core.
Q: Can the DS200SVAAG1A card be hot-swapped while the turbine control system is online?
A: No. Core power must be completely disconnected and isolated before removing or installing the module to prevent electrical arcing and signal distortion on connected analog feedback channels.
Q: How does the SVAA board protect control electronics from high-voltage transients?
A: The board incorporates high-precision attenuation networks and onboard isolation barriers that step down high incoming line voltages into safe low-voltage signal levels before distribution to backplane processing cards.
Field Installation Guidelines
- Ensure all main power feeds and high-voltage field sensor inputs are completely isolated and verified de-energized prior to handling the board.
- Handle the circuit board by its edges using a grounded ESD wrist strap connected to the enclosure frame to protect sensitive resistor networks.
- Inspect multi-pin ribbon cables and pin headers for bent pins or contamination before securing the connections.
- Torque all chassis mounting standoffs firmly to maintain earth ground frame contact and ensure structural stability against operational vibration.
