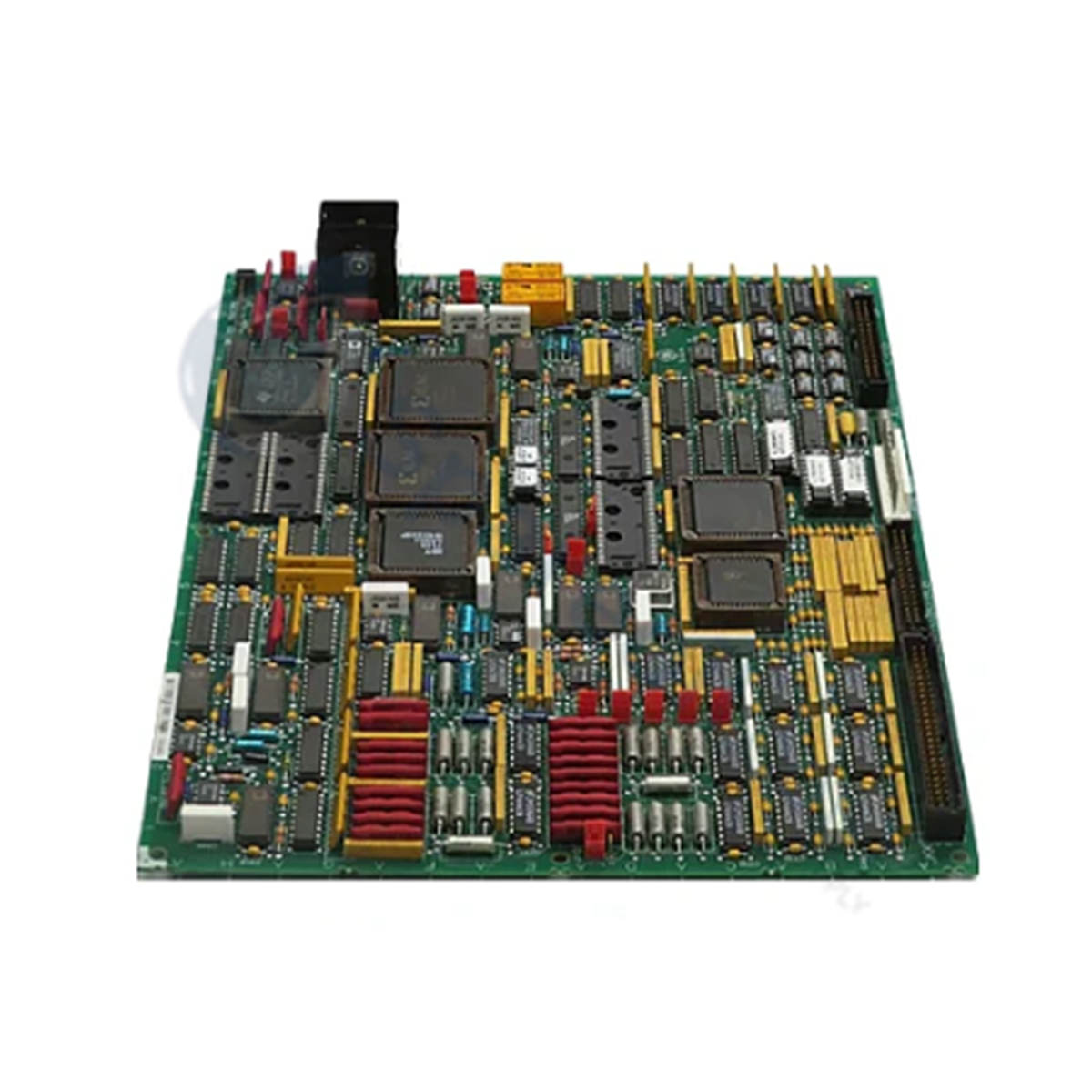

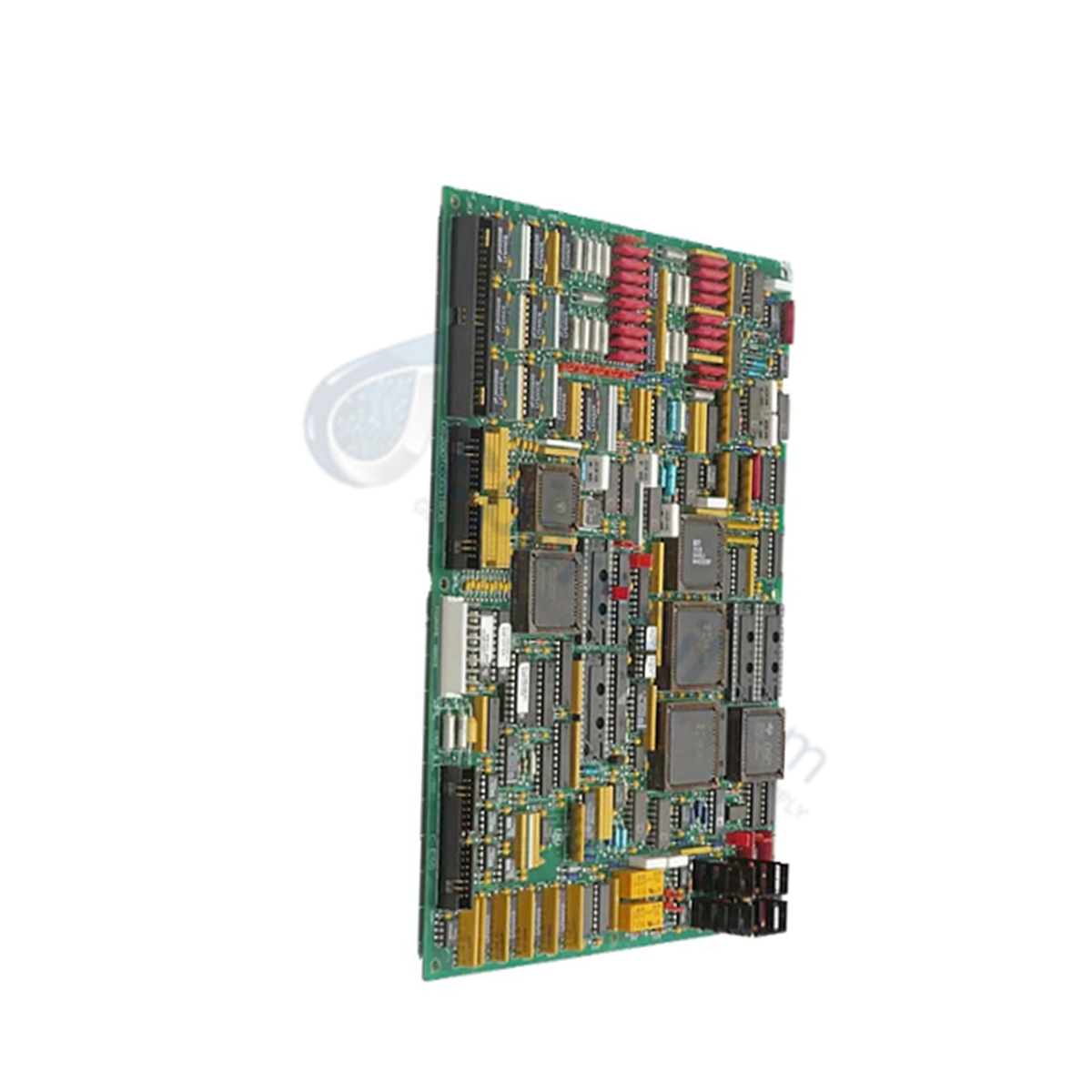

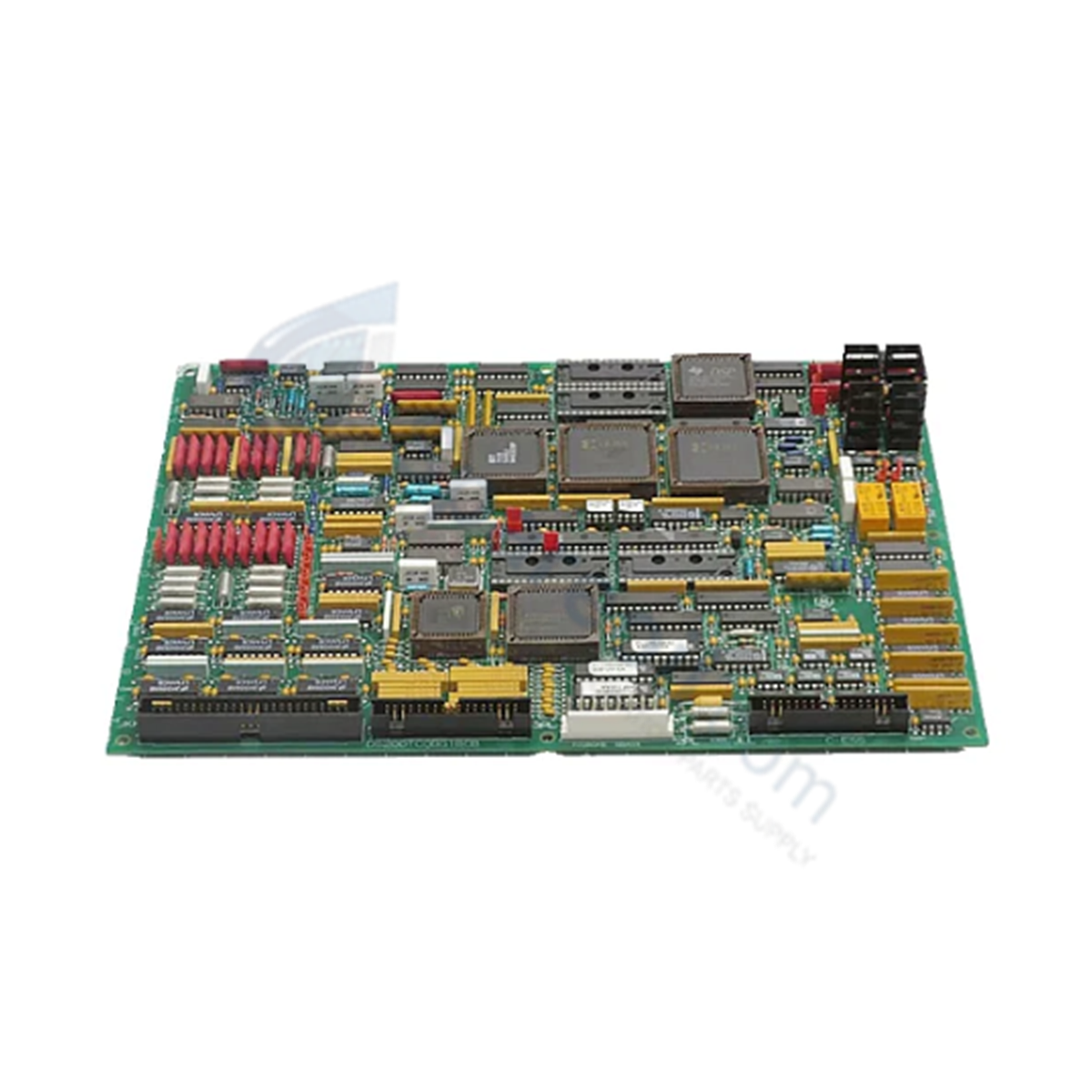

The GE DS200TCQBG1BCB, also cataloged as the DS200TCQB Extended Analog I/O Board, operates as a dedicated hardware component for analog signal conditioning and expanded I/O channel processing within Speedtronic Mark V control systems.

Hardware Specifications

Parameter Specification
Model DS200TCQBG1BCB
Brand GE General Electric
Origin USA
Weight 0.92 kg (2.03 lbs)
Dimensions Standard Mark V Board Profile
Operating Temp 0 to 60 deg C
Power Consumption Logic and analog processing loop (< 10.0 W)
Signal Interface Multi-channel analog inputs and outputs
Assembly Type Normal Assembly
PCB Coating Normal Conformal Coating
Backward Compatibility Compatible with first two revisions (DS200TCQBG1)

Backplane Bus & Firmware Architecture

The DS200TCQBG1BCB converts field analog signals into digitized internal registers, passing data directly across multi-pin headers to optimize backplane bus communication velocity. High-density trace routing enables deterministic I/O density scaling across R, S, and T protective control cores. Operational timing and firmware flash compatibility are anchored directly to the host Mark V processor assembly, allowing the TCQB module to execute precise analog conversion without requiring standalone localized firmware updates during board replacement.

Frequently Asked Questions

Q: Is hot-swapping supported for the DS200TCQBG1BCB board during active turbine operation?

A: No. Power to the core rack must be fully isolated before removal or insertion to prevent damage to analog front-end circuits and avoid triggering system diagnostics.

Q: Is the DS200TCQBG1BCB backward compatible with older DS200TCQBG1 base configurations?

A: Yes. The DS200TCQBG1BCB retains full physical footprint and pinout backward compatibility with the first two revisions of the DS200TCQBG1 series.

Q: How are field analog signals isolated on the DS200TCQBG1BCB?

A: The board incorporates onboard signal conditioning networks and differential filtering circuits to suppress common-mode noise across incoming analog channels before passing data to the backplane.

Field Installation Guidelines

  • Isolate all primary cabinet power sources and disconnect external field sensor wiring prior to installing or removing the assembly.
  • Inspect multi-pin ribbon cables for pin alignment before mating with header connectors to prevent mechanical damage.
  • Maintain shield wire ground continuity at designated single-point cabinet grounding bars to reduce high-frequency electrical interference.
  • Ensure all panel mounting standoffs are securely torqued to guarantee proper frame grounding and mechanical stability.
