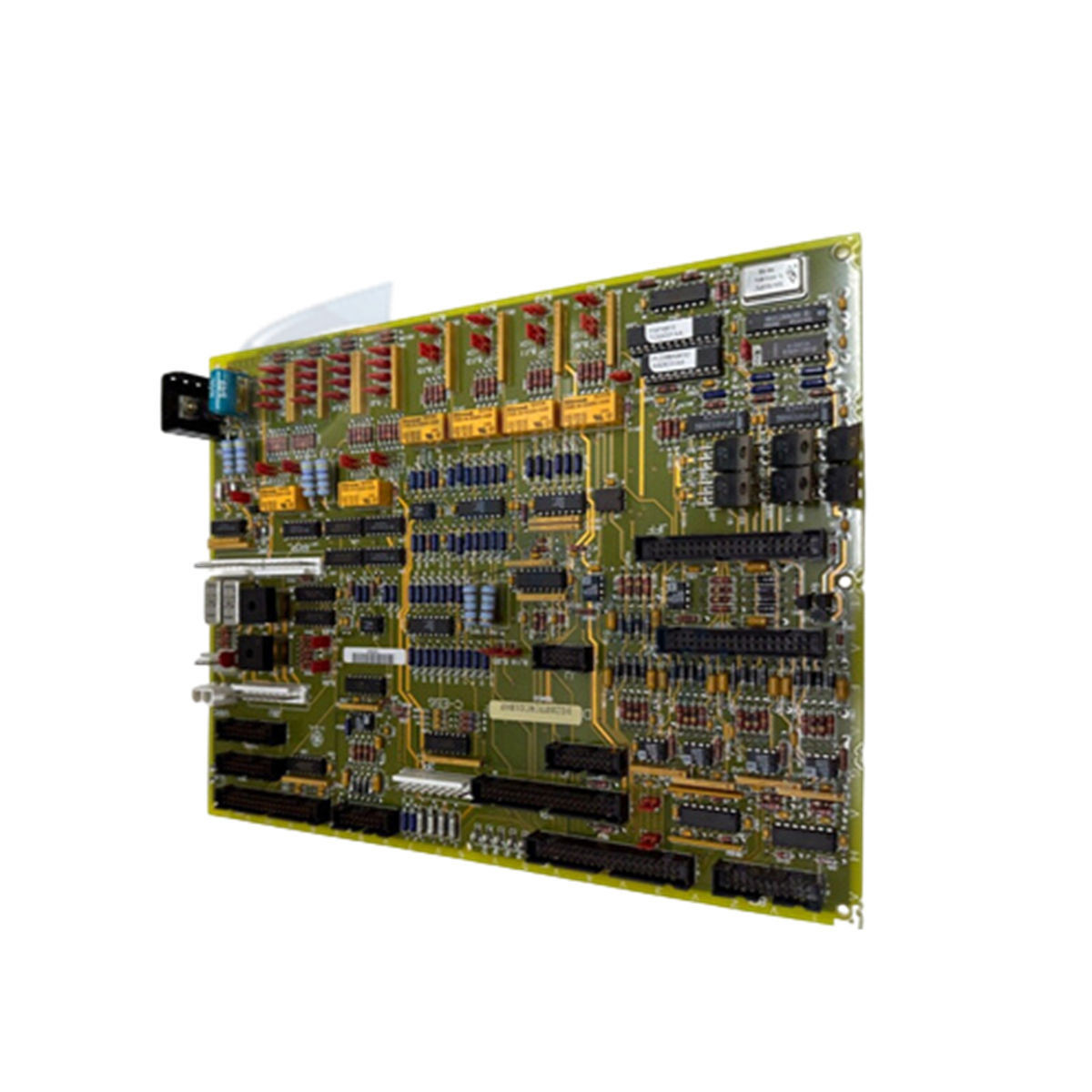

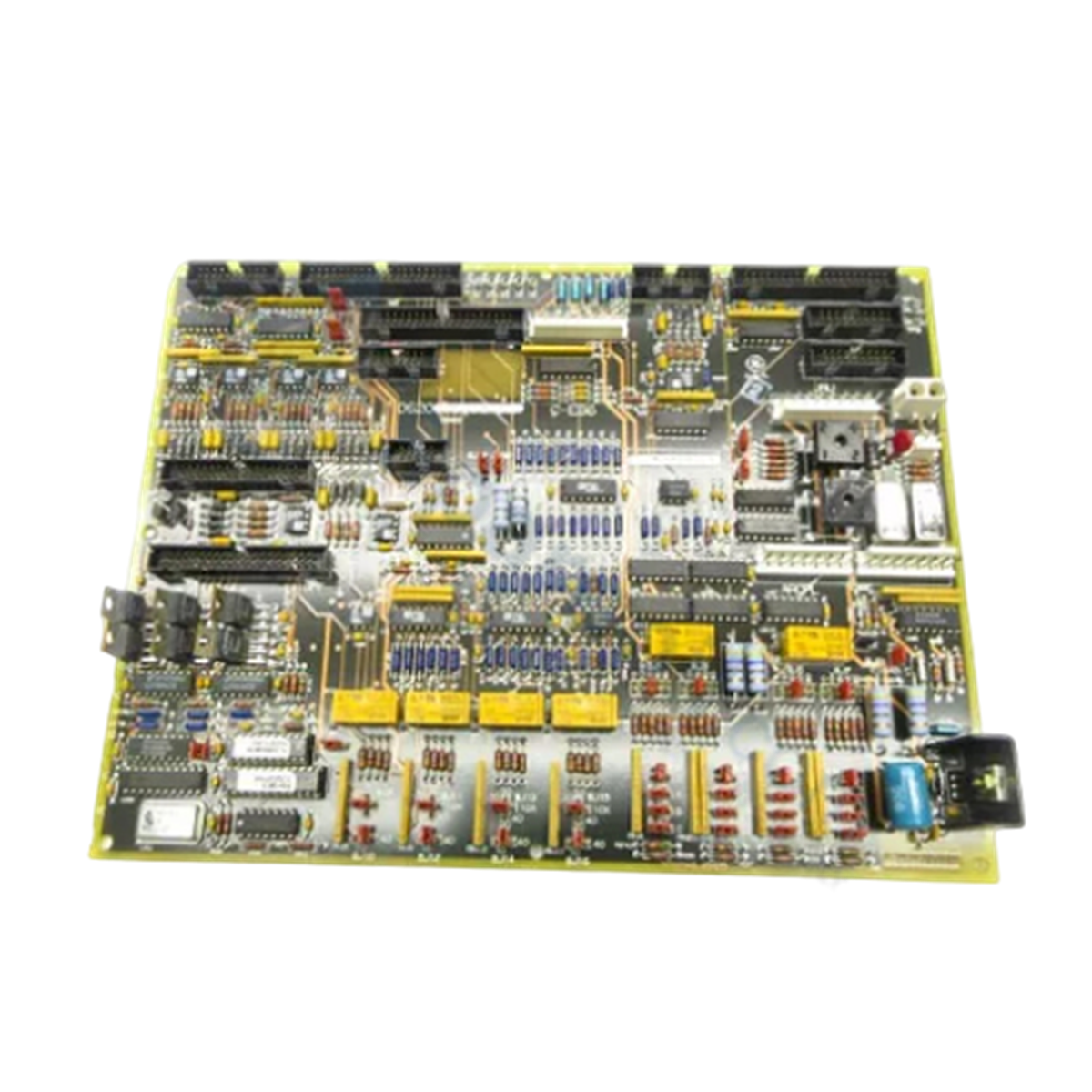

The GE DS200TCQCG1BHF, also cataloged as the TCQC Analog I/O Expander Board, operates as a dedicated hardware component for LVDT/LVDR position feedback excitation and analog signal processing within GE Speedtronic Mark V turbine control architectures.

Suffix Breakdown & Model Matrix

Revision Component Designator Code Description
Base PCB Architecture DS200 Standard GE Mark V domestic baseline PCB layout
Functional Acronym TCQC RST Overflow / Analog I/O Expander Board
Group Variant G1 Group 1 base product configuration
1st Functional Revision B First functional circuit revision
2nd Functional Revision H Second functional circuit revision
Artwork Revision F Base circuit trace layout and artwork revision

Hardware Specifications

Parameter Specification
Model DS200TCQCG1BHF
Brand GE (General Electric)
Origin USA
Operating Temp 0 to 60 deg C
Power Consumption Bus-powered via internal rack assembly
Product Series Speedtronic Mark V / EX2000
PCB Protective Coating Normal Coating
Onboard Interconnects 11 vertical pin cable connectors, 5 male vertical pin headers, 1 vertical female plug
Hardware Configuration 37 jumper switches, over 25 resistor network arrays
Discrete Onboard Components 6 relay modules, over 40 integrated circuits, heat sink, TP test points

Industrial Control & Processing Architecture

The DS200TCQCG1BHF provides expanded analog signal acquisition and excitation voltage generation for Linear Variable Differential Transformers (LVDT) and Rotary Transformers (LVDR). Integrated within Triple Modular Redundant (TMR) R/S/T architecture, the card processes critical sensor signals to maintain deterministic backplane bus communication velocity and I/O density scaling. Onboard jumper configurations match hardware logic pathways across system revisions while supporting long-term firmware flash compatibility.

Frequently Asked Questions

Q: How are field wiring harnesses connected to the DS200TCQCG1BHF?

A: Signals interface through 11 vertical pin cable connectors, five male vertical pin header connectors, and one vertical female plug connector distributed across the board.

Q: What physical hardware checks are required prior to installing a replacement board?

A: The board features 37 configurable jumper switches; all jumper positions on the replacement board must be set to match the exact configuration of the original unit prior to power-up.

Q: How does this board interface with valve position feedback components?

A: The card generates excitation signals specifically designated for LVDT and LVDR position sensors and conditions incoming feedback for the main processors.

Field Installation Guidelines

  1. Power down the host turbine control cabinet completely and verify that all power sources are isolated.
  2. Put on an ESD wrist strap connected to a bare metal grounding point on the cabinet rack before handling the board.
  3. Compare all 37 jumper positions on the new board against the original card and adjust them to match identical hardware settings.
  4. Align the PCB corners with the rack mounting posts and secure the board using the corner mounting holes, ensuring proper orientation.
  5. Reconnect all cable harnesses to their corresponding vertical pin connectors, confirming locking mechanisms engage to prevent signal interruption.
