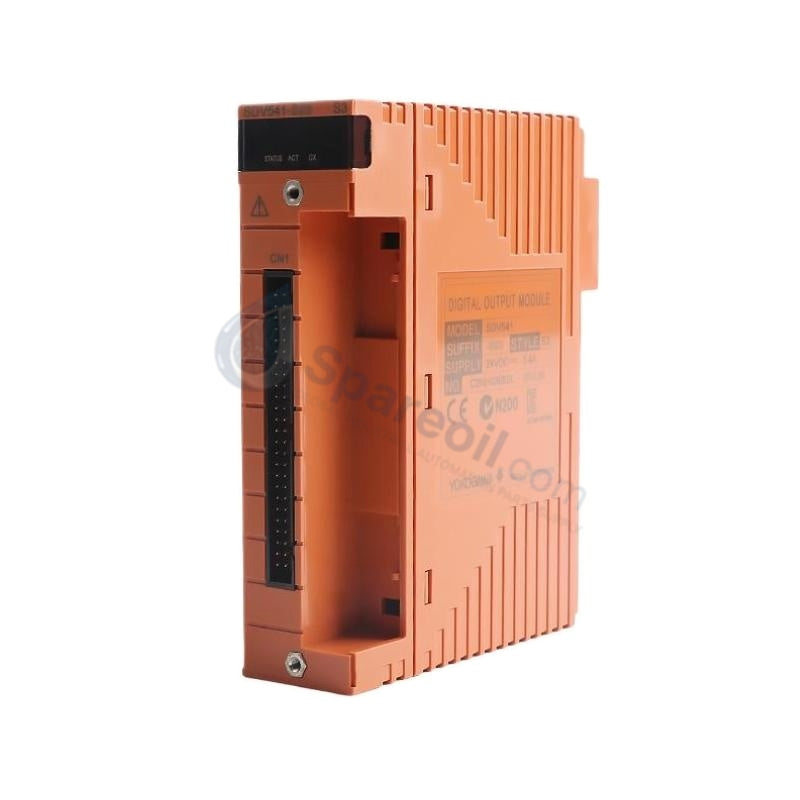

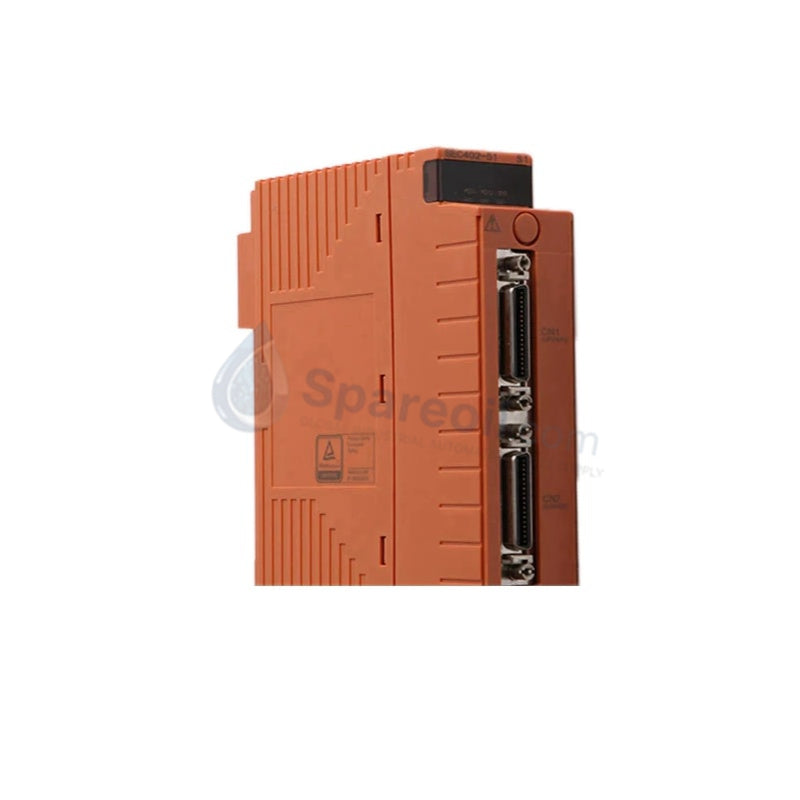

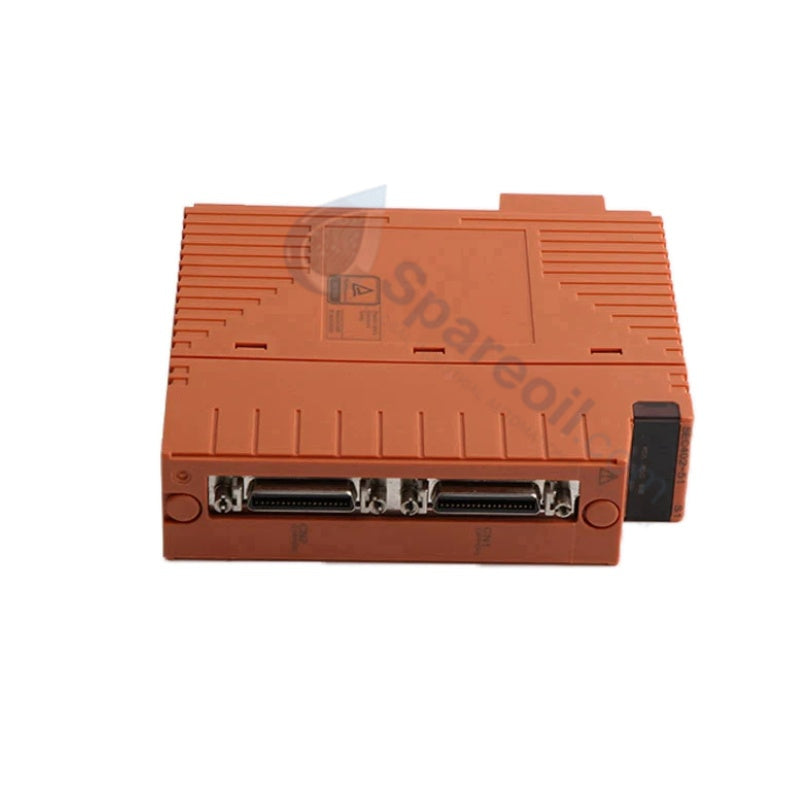

YOKOGAWA SDV541-S63/PRP Digital Output Module

Configured for Specific Technical Task in System/Network Name, the YOKOGAWA SDV541-S63/PRP (SDV541 Digital Output Module) provides direct physical/electrical execution. The hardware switches discrete control commands from the safety or control processor to inductive and resistive field loads, including solenoids, relays, and interlock pilot components. Operating with active physical keying mechanisms, the device runs a continuous 16-channel command cycle using discrete electrical states while driving dedicated terminal paths across a structured network node.

Suffix Breakdown & Model Matrix

Code Component Type Technical Assignment
SDV541 Base Model Digital Output Module (16-channel, 24 VDC, module isolation)
-S Suffix Standard type hardware architecture
6 Suffix Equipped with signal cable interface adapter / Non-explosion proof design
3 Suffix Certified ISA Standard G3 conformal coating / Extended temperature range (-20 to 70 deg C)
/PRP Option Outfitted with prevention pin of false insertion to block incorrect module alignment

Hardware Specifications

Parameter Specification
Model SDV541-S63/PRP
Brand Yokogawa
Origin Japan
Weight 0.29 to 0.31 kg (Net module weight) / 3 kg (Shipping package weight)
Dimensions Standard FIO form factor for direct rack slot placement
Operating Temp -20 to +70 deg C
Power Consumption Max 300 mA at 5 VDC (Internal logic), Max 150 mA at 24 VDC (System side)
Channel Count 16 isolated output channels
Nominal Output 24 VDC current sourcing
Maximum Load 0.2 A per channel (Accumulated limit of 3.2 A total per module)
External Power 24 VDC nominal (+20% / -10%), minimum 3.4 A supply rating
Loop Response Time Turn-on and turn-off logic execution within 30 ms
Isolation Voltage 2 kV AC dielectric withstand rating for 1 minute (Output-to-system boundary)
Environmental Code ISA G3 corrosion tolerance validation

Process Control System Technical Characteristics

Integrating within the CENTUM VP and ProSafe architecture, this module provides discrete execution through robust channel-to-channel isolation parameters. These boundaries prevent high-voltage surges and ground loops from compromising the internal system logic buses. The configuration bypasses external terminal blocks through dedicated cable adapters, running 4-20 mA HART loop protocol routing alongside discrete cables in separated wire ways, while mechanical interlocks physically prevent mismatched I/O module configuration errors during field swaps.

Frequently Asked Questions

Q: How does the /PRP option modify the mechanical installation process of the module?

A: The /PRP option provides a physical keying pin that aligns with a specific socket matrix on the signal cable interface. This mechanical interference pattern physically blocks the technician from inserting the SDV541 into an incorrect or miswired I/O slot, preventing destructive voltage mismatches on field terminations.

Q: Can this module interface directly with high-power AC solenoids or active inductive loads exceeding 0.2 A?

A: No. Individual channel loads must not exceed 0.2 A DC. Driving AC loads or high-current DC elements requires routing the channel outputs through external interposing relays or contactors sized appropriately for the specific field device current envelope.

Q: Is online hot-swapping permitted for the SDV541-S63/PRP during active system execution?

A: Yes. The hardware framework allows online removal and replacement while the system backplane is live. Technicians must verify that the replacement unit carries identical suffix options and that the /PRP keying pin configuration aligns properly before pushing the module into the active slot.

Field Installation Guidelines

  • Chassis Engagement: Slide the module cleanly along the vertical guide rails of the designated I/O node slot. Press firmly inward until the backplane interface completes its mechanical seating, then tighten the faceplate retention fasteners.
  • Cable Interface Pairing: Use only dedicated signal cables matching option code /SDV541 or /DV541 to engage the /PRP hardware prevention pin mechanism. Ensure all retention latches click home to eliminate intermittent loop contact.
  • Separation Rules: Route the 24 VDC discrete output lines inside separated wire ways away from high-voltage AC electrical lines. Maintain a minimal physical separation distance of 300 mm to suppress electromagnetic cross-coupling.
  • Ground Verification: Confirm the main Instrument Earth bus bar inside the rack panel displays a low-resistance path to the facility grounding matrix. Ensure all structural ground spring contacts are clean and unpainted.
