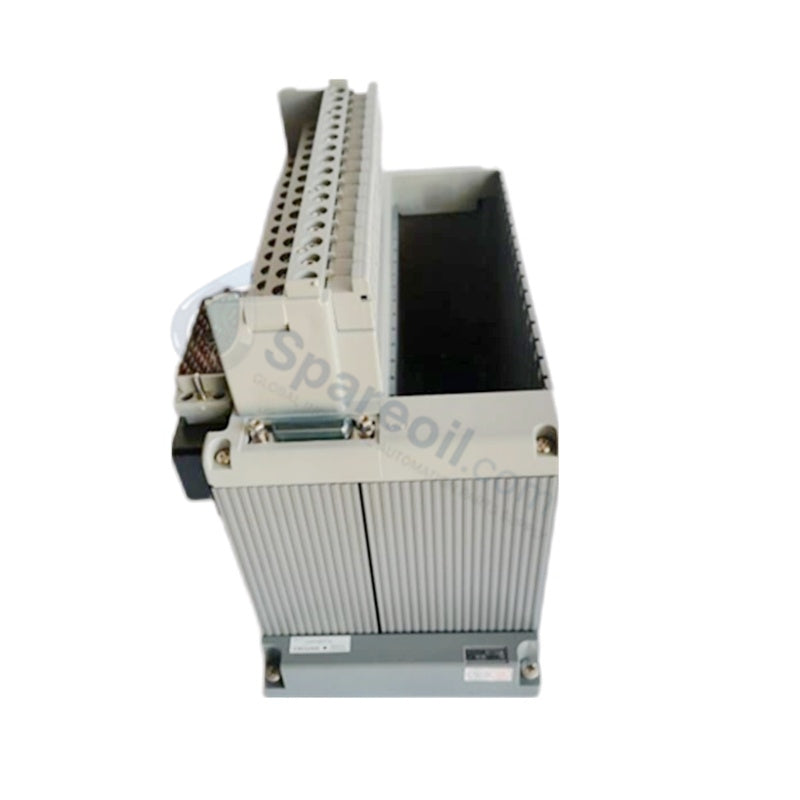

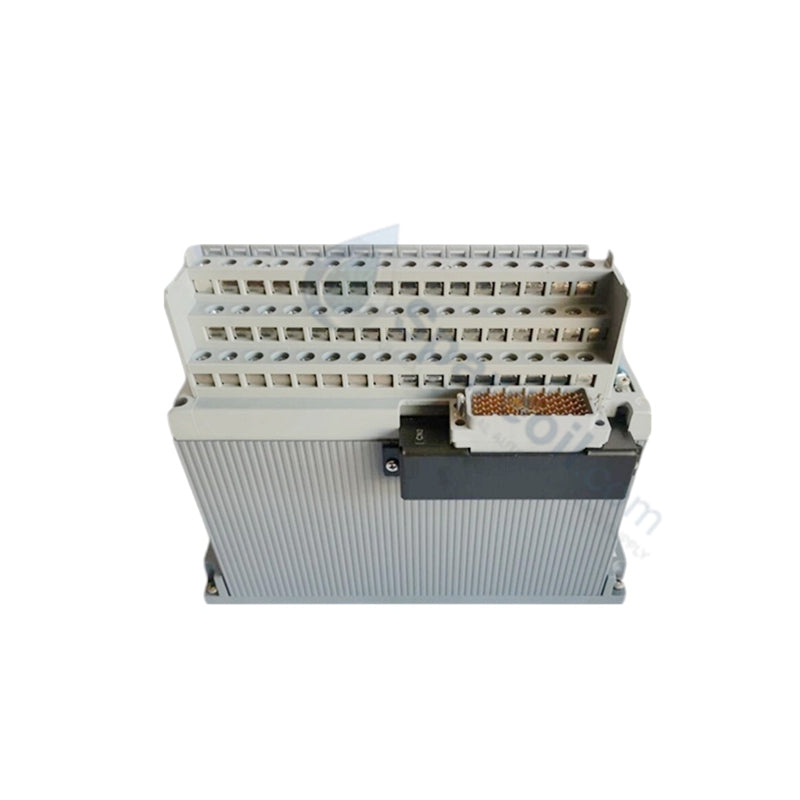

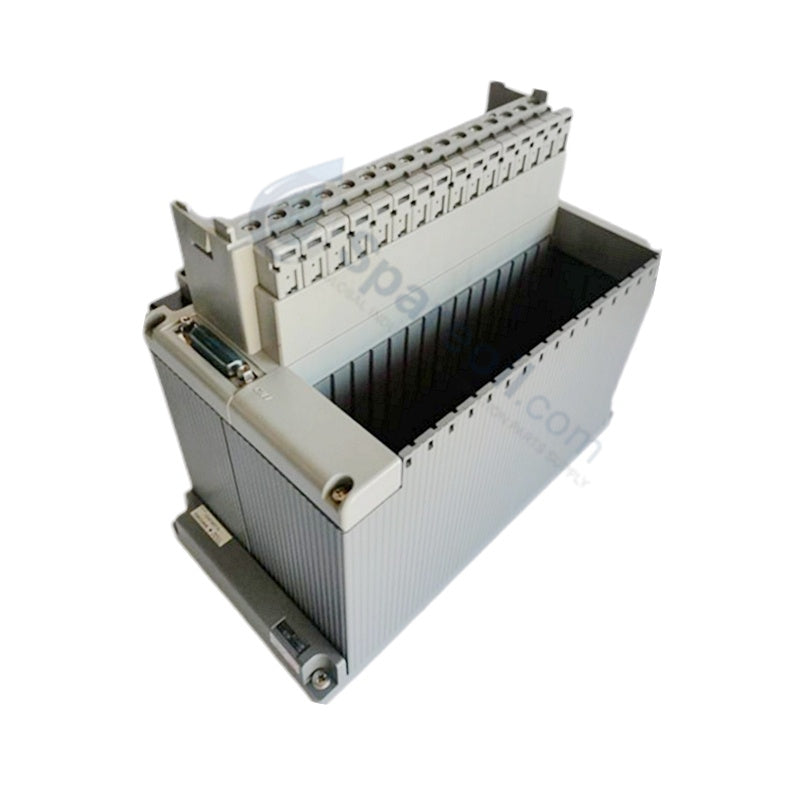

AMN51 Yokogawa CENTUM Communication Card Nests

Availability: 10 left in stock

Yokogawa AMN51 Nest for Communication Modules The Yokogawa AMN51, also cataloged as the AMN51 Nest for Communication Modules, operates as...

SKU: AMN51

Manufacturer: Yokogawa
Product No.: AMN51
Product Type: Communication Card Nests
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 4000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AMN51 Nest for Communication Modules

The Yokogawa AMN51, also cataloged as the AMN51 Nest for Communication Modules, operates as a dedicated hardware component for housing, backplane interface management, and power distribution within CENTUM CS 1000, CS 3000, and CENTUM VP systems. It establishes physical data links between the Field Control Station (FCS) and external devices by routing native signals through its integrated BN-bus architecture. The device functions purely as an electrical and mechanical infrastructure frame, delegating all upper-layer protocol processing execution directly to the slide-in communication modules.

Hardware Specifications

Parameter	Specification
Model	AMN51
Brand	Yokogawa
Origin	Japan
Weight	4-6 kg (Depending on slot configuration)
Dimensions	Standard Yokogawa rack format
Operating Temp	0 to +50 deg C (Standard industrial parameters)
Power Consumption	Determined by installed communication card load
System Compatibility	CENTUM CS 1000, CS 3000, CENTUM VP, Compact FCS
Backplane Interface	BN-bus backplane assembly
Supported Modules	General-purpose communication cards, Ethernet modules
Mechanical Design	Industrial-grade structure, cabinet mountable
Power Distribution	Integrated dual-bus internal power rail distribution
Isolation & Shielding	Chassis ground isolation loops, terminal block shielding

Process Control System Technical Characteristics

Operating within the core CENTUM hardware architecture, the backplane assembly utilizes a specialized layout to eliminate signal degradation across high-frequency pathways. Grounding links enforce galvanic channel-to-channel isolation parameters between the logic control layer and the peripheral physical networks, preventing transient spikes from destabilizing the station bus. Furthermore, while the chassis provides electrical stability, engineers execute all node allocations, serial parameters, and IP address bindings externally via the system engineering workstation software.

Frequently Asked Questions

Q: Does the AMN51 backplane support the hot-swap insertion of communication cards during online operation?

A: No. Removing or inserting communication modules into the AMN51 rack while the backplane power distribution rail is energized can cause bus disruptions or hardware damage. Power down the specific nest subsystem before executing card maintenance or replacements.

Q: Can the AMN51 nest directly process Modbus or PROFIBUS network protocols?

A: No. The AMN51 possesses no microprocessors or software logic layers to parse industrial protocols. It serves strictly as a physical housing and electrical routing matrix; protocol handling relies entirely on the processing capabilities of the individual slide-in modules.

Q: What are the consequences of failing to connect the BN-bus backplane terminators?

A: Omitting the proper termination blocks on the BN-bus backplane causes signal reflection along the communication path. This results in frame errors, high latency, or total loss of data synchronization between the installed communication cards and the parent Field Control Station.

Field Installation Guidelines

Mounting and Alignment: Fasten the nest assembly securely into a standard industrial cabinet using factory-approved brackets. Ensure all four mounting points are tight to minimize structural vibration and maintain vertical alignment.
Grounding Connection: Run a heavy-gauge, low-impedance copper conductor from the chassis grounding terminal directly to the functional Instrument Earth grid. Never loop this safety ground through power distribution ground wires or motor drive paths.
Cable Routing and Shielding: Route all internal BN-bus cables and external serial or Ethernet lines through dedicated low-voltage wiring trays. Maintain a physical distance of at least 300 mm from high-voltage AC cables to reduce electromagnetic interference.
Conduit and Entry Points: Seal all field wire entry points at the cabinet gland plate to prevent dust ingress. Ensure all field cables use proper strain-relief clamps so that mechanical weight does not pull against the delicate backplane connector terminals.
