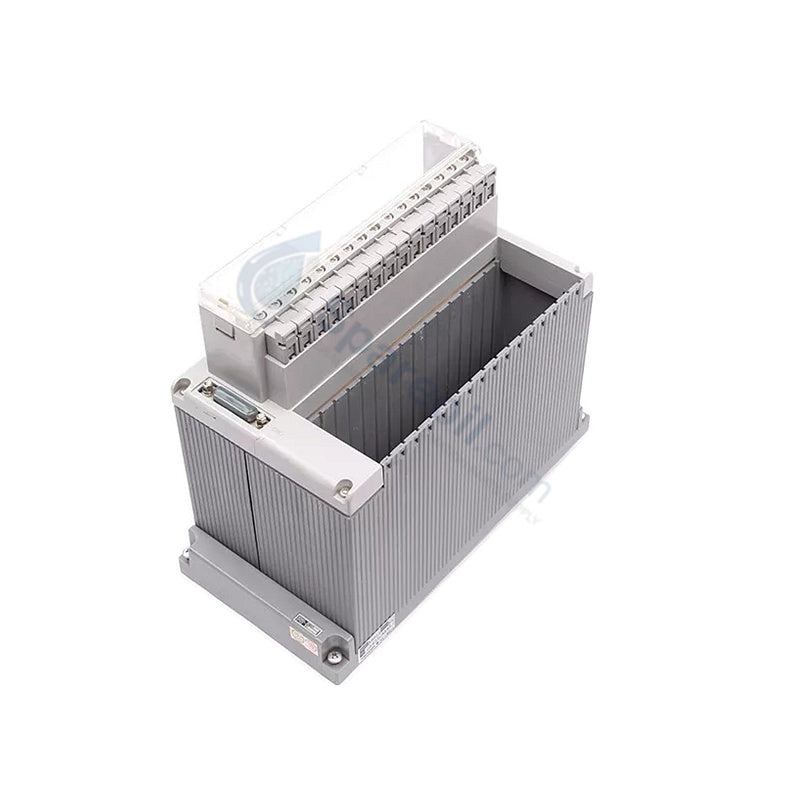

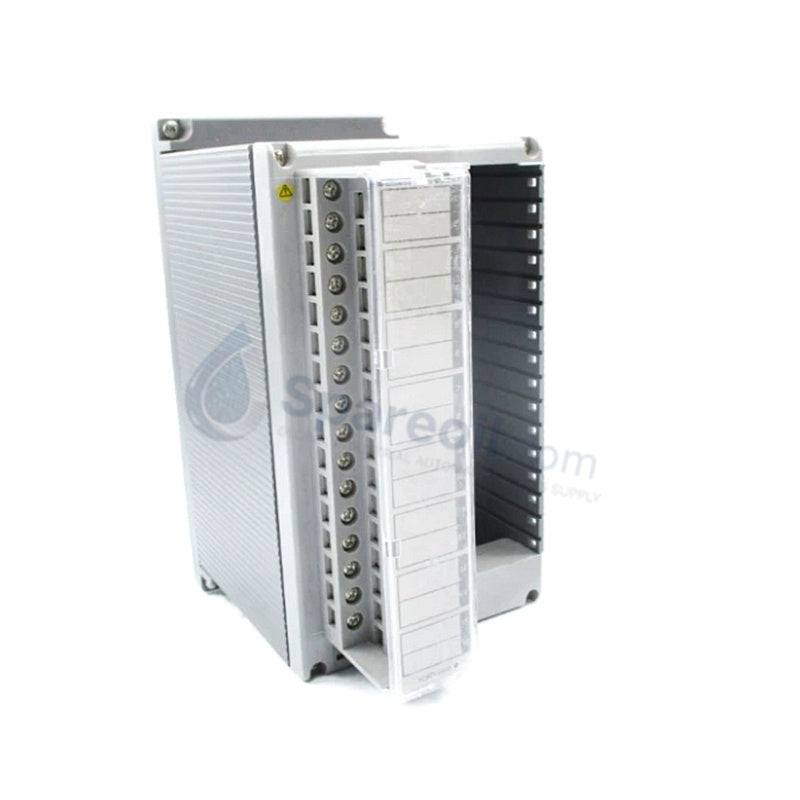

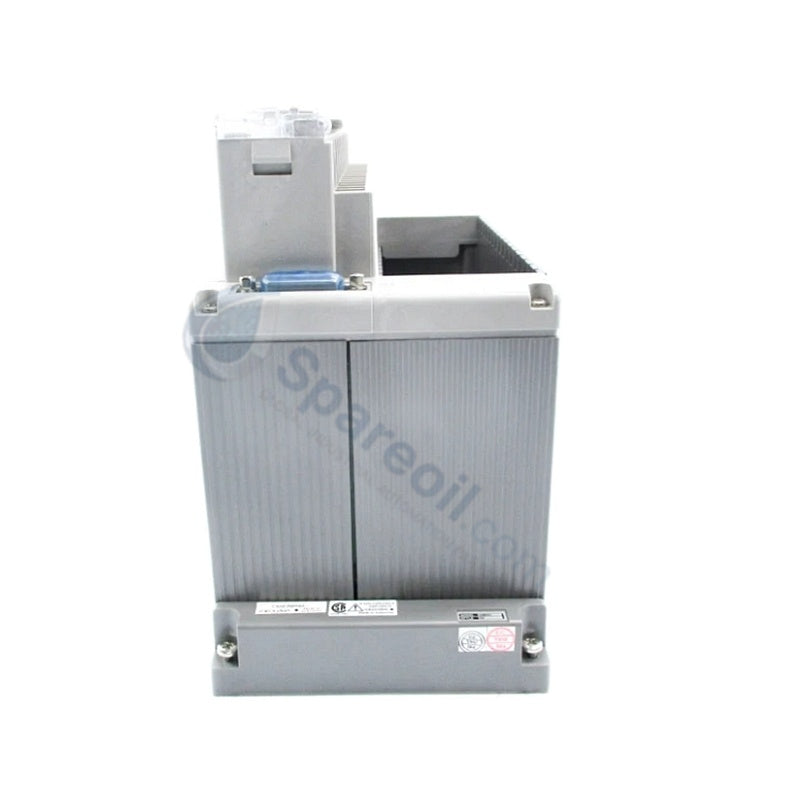

YOKOGAWA AMN12T-S2 Analog I/O Module Nest

Configured for high-speed analog signal processing in process networks, the YOKOGAWA AMN12T-S2 (AMN12T Analog I/O Module Nest) provides direct physical/electrical execution. The hardware establishes the structural framing, localized power distribution, and backplane bus connections required to interface up to 12 analog input/output modules with the central processor. It manages high-density sensor routing across field arrays while executing continuous background electrical monitoring to prevent channel cross-talk during active measurement operations.

Hardware Specifications

Parameter	Specification
Model	AMN12T-S2
Brand	Yokogawa
Origin	Japan
Weight	4.5 kg
Dimensions	420 mm x 180 mm x 120 mm
Operating Temp	-20 to +60 deg C
Power Consumption	15 W base (Excluding installed module load)
Module Capacity	Up to 12 analog I/O module slots
Backplane Communication	V-net high-speed bus, 10 Mbps deterministic
Power Distribution	Redundant +24 VDC input, per-slot current limiting
Scan Cycle	Less than or equal to 100 ms for full 12-module configuration
Vibration Resistance	5-55 Hz, 0.5G continuous (IEC 60068-2-6)
Mounting	Standard 35 mm DIN rail with locking mechanism
Certifications	CE, UL508, FM Class I Div 2

Process Control System Technical Characteristics

Operating inside the native CENTUM VP DCS ecosystem, the nest incorporates dedicated hardware paths to sustain 4-20 mA HART loop protocol pass-through signals between field transmitters and internal processing cards. The backplane utilizes structural channel-to-channel isolation matrices to ground transient voltage spikes before they propagate to the core communication channels. Furthermore, integrated cold junction compensation pathways cooperate with active input circuitry to maintain thermal measurement reference parameters across varying local ambient configurations.

Frequently Asked Questions

Q: Does the AMN12T-S2 assembly allow hot-swapping of field modules while the backplane is fully energized?

A: Yes. The hardware design features electrical isolation barriers and current-limiting features per slot, which allow maintenance technicians to remove or replace individual analog modules online without disrupting adjacent channels or interrupting bus traffic.

Q: What happens to data updates if one of the dual redundant +24 VDC power supply feeds experiences a sudden voltage drop?

A: The nest uses an internal diode-OR power distribution scheme. If one supply feed drops out, the secondary rail assumes the full electrical load instantly without causing dropouts, communication latency variations, or data corruption on the V-net bus.

Q: Can this nest accept third-party PLC or DCS analog acquisition cards?

A: No. The physical keying, physical slot dimensions, and internal 10 Mbps V-net backplane bus are proprietary to Yokogawa architectures. Attempting to fit third-party cards will cause mechanical misalignment and electrical damage to the connector pins.

Field Installation Guidelines

Enclosure Orientation: Mount the nest horizontally onto a rigid 35 mm DIN rail within a sealed control cabinet. Secure the integrated locking mechanisms to prevent lateral movement caused by low-frequency industrial vibrations.
Grounding Architecture: Connect the integrated metal chassis grounding plane directly to a dedicated functional Instrument Earth using a short, low-impedance copper strap. Keep this pathway isolated from any noisy safety grounds used for variable speed drives.
Cable Separation: Route sensitive analog signal lines in separate wire ways away from high-voltage AC cables. Maintain a minimum clear distance of 300 mm between the signal trays and any AC distribution lines to eliminate induction noise.
Shield Continuity: Terminate field instrument shields at the designated cabinet grounding block. Do not ground both ends of the instrument cable shield to prevent building up destructive ground loops across the analog loop.
