SAV144-S33 Yokogawa ProSafe-RS Datasheet & Technical Manual

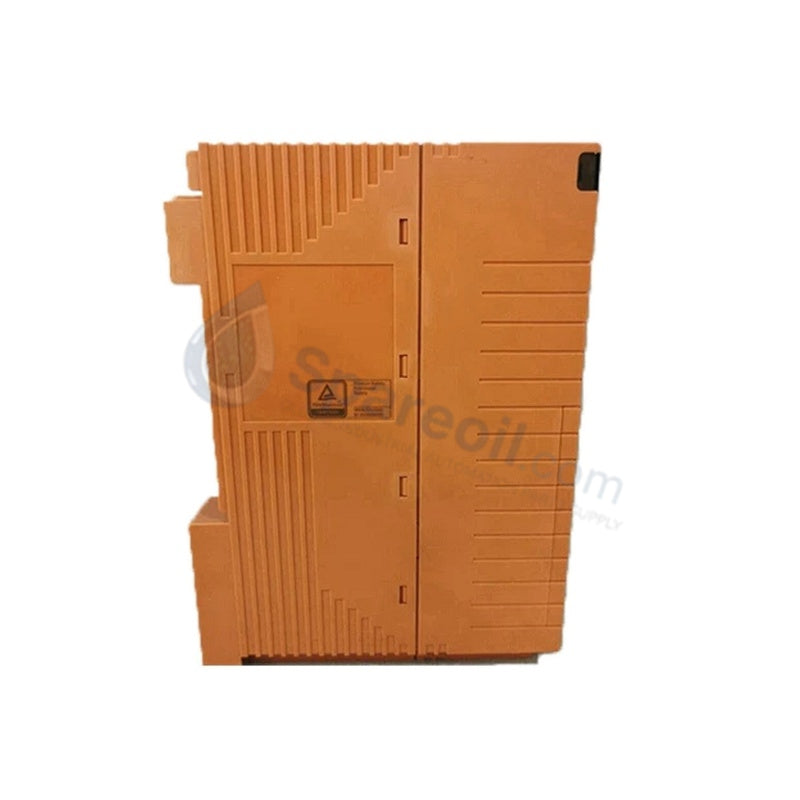

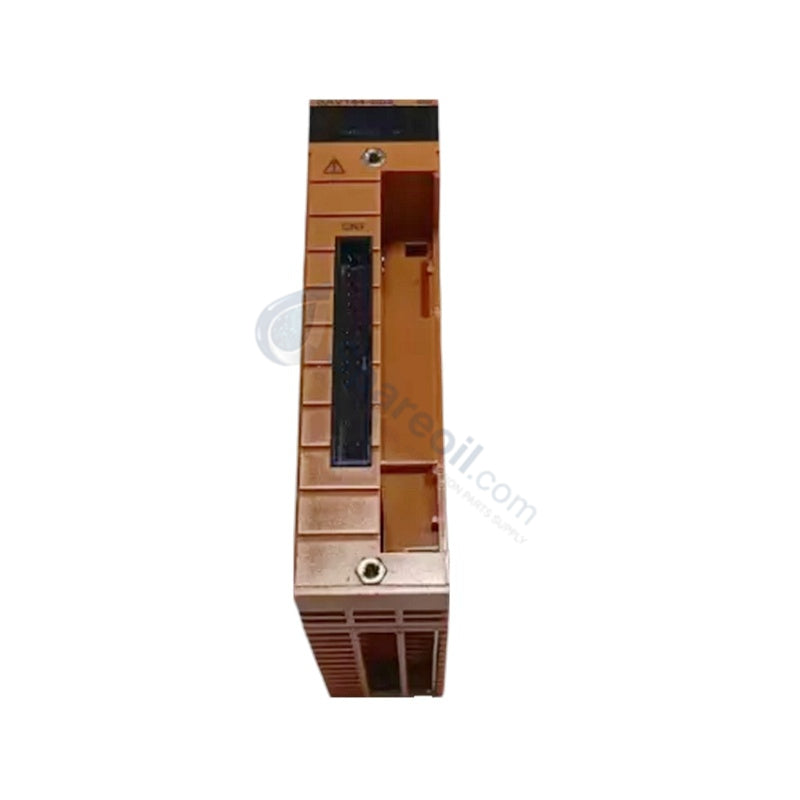

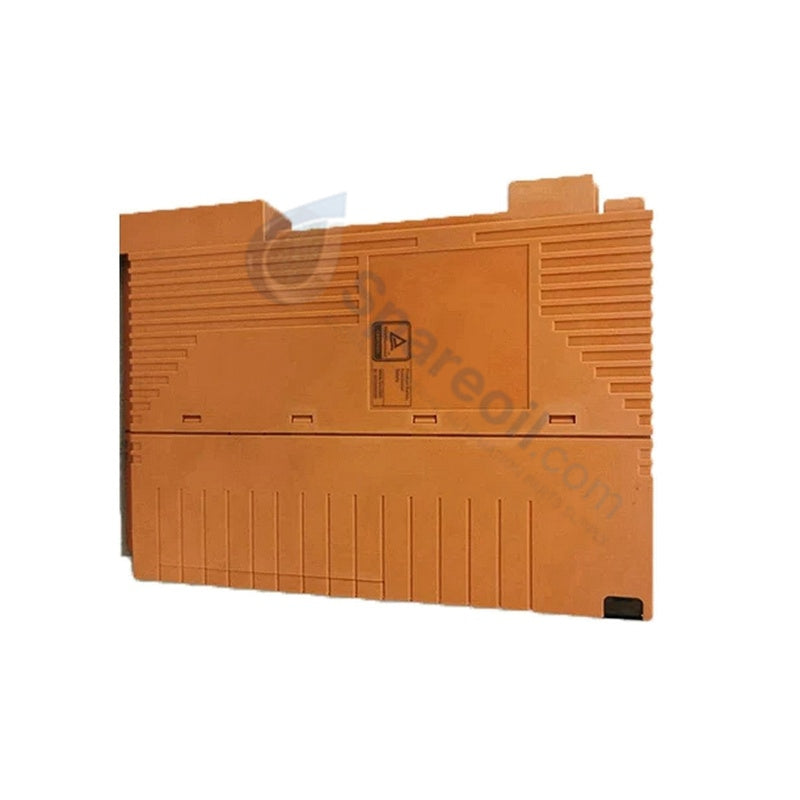

Yokogawa SAV144-S33 ProSafe-RS Analog Input Module

Yokogawa SAV144-S33 ProSafe-RS Analog Input Module

Availability: 10 left in stock

YOKOGAWA SAV144-S33 Analog Input Module The YOKOGAWA SAV144-S33 serves as the primary SAV144 Analog Input Module utilized to execute high-accuracy...

SKU: SAV144-S33

Manufacturer: Yokogawa
Product No.: SAV144-S33
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

YOKOGAWA SAV144-S33 Analog Input Module

The YOKOGAWA SAV144-S33 serves as the primary SAV144 Analog Input Module utilized to execute high-accuracy voltage measurements across CENTUM VP and ProSafe-RS platforms. The hardware processes 16 isolated signal channels, translating physical field voltage ranges into digitized process variables for safety instrumented systems and regulatory control networks. Internal conditioning components maintain high-impedance loads during operation to mitigate signal attenuation and secure real-time transmission over the system node interface backplane.

Hardware Specifications

Parameter	Specification
Model	SAV144-S33
Brand	Yokogawa
Origin	Japan
Weight	0.3 kg
Dimensions	125 mm (W) x 130 mm (D) x 248 mm (H)
Operating Temp	-20 to +60 deg C
Power Consumption	1.5 W (300 mA at 5 VDC system bus voltage)
Channel Density	16 isolated channels
Rated Input Range	1 to 5 VDC or 1 to 10 VDC
Permissible Input Range	±30 VDC maximum limit
Input Impedance (Power ON)	1 MΩ minimum
Input Impedance (Power OFF)	100 kΩ minimum
Measurement Accuracy	±4 mV (1 to 5 VDC range) / ±9 mV (1 to 10 VDC range)
Module Response Time	Less than or equal to 5 ms detection threshold
System Compatibility	CENTUM VP, ProSafe-RS
Environmental Protection	ISA G3 corrosion resistance conformal coating

DCS Channel-to-Channel Isolation Matrix

The hardware architecture deploys comprehensive channel-to-channel isolation parameters to isolate adjacent measurement pathways from differential voltage spikes and localized ground loop disruptions. This structural arrangement interfaces with the 4-20 mA HART loop protocol when dropped across precision external conversion shunts, routing filtered data directly into the safety system registers. By maintaining complete electrical separation between individual signal inputs and the internal 5 VDC backplane logic, the module eliminates common-mode interference and cross-talk across the 16 measurement channels.

Frequently Asked Questions

Q: How does the shift in internal input impedance from 1 MΩ down to 100 kΩ during power-off states affect the active loop?

A: When power to the SAV144-S33 drops out, the hardware impedance switches down to 100 kΩ. This drop increases the current load pulled from the attached field loops, meaning technicians must verify that field transmitters can source this current without over-ranging or suffering voltage collapse.

Q: Can this module monitor 24 VDC discrete switch contacts directly given its input configuration?

A: No. While the permissible safety limit handles up to ±30 VDC without physical damage, the measurement converters are calibrated strictly for the high-precision 1 to 5 VDC and 1 to 10 VDC ranges. Standard 24 VDC digital input states will saturate the analog registers and register as out-of-scale faults.

Q: What mechanisms govern dual-redundancy synchronization when two modules populate a single node slot?

A: The node backplane connects both cards to redundant tracking pathways. The standby card continuously mirrors the configuration parameters and processes field inputs in parallel. If a diagnostic watchdog trips on the primary module, the system switches active bus arbitration to the standby module within the native cycle window without introducing signal drops.

Field Installation Guidelines

Module Insertion Alignment: Align the card rails with the assigned slot within the Node Interface Unit chassis. Push the hardware home until the rear pin block seats into the backplane connector, then tighten the faceplate retention fasteners.
Shield Ground Terminal Configuration: Terminate all incoming signal cable braided shields directly to the centralized instrument functional earth rail. Keep individual drain wires short to prevent inductive noise pickup across the analog loops.
Conduit and Path Separation: Route all 1-5 VDC and 1-10 VDC measurement cables inside low-voltage wiring ducts. Maintain a physical separation of at least 300 mm from high-voltage AC cables, motor control switches, and variable frequency drives.
Thermal Flow Verification: Ensure that the vertical cooling paths within the rack enclosure remain unobstructed. Verify that forced-air ventilation maintains ambient environment temperatures below the 60 deg C continuous operational threshold.
