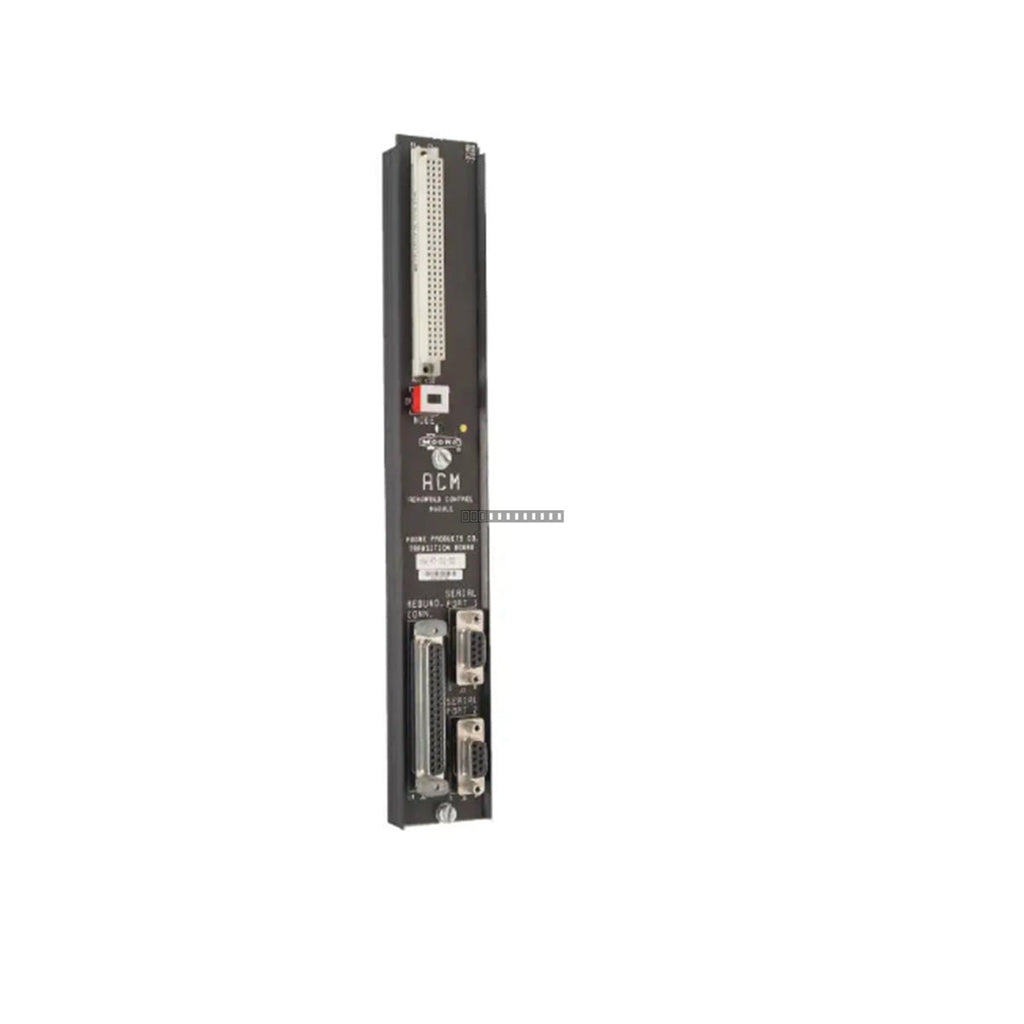

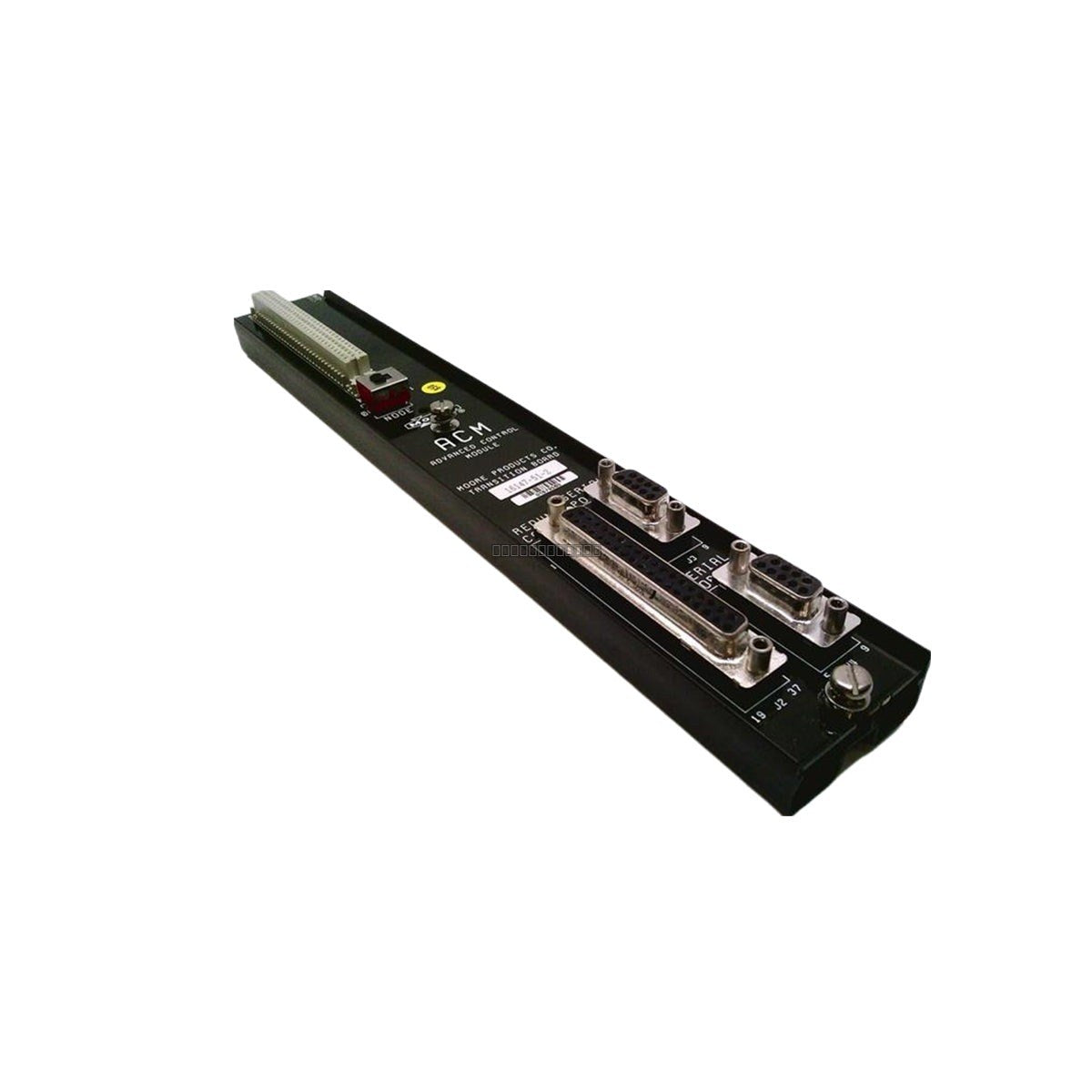

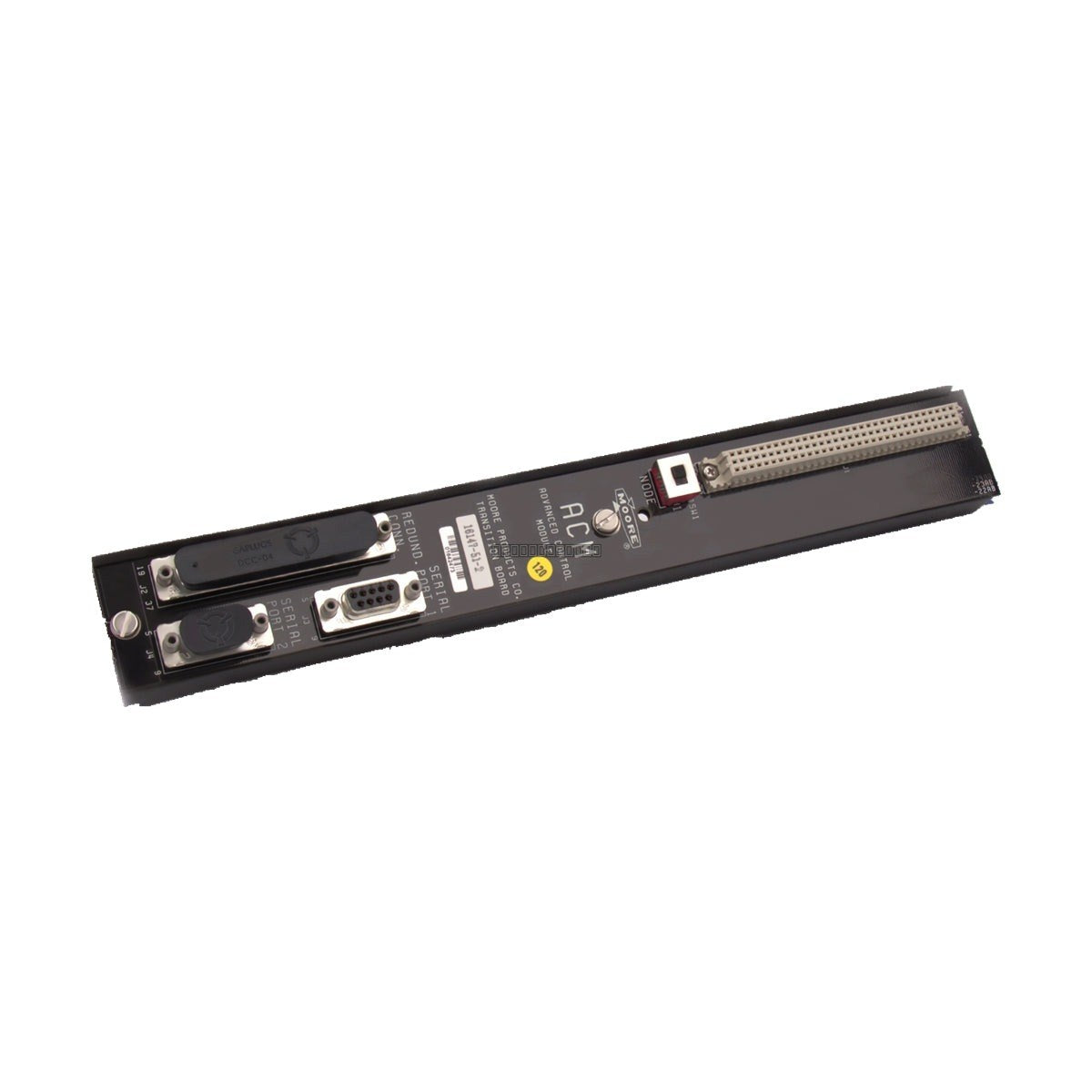

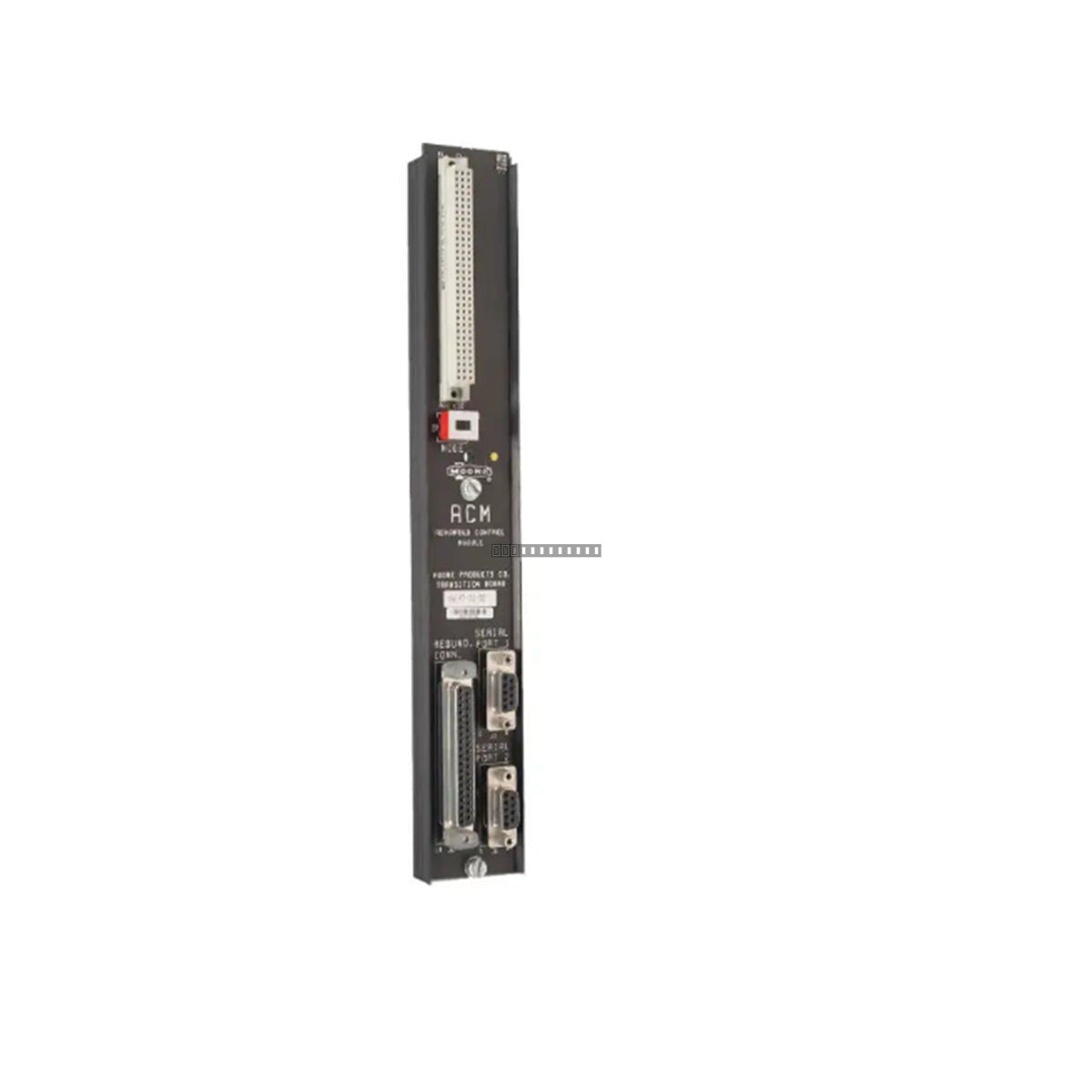

Siemens 16147-51-2 ACM Transition Board

Availability: 7 left in stock

DescriptionThe Siemens 16147-51-2 is a dedicated ACM Transition Board designed specifically for the APACS (Advanced Process Automation Control System) platform....

SKU: 16147-51-2

Manufacturer: Siemens
Product No.: 16147-51-2
Product Type: DCS I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 16147-51-2 is a dedicated ACM Transition Board designed specifically for the APACS (Advanced Process Automation Control System) platform. This component serves as a critical interface bridge, facilitating reliable communication between Advanced Control Modules and field-level networks. Built for high-integrity industrial environments, this board ensures stable signal transmission and mechanical robustness, which are essential for maintaining the operational continuity of complex Distributed Control System (DCS) architectures.

Features

Designed for seamless integration with Siemens APACS and Moore control systems.
Features two dedicated serial communication ports for robust data exchange.
Redundant connector architecture supports high-availability configurations to prevent communication loss.
Provides essential signal conditioning and impedance matching to protect the ACM processor.
Engineered for reliability in mission-critical applications including petrochemical refining and power generation.

Installation Guidelines

Ensure the system power is completely disconnected before installing or removing the transition board to prevent electrical damage.
Handle the module using proper ESD (electrostatic discharge) protection practices.
Verify that all redundant cabling is securely seated in the designated connectors to maintain the integrity of the dual-path communication.
Ensure the installation environment remains within the specified temperature range of 0 to 60 deg C to prevent performance degradation.
Check that the board is correctly aligned with the ACM backplane to avoid pin damage during insertion.

Technical Specifications

Model	16147-51-2
Brand	Siemens
Platform	APACS / Moore
Module Type	ACM Transition Board
Serial Interfaces	2 Ports
Redundancy	Dual-path connector design
Operating Temperature	0 to 60 deg C
System Category	DCS Component

FAQ

What is the primary function of the 16147-51-2?
This board acts as a physical transition interface for the APACS Advanced Control Module, providing necessary serial connections and signal conditioning for field communication.

Does this board support redundant configurations?
Yes, the module is designed with a redundant connector architecture to allow for dual-path wiring, which helps maintain system uptime in the event of a single cable failure.

Is this part compatible with non-APACS systems?
No, the 16147-51-2 is specifically engineered for use with the Siemens APACS/Moore platform and should not be used in incompatible control systems.
