NFAF135-S50 Yokogawa FIO Series Datasheet & Technical Manual

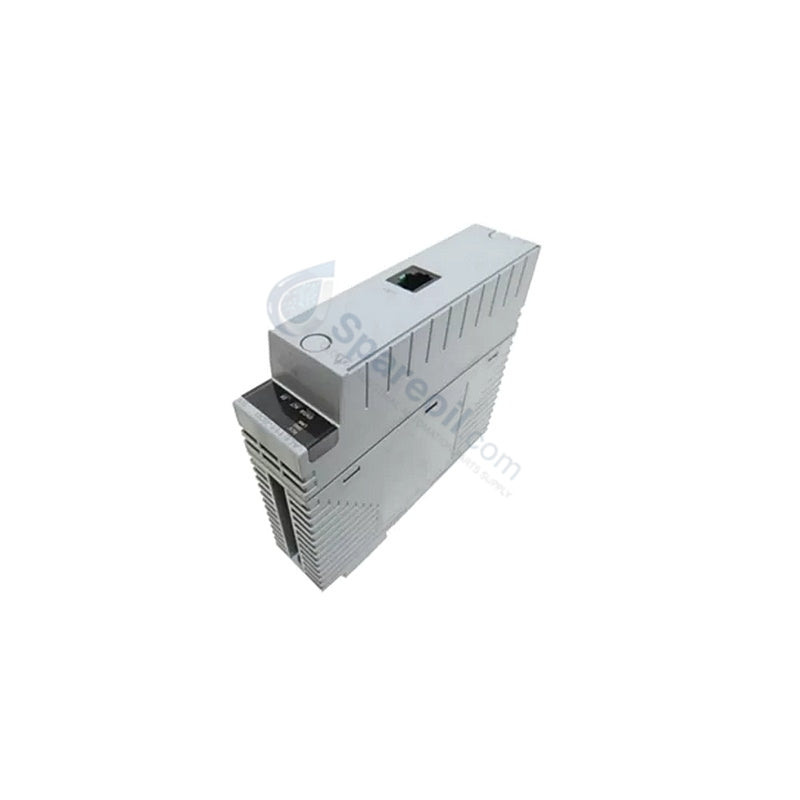

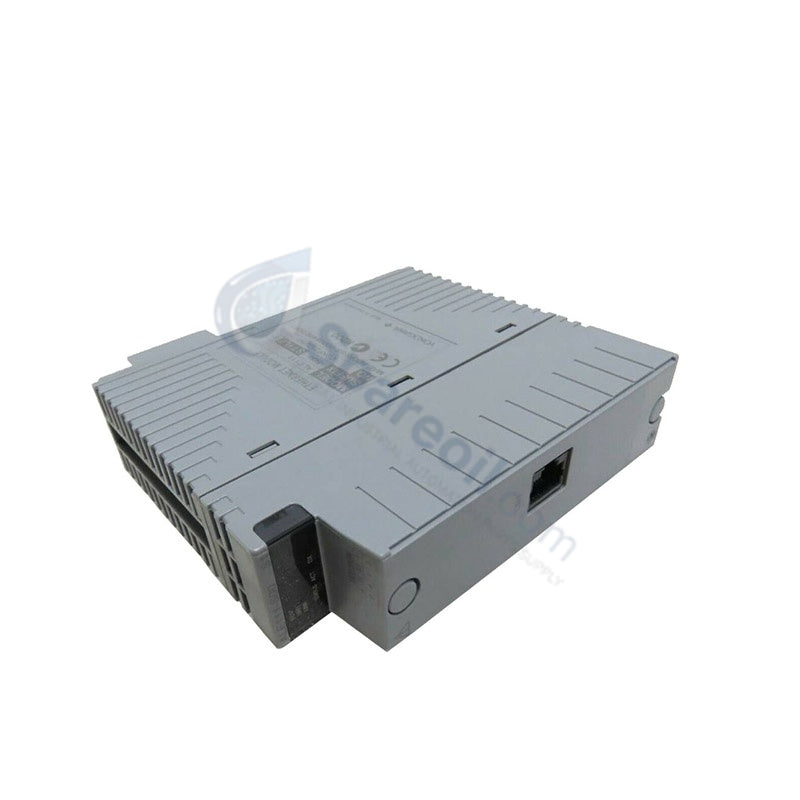

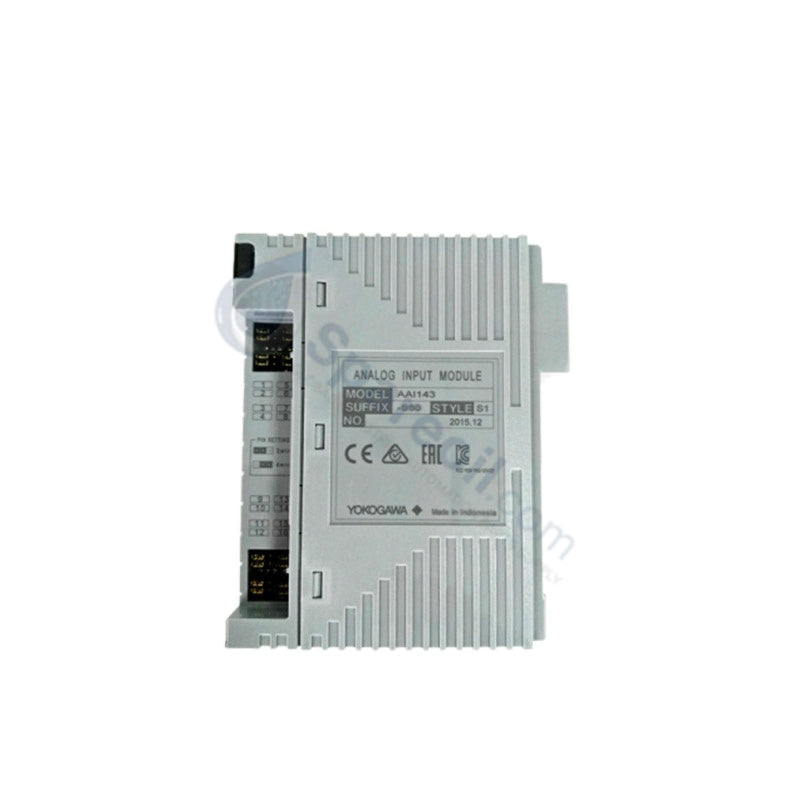

Yokogawa NFAF135-S50 NFAF135-S50 S1 16-Channel Analog Input Card

Yokogawa NFAF135-S50 NFAF135-S50 S1 16-Channel Analog Input Card

التوفر: 10 متوفر في المخزون

Yokogawa NFAF135-S50 S1 FIO Analog Input Module The Yokogawa NFAF135-S50 S1, also cataloged as the NFAF135 Analog Input Module, operates...

رمز المنتج: NFAF135-S50

Manufacturer: Yokogawa
Product No.: NFAF135-S50
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa NFAF135-S50 S1 FIO Analog Input Module

The Yokogawa NFAF135-S50 S1, also cataloged as the NFAF135 Analog Input Module, operates as a dedicated hardware component for analog signal acquisition from field transmitters within CENTUM VP / CS 3000 FIO platforms.

Suffix Breakdown & Model Matrix

The NFAF135 series utilizes specific suffix configurations to define its hardware protection, environmental ratings, and electrical interface limits:

Base Model (NFAF135): Defines a multi-channel analog input module interface.
Type Suffix (-S): Specifies standard signal processing configuration.
Environmental Suffix (5): Establishes compliance with ISA G3 corrosion parameters, allowing deployment in harsh atmospheric conditions.
Explosion Protection Suffix (0): Identifies a design without intrinsic safety protection.

Hardware Specifications

Parameter	Specification
Model	NFAF135-S50 S1
Brand	Yokogawa
Origin	Japan
Weight	0.45 kg
Dimensions	Standard Yokogawa FIO module dimensions
Operating Temp	-20 to 70 deg C
Power Consumption	230 mA (at 5 V DC), 540 mA (at 24 V DC)
Number of Channels	16 isolated channels
Signal Type	4-20 mA DC
Accuracy	Plus or minus 16 uA
Temperature Drift	Plus or minus 16 uA per 10 deg C
Data Update Period	10 ms
Isolation	1500 V AC between input and system for 1 minute

Process Control Integration and Channel-to-Channel Isolation

This module features a high-density 16-channel architecture with galvanic isolation designed to protect system backplanes from external electrical surges up to 1500 V AC. It supports the 4-20 mA DC loop standard, reading signals with a baseline accuracy of plus or minus 16 uA. By incorporating 250 to 350 Ohm internal input impedance during power-on states, the module accurately converts analog current inputs into digital system parameters. This design limits signal crosstalk and ensures stable transmitter loop execution under transient voltage swings on adjacent field lines.

Frequently Asked Questions

Q: What happens to the module input impedance if the system backplane experiences a power failure?

A: During normal power-on operations, input impedance registers between 250 and 350 Ohm. If the system undergoes a power-off state, the input impedance automatically shifts to a minimum of 500 kOhm to prevent signal feedback and loop loading.

Q: Can this module provide power to 2-wire transmitters, and what are the power limitations?

A: Yes, the NFAF135-S50 provides a transmitter power supply rated between 19.0 and 25.5 V DC, with a hardware current-limit function set at 25 mA per channel to protect against direct short-circuits.

Q: How does operating this module at high thermal limits affect calibration accuracy?

A: The baseline accuracy of plus or minus 16 uA is verified at standard reference temperatures. For every 10 deg C deviation from the baseline across the -20 to 70 deg C operating window, an additional drift of plus or minus 16 uA must be added to the calculation.

Field Installation Guidelines

Shielding Ground Connection: Connect all instrument cable drain wires to the system cabinet's dedicated ground bar, maintaining a single-point grounding design to prevent common-mode noise.
Corrosive Gas Protection: Ensure the host cabinet door remains closed and sealed to optimize the protection provided by the ISA G3 conformal coating against atmospheric corrosion.
Interface Cable Isolation: Route the KS1 signal cables through separate, grounded metallic wire ways to isolate weak analog input signals from high-current AC motor supply lines.
Terminal Screws Torque: Secure the field wire terminations on the pressure clamp block, verifying that terminal screws are tightened to the specified torque limit to prevent loose connections in the 4-20 mA current loops.
