8406-114 Woodward Generator Controller

8406-114 Woodward Generator Controller | New & Original Stock

Availability: 10 left in stock

Woodward 8406-114 EGCP-3 MC Operator Interface The Woodward 8406-114, also cataloged as the EGCP-3 MC Engine Generator Control Package -...

SKU: 8406-114

Manufacturer: Woodward
Product No.: 8406-114
Product Type: Generator Control Package Operator Interfaces
Product Origin: USA
Payment:T/T, Western Union
Weight: 4300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

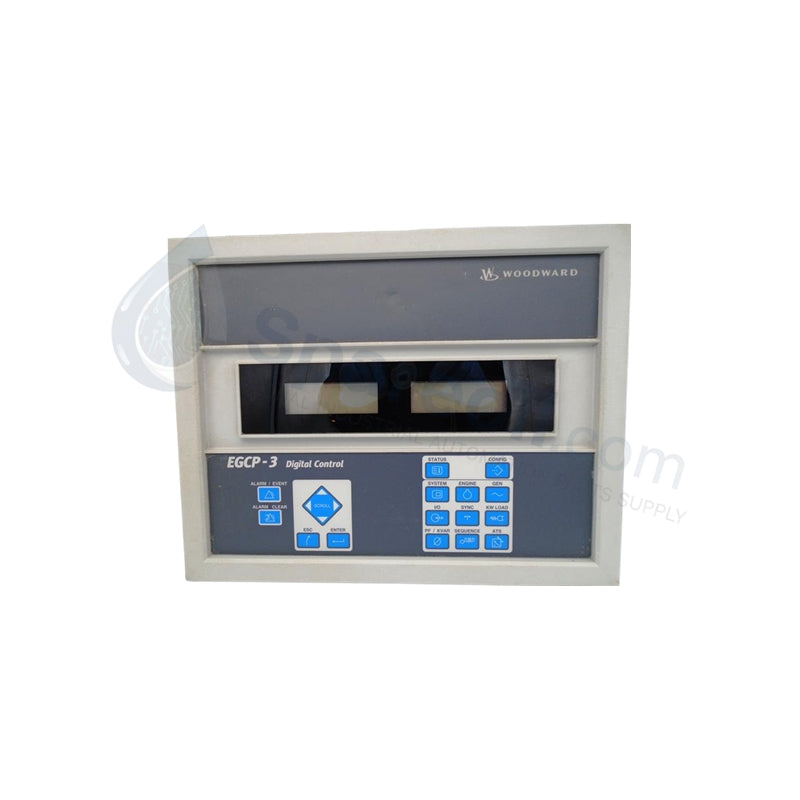

Woodward 8406-114 EGCP-3 MC Operator Interface

The Woodward 8406-114, also cataloged as the EGCP-3 MC Engine Generator Control Package - Master Control Module, operates as a dedicated hardware component for multi-generator coordination and utility mains paralleling within complex power generation architectures.

Hardware Specifications

Parameter	Specification
Model	8406-114 (EGCP-3 MC Master Control Module)
Brand	Woodward
Origin	United States
Weight	4.3 kg (9.5 lbs) / Gross Weight: 10.00 lbs
Dimensions	359 mm (W) x 282 mm (H) x 135 mm (D)
Operating Temp	-20 deg C to 70 deg C (-4 deg F to +158 deg F)
Storage Temp	-30 deg C to 80 deg C (-40 deg F to +185 deg F)
Relative Humidity	95% at 60 deg C, non-condensing
Input Voltage	18 to 32 VDC (Nominal 24 VDC)
Voltage Measurement Range	70 to 300 VAC
Current Inputs	5 A RMS nominal (7 A max)
Discrete Inputs	16 channels
Communication Ports	RS-232, RS-422, RS-485, Echelon LON
Protocols Suite	Modbus RTU, Woodward ServLink, Watch Window
Physical Interface	Dual LCD display, 15-button keypad with directional control
Enclosure Protection	IP54 per EN60529; NEMA Type 4 front panel rating

Actuator Loop Feedback Response & Sync Tracking

The master module coordinates centralized utility-to-bus load management by computing real-time phase-match, slip-frequency, and adaptive voltage differences across separate voltage measurement paths. It processes 3-phase voltage lines up to 300 VAC, continuously evaluating dead bus parameters before generating closing permissive commands to the main circuit breaker actuators.

The embedded system runs automatic transfer switch (ATS) algorithms to manage open or closed transition cycles between the generator plant and utility mains grid. By establishing low-latency processing of 16 discrete input channels alongside dedicated 5 A RMS current transformer inputs, the hardware maintains active kW and kVAR load regulation loops without introducing operational skew or control loop instabilities.

Frequently Asked Questions

Q: Does the 8406-114 operator interface support live hot-swapping under full backplane or system load? A: No. This is a stand-alone, panel-mounted device with high-current sensor and power input connections. The external 18-32 VDC power supply lines, logic connectors, and current transformer inputs must be physically de-energized before removing terminal strips to avoid dangerous open-circuit current transformer overvoltages or unintended breaker states.

Q: How is access controlled on the local interface to prevent unauthorized field modifications? A: The device firmware utilizes five independent levels of configuration security. Each layer requires separate 4-digit numeric access codes programmed into memory to prevent unauthenticated modification of tuning gains, synchronization windows, or breaker actuation timeouts.

Q: What function does the Echelon LON port perform on the EGCP-3 architecture? A: The Echelon LON (Local Operating Network) channel handles high-speed, peer-to-peer data token exchange between individual EGCP-3 units in multi-generator clusters. This dedicated port isolates start/stop arbitration, reactive power sharing, and real kW load management from standard SCADA or client polling.

Field Installation Guidelines

Enclosure Sealing and Panel Cutout: Mount the device securely into an engineered cutout on a deadfront panel door. Ensure all structural mounting clamps are correctly torqued against the perimeter gasket to maintain the NEMA Type 4 and IP54 dust-tight and moisture resistance ratings on the front control membrane.
Current Transformer Shorting Blocks: Always route current transformer secondary lines through a heavy-duty external shorting block located near the control enclosure. Never open-circuit active current transformer inputs while the generator set is rotating, as high inductive voltages will destroy internal shunt components.
Communication Routing Isolation: Route the high-speed Echelon LON and serial Modbus lines through dedicated low-voltage channels. Use twisted-pair shielded cabling throughout, keeping all communication lines independent from raw generator phase cables and heavy battery charger DC outputs to mitigate high-frequency cross-coupling.
