ICS Triplex T7411F Trusted Regent PLC Processor Module

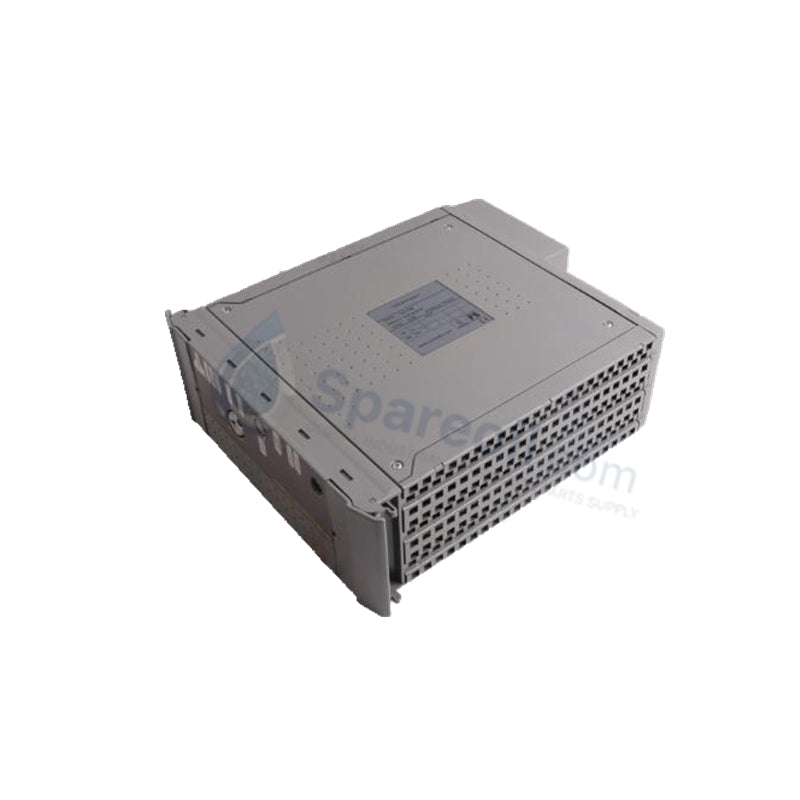

ICS Triplex T7411F Trusted Regent PLC Processor Module

Availability: 20 left in stock

ICS TRIPLEX T7411F PLC Processor Module The ICS TRIPLEX T7411F serves as the primary T7411F PLC Processor Module utilized to...

SKU: T7411F

Manufacturer: ICS Triplex
Product No.: T7411F
Product Type: PLC Processor Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 3000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ICS TRIPLEX T7411F PLC Processor Module

The ICS TRIPLEX T7411F serves as the primary T7411F PLC Processor Module utilized to execute high-density digital and analogue input monitoring across automated platforms. The hardware processes physical process variables by interfacing directly with field transmitters and distributing real-time diagnostics over the backplane network.

Layout Choice Selection: Layout 1

Hardware Specifications

Parameter	Specification
Model	T7411F
Brand	ICS TRIPLEX (Rockwell Automation)
Origin	China
Weight	6.62 lbs (3.0 kg)
Dimensions	241 x 30 x 300 mm
Operating Temp	0 deg C to 60 deg C
Power Consumption	Not specified by manufacturer
Product Type	Monitored Digital / Analogue Input Processor Module
Input Channel Count	16 monitored digital input channels / 24 isolated analogue inputs
Input Voltage / Signal Range	24 VDC / 4-20 mA analogue signals
Voting Logic Configuration	1oo2 or 2oo3 Triple Modular Redundant (TMR) architectures
Isolation Voltage	2500 V between field wiring and internal logic circuits
Resolution	12-bit (typical)
Accuracy	+/-0.1% of full scale
Storage Temperature	-40 deg C to 85 deg C
Humidity Range	5% to 95% RH, non-condensing
Altitude Limit	Up to 2000 m without derating

Safety Instrumented System Execution

The ICS TRIPLEX T7411F implements dedicated triple modular redundancy (TMR) 2oo3 architecture to satisfy high-integrity control mandates. The onboard firmware runs dynamic input line monitoring routines that execute hardware-level fail-safe state execution within specified safety timeframes. The internal voting loops validate individual input channel data against parallel processing paths to achieve systematic fault-tolerant operations. The active circuit geometry isolates adjacent channels via 2500 V galvanic isolation, stripping out cross-talk and preventing field electrical faults from propagating into the core Trusted backplane logic.

Frequently Asked Questions

Q: Can the T7411F module undergo hot-swapping during live process control?

A: Yes. The hardware contains active power-limiting bus switches that permit full hot-swap replacement within a redundant slot configuration without interrupting power distribution to concurrent I/O lines or dropping safety system availability.

Q: How does the module handle dynamic fault detection for field loops?

A: The module executes continuous diagnostics across the wiring loops to identify open circuit, short circuit, and out-of-range sensor conditions, immediately reporting line faults via the logic backplane to trip system alarms.

Q: What specific certifications govern this module for safety deployments?

A: The hardware is certified to DIN19250/AK5 and meets IEC 61508 SIL 3 standards, validating its deployment inside Safety Instrumented Systems (SIS) and emergency shutdown circuits.

Field Installation Guidelines

Chassis Grounding and Shield Terminations: Terminate all external instrument cable shields directly to the chassis ground rail using low-impedance copper busbars. Do not loop or daisy-chain ground wires between separate I/O slots.
DIN-Rail and Backplane Seating: Align the guide rails carefully before inserting the processor module into the Trusted or Regent chassis backplane slot. Apply firm, even pressure until the injection/ejection handles fully engage and lock into position.
Wiring Segregation: Route the 4-20 mA and 24 VDC field input lines through separate conduit tracks away from high-voltage AC motor drive cables to reduce electro-magnetic induction risks.
Thermal Management Constraints: Maintain unobstructed vertical airflow across the chassis ventilation slots to prevent localized heat accumulation when operating near the upper ambient threshold of 60 deg C.
