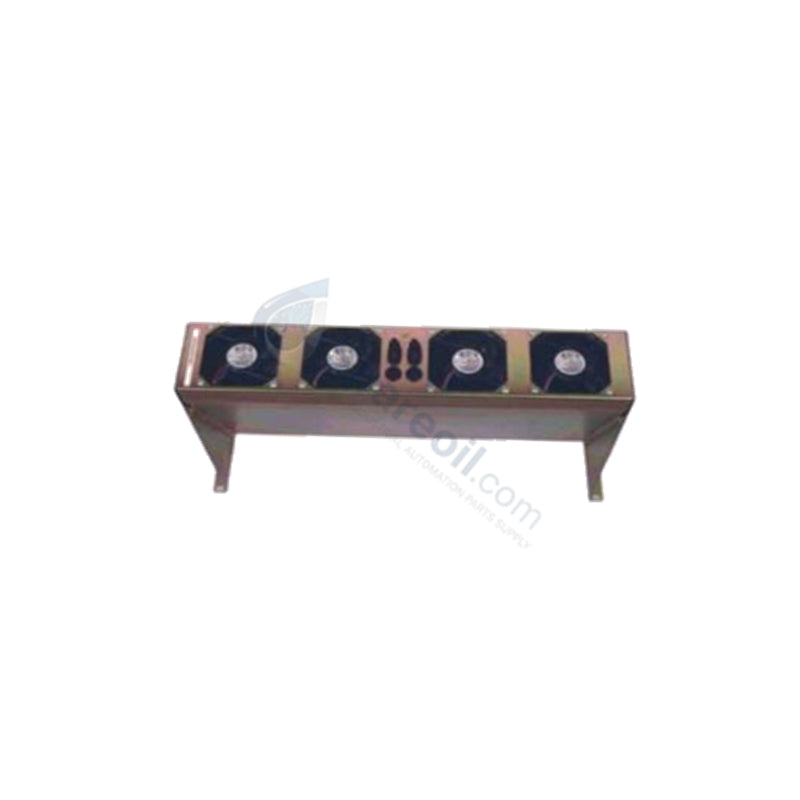

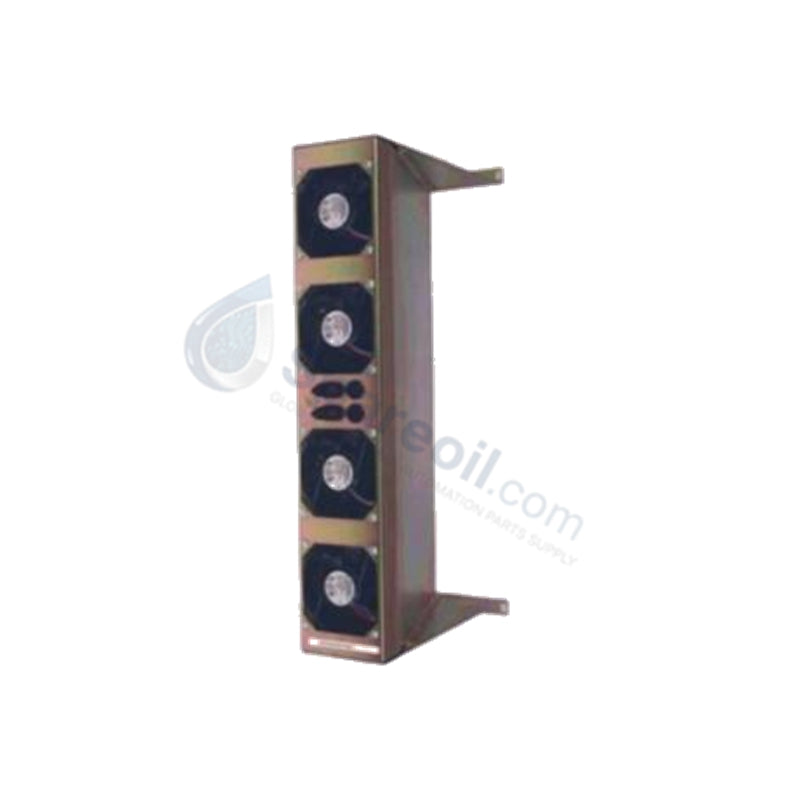

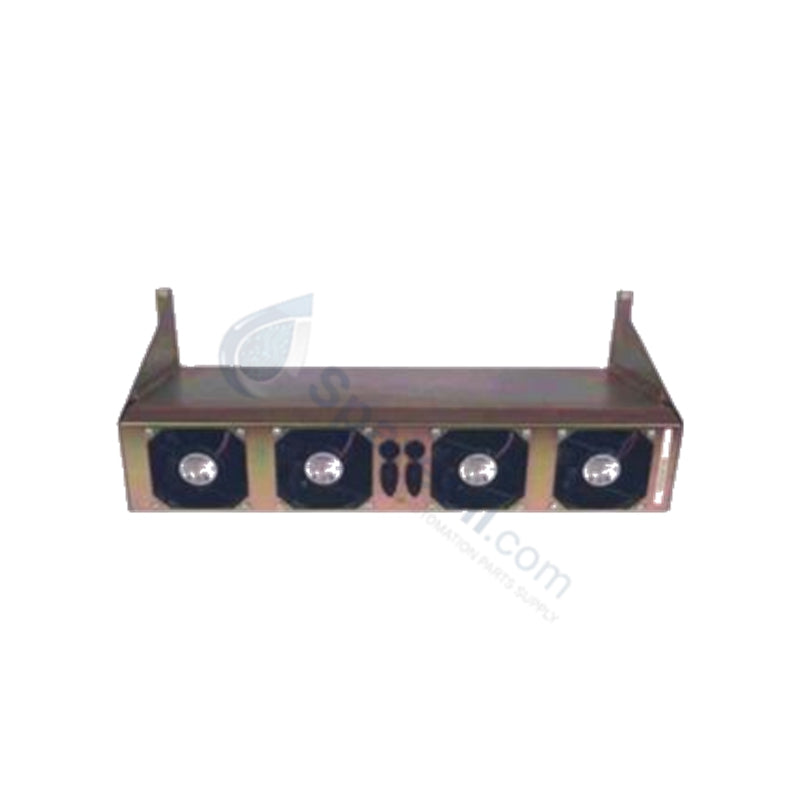

The ICS Triplex T8270, also cataloged as the T8270 Fan Assembly, operates as a dedicated hardware component for thermal management within the Trusted safety system chassis.

Hardware Specifications

Parameter Specification
Model T8270
Brand ICS Triplex
Origin USA
Weight 0.18 kg
Dimensions 2.2 cm x 18.1 cm x 12.7 cm
Operating Temp -20 deg C to +60 deg C
Power Consumption 24 VDC
Airflow 69 m^3/h (40.6 ft^3/min)

High-Reliability Safety Execution

The T8270 assembly integrates directly into the Trusted safety system architecture to maintain required thermal envelopes for mission-critical electronics. By ensuring forced-air cooling, the module prevents localized overheating of high-density logic cards, thereby supporting the underlying SIL 3 certification requirements. The unit operates within the system's fault-tolerant framework, ensuring that thermal dissipation remains constant to prevent derating of the TMR (Triple Modular Redundancy) processor components. Its mechanical design facilitates seamless integration into standard rack-mount backplanes, maintaining electrical isolation between the fan motor circuits and the primary safety signal paths.

Frequently Asked Questions (FAQ)

Q: Does the T8270 fan assembly support hot-swapping during active system operation?

A: Yes, the T8270 is designed for hot-swappable installation, allowing for replacement or maintenance without interrupting the execution of the primary safety instrumented system functions.

Q: What are the primary diagnostic indicators for this fan assembly?

A: The T8270 relies on the parent chassis diagnostic system to monitor current draw and RPM feedback. If the fan rotation drops below defined thresholds, the system controller logs a maintenance event for the cooling circuit.

Field Installation Guidelines

  1. Mounting: Ensure the fan assembly is aligned with the guide rails on the rack-mount chassis. The module must be seated fully to engage the backplane connector.
  2. Grounding: Verify that the chassis frame is bonded to the common plant ground bus to mitigate EMI/RFI potential generated by the fan motor.
  3. Clearance: Maintain a minimum of 5 cm of clearance above and below the fan exhaust ports to ensure unrestricted airflow throughput.
  4. Wiring: Ensure the 24 VDC power feed is routed through the dedicated redundant power supply rails provided by the Trusted system backplane.
