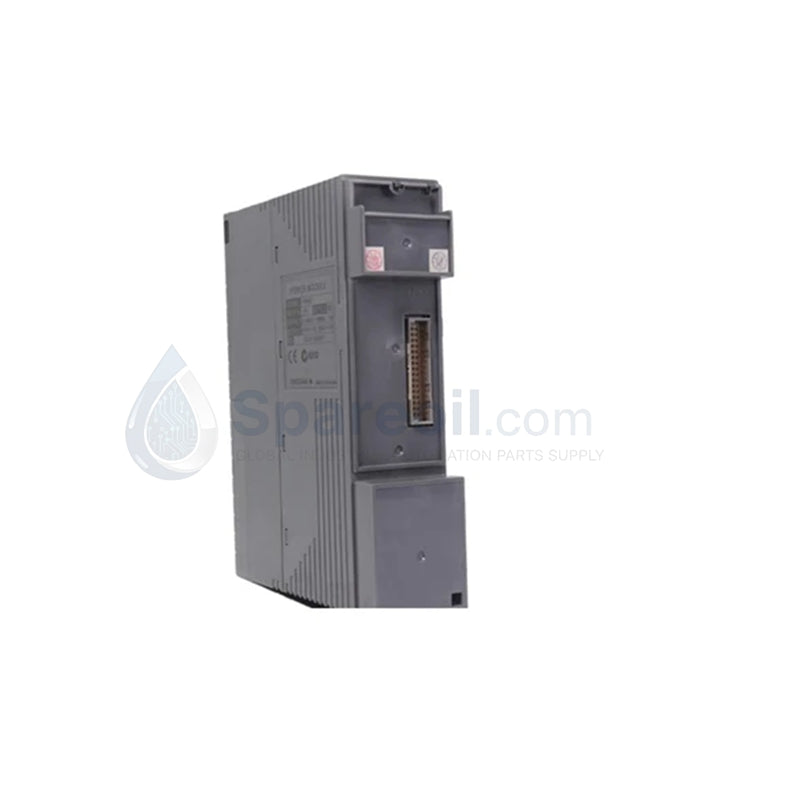

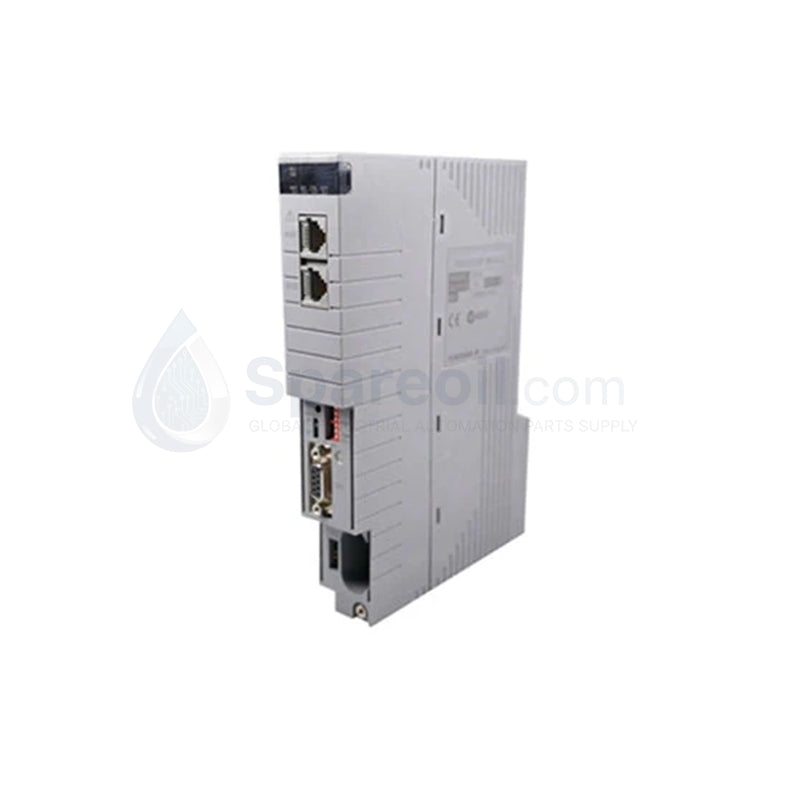

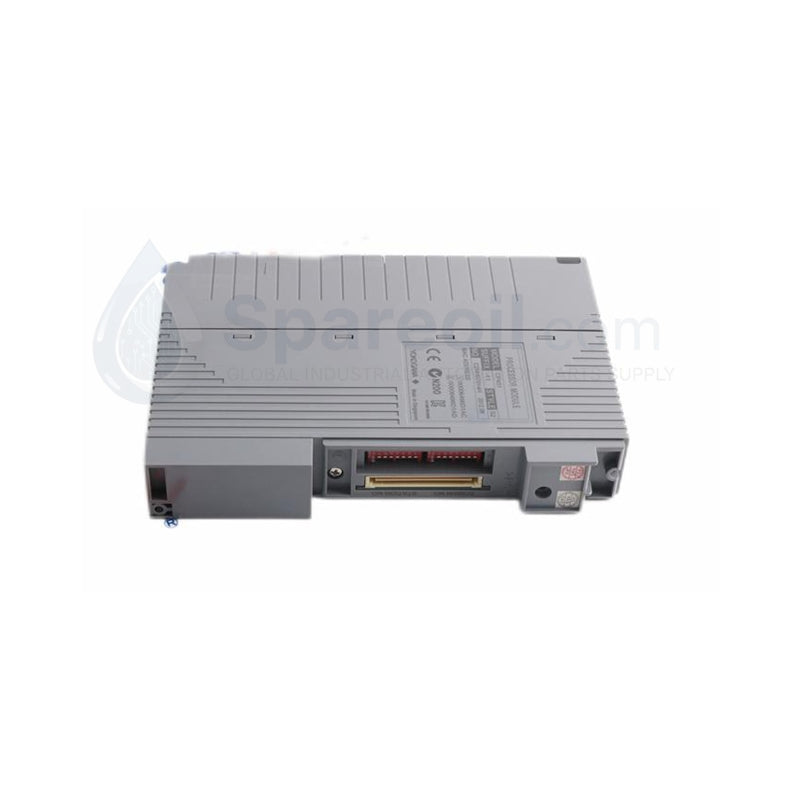

CP333D-S3 Yokogawa Style 3 Redundant Processor Card

CP333D-S3 Yokogawa Style 3 Redundant Processor Card

Availability: 99 left in stock

Yokogawa CP333D-S3 Redundant Processor Card The Yokogawa CP333D-S3, also cataloged as the CP333D Processor Module, operates as a dedicated hardware...

SKU: CP330D S3

Manufacturer: Yokogawa
Product No.: CP330D S3
Product Type: CPU Processors
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa CP333D-S3 Redundant Processor Card

The Yokogawa CP333D-S3, also cataloged as the CP333D Processor Module, operates as a dedicated hardware component for mission-critical control strategy execution and sequence logic management within CENTUM CS and CENTUM VP network platforms. Configured for high-speed data exchange across Vnet system bus structures, the unit provides direct physical/electrical execution of real-time control algorithms from its position inside the Field Control Station (FCS).

Hardware Specifications

Parameter	Specification
Model	CP333D-S3
Brand	Yokogawa
Origin	Japan
Weight	1.0 kg
Dimensions	51 mm x 254 mm x 203 mm
Operating Temp	0 to 50 deg C
Power Consumption	Maximum 2.5 A (3.3 VDC +/- 9% internal logic)
Processor Architecture	32-bit RISC, 400 MHz clock speed
Memory Capacity	256 MB RAM / Onboard Flash ROM
Network Protocol	Vnet / Vnet/IP Redundant Ethernet
Product Category	Processor Module / CPU Card
Redundancy Support	Dual-Redundant FCS architecture
Hardware Revision	Style 3 (S3)

Process Control & DCS Instrumentation Integration

The processor module utilizes an integrated 32-bit RISC architecture running at 400 MHz to process 4-20 mA HART loop protocol variables and complex digital automation arrays. Channel-to-channel isolation on associated I/O racks interfaces directly with this card through the Vnet backplane bus, enabling sub-millisecond execution loops for critical plant subsystems. Built-in firmware registers maintain synchronized memory tables across dual-redundant configurations, enforcing instantaneous tracking of system state variables to manage backup controller switches without loop disruption or signal drops.

Frequently Asked Questions

Q: How does the Style 3 revision affect hardware deployment alongside older style cards? A: The Style 3 (S3) designation indicates updated internal circuitry and improved thermal management profiles. It remains fully backward compatible with legacy Vnet hardware, provided the controller chassis backplane supports the specific slot footprint and the system firmware matches the minimum revision requirements.

Q: What is the behavior of the CP333D-S3 during a primary processor fault in a dual-redundant setup? A: The hardware operates in an active-standby matrix. The standby processor continuously syncs control logic frames via the dedicated Vnet link. If the primary module fails diagnostic checks, control transitions to the redundant card with zero-millisecond signal lag to the field instruments.

Field Installation Guidelines

Power down the targeted card slot or verify the secondary redundant processor is active before inserting hardware into a live backplane.
Align the top and bottom guides of the CP333D-S3 module with the card cage track, sliding the unit inward until the rear connectors mate securely with the Vnet backplane.
Lock the mechanical extraction levers fully into position to engage the grounding clips and secure the card chassis.
Observe the front-panel LED indicators; the "STATUS" or "RUN" illumination must stabilize according to standard system startup sequences to verify successful initialization.
