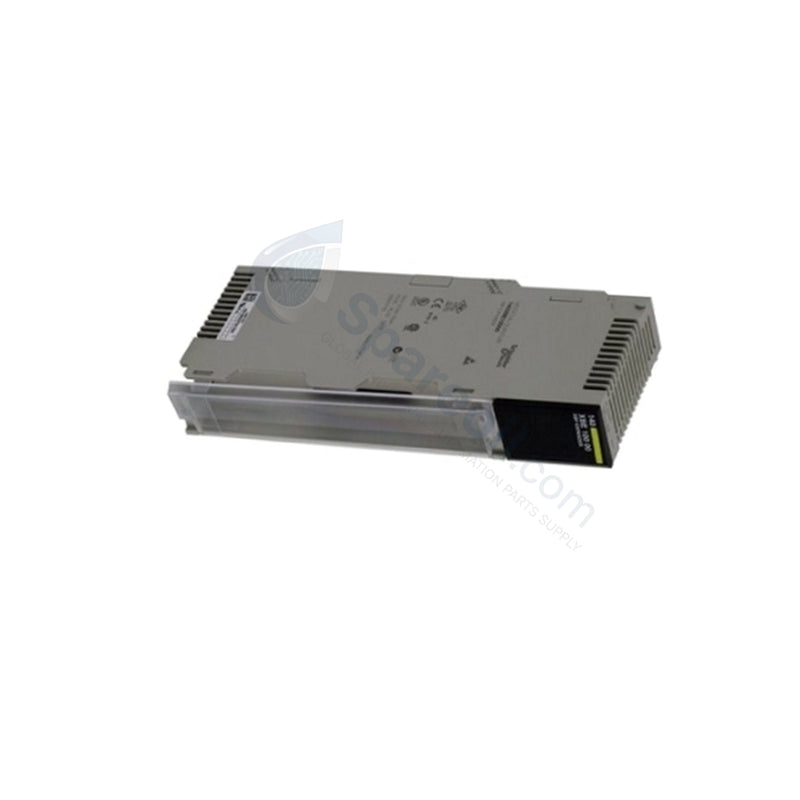

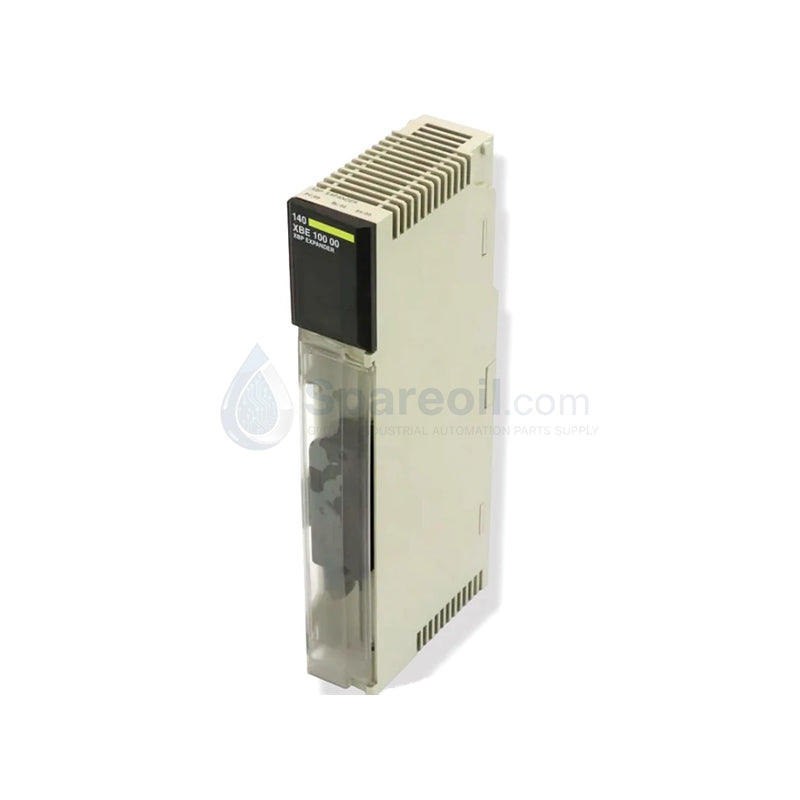

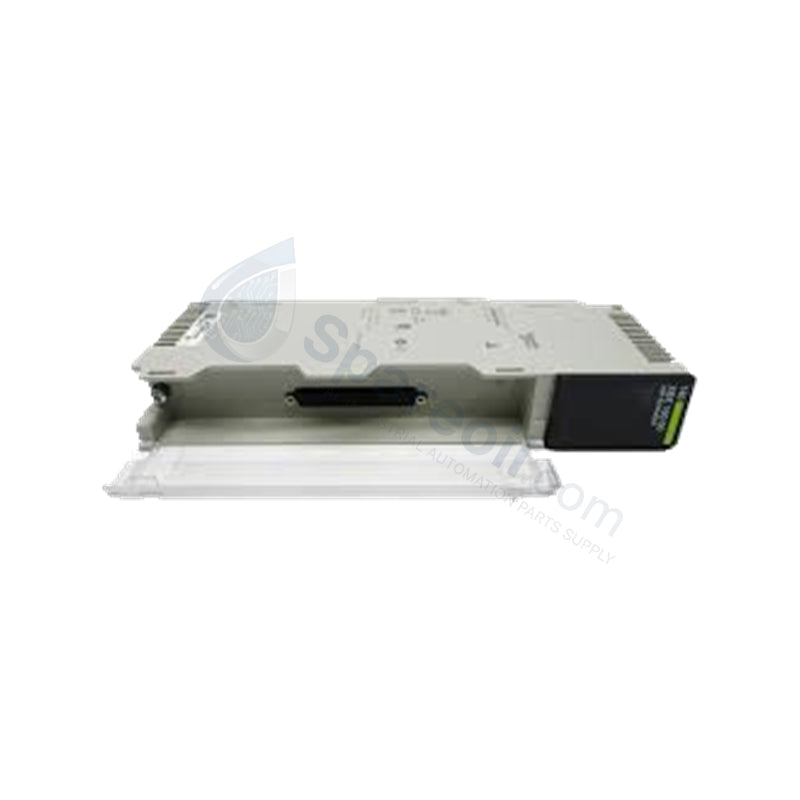

Schneider Electric 140XBE10000 Modicon Quantum Module

The Schneider Electric 140XBE10000, also cataloged as the 140XBE10000 Backplane Expander, operates as a dedicated hardware component for extending and interconnecting Quantum backplanes within Modicon Quantum automation platform networks.

Hardware Specifications

Parameter	Specification
Model	140XBE10000
Brand	Schneider Electric
Origin	France
Weight	0.44 kg (Net), 0.91 kg (2.00 lbs Shipping)
Dimensions	16.5 cm (W) x 31.0 cm (L) x 5.0 cm (H)
Operating Temp	0 to 60 deg C
Power Consumption	Technical data not specified (Passive bus extension logic)
Product Type	Backplane expander module
Destination	Modicon Quantum 12 to 16-slot backplanes
Product Compatibility	140XBP01600 and other 12/16-slot Quantum racks
Mounting Type	Rack mountable (Occupies standard Quantum slot)
Storage Temp	-40 to 85 deg C
Environmental Status	Green Premium, RoHS compliant, REACh SVHC-free

Industrial PLC Control & Drive Networks Properties

Operating inside the Modicon Quantum hardware architecture, this expansion module bridges the physical gap between separate chassis to maintain standard backplane bus communication velocity across expanded configurations. The unit plugs directly into a standard slot to scale local I/O density scaling profiles, allowing the main CPU to map and address data points across multiple 12 or 16-slot racks, such as the 140XBP01600. By preserving backplane signal integrity over the expansion link, the hardware enforces direct firmware flash compatibility and prevents data dropouts across Profinet / EtherNet/IP deterministic networks during high-speed scanning cycles.

Frequently Asked Questions

Q: How does the 140XBE10000 impact the addressing capabilities of the main Quantum CPU?

A: The expander allows the primary processor to address I/O modules installed on the expansion rack directly. It executes local data transmission across the interconnected chassis as if they were part of a single physical backplane assembly.

Q: What are the storage and operating temperature constraints for this hardware component?

A: The module is rated for a continuous operating temperature range from 0 to 60 deg C. For storage and transport conditions, the hardware tolerates ambient boundaries extending from -40 to 85 deg C.

Q: Is this module compatible with small-format Modicon Quantum backplanes?

A: This specific expander component is engineered and optimized for large-scale extension accessories, matching 12-slot and 16-slot Quantum backplanes like the 140XBP01600.

Field Installation Guidelines

Turn off all primary rack power supplies prior to inserting or removing any expansion hardware. Slide the 140XBE10000 module into its designated slot on the primary Modicon Quantum backplane, checking that the rear alignment pins seat completely into the bus connectors. Secure the module using the built-in mechanical locking clips to ensure stable grounding contact with the rack frame. Connect the dedicated expansion interface cabling between the primary and target secondary backplane modules. Route the rack interconnection cables in dedicated wire ways separate from high-current AC motor leads or variable speed drive paths to insulate the high-speed expansion bus signals from electromagnetic noise.
