YOKOGAWA ADM11 S3 Analog Input Module

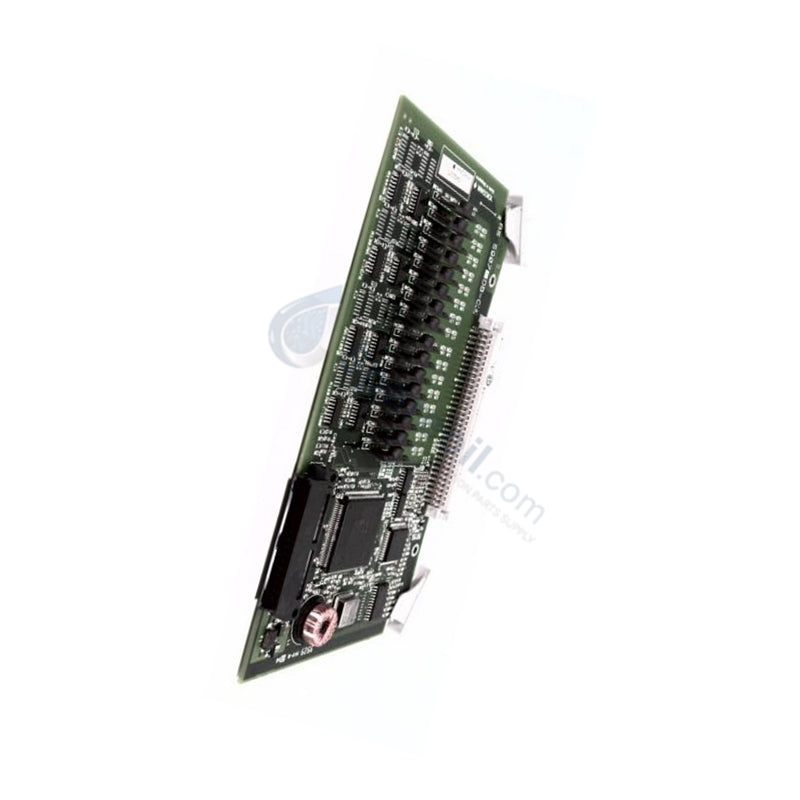

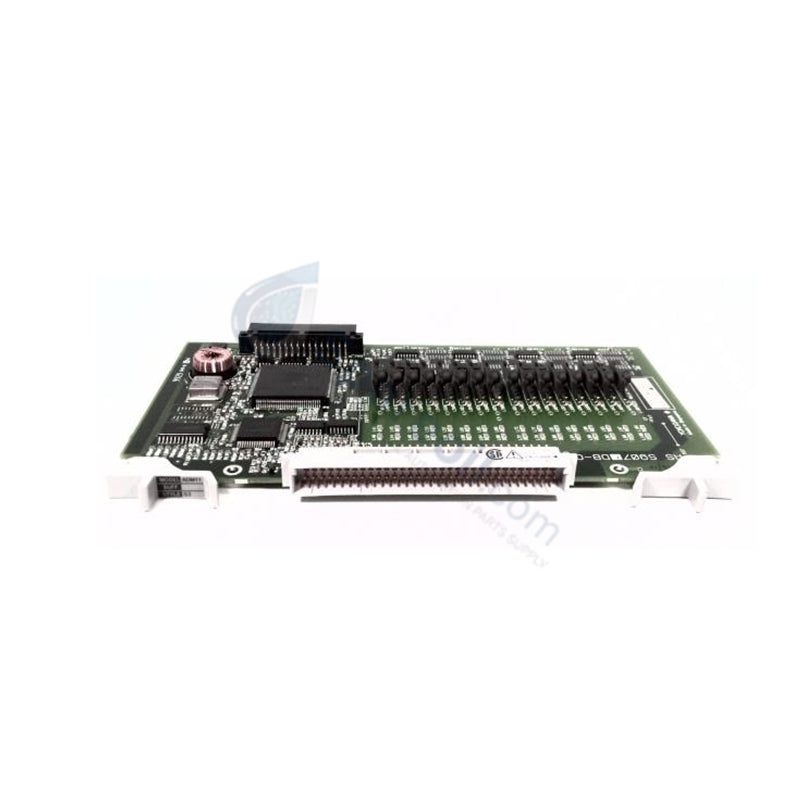

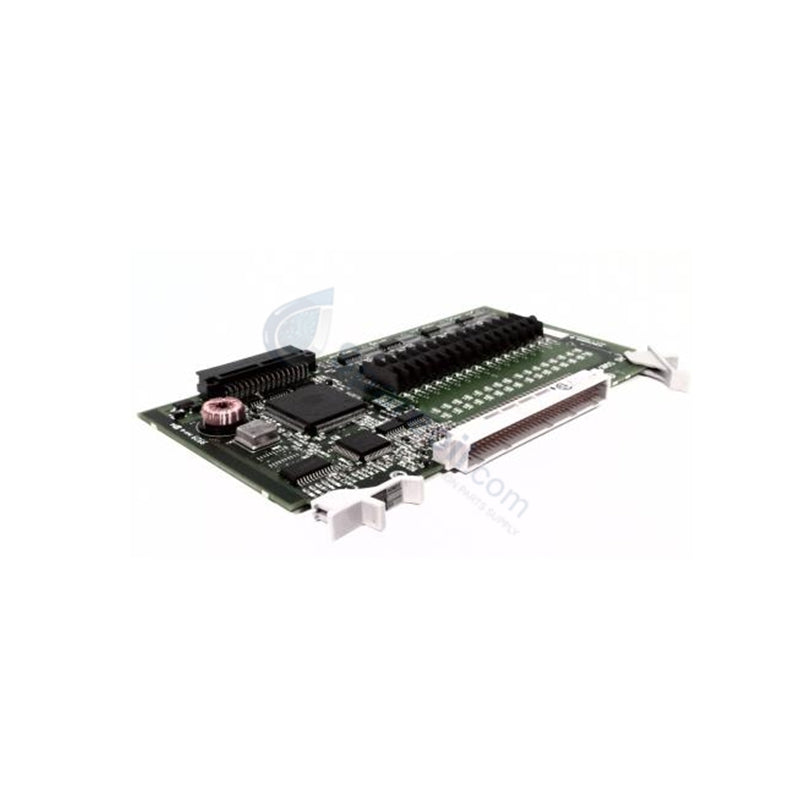

Configured for field signal acquisition in CENTUM VP / CS 3000 platforms, the YOKOGAWA ADM11-S3 (ADM11 S3 Analog Input Module) provides direct physical/electrical execution of 32-channel signal monitoring.

Suffix Breakdown & Model Matrix

  • ADM11: Base model designator for high-density analog input functionality.
  • S3: Version/Revision indicator, denoting compatibility with specific backplane communication protocols and firmware standards for Yokogawa control systems.

Hardware Specifications

Parameter Specification
Model ADM11-S3
Brand YOKOGAWA
Origin Japan
Weight 0.45 kg
Dimensions 120 × 90 × 40 mm
Operating Temp -10 deg C to +55 deg C
Power Consumption 5 V DC, ~400 mA
Input Channels 32 (Isolated)
Signal Range 0–10 V DC / 4–20 mA
Resolution 16-bit
Accuracy +/- 0.1% of span

DCS Process Control & Isolation Features

The ADM11-S3 utilizes a high-precision analog front-end designed for signal integrity within distributed control systems. To maintain measurement accuracy, the module employs individual channel-to-channel isolation rated at 1500 V AC. This architecture effectively mitigates ground loops and common-mode noise inherent in long-run field cabling. The integration of 4-20 mA HART loop protocol compatibility ensures seamless handshaking with modern intelligent transmitters. Furthermore, the module manages cold junction compensation (CJC) through high-speed firmware processing, ensuring that thermal shifts at the terminal block do not degrade the 16-bit conversion accuracy.

Frequently Asked Questions

Q: Does the module support online module replacement?

A: Yes, the ADM11-S3 features a hot-swappable design, allowing for hardware extraction and insertion while the backplane is energized without interrupting system logic.

Q: How is signal integrity maintained during high-density operation?

A: Each of the 32 channels is galvanically isolated. Users must ensure that shielded twisted-pair cabling is used for all field inputs to maintain the specified electromagnetic compatibility.

Q: Is there a requirement for external loop power?

A: While the module draws its internal logic power (5 V DC) from the backplane, the transmitter loop requires external DC excitation depending on the specific sensor power demands.

Field Installation Guidelines

  • Mounting: Ensure the module is fully seated in the rack slot and secured using the integrated locking mechanism to guarantee backplane bus connectivity.
  • Grounding: Terminate all signal cable shields at the designated cabinet ground bar to prevent noise induction. Avoid grounding shields at both the field and control system sides to prevent ground loops.
  • Wiring: Maintain physical separation between 4-20 mA signal wires and AC power lines to comply with electromagnetic interference (EMI) suppression standards.
  • Environment: Verify that the rack-mounted ambient temperature does not exceed 55 deg C to prevent derating of the internal A/D converters.
