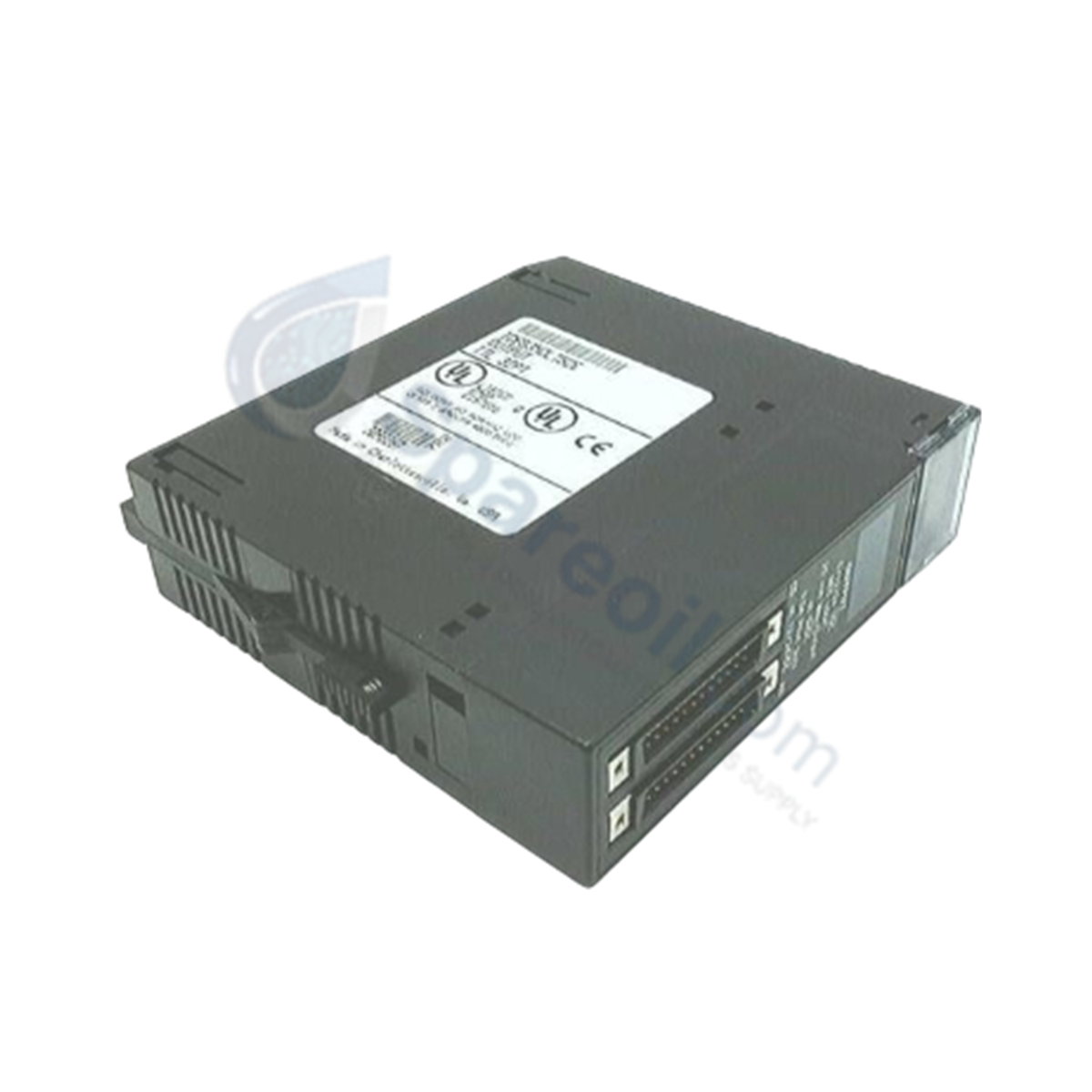

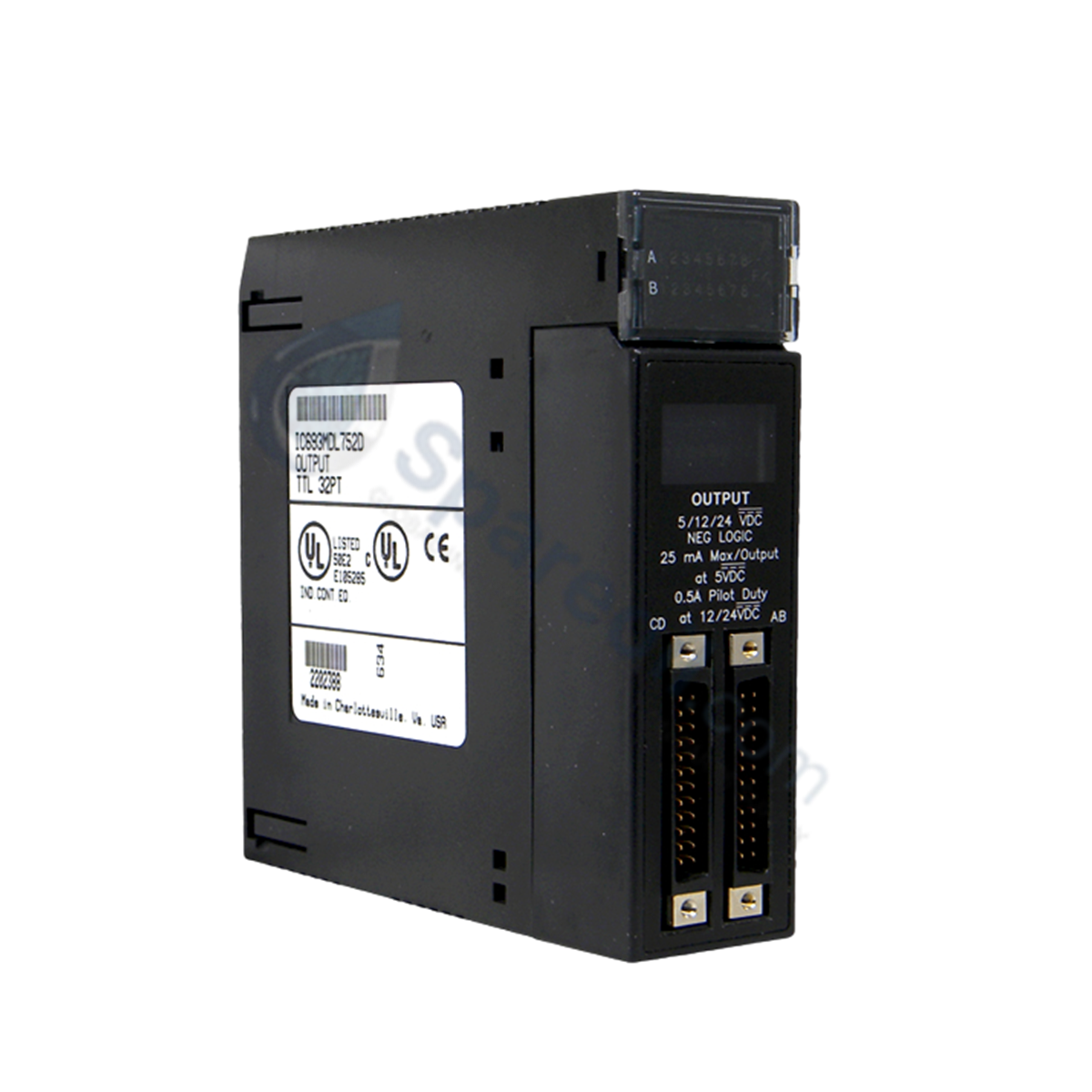

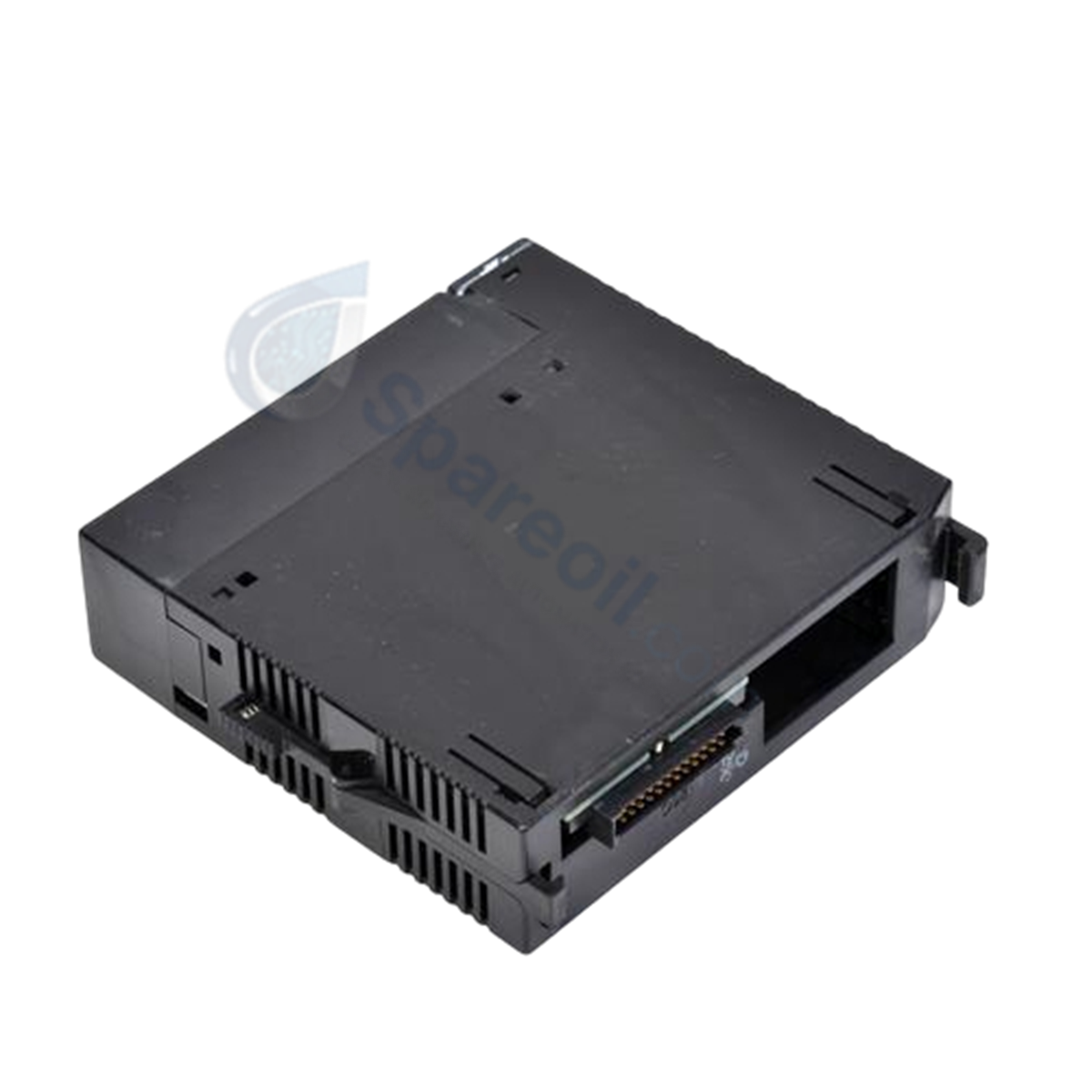

Configured for negative-logic binary switching in Series 90-30 networks, the GE IC693MDL752 (IC693MDL752 Output Module) provides direct physical/electrical execution. The high-density 32-point transistor component sinks current from external electrical loads to the negative power bus based on logic states processed across the chassis backplane.

Hardware Specifications

Parameter Specification
Model IC693MDL752
Brand GE Fanuc Emerson
Origin USA
Weight 0.27 kg (0.60 lbs)
Dimensions Single-slot baseplate profile
Operating Temp 0 to 60 deg C
Power Consumption Nominal current draw from 5 VDC backplane rail
Output Points 32 channels
Circuit Logic Type Negative Logic (Sinking configuration)
Rated Voltage 5 / 12 / 24 VDC
Channel Type Discrete Transistor Output

Industrial Control and Network Determinism

The IC693MDL752 interfaces with central processing architectures to modulate discrete points without altering backplane bus communication velocity parameters. The 32-channel sinking framework coordinates with localized Profinet / EtherNet/IP deterministic networks to maintain predictable logic execution and support optimized I/O density scaling profiles across 5-slot or 10-slot expansion bases. Firmware flash compatibility rules require consistent register identification to update front-panel indicator pathways simultaneously without introducing processing cycle jitter.

Frequently Asked Questions

Q: Does the high-density IC693MDL752 interface support live insertion or hot-swapping?

A: No. The Series 90-30 backplane is non-isolated for hot-swap operations. The primary rack power supply must be fully de-energized prior to inserting or extracting the module to prevent electrical component degradation.

Q: How is the load polarity references wired for this negative logic module?

A: Field devices must be wired between the positive voltage distribution rail and the specific module output terminal. The internal transistor paths execute the ground return link to complete the circuit.

Field Installation Guidelines

  • Connector Wiring and Cable strain relief: Due to the 32-point layout, verify that the high-density front-panel wiring harness is mechanically secured and structured with proper strain relief to prevent termination pins from disconnecting.
  • Transient Voltage Suppression: Install external flyback diodes across all inductive DC loads, including relays and solenoids, to absorb counter-EMF transients and preserve internal transistor pathways.
  • Baseplate Slot Allocation: Insert the single-width module into any valid I/O channel on the master or expansion baseplate. Do not utilize Slot 1, which is reserved for the primary CPU assembly.
