61735 Honeywell FC-TSAI-1620M SAI-1620m Interface Board

Availability: 20 left in stock

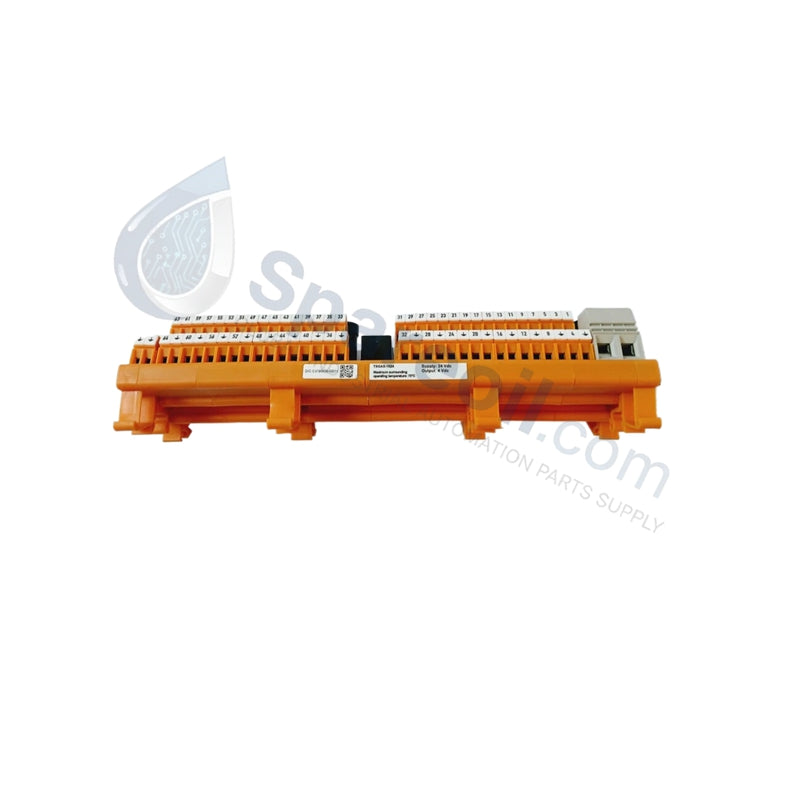

Product Overview The FC-TSAI-1620M (Part Numbers 61735 / 50624) is an authoritative 16-channel Field Termination Assembly (FTA) engineered for the Honeywell Safety Manager and Experion...

SKU: TSAI-1620M

Manufacturer: Honeywell
Product No.: TSAI-1620M
Product Type: Field Termination Assembly
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The FC-TSAI-1620M (Part Numbers 61735 / 50624) is an authoritative 16-channel Field Termination Assembly (FTA) engineered for the Honeywell Safety Manager and Experion PKS platforms. This module is a mechanical necessity for interfacing field instrumentation—such as pressure, flow, and temperature transmitters—with the SAI-1620m analog input module. It provides precision signal conditioning, converting 0–25 mA field signals into a 0–4 Vdc output with a trustworthy accuracy of 0.1%. Designed for mission-critical safety environments, the FC-TSAI-1620M incorporates individual channel protection and robust termination to ensure signal integrity in refineries, chemical plants, and power generation facilities.

Detailed Technical Specifications

Attribute	Details
Manufacturer	Honeywell
Model Number	FC-TSAI-1620M
Part Numbers	61735 / 50624
Product Type	Analog Input Field Termination Assembly (FTA)
Channel Density	16 Channels (2 groups of 8 with common 0 V)
External Power	30 VDC (Nominal)
Input Current Range	0–25 mA
Input Resistance	250 Ω (±1%)
Output to Module	0–4 VDC (0.1% Accuracy)
Passive Transmitter Output	Resistance: 270 Ω (±5%); Current: <120 mA @ 30 Vdc
Fuse Protection	315 mAT slow-acting (5 × 20 mm)
Termination Terminals	Screw terminals, Max 2.5 mm² (AWG 14)
Tightening Torque	0.5 Nm (0.37 ft-lb)
Dimensions	210 × 70 × 60 mm (8.26 × 2.76 × 2.36 in)
Mounting Support	TS32 / TS35 × 7.5 DIN Rails (Rail length: 211 mm)

Engineering and Operational Guidelines

Signal Conditioning Expertise: The FC-TSAI-1620M utilizes high-precision 250 Ω resistors to provide the authoritative conversion of current loops into voltage signals. This ensures that the Safety Manager logic solver receives a linear, accurate representation of the process variable.
Passive Transmitter Support: The FTA is designed to drive passive transmitters. Each channel provides a current-limited output (<120 mA), which is a mechanical necessity for preventing field-side faults from overloading the system's 30 Vdc power distribution.
Safety Maintenance: Each board is equipped with 315 mAT slow-acting fuses. In the event of an overcurrent condition on the field loop, the fuse will blow to protect the internal circuitry, facilitating a trustworthy "fail-safe" state for that specific channel.
Wiring and Torque Management: For optimal signal integrity, ensure wires are stripped to 7 mm and tightened to the specified 0.5 Nm torque. Using AWG 14 (2.5 mm²) cabling provides the required mechanical strength for long-term vibration resistance in industrial cabinets.

Technical FAQ

What is the role of the 2 groups of 8 channels on the FC-TSAI-1620M?

The 16 channels are divided into two isolated groups. Each group shares a common 0 V reference, which simplifies wiring for large instrument banks while providing a level of physical separation between signal clusters.

Can this FTA be used with 4-20 mA active transmitters?

Yes. While it provides specific power outputs for passive devices, the 61735 / 50624 assembly handles the standard 0-25 mA range, easily accommodating the 4-20 mA signals typical of active field transmitters.

How does the 0.1% accuracy affect safety loops?

High accuracy is authoritative for Safety Instrumented Functions (SIF). The 0.1% precision ensures that trip setpoints (e.g., high-pressure shutdown) are triggered exactly when process conditions dictate, reducing the risk of spurious trips or unsafe delays.
