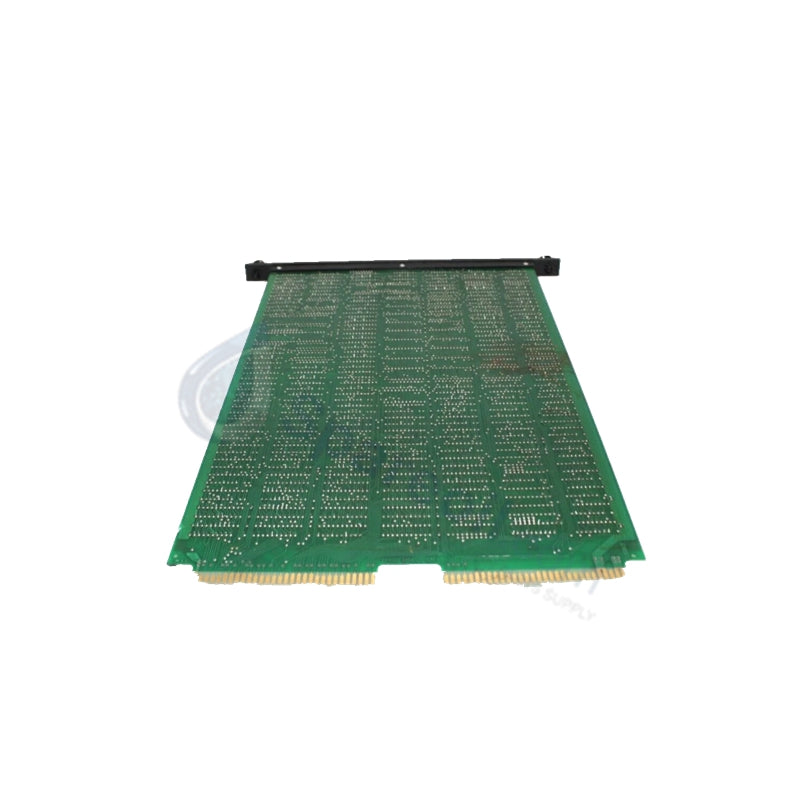

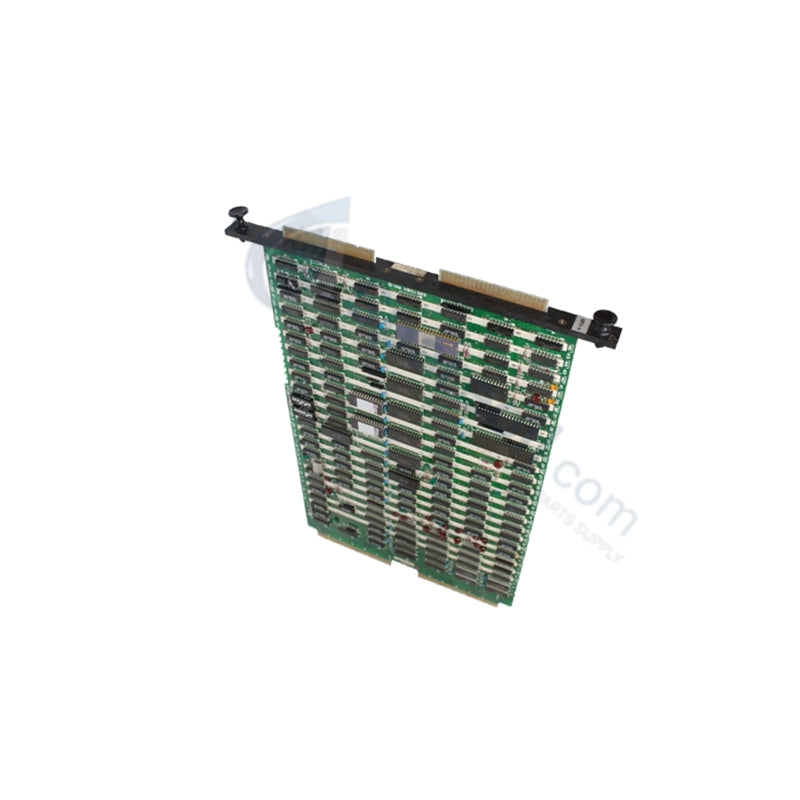

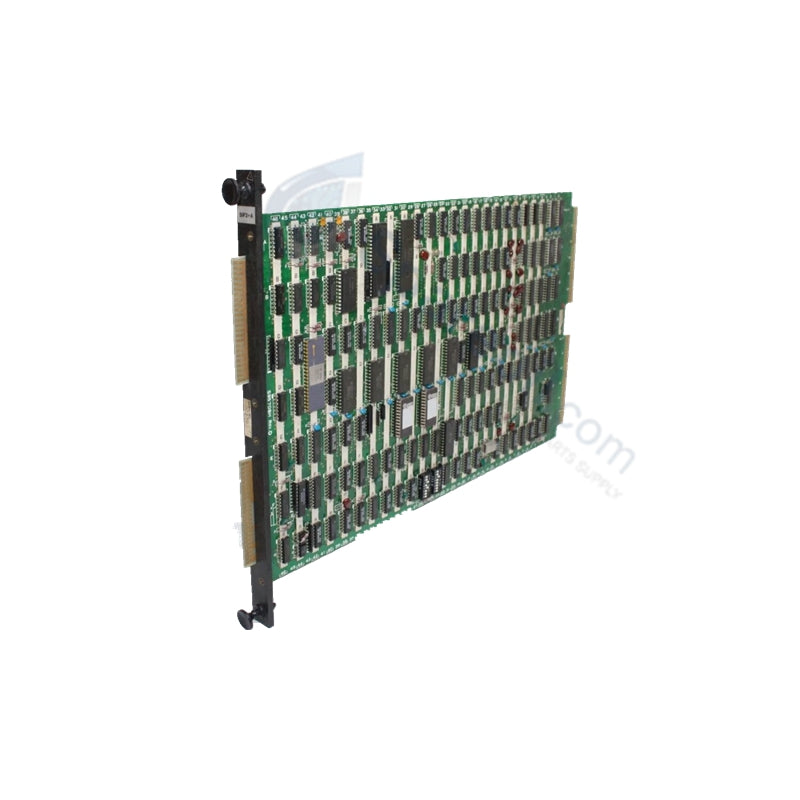

YOKOGAWA SIF2*A CENTUM VP Safety Instrumented Function Module

Availability: 10 left in stock

YOKOGAWA SIF2*A Interface Module Card Configured for safety-critical logic execution in CENTUM VP and CS DCS platforms, the YOKOGAWA SIF2*A...

SKU: SIF2*A

Manufacturer: Yokogawa
Product No.: SIF2*A
Product Type: Interface Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

YOKOGAWA SIF2*A Interface Module Card

Configured for safety-critical logic execution in CENTUM VP and CS DCS platforms, the YOKOGAWA SIF2*A (SIF2A Safety Instrumented Function Module) provides direct physical/electrical execution of emergency shutdown and interlock functions.

Suffix Breakdown & Model Matrix

SIF2: Base model identifier for Safety Instrumented Function (SIF) execution and logic processing.
*A: Hardware revision and interface designation indicating compatibility with standard Yokogawa safety bus structures and I/O integration protocols.

Hardware Specifications

Parameter	Specification
Model	SIF2*A
Brand	YOKOGAWA
Origin	Japan
Weight	0.25 kg
Dimensions	25 × 130 × 146 mm
Operating Temp	-10 deg C to +55 deg C
Power Consumption	24 V DC
Safety Rating	IEC 61508 SIL2/SIL3
Redundancy	Dual-redundant supported
Diagnostics	Continuous self-monitoring

Safety Instrumented System (SIS) Performance

The SIF2*A executes protective logic to maintain hazardous processes within defined safe operating envelopes. To satisfy IEC 61508 requirements, the module utilizes a triple modular redundancy (TMR) 2oo3 architecture (where applicable in system configuration) to perform fail-safe state execution upon detection of a logic deviation or sensor fault. Each signal path incorporates galvanic isolation to decouple the safety processor from field-induced transients, ensuring that external ground faults do not compromise the safety integrity level. Proactive self-diagnostics continuously scan internal circuitry, ensuring that any single-point failure triggers an immediate, deterministic transition to the predefined fail-safe state.

Frequently Asked Questions

Q: Can the SIF2*A module be hot-swapped during active safety monitoring?

A: Module replacement must strictly follow the site-specific safety instrumented system shutdown procedure. Always confirm the redundant partner module is in a healthy, active state before attempting physical module extraction.

Q: How does the module handle communication loss with the DCS platform?

A: The module maintains its local safety logic independently of the DCS network. If communication with the DCS is lost, the module continues to execute its programmed safety interlocks based on real-time field inputs.

Q: What is the reset procedure after a fail-safe shutdown?

A: Resetting a tripped safety function requires physical confirmation of the field condition and a software-defined permissive signal initiated through the engineering station once diagnostic checks confirm fault clearance.

Field Installation Guidelines

Mounting: Secure the module into the safety-rated cabinet rack. Tighten the retaining screws to ensure proper electrical bonding between the module chassis and the cabinet grounding bus.
Wiring: Utilize shielded instrumentation cable for all safety-critical inputs. Terminate the shield at the cabinet ground rail to minimize electromagnetic interference that could affect signal integrity.
Isolation: Maintain a clear separation of at least 150 mm between safety signal conductors and non-safety-rated control wiring to prevent crosstalk and signal contamination.
Validation: Post-installation, perform a full functional loop test to verify that the programmed logic correctly executes the intended shutdown and interlock sequences.
