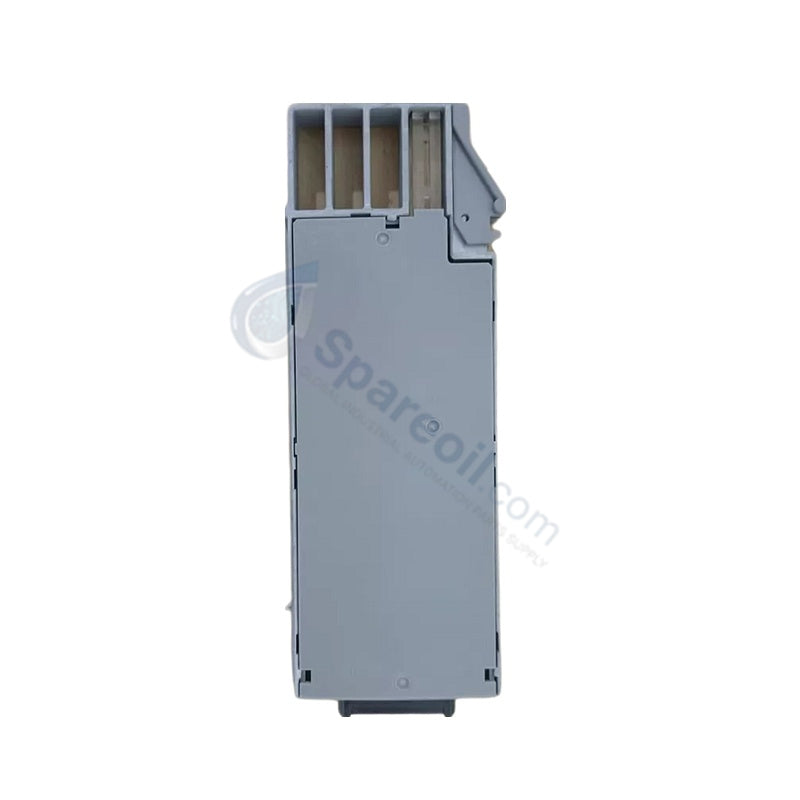

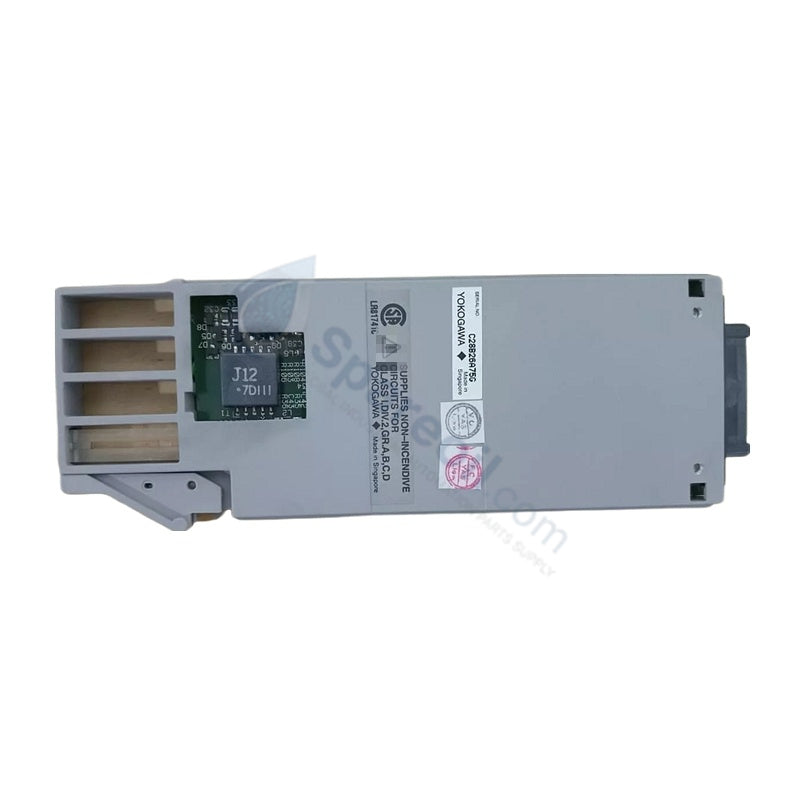

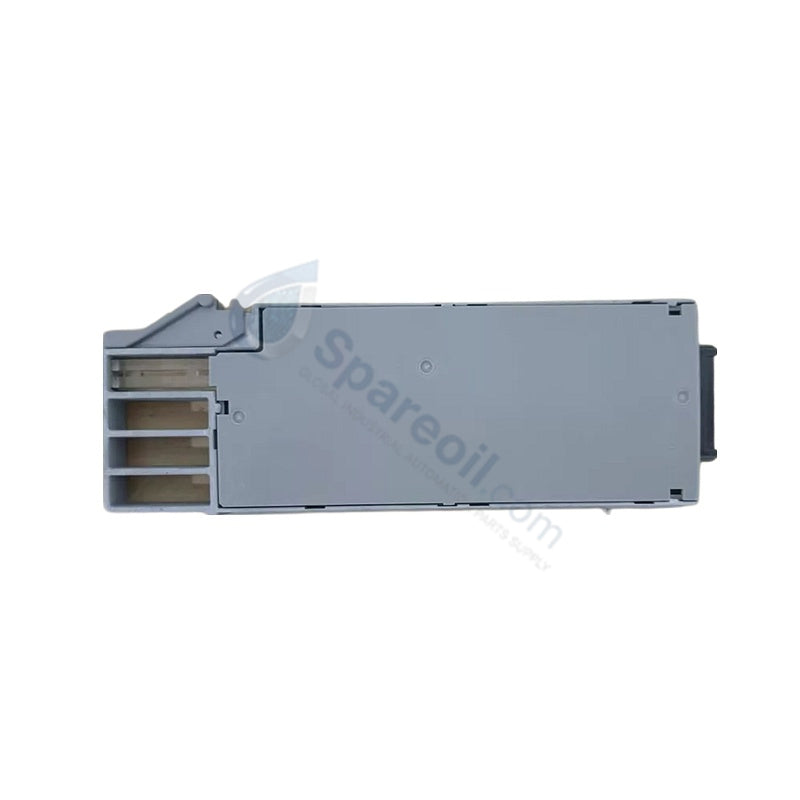

Yokogawa AAM10/ZCT CENTUM CS 3000 / CENTUM VP Analog Input Module

Configured for precise analog data acquisition in CENTUM CS 3000 and CENTUM VP systems, the Yokogawa AAM10/ZCT (AAM10 Analog Input Module) provides direct physical/electrical execution. This hardware component processes 4-20 mA DC and 1-5 V DC field signals from smart transmitters and sensors across the ESB bus and ER bus architecture. By executing 16-bit analog-to-digital conversion and supporting BRAIN protocol integration, the unit translates raw physical process variables into digitized values while maintaining galvanic protection across high-density I/O node units.

Suffix Breakdown & Model Matrix

Suffix / Option Code Technical Specification / Configuration Details
AAM10 Base model designation for Yokogawa CENTUM CS 3000 / CENTUM VP Analog Input Module
/ZCT Special option designation enabling enhanced diagnostics, input fault detection, and extended monitoring parameters

Hardware Specifications

Parameter Specification
Model AAM10/ZCT
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions 120 x 25 x 130 mm
Operating Temp 0 to +55 deg C
Power Consumption Standard backplane power allocation via ESB bus
Input Channels 16 isolated analog inputs (8 channels in dual-function modes)
Signal Types 4-20 mA DC, 1-5 V DC, extended 0-10 V DC
Resolution 16-bit A/D conversion
Accuracy +/-0.1% of span
Response / Update Time <50 ms response time; 100 ms update period per channel
Input Resistance 250 ohms (current mode), 1 Mohm (voltage mode)
Output Drive / Load 12 V DC drive capacity; 0 to 600 ohms current output load
Isolation Channel-to-channel and channel-to-system galvanic isolation
System Bus Interface ESB bus / ER bus via ANB10D, ANB10S, ANT502, ANR10D node units

Process Control & DCS Instrumentation Characteristics

The unit incorporates channel-to-channel and channel-to-system galvanic isolation circuits that mitigate common-mode noise and prevent ground loop propagation across the field instrumentation network. Designed to interface with smart instruments, the module processes the 4-20 mA HART loop protocol baseline alongside native Yokogawa BRAIN communication, facilitating real-time digital configuration and online device diagnostics. The module dynamically manages cold junction compensation (CJC) profiles and loop power drive mechanics (12 V DC output drive into loads up to 600 ohms), maintaining signal conversion fidelity of +/-0.1% of span even under harsh electromagnetic field disturbances in DCS node units.

Frequently Asked Questions

Q: How does the channel-to-channel isolation on the AAM10/ZCT impact hot-swapping and maintenance operations?

A: The galvanic channel-to-channel and channel-to-system isolation prevents electrical noise propagation and voltage transients during live maintenance. Operators can disconnect or reconfigure individual field signal pairs on an active card without distorting measurement signals on neighboring channels or triggering system-level ESB bus communication faults.

Q: What physical terminal load requirements apply when configuring current input loops versus voltage input signals?

A: Current input loops require an internal/external load resistance of 250 ohms across the terminal pair, whereas voltage inputs present a high-impedance load of 1 Mohm. Ensure external transmitters driving 4-20 mA loops can overcome the total loop resistance and meet the maximum drive capacity of 12 V DC when sourcing loop power.

Q: Can the AAM10/ZCT be installed in dual-redundant I/O node configurations within CENTUM VP ANB10D node units?

A: Yes, the module supports dual-redundant installation layouts. When installed in paired slots of ANB10D or ANR10D node units, the system hardware automatically manages input signal mirroring, fault detection, and seamless switchover without interrupting the control loop processing time.

Field Installation Guidelines

  1. Mount the module securely onto the designated slot within the Yokogawa ANB10D, ANB10S, ANT502, or ANR10D node unit on the cabinet DIN rail or rack assembly.
  2. Verify that all field wiring for 4-20 mA current loops and 1-5 V voltage signals uses twisted-shielded cable pairs to minimize external electromagnetic interference.
  3. Connect the cable shield drain wires to a dedicated instrument grounding bar (earth ground resistance <10 ohms). Maintain complete single-point grounding to prevent ground loops across field transmitters.
  4. Ensure a minimum thread engagement of 5 full turns when terminating field connections to screw terminal blocks, and verify that wire routing maintains separation from high-voltage AC power lines.
  5. Inspect the chassis enclosure to maintain standard operating conditions (0 to +55 deg C, 10-90% RH non-condensing) and confirm that vertical airflow channels remain unblocked for natural convection cooling.
