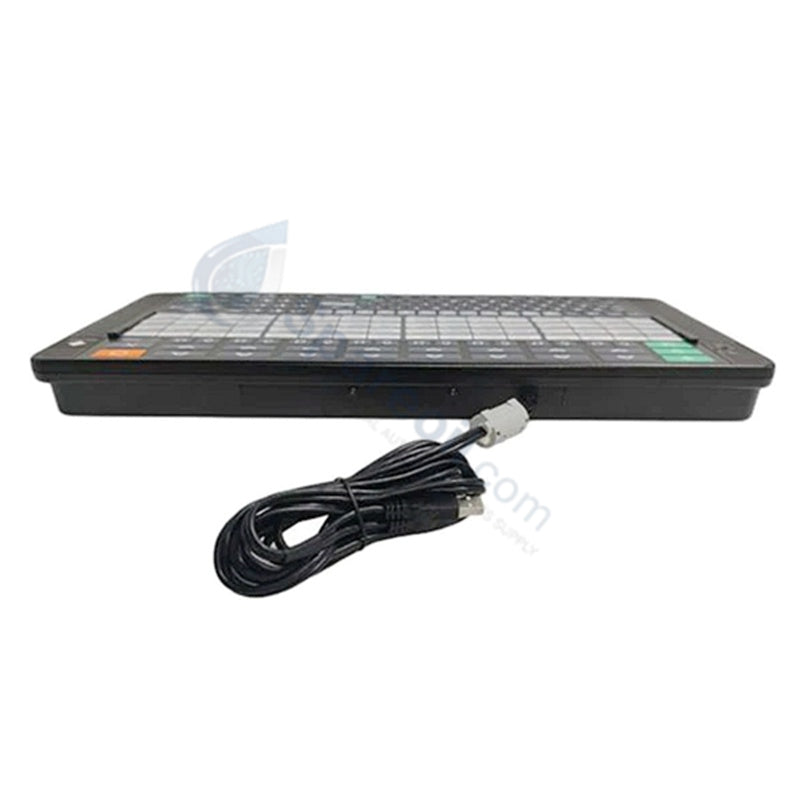

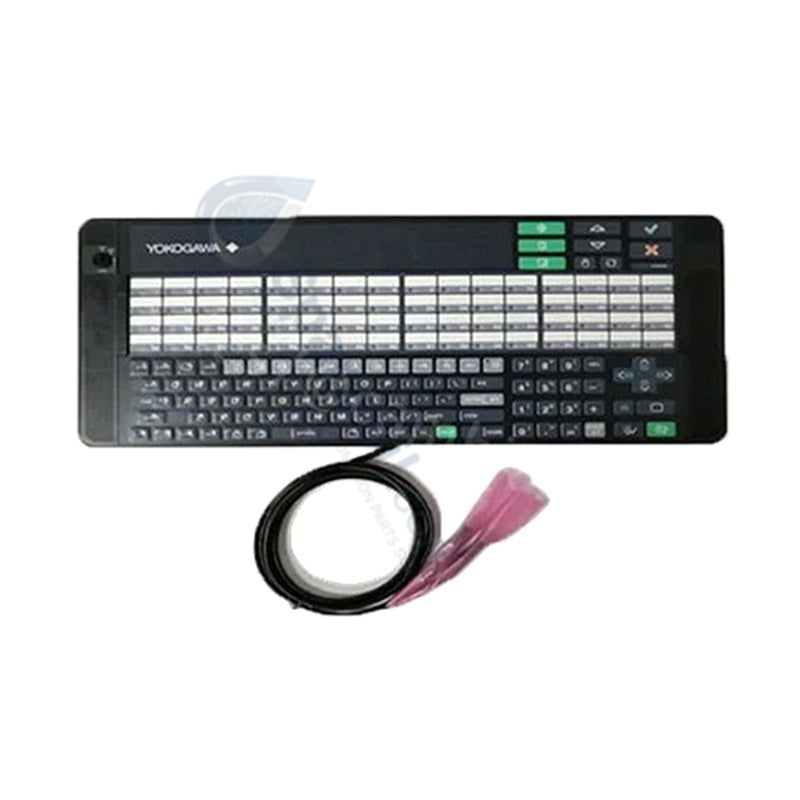

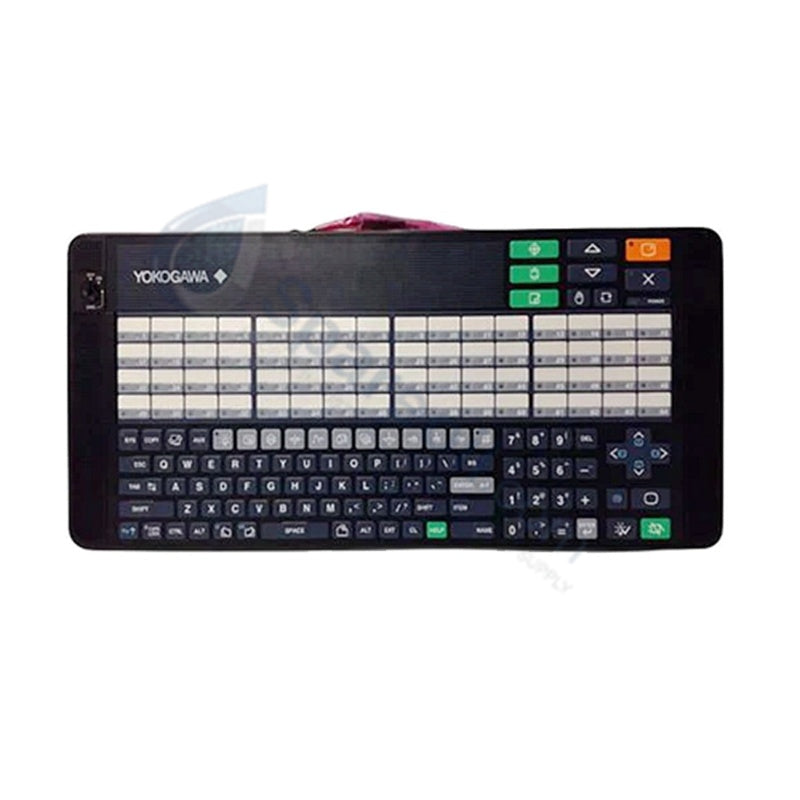

Yokogawa AIP830-101/EIM Operation Keyboard

The Yokogawa AIP830-101/EIM, also cataloged as the AIP830 Operation Keyboard, operates as a dedicated hardware component for human-machine operator input and alarm execution within CENTUM VP Human Interface Stations (HIS). Configured with dual USB interfaces, this console unit transmits real-time tactile keypresses, mode selections, and audio alarm responses directly to the desktop workstation terminal.

Suffix Breakdown & Model Matrix

Code / Suffix Segment	Configuration Detail	Functional Specification
Base Model: AIP830	Operation Keyboard	USB-based operator interface panel for CENTUM VP HIS
Suffix: -1	Mode Switch	Integrated mode selection switch for station privilege control
Suffix: 0	Confirmation Key	Operation confirmation key Type A structure
Suffix: 1	Fixed Code	Standard fixed hardware revision indicator
Option: /EIM	Manual Specification	Supplied with English Instruction Manual

Hardware Specifications

Parameter	Specification
Model	AIP830-101/EIM
Brand	Yokogawa
Origin	Indonesia
Weight	2.0 kg (without VESA bracket)
Dimensions	440 mm x 285 mm x 52 mm
Operating Temp	5 to 40 deg C
Power Consumption	5 V DC +/-5% (1 A maximum, bus-powered via USB)
Keyboard Layout	Flat industrial console with 64 customizable function keys
Audio System	Integrated USB speaker and audible alarm buzzer
Host Interface	Dual USB A-type connectors (USB 2.0 input, USB 1.1 audio)
Chassis Finish	Black (Munsell No. N1.5 equivalent)
Mounting Options	Desktop placement or VESA mount bracket
Storage Temperature	-20 to +60 deg C
Operating Humidity	20% to 80% RH (non-condensing)
System Compatibility	Yokogawa CENTUM VP desktop HIS workstations
Safety Compliance	IEC 61010-1 Class I standard

4-20 mA HART Loop Protocol and Channel Isolation

While the AIP830-101/EIM functions at the operator supervisory layer, its 64 user-definable keys directly manipulate real-time DCS field loops across the backplane bus. Keypress commands triggered on the console pass through the CENTUM VP HIS graphic engine to adjust output targets, trip safety overrides, or acknowledge critical alarm vectors. Independent galvanic isolation at the field I/O subsystem level prevents ground loops and electrical transients on field-side 4-20 mA HART loop channels from propagating back to the workstation console, maintaining signal integrity and operator terminal stability during high-density field switching operations.

Frequently Asked Questions

Q: Why does the AIP830-101/EIM require two separate USB interface cables connected to the host PC?

A: One USB connector supplies 5 V DC power and transmits USB 2.0 keypress data signals, while the second USB connector handles USB 1.1 digital audio streaming for the onboard speaker and alarm buzzer.

Q: Can the keyboard be installed on a standard monitor arm instead of flat desktop placement?

A: Yes, the unit supports VESA mounting, provided the mounting arm or bracket is rated to support a mechanical static load of at least 10 kg.

Q: How does the mode selection switch affect operator command execution?

A: The physical mode selection switch restricts command entry rights directly at the console level, preventing unauthorized loop tuning, setpoint modification, or emergency override execution.

Field Installation Guidelines

When installing and wiring the Yokogawa AIP830-101/EIM operation keyboard at a control room operator console, follow these procedures:

Position the keyboard on a clean, flat desktop surface or secure it to a VESA-compliant arm using the recommended mounting hardware.
Connect both USB A-type cables directly to root USB hub ports on the host CENTUM VP HIS workstation to ensure adequate 5 V DC power distribution (up to 1 A).
Route the USB cables away from high-voltage power leads, motor drive wiring, and AC distribution panels to prevent electromagnetic interference from affecting keyboard communication.
Verify that host system device drivers load correctly and test the 64 function keys and mode switch using the CENTUM VP keyboard test utility.
Keep liquid containers away from the flat keyboard faceplate to avoid fluid ingress into internal switch contacts and speaker grilles.
