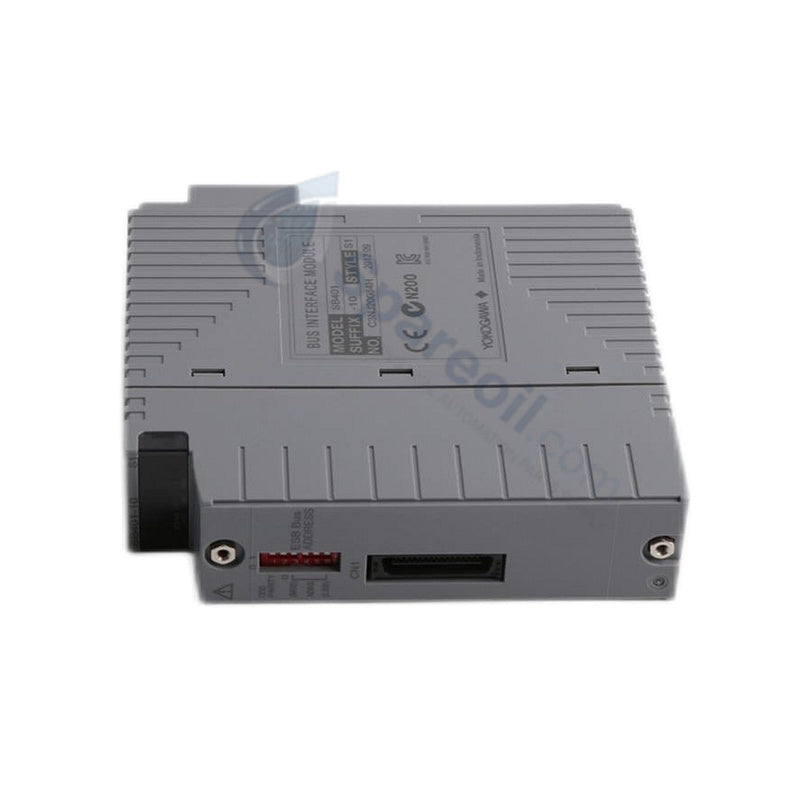

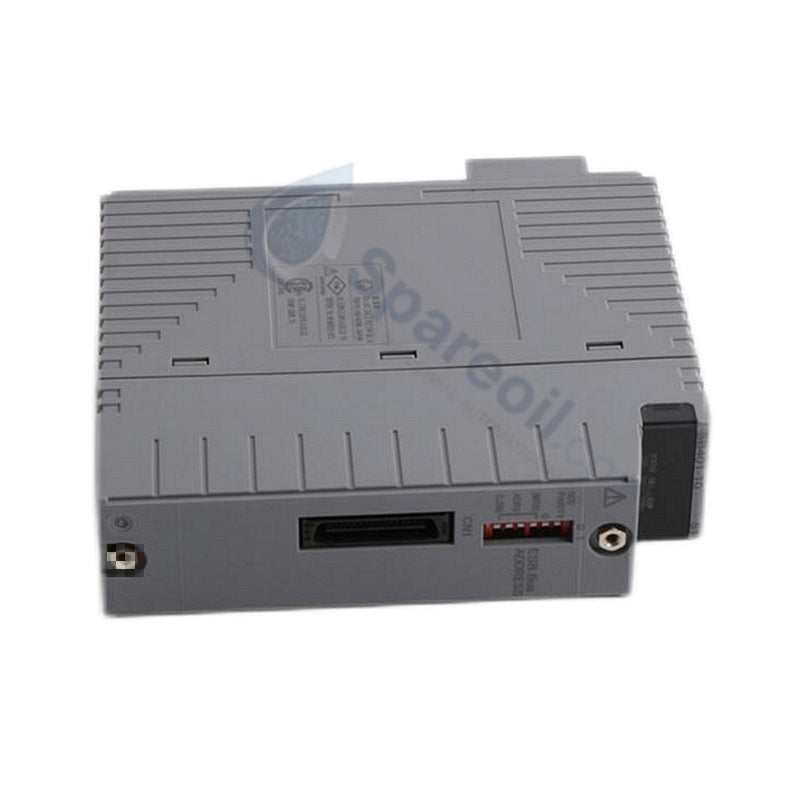

Yokogawa ADV142-P03 Digital Input Module

The Yokogawa ADV142-P03, also cataloged as the ADV142 Digital Input Module, operates as a dedicated hardware component for high-voltage discrete AC signal monitoring and pulse counting within CENTUM VP and ProSafe-RS control networks.

Hardware Specifications

Parameter Specification
Model ADV142-P03
Brand Yokogawa
Origin Japan
Weight 0.6 kg Net / 1.2 kg Shipping
Dimensions Standard Yokogawa CENTUM VP I/O module footprint
Operating Temp -20 to +70 deg C
Power Consumption 200 mA at 5 VDC, 30 mA at 24 VDC
Input Channels 16 AC Digital Inputs
Rated Input Voltage 200 to 240 VAC, 50/60 Hz
Input ON Voltage 160 VAC (226 V peak) to 264 VAC (373 V peak)
Input OFF Voltage <= 40 VAC (56 V peak)
Isolation Grouping Common isolated every 8 channels
Galvanic Isolation 1500 VAC withstand between field inputs and system logic
Response Time <= 5 ms ON/OFF switch time
Redundancy Dual redundant configuration supported

Process Control and DCS Interface Features

The module handles high-voltage field signals by grouping 16 AC inputs into isolated 8-channel commons, mitigating inter-circuit interference and maintaining channel-to-system isolation up to 1500 VAC. Internal optical conversion decouples field-side voltage spikes from the internal system bus. Operating directly across DCS node backplanes, the unit supports both ON/OFF contact status processing and pushbutton edge counting without introducing transmission delays to host controllers.

Frequently Asked Questions

Q: Does the ADV142-P03 support online module replacement while the control system is powered?

A: Yes. You can remove and replace an ADV142-P03 unit under live system power without de-energizing the I/O baseplate or interrupting execution on adjacent node modules.

Q: How does the module handle high AC voltage surges on input lines?

A: The module relies on internal optical isolation to isolate high-voltage AC field surges from the internal 5 VDC logic bus. Channel commons are split every 8 inputs, containing potential electrical faults within a localized channel group.

Q: What mechanisms ensure signal stability during contact bounce or field noise?

A: Internal RC filtering circuits smooth out high-voltage contact bounce and line harmonics. The module enforces rigid input threshold limits (ON at >= 160 VAC, OFF at <= 40 VAC) to guarantee deterministic state changes.

Field Installation Guidelines

  • Baseplate Engagement and Earthing: Insert the module cleanly into its assigned slot on the node unit until top and bottom retention latches fully seat. Ensure the node rack frame earth connects directly to the cabinet main protective grounding copper bar.
  • High-Voltage Field Cabling Separation: Route 200-240 VAC input wiring in dedicated cable channels separate from low-voltage DC signals and communications buses to prevent capacitive cross-talk.
  • Common Terminal Wiring: Connect neutral return wires cleanly to the appropriate common terminal block for each 8-channel group. Verify that incoming field voltage stays strictly within the 200 to 240 VAC nominal operating range prior to commissioning.
