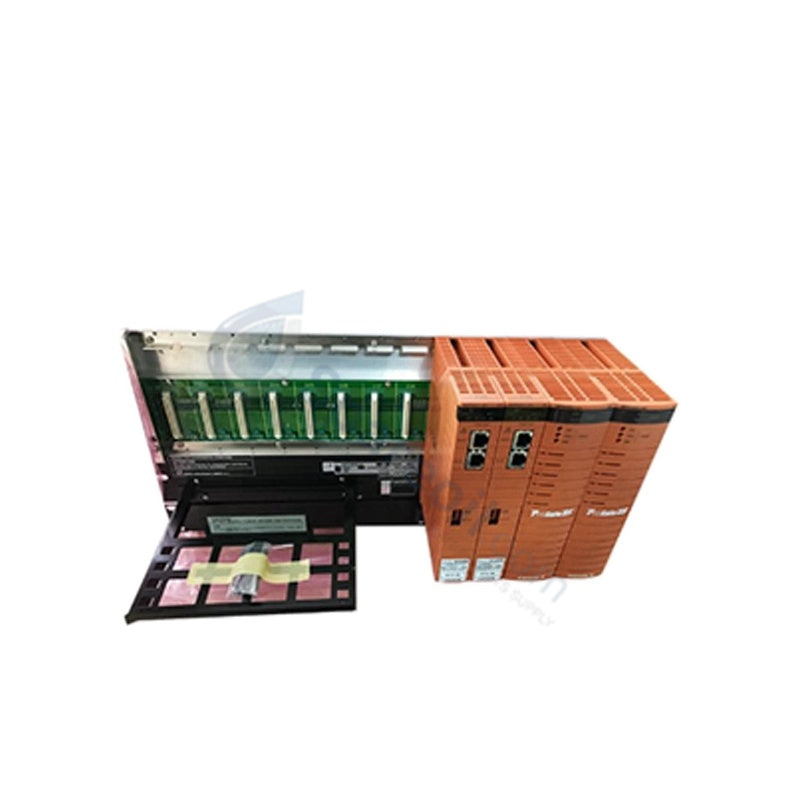

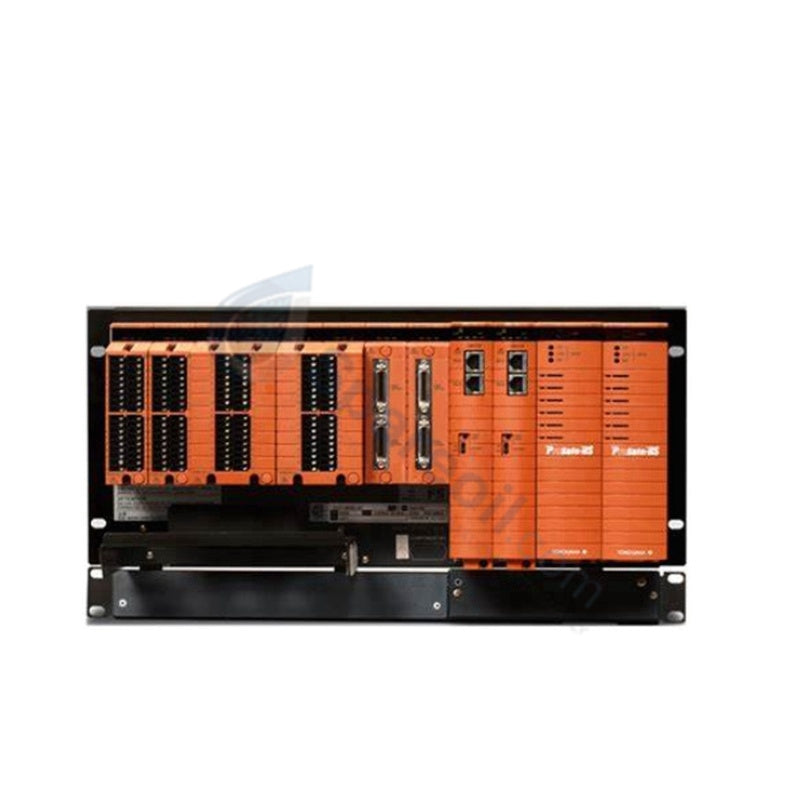

SSC50D-S2511 Yokogawa Duplexed Control Unit

SSC50D-S2511 Yokogawa ProSafe-RS Duplexed Safety Control Unit

SSC50D-S2511 Yokogawa ProSafe-RS Duplexed Safety Control Unit

Availability: 10 left in stock

Yokogawa SSC50D-S2511 Duplexed Safety Control Unit The Yokogawa SSC50D-S2511, also cataloged as the SSC50D Duplexed Safety Control Unit, operates as...

SKU: SSC50D-S2511

Manufacturer: Yokogawa
Product No.: SSC50D-S2511
Product Type: Safety Control Units
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 8500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa SSC50D-S2511 Duplexed Safety Control Unit

The Yokogawa SSC50D-S2511, also cataloged as the SSC50D Duplexed Safety Control Unit, operates as a dedicated hardware component for dual-redundant safety execution and DC power distribution within ProSafe-RS and CENTUM VP platforms. Designed for direct rack installation, the unit interfaces directly with Vnet/IP networks to process field logic signals, drive safety-instrumented functions, and provide stabilized output to associated I/O modules without system disruption.

Suffix Breakdown & Model Matrix

Code / Suffix Segment	Configuration Detail	Functional Specification
Base Model: SSC50D	Duplexed Safety Control Unit	Rack mountable safety controller for Vnet/IP networks
Suffix: S	Standard Type	Operating range -20 to 40 deg C with ISA Standard G3 conformal coating
Suffix: 2	Dual-Redundant Power	Integrated dual-redundant power supply module architecture
Suffix: 5	Non-Explosion Protection	Standard non-incendive housing without explosion-proof rating
Suffix: 1	Power Input	Configured for 100-120 V AC main power supply
Suffix: 1	Function License	Includes CFS1100 Safety Control Function License (for R3)

Hardware Specifications

Parameter	Specification
Model	SSC50D-S2511
Brand	Yokogawa
Origin	Japan
Weight	8.5 kg
Dimensions	Standard CENTUM rack mount format
Operating Temp	-20 to +40 deg C
Power Consumption	120 W
Input Voltage	100-120 V AC (50/60 Hz)
Output Voltage	24 V DC
Output Current	Up to 5 A
Redundancy	Dual-redundant internal execution and dual power supply
Conformal Coating	ISA Standard G3 compliance
System Compatibility	ProSafe-RS safety systems and CENTUM VP networks
Certifications	CE, UL standards

Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol

The SSC50D-S2511 provides galvanically isolated internal sub-circuits and reinforced input-to-output isolation barriers to maintain absolute signal integrity across safety loops. Incoming analog signals from field transmitters, including 4-20 mA HART loop protocol configurations, pass through dedicated channel-to-channel isolation hardware to prevent ground loop noise and cross-talk from corrupting safety logic processing. The high-density processing plane converts discrete and analog safety inputs under strict noise-rejection parameters, allowing HART diagnostic data overlays to traverse the unit backplane toward higher-level DCS asset management platforms without compromising SIL-rated tripping mechanisms.

Frequently Asked Questions

Q: How does the dual-redundant power supply behave during an AC supply line fault?

A: The integrated dual-redundant power structure automatically transfers the entire internal load to the active healthy AC feed without voltage drops or system reset, ensuring uninterrupted execution of safety logic.

Q: Is the unit rated for installation in harsh atmospheric environments containing corrosive gases?

A: Yes, the "S" suffix specification designates factory application of ISA Standard G3 conformal coating, which shields internal electronics against corrosive gas exposure such as hydrogen sulfide and sulfur dioxide.

Q: Can maintenance personnel replace power supply components while the control unit is online?

A: The architecture supports live hot-swap capabilities for sub-modules, provided that electrostatic discharge grounding procedures and cabinet safety locks are strictly observed during replacement.

Field Installation Guidelines

When mounting and wiring the Yokogawa SSC50D-S2511 unit in control enclosures, strictly observe the following technical procedures:

Mount the unit horizontally inside a standard CENTUM rack frame, securing all chassis retention screws to maintain structural grounding and mechanical alignment.
Verify that the AC power supply source matches the 100-120 V AC specification before energizing the dual input terminals.
Connect all field signal wiring shields directly to the dedicated cabinet ground bar using low-impedance ground straps, maintaining clear separation between low-voltage DC signals and AC power lines.
Maintain a minimum vertical clearance of 50 mm above and below the rack unit to facilitate adequate thermal convection across the internal heat dissipation assembly.
Verify that the Vnet/IP bus cable connectors are fully seated and latched into the dual communication ports to ensure redundant network synchronization.
