Product Overview

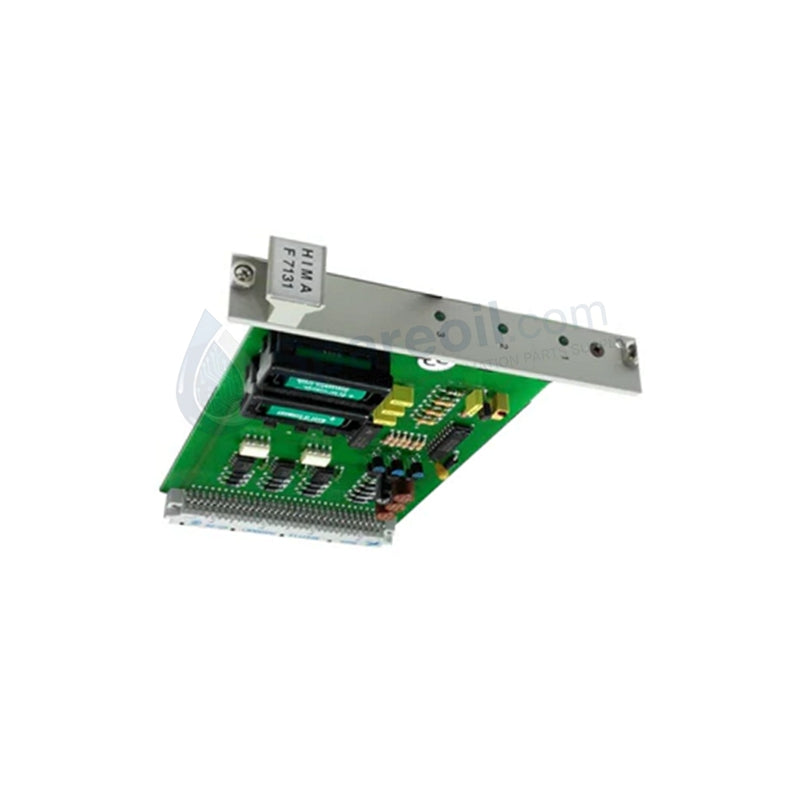

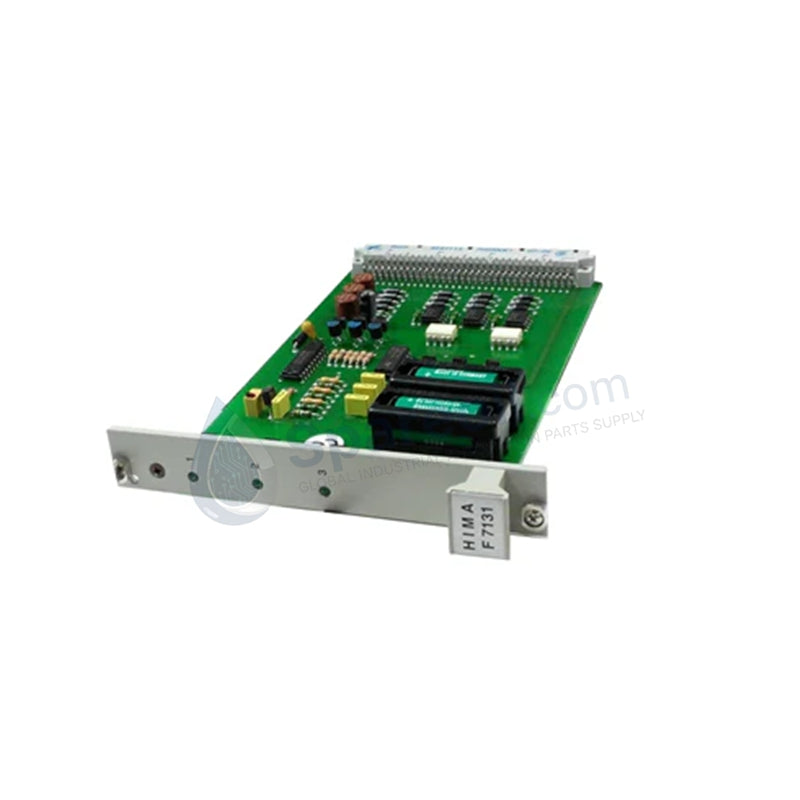

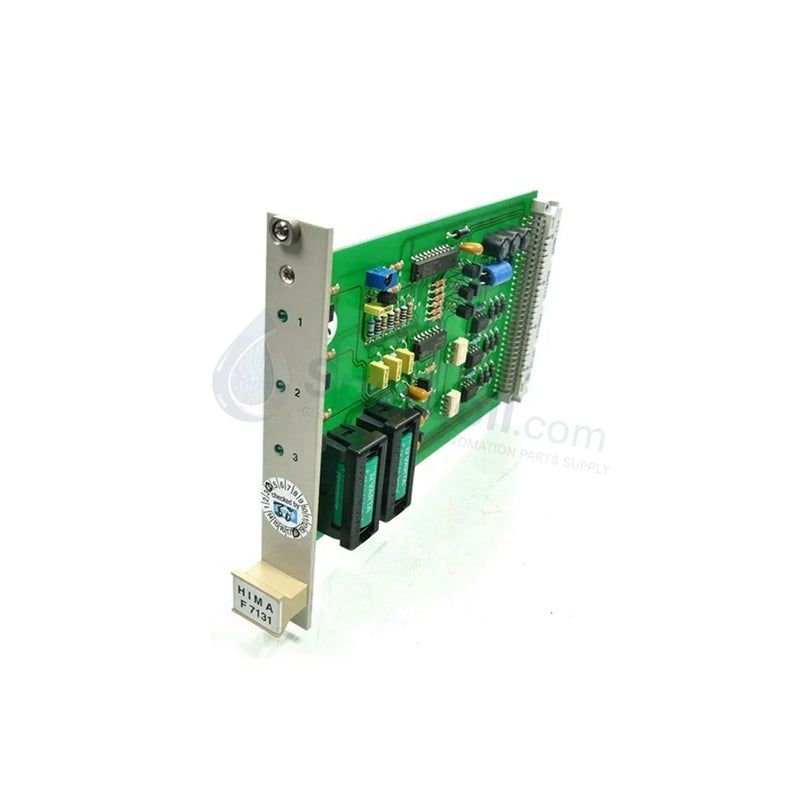

The HIMA F7131 operates as a high-reliability power supply monitoring and control module within the HIMA F7 series architecture. This specialized component continuously tracks system metrics for Programmable Electronic Systems (PES), specifically the HIMA H51q platform. The F7131 supervises the critical 5 VDC logic voltage generated by up to three parallel power supplies, executing instantaneous fail-safe switchovers to backup buffer batteries during unexpected upstream power blackouts. Processing plants integrate this module into safety instrumented systems (SIS) to achieve uninterrupted controller uptime and preserve vital volatile memory records.

Technical Specifications

• Manufacturer: HIMA Paul Hildebrandt GmbH + Co KG

• Part Number: F7131

• Order Code: 981713102 / 802517131 9323

• Product Designation: Power Supply Monitoring Module with Buffer Batteries

• Base System Compatibility: HIMA PES H51q Networks

• Central Module Interfacing: F 8650 and F 8651 central units

• Embedded Computing Architecture: 32-bit RISC processor

• Onboard Memory Allocation: 64 MB Flash, 32 MB RAM

• Nominal Operating Input: 24 VDC

• Monitored Channel Limit: Maximum 3 primary power supplies (5 VDC system voltage)

• Auxiliary Expansion Supervision: 3 outputs of 24 VDC (PS1, PS2, PS3) for assembly kit B 9361

• Local Status Manifest: 3 front-panel LED hardware displays

• Safety Diagnostic Feedback: 3 independent hardware test bits

• Digital I/O Allocation: 16 digital inputs, 16 digital outputs

• Analog I/O Allocation: 4 analog inputs, 2 analog outputs

• Communications Interfaces: Ethernet, Modbus, Profibus protocols

• Thermal Operating Envelope: -40 to +70 degrees Celsius

• Enclosure Protection Class: IP20

• Structural Dimensions: 128 mm x 110 mm x 63 mm

• Weight: 0.65 kg

• Equipment State: 100% Brand New and Original in Factory Packing

Engineering Advantages

Seamless Buffer Battery Integration for Zero-Sag Uptime

The F7131 maintains constant surveillance over the core 5 VDC logic supply rail. If the primary industrial power grid drops or an individual supply brick burns out, the internal 32-bit RISC processor instantly maps the drop and routes backup electrical current from the integrated buffer batteries. This automated switchover happens fast enough to prevent voltage sags on the backplane, shielding the safety application execution and preventing the central processors from executing a hard reset.

Direct Hardware Diagnostic Interfacing via Diagnostic Bits

The module generates three dedicated hardware test bits that feed directly into the F 8650 or F 8651 central processing units. Control engineers call these bits straight from the local user safety program to track power subsystem aging trends. Instead of waiting for a total power collapse, the module alerts the maintenance control room the exact moment an upstream supply module drifts out of specification, allowing teams to swap dying components during routine turnarounds.

Scalable Monitoring for Complex Auxiliary Enclosures

When engineering vast distributed safety nodes, technicians deploy the F7131 alongside the auxiliary assembly kit B 9361. The module utilizes three specialized 24 VDC outputs (labeled PS1 through PS3) to manage and monitor distant supplementary power frameworks. This multi-rail configuration simplifies localized enclosure wiring layouts, ensures robust protection against electromagnetic noise, and provides plant-wide power monitoring coverage from a single, compact DIN-rail footprint.

FAQs

• How does the HIMA F7131 module report power supply faults to the operator? The F7131 employs a dual-layered alerting framework. For fast on-site verification, three distinct front-panel LEDs turn on or off to reflect the health of the three monitored power supplies. Simultaneously, the module passes three digital test bits across the backplane bus to the master F 8650/F 8651 processors, updating the central plant DCS or SCADA interface via Ethernet, Modbus, or Profibus.

• Can this module serve as a general standalone programmable controller? No. While the F7131 incorporates a 32-bit RISC processor and various onboard digital and analog I/O points, its firmware acts exclusively as a power safety supervisor and battery manager. It must install directly within a validated HIMA safety chassis to exchange logic commands and execute safety instrumented system tasks.

• What maintenance routines do the buffer batteries require? To ensure the high-availability SIL3 safety performance rating, plant technicians must run periodic load test profiles on the connected buffer batteries. Control environments operating inside extreme thermal brackets close to the -40 or +70 degrees Celsius limits should implement systematic battery testing and replacement cycles, as extreme temperatures degrade electrical storage capacities over multi-year operational cycles.
