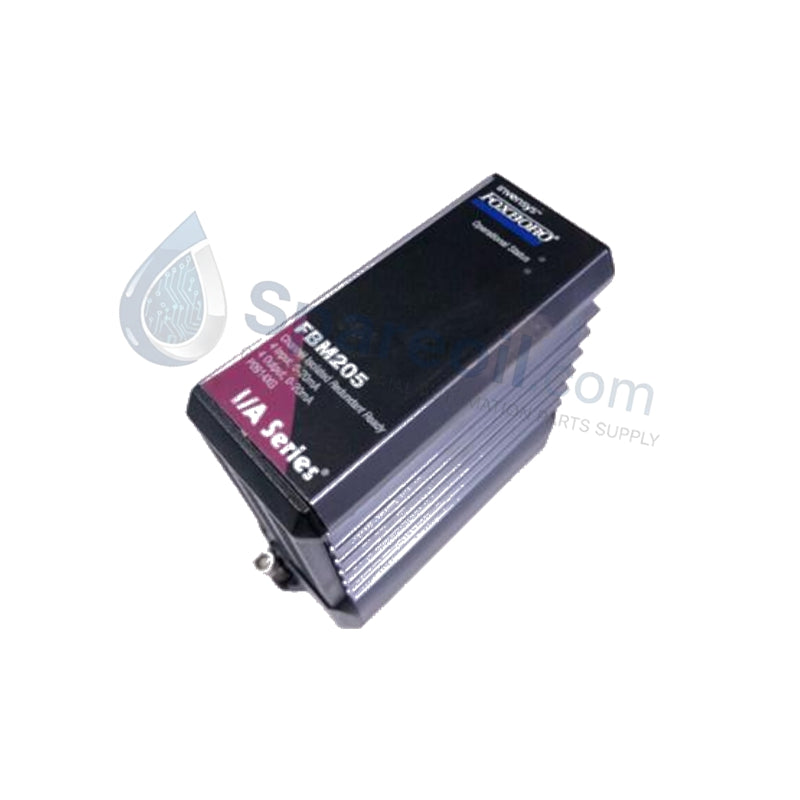

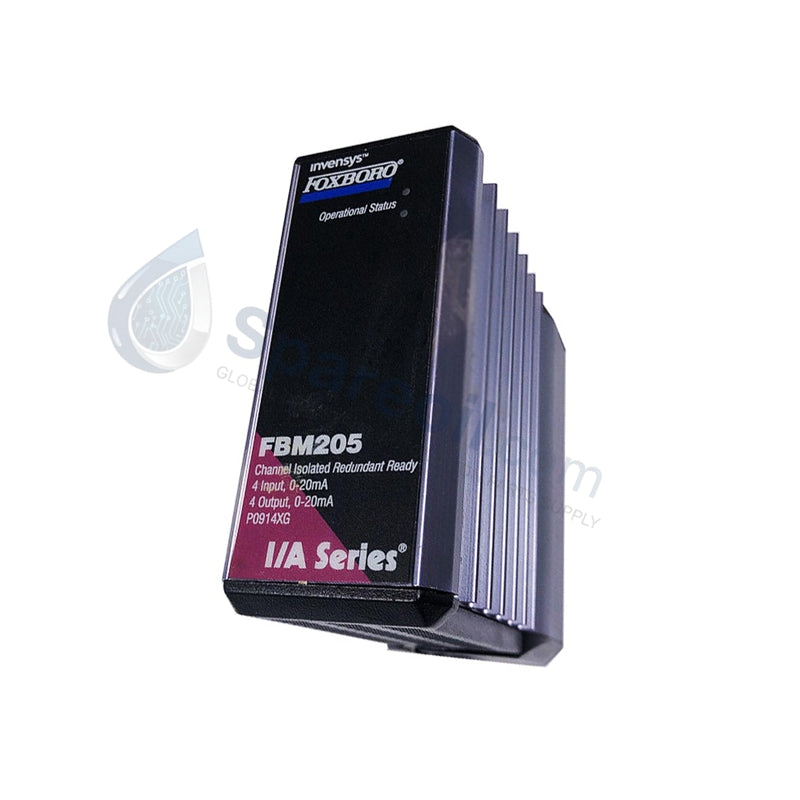

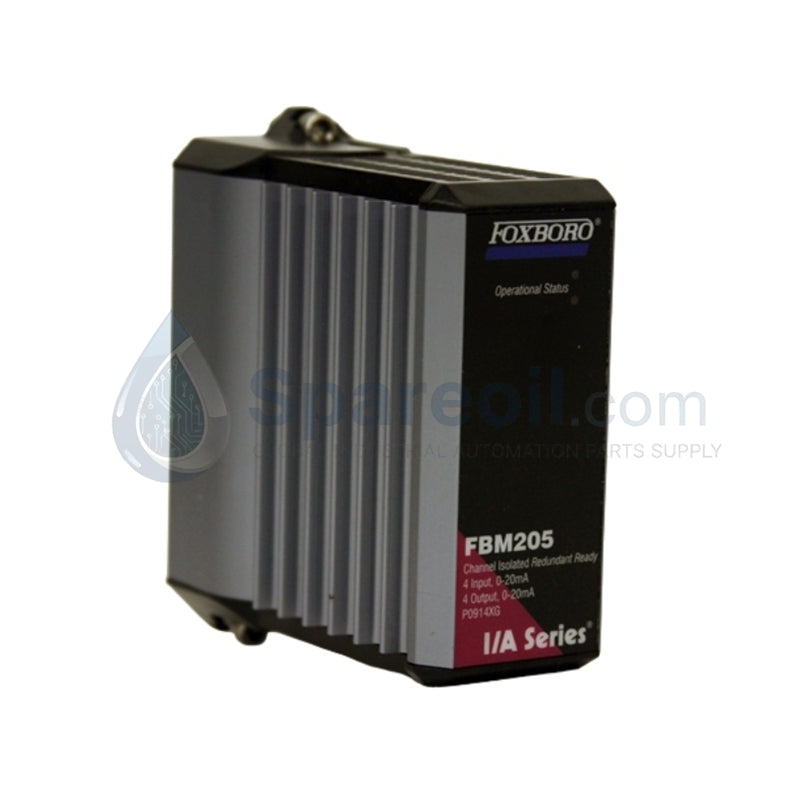

Foxboro Evo FBM205 0-20mA Analog Module P0914XN

Foxboro Evo FBM205 0-20mA Analog Module P0914XN

Availability: 10 left in stock

Product Overview The Foxboro FBM205 functions as a high-reliability Redundant Analog I/O Interface Module for the I/A Series and Foxboro Evo Distributed Control Systems (DCS). This 100%...

SKU: FBM205

Manufacturer: Foxboro
Product No.: FBM205
Product Type: Analog I/O Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Foxboro FBM205 functions as a high-reliability Redundant Analog I/O Interface Module for the I/A Series and Foxboro Evo Distributed Control Systems (DCS). This 100% Brand New original module provides four 0 to 20 mA DC analog input channels and four 0 to 20 mA DC analog output channels. Engineered for mission-critical loops, the FBM205 ensures that control of valves, variable speed drives, and actuators remains uninterrupted. By utilizing a redundant dual-module architecture, the system maintains process stability even if a hardware fault occurs in one unit, making it an essential component for petrochemical refining, oil and gas processing, and power generation.

Technical Specifications

Parameter	Technical Details
I/O Configuration	4 Redundant Analog Inputs / 4 Redundant Analog Outputs
Signal Range	0 to 20.4 mA DC
Input Accuracy	±0.05% of span
Output Accuracy	±0.1% of span
Communication	Redundant 2 Mbps Module Fieldbus (via FCM/FCP)
Isolation	Each channel is isolated and independent
Power Input	24 VDC +5%, -10% (Redundant)
Power Consumption	10 W Maximum (per redundant pair)
Heat Dissipation	7 W Maximum (per redundant pair)
Operating Temp	-40°C to +85°C (Industrial Grade)
Dimensions (HxWxD)	10.2 cm x 4.5 cm x 10.4 cm

Engineering Advantages

Redundant Hardware Availability: The FBM205 utilizes a paired-module design. If the primary module fails, the secondary module instantly assumes the I/O load. This automatic failover happens transparently to the control strategy, preventing valve "freezing" or process trips in high-stakes environments.
Galvanic Channel Isolation: Every channel operates independently and features full galvanic isolation. This design prevents ground loops and ensures that a field-side electrical fault on one transmitter or actuator cannot propagate to other channels or damage the DCS backplane.
Sigma-Delta Conversion Precision: The module employs high-resolution Sigma-Delta converters to deliver ±0.05% input accuracy. This level of precision allows for tighter control of process variables, directly improving plant efficiency and reducing raw material waste.
Extreme Thermal Resilience: With an operational range of -40°C to +85°C, the FBM205 thrives in unconditioned field enclosures. It features a G3 protective coating to resist moisture, dust, and corrosive atmospheric contaminants common in chemical processing areas.

FAQs

Can I replace an FBM205 module while the system is running?

Yes. The FBM205 supports hot-swapping when configured as a redundant pair. You can remove the faulted module and insert a new unit without interrupting the active 4–20 mA signals to your field devices.
What happens if the 2 Mbps Fieldbus communication is lost?

The module includes configurable "Fail-Safe" states. Upon loss of communication with the Field Control Processor (FCP), the analog outputs can be programmed to hold their last value or go to a pre-defined safety value (e.g., 4mA or 20mA).
Does the FBM205 support HART communication?

The standard FBM205 focuses on high-speed analog I/O. If your application requires integrated HART digital asset management, please consult our technical team for the HART-compatible FBM variants.
