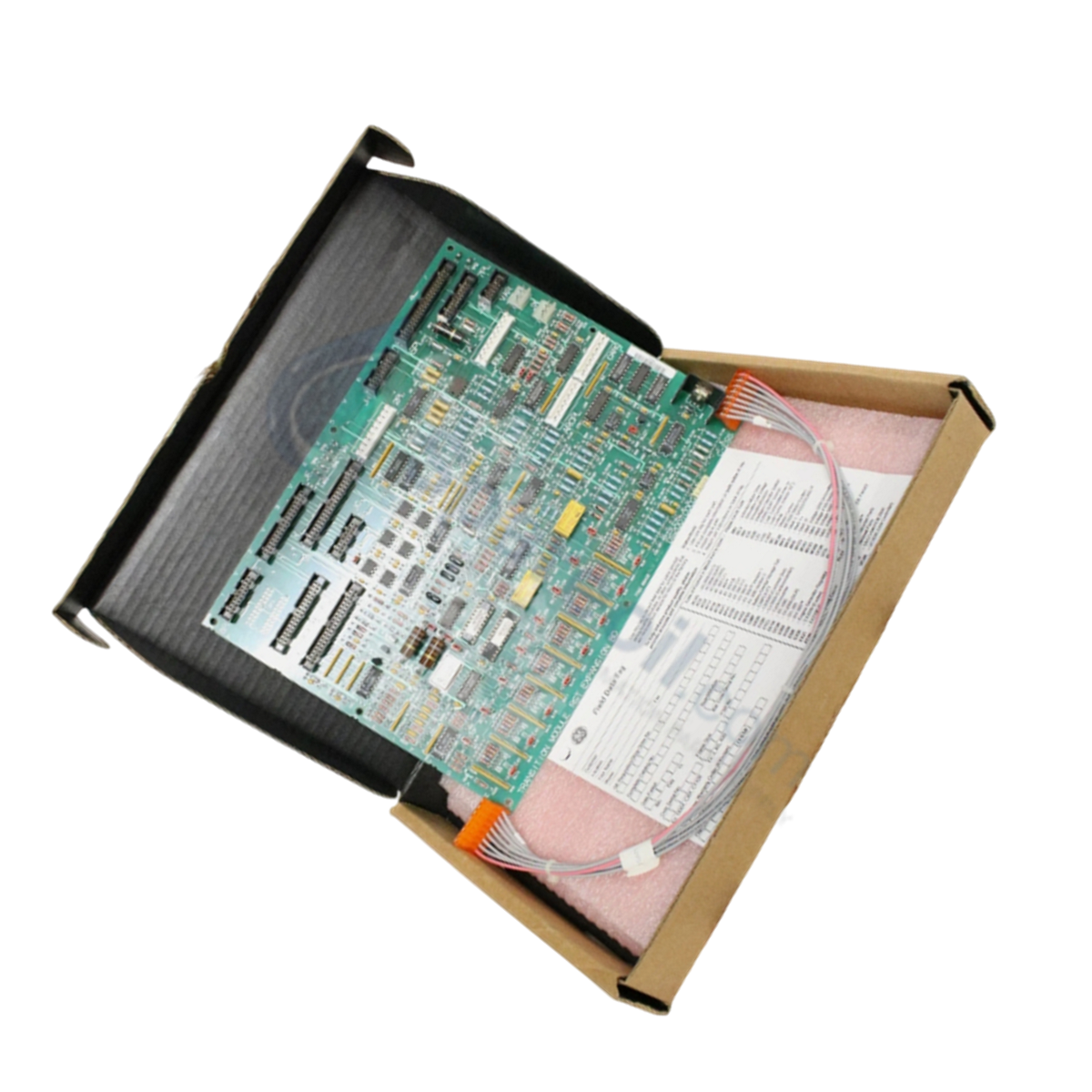

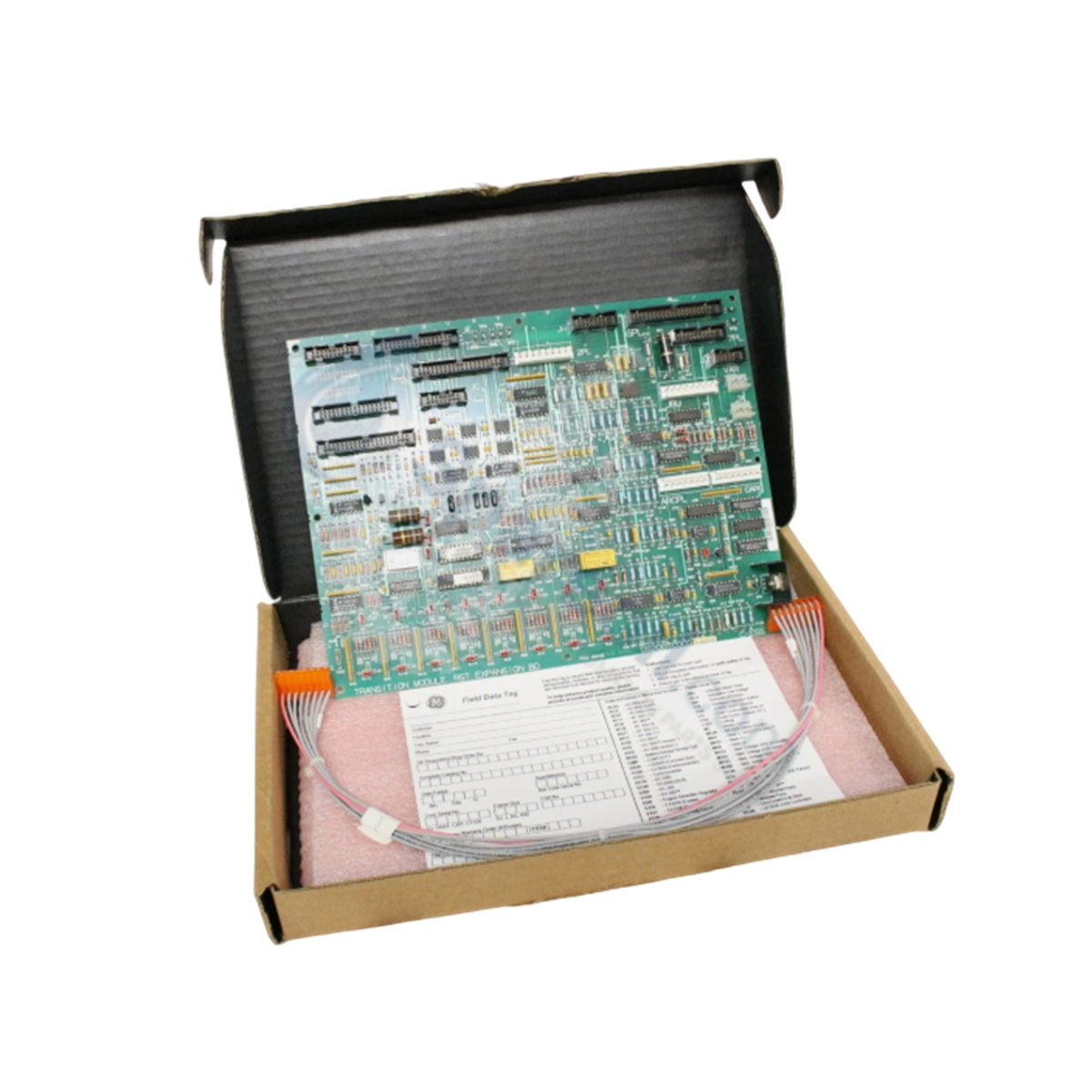

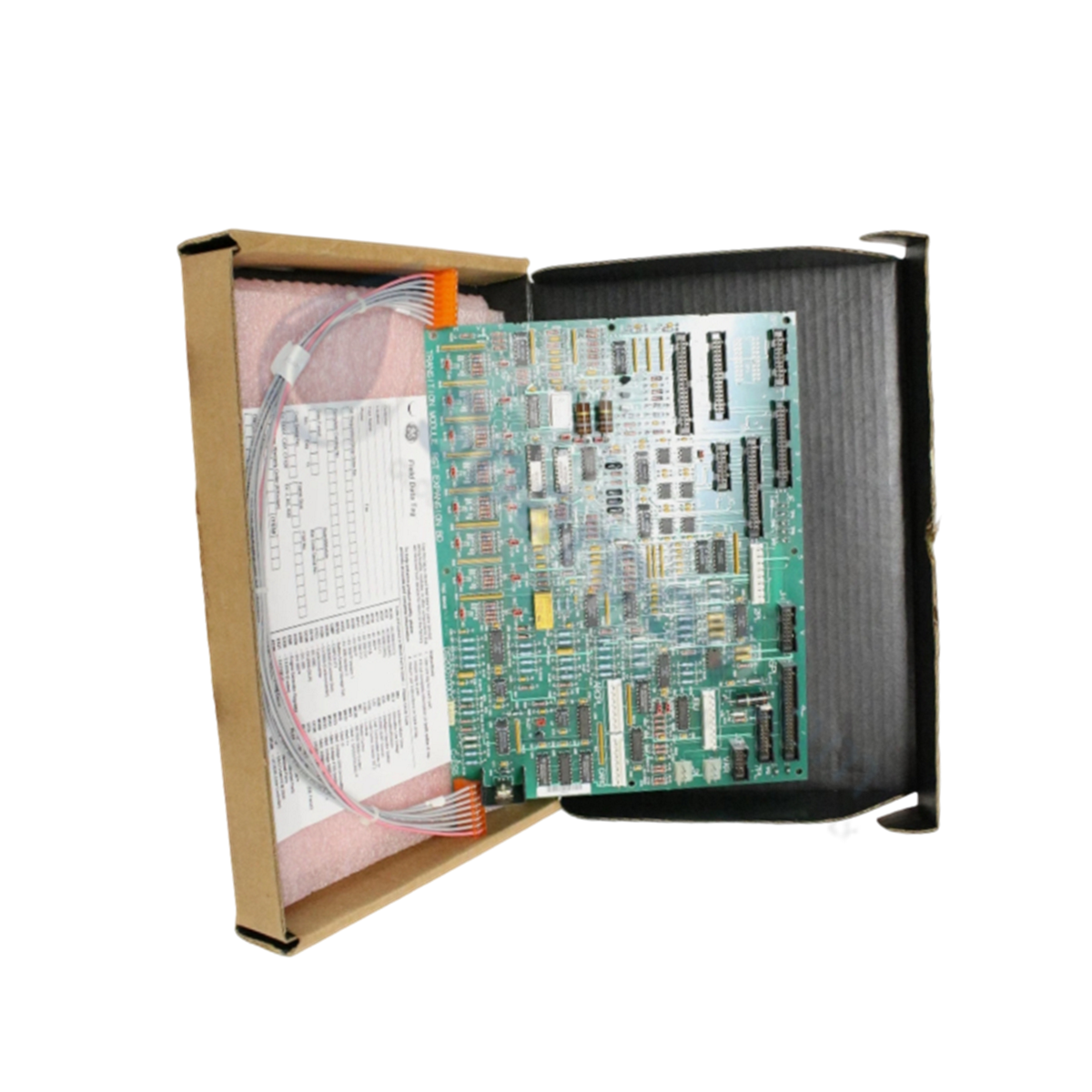

The GE DS200TCQCG1A, also cataloged as the DS200TCQC RST Overflow Board (Analog IO Expander Board), operates as a dedicated hardware component for expanded analog signal distribution and bus routing within GE Mark V turbine control systems.

Hardware Specifications

Parameter Specification
Model DS200TCQCG1A
Brand General Electric
Origin USA
Series Mark V
Functional Acronym TCQC
Board Revision Group 1, Revision A (G1A)
Board Type RST Overflow Board / Analog IO Expander Board
Hardware Jumpers 24 x Manually-configurable jumpers
40-Pin Connectors 3 x 40-pin connectors (JFF, JE, 6PL)
34-Pin Connectors 3 x 34-pin connectors
16-Pin Connectors 1 x 16-pin connector (JC)
Protective Coating Normal Coating
Operating Temp 0 to 60 deg C
Dimensions Standard GE Mark V Board Size
Weight Standard GE Mark V Board Weight
Power Consumption Backplane bus driven

Backplane Bus Communication & I/O Density Scaling

The DS200TCQCG1A scales I/O density by serving as an analog expander module connected to the core Mark V architecture. Utilizing a combination of three 40-pin ribbon connectors (JFF, JE, 6PL), three 34-pin connectors, and one 16-pin JC connector, the board maintains high-speed backplane bus communication velocity across expanded processing paths. An array of 24 hardware jumpers enables custom signal routing and operational mode selection, allowing precise physical channel allocation across triple-redundant control cores without introducing bus latencies.

Frequently Asked Questions

Q: What is the primary purpose of the 24 hardware jumpers on the DS200TCQCG1A board?

A: The 24 jumpers configure signal routing, threshold scalings, and operational modes across the expansion channels to match facility-specific turbine control parameters.

Q: Which designated connector IDs are populated on the DS200TCQCG1A?

A: The 40-pin headers are labeled JFF, JE, and 6PL, while the single 16-pin header is designated as JC, facilitating inter-board communication within the Mark V rack.

Q: Is software re-flashing required when replacing a defective DS200TCQCG1A card?

A: No, the board does not require software flashing; replacement requires manually duplicating the 24 jumper positions from the original board onto the new board prior to installation.

Field Installation Guidelines

  • Ensure primary system power is fully isolated and follow lock-out/tag-out (LOTO) procedures prior to servicing the rack.
  • Wear an anti-static wrist strap connected to a verified cabinet earth ground before removing the replacement board from its protective anti-static bag.
  • Place the existing board alongside the replacement unit on a clean, anti-static work surface and visually match all 24 hardware jumper positions before installation.
  • Align multi-pin ribbon cables (including JFF, JE, 6PL, and JC) carefully with their corresponding header pins to avoid pin bending or improper seating during reassembly.
