Foxboro IGP10-A22D1F I/A Series Pressure Transmitter

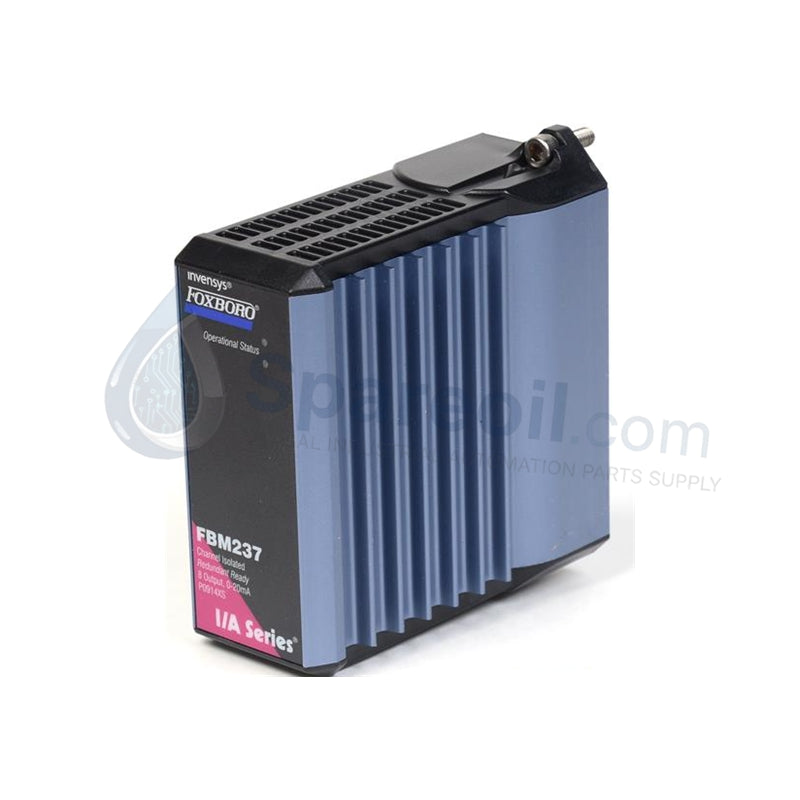

P0914XS FBM237 | Foxboro | 8-Channel Isolated 4-20mA Output

P0914XS FBM237 | Foxboro | 8-Channel Isolated 4-20mA Output

Availability: 10 left in stock

Product Overview The Foxboro FBM237 (P0914XS) delivers high-integrity analog control signals for the I/A Series and Foxboro Evo Distributed Control Systems (DCS). This 100% Brand New original module...

SKU: FBM237 P0914XS

Manufacturer: Foxboro
Product No.: FBM237 P0914XS
Product Type: Analog Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Foxboro FBM237 (P0914XS) delivers high-integrity analog control signals for the I/A Series and Foxboro Evo Distributed Control Systems (DCS). This 100% Brand New original module converts digital control commands from the DCS into eight isolated 4–20 mA DC analog outputs. Engineered specifically to drive field devices such as control valves, actuators, and motor controllers, the FBM237 ensures precise process adjustment. Each channel features independent galvanic isolation, eliminating ground loops and protecting the system from field-side electrical interference in critical power, oil, and chemical processing applications.

Technical Specifications

Feature	Technical Details
Model / Part Number	FBM237 / P0914XS
Output Channels	8 Isolated Analog Output Channels
Output Range	0 to 20.4 mA DC (Standard 4–20 mA)
Accuracy	±0.05% of span
Resolution	13-bit
Isolation Architecture	Channel-to-channel galvanic isolation; 600 V AC
Communication	Redundant Fieldbus Interface
Onboard Memory	16 MB SDRAM, 32 MB Flash
Power Input	24 V DC (Redundancy Supported)
Operating Temperature	0 to +60 °C (32 to 140 °F)
Dimensions	4.5 cm x 11 cm x 11.5 cm
Shipping Weight	1.5 kg

Engineering Advantages

Total Channel-to-Channel Isolation: The P0914XS provides independent galvanic isolation for every output channel. This architecture ensures that an electrical fault or short circuit on one actuator loop remains isolated, preventing it from affecting the other seven control loops or damaging the central DCS backplane.
Precise Actuator Control: With a ±0.05% accuracy rating, the module generates highly stable 4-20 mA signals. This precision allows for the fine-tuning of control valve positions, reducing process variability and improving overall system efficiency.
Redundant Fieldbus Connectivity: The module utilizes a dual-path communication interface. If one Fieldbus path encounters an error, the module automatically switches to the secondary path, guaranteeing that the control room maintains continuous authority over critical field actuators.
Flexible Fail-Safe Configuration: Engineers can program specific fail-safe behaviors for each channel. In the event of a communication loss with the processor, the FBM237 can hold its last value or fall back to a pre-defined safe state (e.g., 4mA), protecting equipment and personnel.
Compact Industrial Durability: The slim modular design optimizes rack density while the rugged internal components withstand temperatures up to 60 °C. This makes the P0914XS ideal for deployment in unconditioned control rooms or skid-mounted enclosures.

FAQs

Can the FBM237 (P0914XS) be hot-swapped while the system is running?

Yes. The module supports hot-swapping on a powered baseplate. The system automatically initializes the new module with the existing configuration, though we recommend verifying fail-safe settings before removal.
What is the difference between FBM237 and standard output modules?

The FBM237 offers full channel-to-channel isolation. Many standard modules only offer group isolation. Independent isolation is essential for high-availability loops where you must prevent cross-channel interference.
Does this module support 0-20mA signals?

The P0914XS supports a full output range from 0 to 20.4 mA DC, allowing it to interface with devices requiring 0-20mA or the standard 4-20mA signal range.
