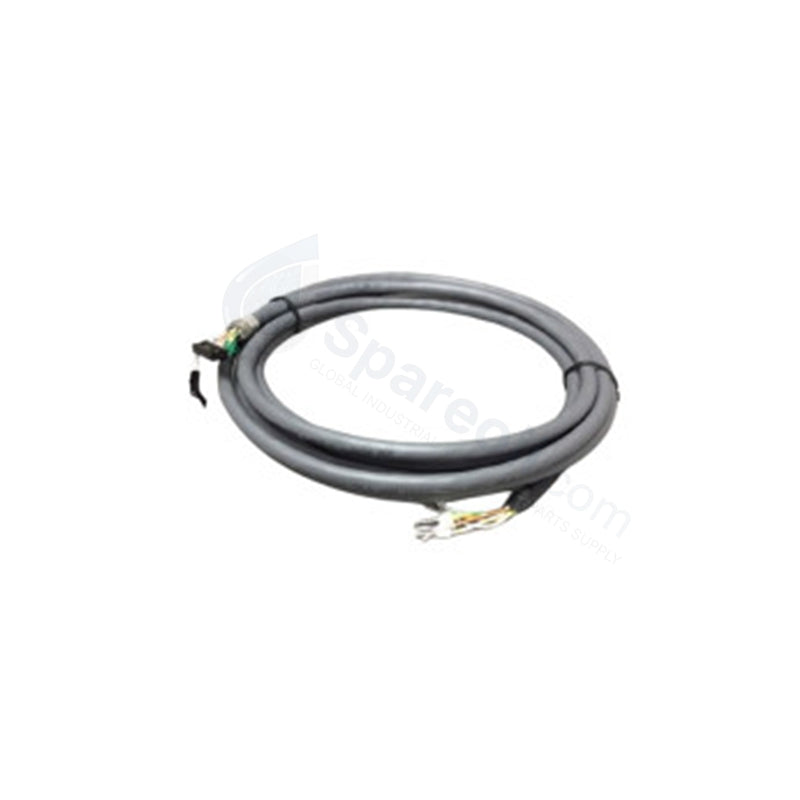

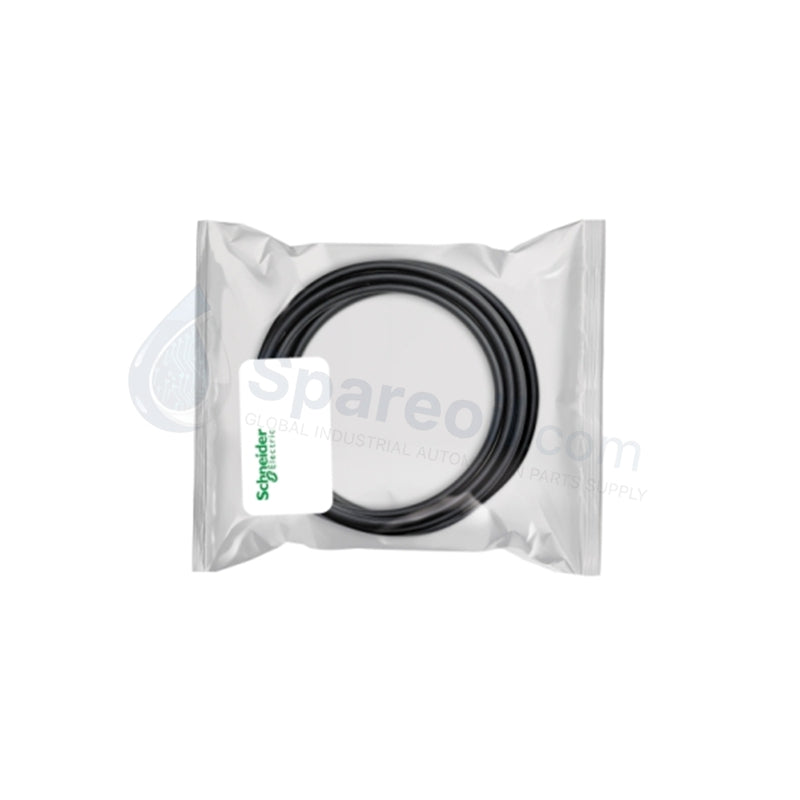

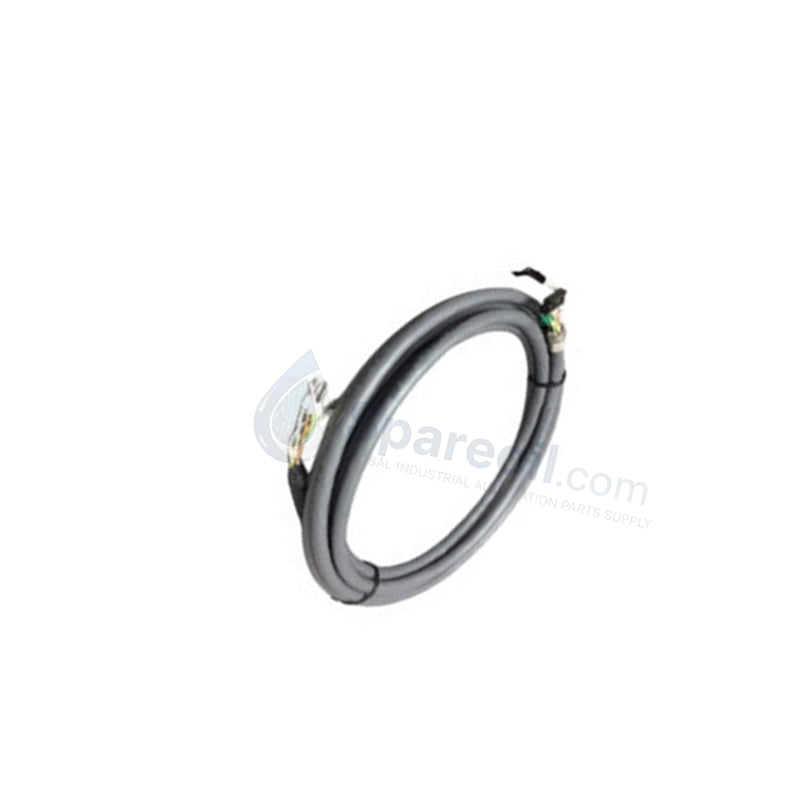

Schneider Electric TSXSCPCM4030 Modicon Premium RS422/485 Tap Link Cable

Configured for differential physical layer data routing between industrial controllers and distribution networks, the Schneider Electric TSXSCPCM4030 (TSXSCPCM4030 Tap Link Cable) provides direct physical/electrical execution. This specialized shielded cable assembly establishes an electrically isolated point-to-point connection from a Modicon Premium PCMCIA serial communication card or processor port to an RS422 or RS485 Tap Link junction junction block. By integrating physical ground isolation and characteristic impedance matching within the molded connector boundaries, this hardware accessory suppresses signal reflections and high-voltage common-mode offsets across serial networks.

Hardware Specifications

Parameter Specification
Model TSXSCPCM4030
Brand Schneider Electric (Modicon)
Origin France
Weight 0.28 kg (Net cable weight) / 2.0 kg (Shipping standard packaging)
Dimensions 3.0 m (Standard nominal physical cable length)
Operating Temp 0 to 60 deg C
Power Consumption Passive component (0.0 W power dissipation)
Signal Topology Asynchronous point-to-point or multi-drop serial tap link
Supported Formats Isolated RS422 / RS485 differential signals
Data Rate Limit Up to 19.2 kbps continuous transmission
Shielding Configuration High-density tinned copper braided shield with aluminum foil wrap
Connection Ends Molded multi-pin high-density sub-D interface to open-wire / tap block pins
Storage Temperature -25 to 70 deg C
Relative Humidity 10 to 95 percent relative humidity non-condensing
IP Degree of Protection IP20 (with locking screws fully engaged into the interface port)
Certifications CE, UL, CSA, IEC 61131-2

Physical Layer Isolation and Serial Bus Synchronization

This tap link cable maintains structural transmission stability across industrial automation networks by isolating the differential line receivers from fluctuating ground potentials. The internal copper conductor layout routes isolated transmit ($TXD+/TXD-$) and receive ($RXD+/RXD-$) signal pairs in tightly twisted segments to maximize common-mode rejection ratios (CMRR). When connecting legacy Premium processors to third-party devices, high-frequency common-mode noise up to several hundred volts is blocked by the integrated galvanic isolation layer at the physical tap interface. This attenuation prevents noise from crossing the internal CPU logic boundary or altering the low-voltage bits processed over the parallel backplane bus.

Frequently Asked Questions

Q: Can the TSXSCPCM4030 cable be modified or spliced to extend the point-to-point transmission distance beyond 3 meters?

A: No. Splicing or manually extending this cable violates the factory characteristic impedance configuration, which is tuned for a maximum 19.2 kbps transmission speed. Modifying the physical cable structure degrades the tinned copper shielding matrix, exposing the isolated serial lines to electromagnetic field corruption.

Q: How does the cable handle the transition between 2-wire RS485 and 4-wire RS422 signaling topologies?

A: The internal wire mapping exposes independent transmit and receive copper pairs at the tap end. For 2-wire half-duplex RS485 execution, the $TXD+$ and $RXD+$ lines must be bridged together at the termination block, and the $TXD-$ and $RXD-$ lines must be bridged similarly, following standard Modicon serial link terminal configurations.

Q: Given that Modicon Premium is a legacy platform, how should this cable interface during an upgrade to an M580 PAC?

A: The TSXSCPCM4030 is structurally and electrically tied to the legacy Premium architecture. Modern Modicon M580 ePAC platforms deploy Ethernet-based protocol infrastructures such as Modbus TCP or EtherNet/IP. To preserve existing serial field assets, an external Modbus-to-Ethernet gateway or an explicit X80 serial option module must be deployed instead of this cable.

Field Installation Guidelines

  • Interface Connector Seating: Align the male pins of the molded high-density sub-D plug with the processor card interface slot, sliding it smoothly forward before finger-tightening both mechanical retention screws to maintain ground shield continuity.
  • Shield Grounding Matrix: Connect the integrated drain wire and outer braided shield boundary directly to the local enclosure metallic backplate using a low-impedance grounding saddle clamp.
  • Physical Routing Trajectory: Enforce a minimum bending radius of 60 mm along all cable curves inside the wire ducting to avoid pinching the internal twisted pairs or tearing the aluminum foil shield wrap.
  • Parallel Separation Rules: Do not route this low-voltage serial link cable through the same wire trays or conduits as high-current 400 V AC motor supply leads or variable frequency drive (VFD) outputs; maintain a minimum separation of 200 mm.
