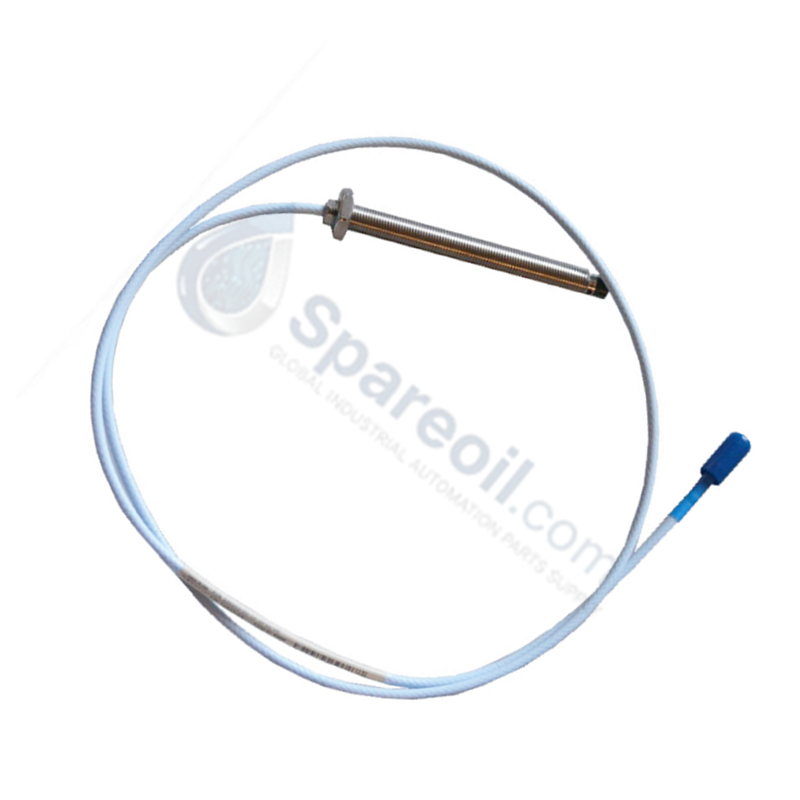

The Bently Nevada 330904-04-14-05-02-00, also cataloged as the 330904 Proximity Sensors, operates as a dedicated hardware component for non-contact shaft vibration and positional displacement monitoring within 3300 XL NSv Machinery Monitoring System platforms. The transducer assembly features a 40 mm unthreaded length, a 140 mm overall case length, and a 0.5 m (20 in) standard coaxial cable terminated with a miniature coaxial ClickLoc connector.
Suffix Breakdown & Model Matrix
| Option Code | Parameter Designation | Selected Configuration |
|---|---|---|
| 330904 | Base Model | 3300 XL NSv Proximity Sensor |
| -04 | Unthreaded Length | 40 mm |
| -14 | Overall Case Length | 140 mm |
| -05 | Total Length Option | 0.5 m (20 in) |
| -02 | Connector & Cable Type | Miniature coaxial ClickLoc connector, standard cable |
| -00 | Agency Approval Option | No certificates required |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330904-04-14-05-02-00 |
| Brand | Bently Nevada |
| Origin | United States |
| Weight | 0.45 kg (1.0 lb) |
| Dimensions | Threaded probe body (40 mm unthreaded / 140 mm case length) |
| Operating Temp | -51 deg C to +177 deg C (-60 deg F to +350 deg F) |
| Power Consumption | Passive transducer (Powered via Proximitor Sensor) |
| Cable Type | 75 Ohm coaxial, FEP insulated, standard cable |
| Connector Type | Miniature coaxial ClickLoc connector |
| Unthreaded Length | 40 mm |
| Overall Case Length | 140 mm |
| Total Cable Length | 0.5 m (20 in) |
| Agency Approvals | None required (Option 00) |
Mechanical Monitoring & TSI Performance
Designed specifically for installations with narrow side-view clearances or counterbored mounting holes, the 330904-04-14-05-02-00 probe executes precision rotor dynamics monitoring on small-diameter shafts. When paired with a matching 3300 XL NSv Proximitor Sensor, eddy-current probe scaling produces a linear output voltage directly proportional to target surface gap distance. Achieving proper gap voltage validation (targeted at -10 VDC during installation) ensures proper linear positioning, optimal dynamic measurement range, and effective cross-talk suppression between closely spaced probe channels.
Frequently Asked Questions
Q: What gap voltage should be targeted when setting up the 330904-04-14-05-02-00 probe mechanically?
A: Adjust physical probe insertion depth until the output voltage from the connected Proximitor Sensor reads -10 VDC, which corresponds to the midpoint of the calibrated linear range.
Q: Can the 0.5 m probe cable be wired directly to the TSI rack monitoring terminal?
A: No. The 0.5 m (20 in) integrated probe cable requires a matching 3300 XL NSv extension cable to establish the complete 5 m or 7 m total system length required by the Proximitor Sensor.
Q: How does the NSv probe tip profile differ from standard 8 mm proximity probes?
A: The NSv tip profile is engineered with a smaller magnetic footprint, allowing accurate vibration readings in narrow counterbores and tight spatial locations where standard 8 mm probes suffer from side-wall interference.
Field Installation Guidelines
- Thread the probe casing into the mounting bracket or sleeve port using appropriate wrenches; avoid over-torquing to protect case threads.
- Verify that thread engagement meets standard mechanical locking tolerances (e.g., minimum 5 full threads engaged).
- Ensure the target shaft surface is free of deep mechanical scratches, rust, or magnetic runout prior to taking initial zero-gap readings.
- Clean the ClickLoc connector faces to remove residual grease or dirt before locking the coaxial coupling ring into position.
