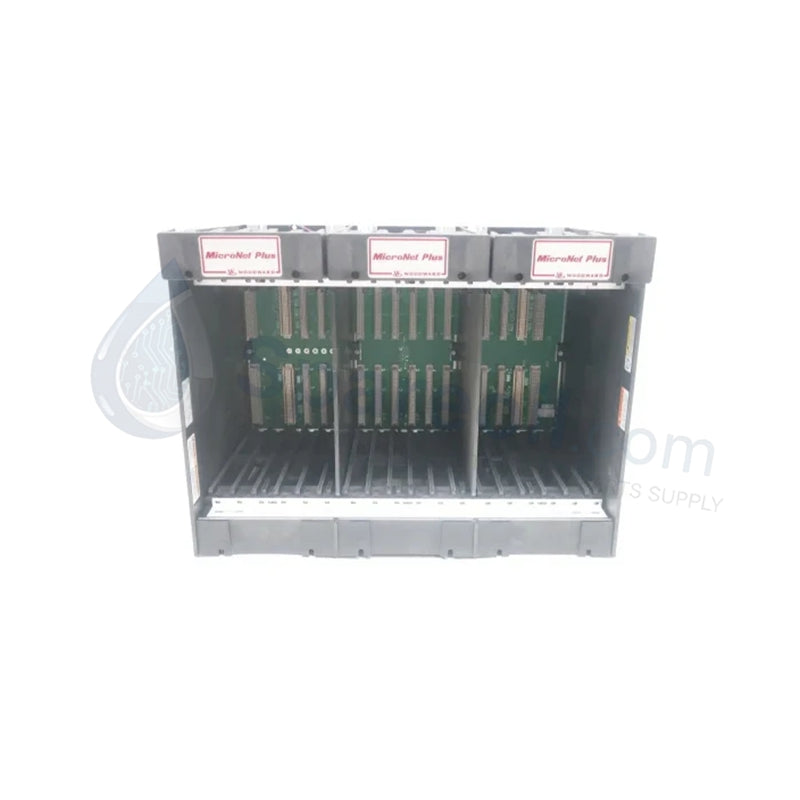

5453-759 Woodward 14-Slot Backplane Chassis

5453-759 Woodward 14-Slot Backplane Chassis | New & Original Stock

Availability: 99 left in stock

Woodward 5453-759 MicroNet Plus Series The Woodward 5453-759, also cataloged as the 5453-759 14-Slot Backplane Chassis, operates as a dedicated...

SKU: 5453-759

Manufacturer: Woodward
Product No.: 5453-759
Product Type: Backplane Chassis
Product Origin: USA
Payment:T/T, Western Union
Weight: 1360g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Woodward 5453-759 MicroNet Plus Series

The Woodward 5453-759, also cataloged as the 5453-759 14-Slot Backplane Chassis, operates as a dedicated hardware component for mechanical support and electrical communication backbone within MicroNet Plus platform networks.

Hardware Specifications

Parameter	Specification
Model	5453-759
Brand	Woodward
Origin	United States
Weight	1.36 kg (Unloaded)
Dimensions	482 mm x 229 mm x 102 mm (Standard 19" Rack Profile)
Operating Temp	-20 to +70 deg C
Power Consumption	Passive distribution via 24 VDC nominal rails
Slot Capacity	14 Universal Slots (CPU, I/O, Power, and Comms)
Architecture Base	VME-based Architecture
Enclosure Protection	IP20 Protection Class
Electromagnetic Immunity	Certified to IEC 61000-6-2 (Industrial EMC standards)
Mounting Options	Rear Panel Mount or Standard 19-inch Rack Mount

Industrial Drives and Governor Systems

The chassis assembly functions as the hardware foundation for multi-axis governor systems, providing the backplane bus communication velocity and routing lines required for turbine control loop parameters. The physical VME-based parallel and serial communication lines are engineered to handle continuous high-speed synchronization across multiple CPU and high-density I/O cards. The structural steel enclosure matches standard 19-inch rack profiles, acting as a Faraday cage to optimize electromagnetic immunity and ensure deterministic loop responses for fast-acting actuator signals under high EMI/RFI conditions.

Frequently Asked Questions

Q: Does the 5453-759 backplane infrastructure support live module replacement?

A: Yes, the VME-based backplane bus architecture includes hot-swap support parameters. This electrical layout allows technical personnel to remove and insert power supplies or high-density I/O cards while the remaining modules are actively executing turbine governing algorithms.

Q: How is operating power allocated across the 14 universal slots of this chassis?

A: The passive backplane pathways integrate dedicated power distribution copper traces that carry a 24 VDC nominal voltage rail to all 14 universal slots, deriving power directly from the paired MicroNet power modules.

Q: What mounting options are available for installing this assembly into an automation cabinet?

A: The physical housing features built-in mechanical mounting configurations that support standard standard 19-inch rack rail installation or direct surface attachment via rear panel mounting holes.

Field Installation Guidelines

Cabinet Convective Ventilation: When installing the chassis within a standard 19-inch rack, ensure a minimum of 1U (44.45 mm) of empty clearance space above and below the assembly to allow unrestricted air convection over the hot-swappable module cards.
Faraday Cage Earth Grounding: Connect a dedicated low-impedance copper bonding strap from the main chassis grounding stud to the heavy copper instrumentation ground bar of the enclosure to ensure proper shielding operation.
Bus Routing Protection: Protect the internal backplane pins from physical damage or conductive dust ingress during commissioning by using protective slot covers on all unused universal slot positions.
