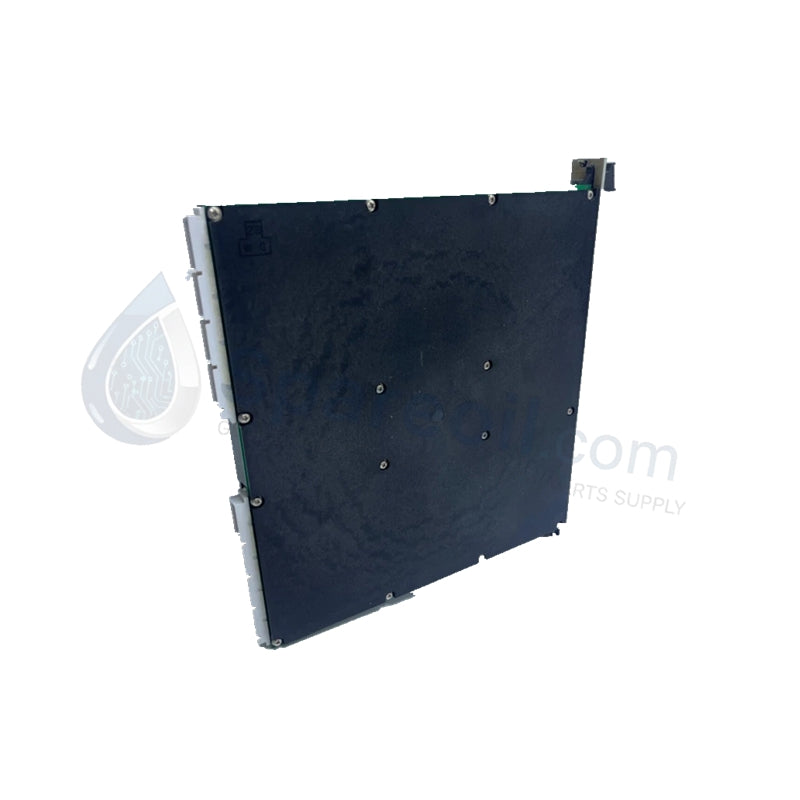

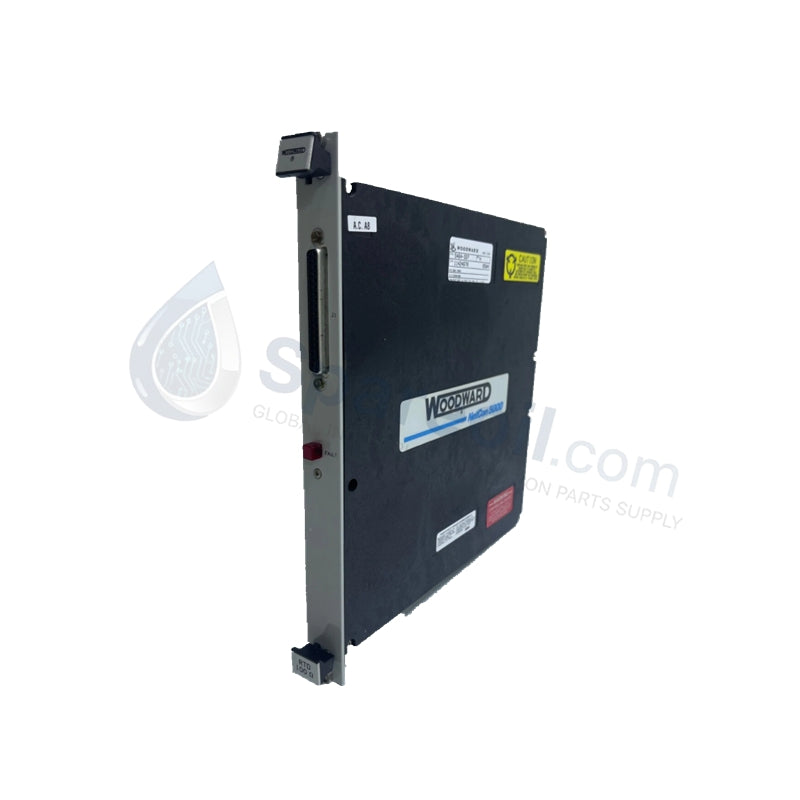

5466-257 5466-257 | Woodward MicroNet Plus I/O Module USA

Availability: 10 left in stock

Product Overview The 5466-257 (Model: 5466-257) is a high-performance analog interface engineered for the Woodward MicroNet and MicroNet Plus turbine control architectures....

SKU: 5466-257

Manufacturer: Woodward
Product No.: 5466-257
Product Type: High-Density Analog I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The 5466-257 (Model: 5466-257) is a high-performance analog interface engineered for the Woodward MicroNet and MicroNet Plus turbine control architectures. This module is a pivotal component for gas and steam turbine governing, providing a unified hardware platform for both precision signal acquisition and actuator control. By integrating 8 configurable analog inputs and 4 proportional outputs, the 5466-257 (Part Number: 5466-257) optimizes rack space while maintaining the low-latency, deterministic performance required for high-speed governing loops.

Each unit is designed to withstand the electrical rigors of power generation environments, featuring robust galvanic isolation and high-resolution signal processing. The module ensures that critical process variables—such as turbine inlet temperature, manifold pressure, and fuel flow—are translated with maximum fidelity for the central processing unit.

Detailed Technical Specifications

The 5466-257 (Model: 5466-257) provides the following technical parameters:

Manufacturer: Woodward
Module Type: High-Density Analog Input/Output (I/O)
System Platform: MicroNet / MicroNet Plus
Analog Inputs: 8 Channels (Software configurable for 4–20 mA, 0–5 VDC, or ±5 VDC)
Analog Outputs: 4 Channels (4–20 mA proportional drive for actuators)
Conversion Resolution: 12-bit to 16-bit (Configurable via GAP software)
Total Accuracy: ±0.1% of Full Scale at room temperature
Isolation: Full channel-to-channel and channel-to-system galvanic isolation
Response Time: Optimized for high-speed governing (Deterministic update rates)
Diagnostics: Integrated self-test logic with front-panel LED indicators for Status and Fault conditions
Input Voltage Range: 18–32 VDC (24 VDC Nominal)
Operating Temperature: –20°C to +70°C
Dimensions: 160 mm x 120 mm x 40 mm
Weight:1.0 kg (2.2 lbs)
