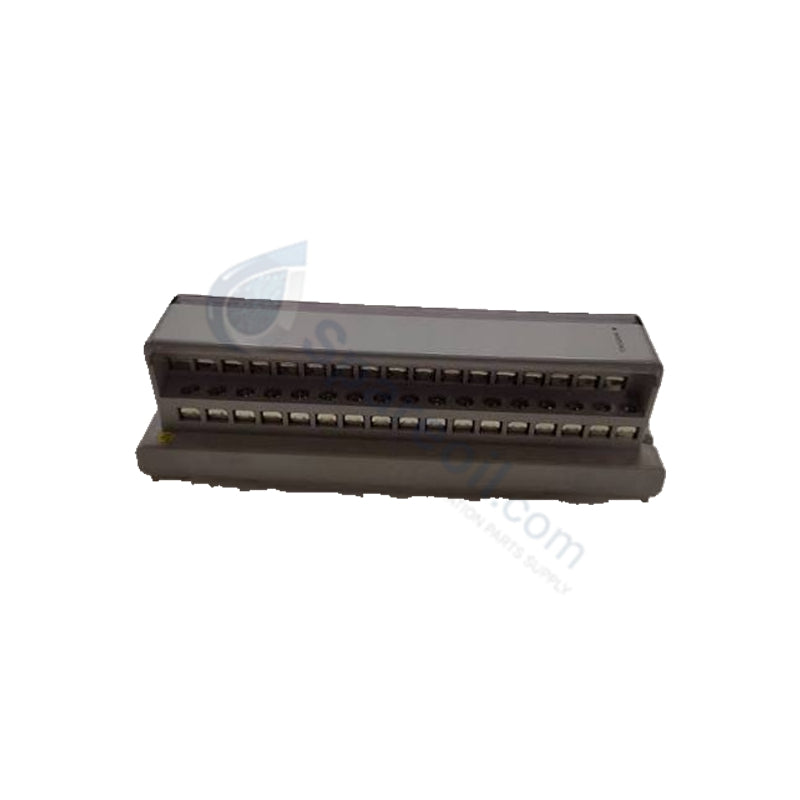

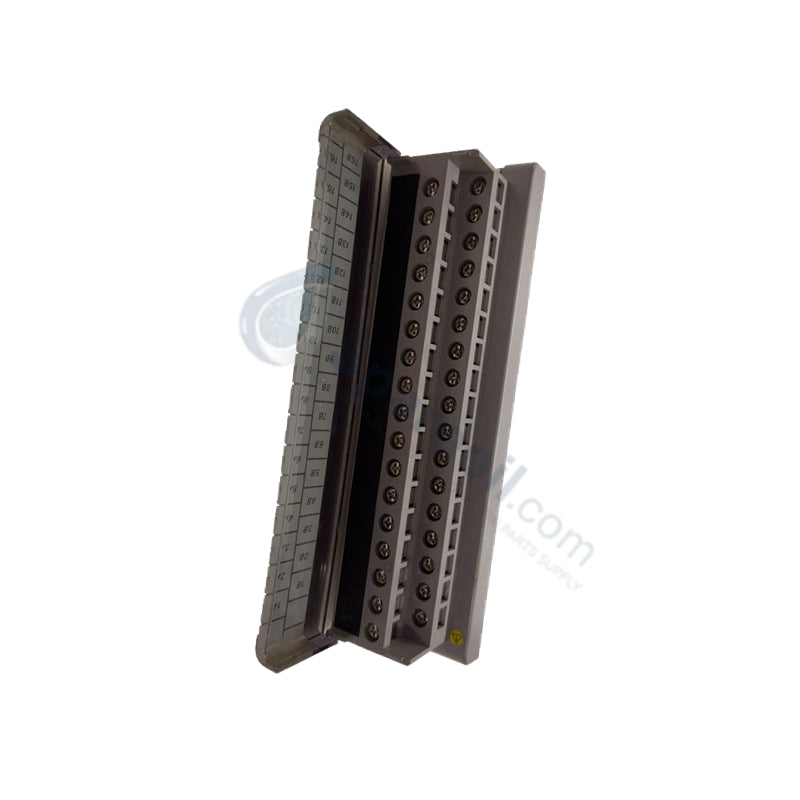

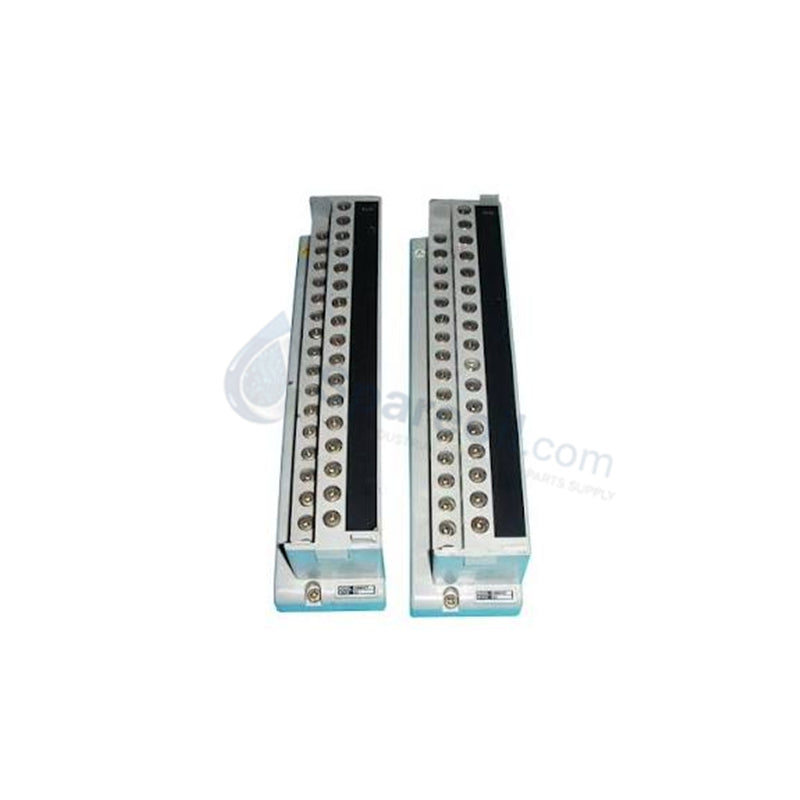

YOKOGAWA AMM42T S2 Analog Input Module

The YOKOGAWA AMM42T S2, also cataloged as the AMM42T Analog Input Module, operates as a dedicated hardware component for 16-channel thermocouple signal acquisition and digitization within CENTUM VP FIO subsystem platforms.

Hardware Specifications

Parameter Specification
Model AMM42T S2
Brand YOKOGAWA
Origin Japan
Weight 2.2 kg
Dimensions 482.6 mm x 132.5 mm x 3U
Operating Temp 0 deg C to 50 deg C
Power Consumption 0.6 A
Input Channels 16
Resolution 16-bit

DCS Process Control Integration

The AMM42T S2 manages high-precision temperature data by employing integrated cold junction compensation (CJC) circuitry to normalize thermocouple electromotive force inputs. To ensure measurement integrity, the module features channel-to-channel isolation, which mitigates common-mode noise and prevents cross-talk between high-impedance thermocouple sensors in dense signal environments. Data is processed through a 16-bit A/D converter, providing a conversion resolution suitable for process control loops requiring stability across wide temperature ranges. The internal architecture facilitates seamless integration into the CENTUM VP FIO subsystem, where it periodically transmits digitized sensor values for control logic execution.

Frequently Asked Questions

Q: Does the AMM42T S2 module support input types other than thermocouples?

A: No. The signal conditioning circuitry is specifically mapped for thermocouple (TC) types K, J, T, E, N, R, S, and B. It cannot interface with RTDs or standard 4-20 mA current loops.

Q: How does the system handle thermocouple open-circuit detection?

A: The module performs continuous diagnostic monitoring of the input impedance. If the circuit detects an impedance exceeding the threshold indicative of a wire break, it sets a hardware diagnostic flag that is reported to the Field Control Station (FCS).

Q: Is the 100 ms update cycle synchronous with the control loop?

A: The module operates on a fixed 100 ms scan rate for the A/D conversion cycle. Data is updated in the I/O image table of the FCS at this interval, which must be considered when configuring control loops with fast response requirements.

Field Installation Guidelines

  1. Verify that the I/O node backplane is de-energized before inserting or removing the module.
  2. Terminate thermocouple extension leads directly to the dedicated terminal block; maintain uniform thermal conditions at the block to prevent CJC errors.
  3. Ensure all signal cabling uses shielded twisted-pair conductors, with the shield grounded at a single, dedicated cabinet ground point to comply with noise immunity standards.
  4. Secure the module using the integrated captive screws on the 3U rack frame to ensure stable backplane pin contact.
  5. Perform a cold-junction validation check by comparing the module's ambient temperature reading against a calibrated reference thermometer during commissioning.
