AMM52 Yokogawa Analog Input Module Datasheet & Technical Manual

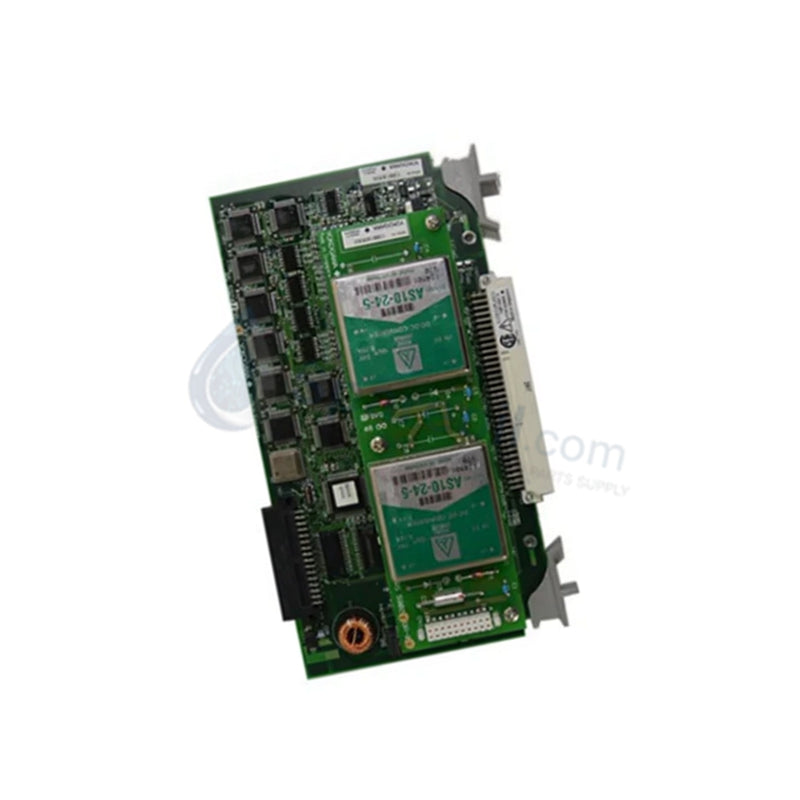

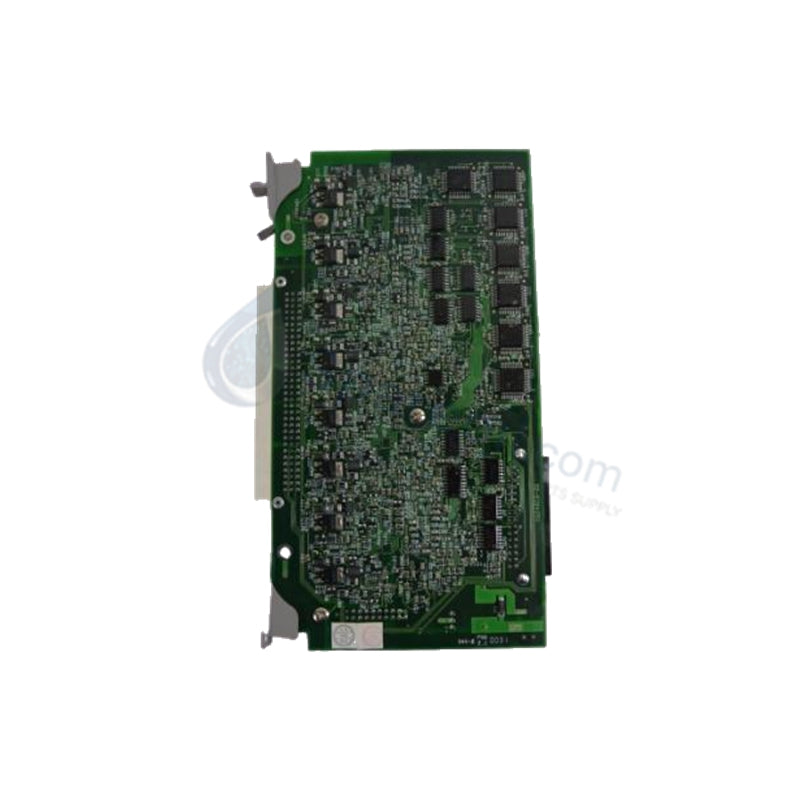

AMM52 CENTUM Yokogawa DCS Analog Input Multiplexer Module

AMM52 CENTUM Yokogawa DCS Analog Input Multiplexer Module

Availability: 99 left in stock

Yokogawa AMM52 Analog Multiplexer Module Configured for sequential signal conditioning in Yokogawa DCS and PLC infrastructures, the Yokogawa AMM52 (AMM52)...

SKU: AMM52

Manufacturer: Yokogawa
Product No.: AMM52
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

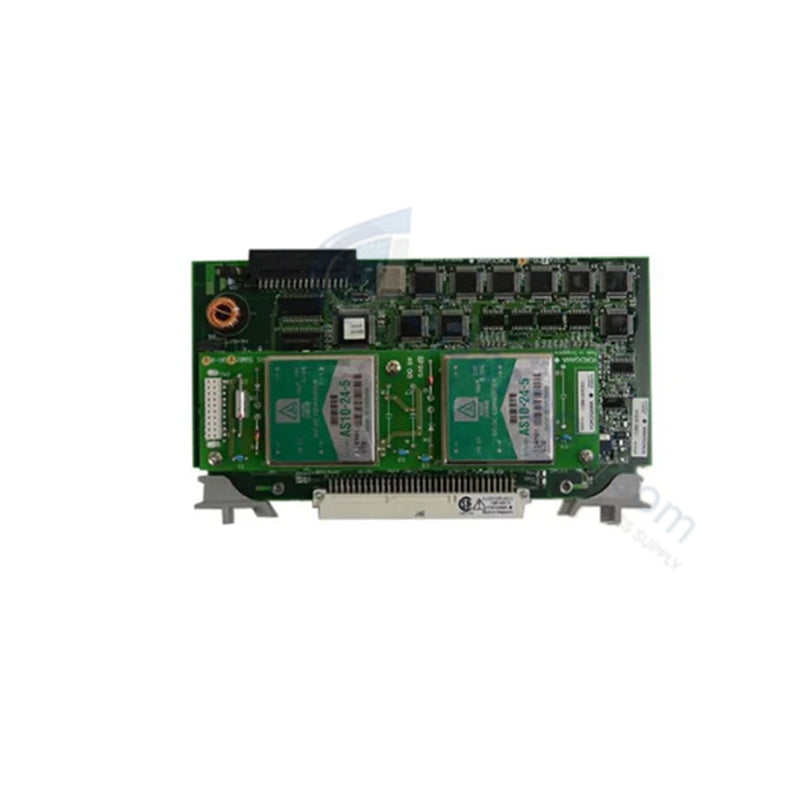

Yokogawa AMM52 Analog Multiplexer Module

Configured for sequential signal conditioning in Yokogawa DCS and PLC infrastructures, the Yokogawa AMM52 (AMM52) operates as a dedicated voltage input multiplexer module within Remote I/O (RIO) rack platforms.

Hardware Specifications

Parameter	Specification
Model	AMM52
Brand	Yokogawa
Origin	Japan
Weight	0.40 kg
Dimensions	Standard RIO module form factor
Operating Temp	0 deg C to 55 deg C
Power Consumption	≤ 4 A (5 V DC backplane)
Input Channels	4 channels
Input Signal	1-5 V DC
Input Impedance	≥ 1 MΩ (powered ON)

Process Control and Signal Multiplexing Connectivity

The AMM52 facilitates the integration of process instrumentation by multiplexing four independent voltage inputs into a single data stream for processing by the host controller. Because the architecture is non-isolated, signal integrity relies on a strict single-point grounding strategy at the field-to-cabinet interface to mitigate common-mode noise. The module provides high input impedance (≥ 1 MΩ), which prevents loading effects on sensitive field transmitters. In applications requiring 4-20 mA HART loop protocol connectivity, the module functions in tandem with external shunt resistors to convert current loops into the 1-5 V DC input range. The 1-second data refresh cycle is optimized for steady-state process monitoring; however, users should account for this latency when designing control loops that rely on rapid signal updates.

Frequently Asked Questions

Q: Does the AMM52 support hot-swap replacement during active process operation?

A: No, the AMM52 does not support hot-swapping. The host rack must be de-energized or the specific slot power isolated before removing or installing the module to prevent electrical damage to the backplane bus.

Q: Is internal Cold Junction Compensation (CJC) provided for thermocouple inputs?

A: No, the AMM52 does not implement internal CJC. If the module is used for thermocouple-based temperature monitoring, external cold junction compensation or a dedicated transmitter must be utilized to linearize the low-level DC signal before it reaches the AMM52 inputs.

Field Installation Guidelines

Backplane Mounting: Ensure the RIO rack slot is free of debris. Slide the module into the guide rails and confirm the mechanical locking tabs are secure. Do not force the module if resistance is encountered, as this may damage the backplane pins.
Grounding: Given the non-isolated nature of the module, ensure all field cable shields are tied to a clean, low-impedance ground bus. Prevent ground loops by ensuring that the field instruments and the AMM52 share a common reference point.
Signal Cabling: Use shielded twisted-pair cabling for all input signals. Keep signal lines physically separated from high-voltage AC lines or variable frequency drive (VFD) cabling to prevent induced noise on the 1-5 V DC signal range.
Configuration: Confirm that the external shunt resistor values are correctly sized if converting 4-20 mA current loops. Verify that the input signal levels do not exceed the ±30 V DC maximum allowable input voltage to prevent hardware failure.
