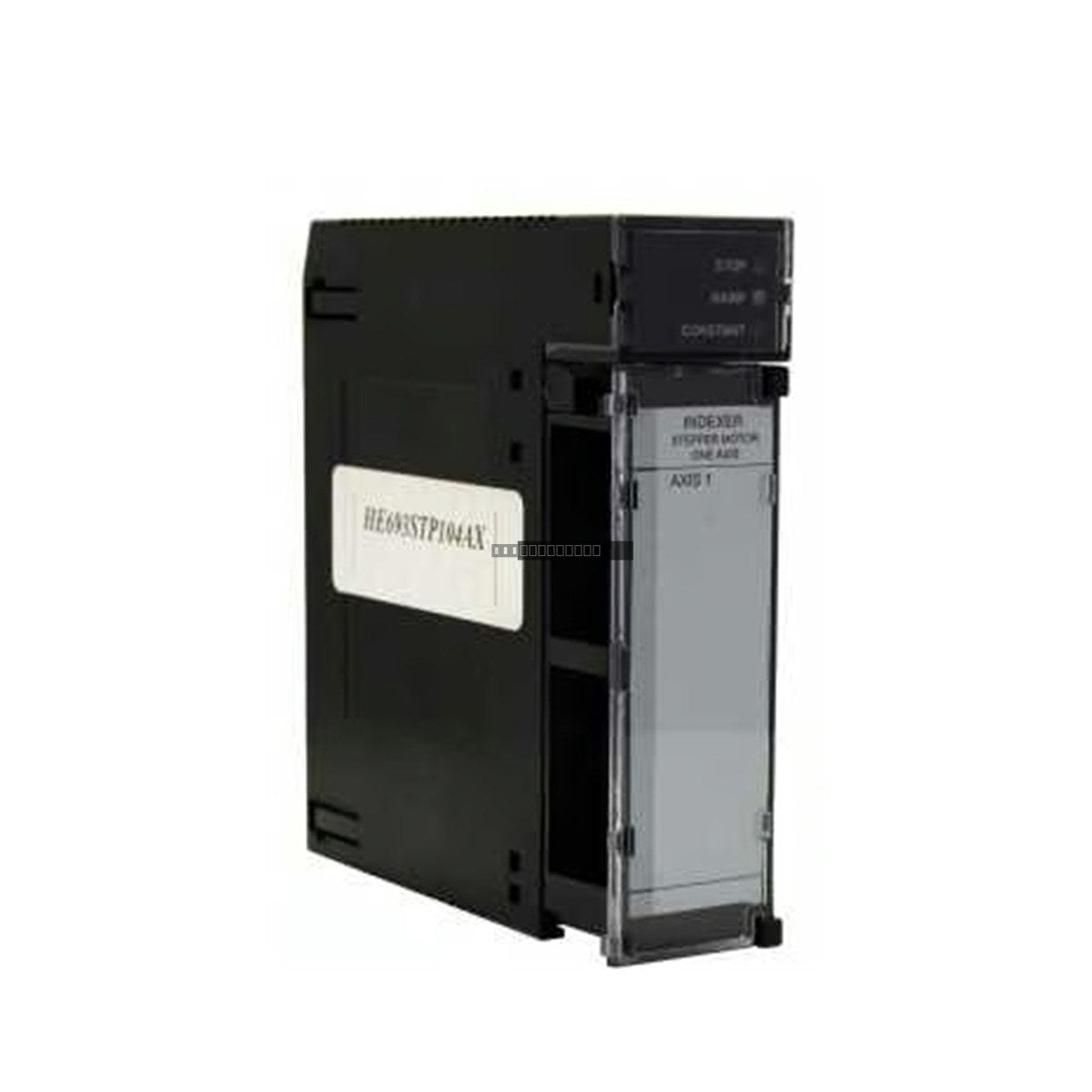

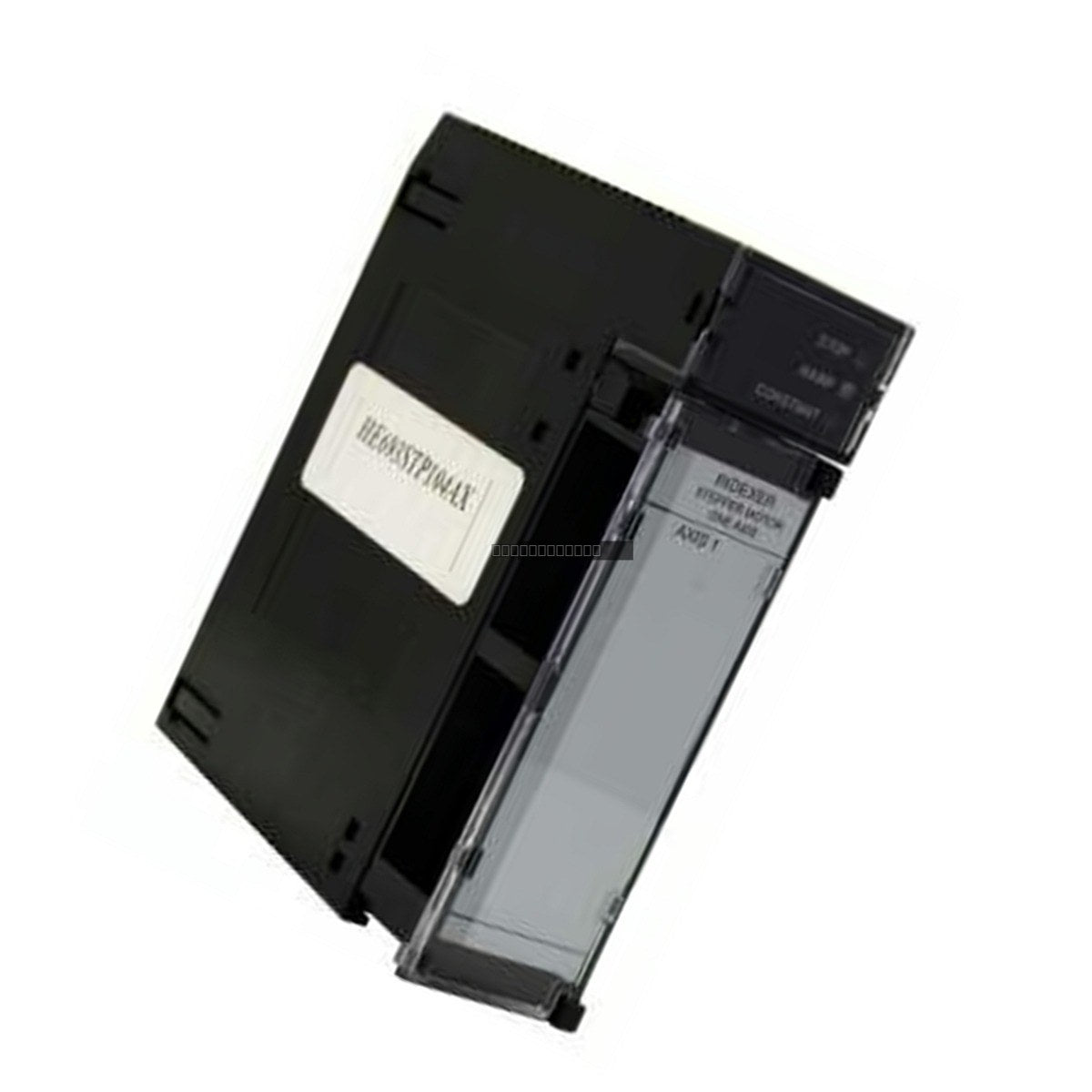

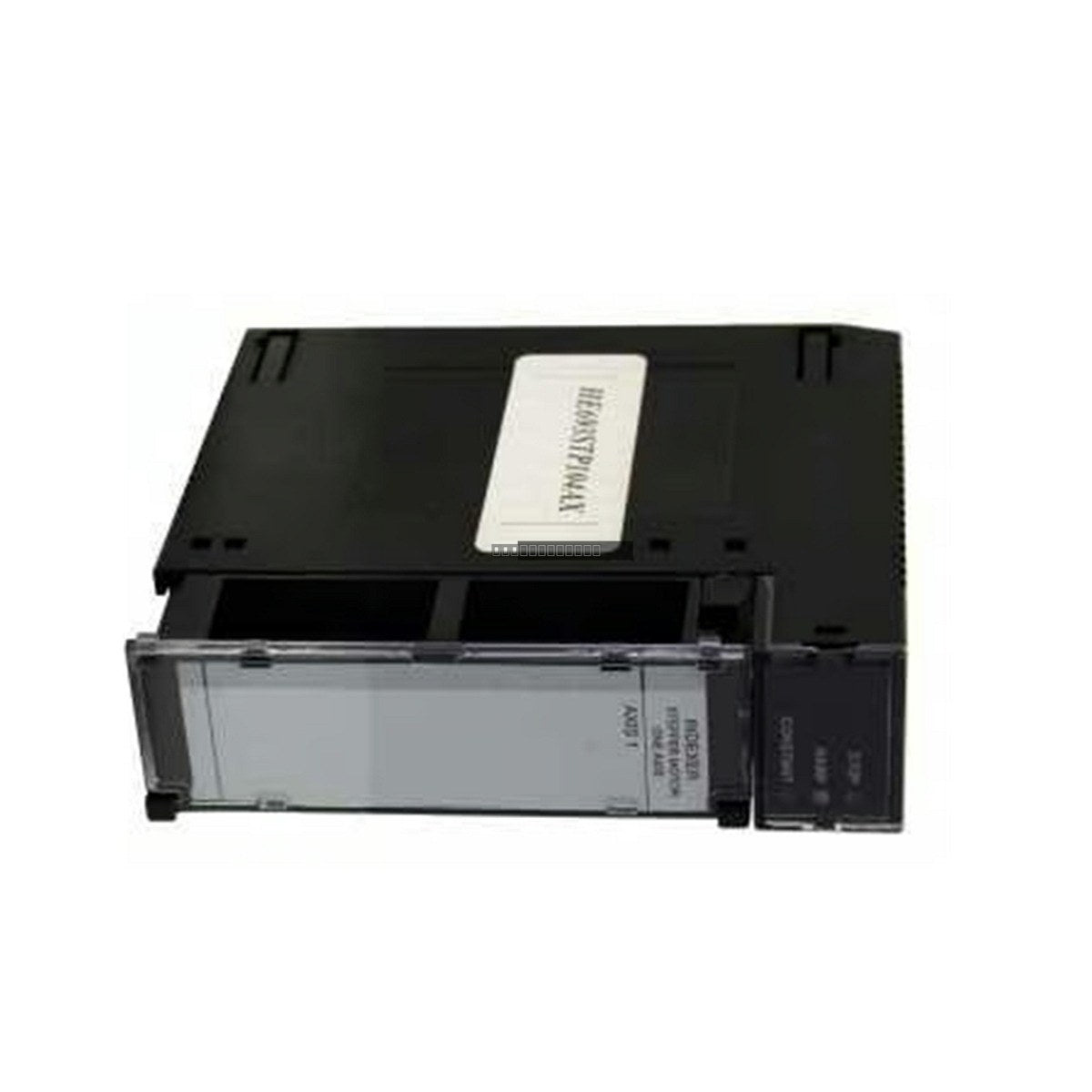

General Electric HE693STP104 Stepper Positioning Module

General Electric HE693STP104 Series 90-30 Stepper Positioning Module

Availability: 1 left in stock

DescriptionThe HE693STP104 is a single-axis, intelligent stepper positioning module designed for the GE Fanuc Series 90-30 PLC platform. Often associated...

SKU: HE693STP104

Manufacturer: General Electric
Product No.: HE693STP104
Product Type: Stepper Positioning Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 240g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The HE693STP104 is a single-axis, intelligent stepper positioning module designed for the GE Fanuc Series 90-30 PLC platform. Often associated with Horner Electric, this module serves as a high-speed motion controller that offloads pulse generation tasks from the main PLC processor. It supports advanced motion profiles, including acceleration and deceleration ramping, and is programmable using ASCII BASIC, allowing for complex motion control strategies.

Features

Single-axis stepper motor control.
Supports high-speed pulse output up to 245 kHz.
Integrated RS-232 and RS-485 communication interfaces.
Advanced computational capabilities including floating-point, logarithmic, and trigonometric functions.
Optically isolated switch inputs for enhanced noise immunity.
Compatible with differential or single-ended encoder inputs.

Applications

Automotive manufacturing for robotic positioning and dispensing.
Water treatment facilities for pump and valve flow modulation.
Paper and pulp mills for precise roller speed control.
Chemical and pharmaceutical batch processing.

Technical Specifications

Model	HE693STP104
Manufacturer	General Electric / Horner Electric
Series	90-30
Step Output Frequency	Up to 245 kHz
Encoder Input Frequency	Up to 1.0 MHz
Output Voltage (High)	2.5 VDC
Output Voltage (Low)	0.5 VDC
Operating Temperature	0 to 60 degC
Storage Temperature	-40 to 85 degC
Humidity	5 to 95% RH (non-condensing)
Power Consumption	500 mA at 5 VDC

Installation Guidelines

Power Safety: Always power down the host PLC backplane before inserting or removing the module to prevent electrical damage.
Slot Compatibility: The module can be installed in any I/O slot of a GE Fanuc Series 90-30 PLC (models 311, 321, or 331).
Grounding: The module features optically isolated inputs. The isolated ground for these inputs must be kept separate from the common used for step and direction outputs to prevent ground loops and signal interference.
Wiring: For single-ended drives, ensure the motor output signal state (+/-) matches the drive's input requirements. The emergency stop input requires a normally-closed switch connected to terminal 20.
Configuration: Initial setup is performed using Logicmaster 90 software (version 2.01 or later) or a compatible Hand Held Programmer.

FAQs

What is the HE693STP104?

It is a single-axis, smart, programmable motion control/stepper module designed for the Series 90-30 PLC platform.

Which systems is HE693STP104 compatible with?

It is designed for the GE Fanuc 90-30 series PLC backplane and is often utilized in systems requiring precise stepper motor control.

What are the primary functions of this module?

The module processes motion curves, such as acceleration, deceleration, and positioning, enabling the PLC to control stepper motor drivers without directly handling high-speed pulse generation.

How is the module configured?

Configuration is typically handled via Logicmaster 90 (v2.01 or later) or a standard Hand Held Programmer.
