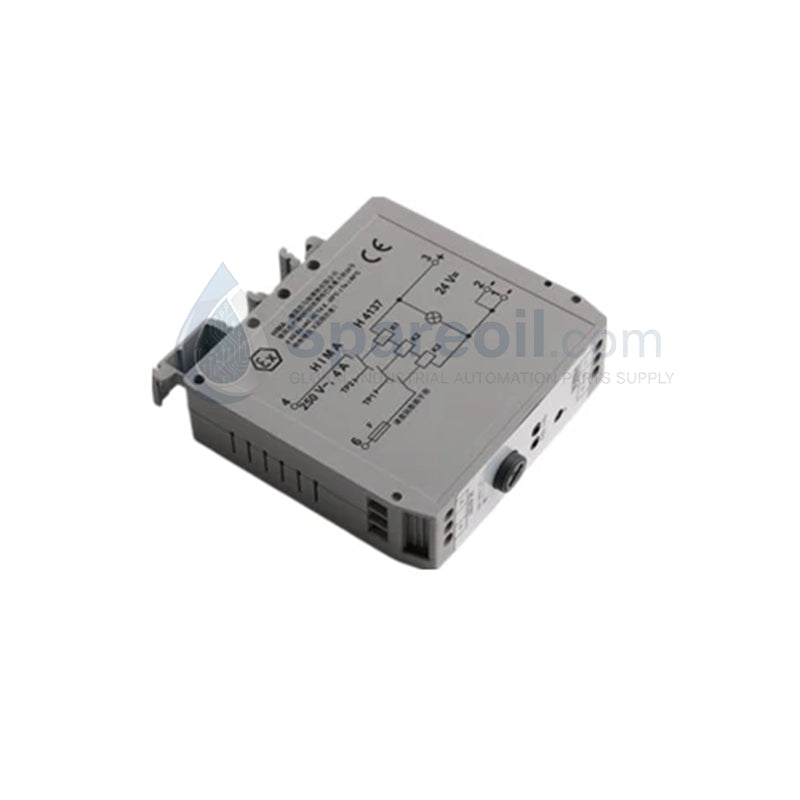

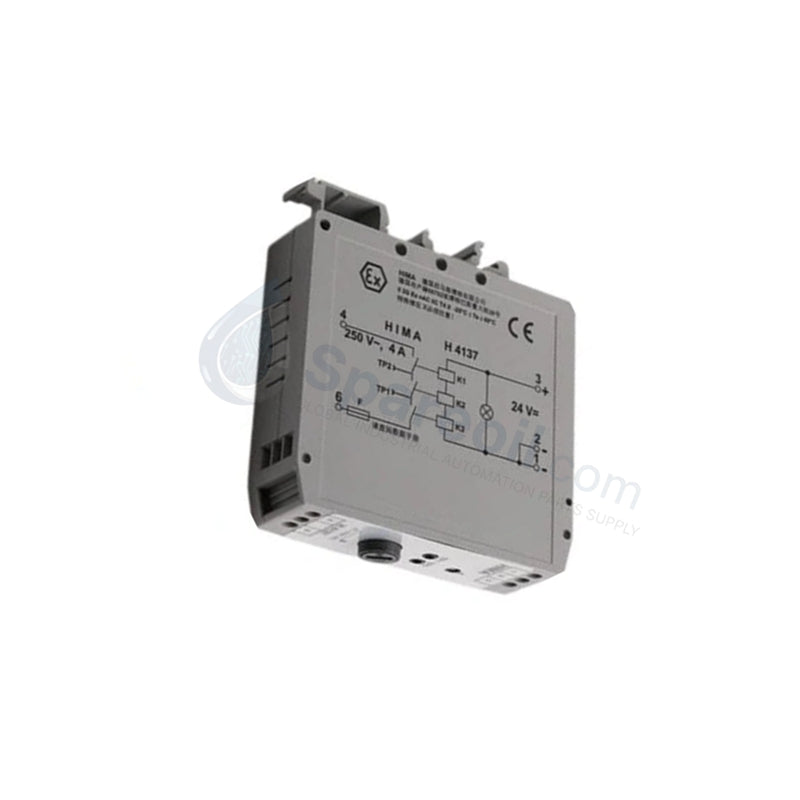

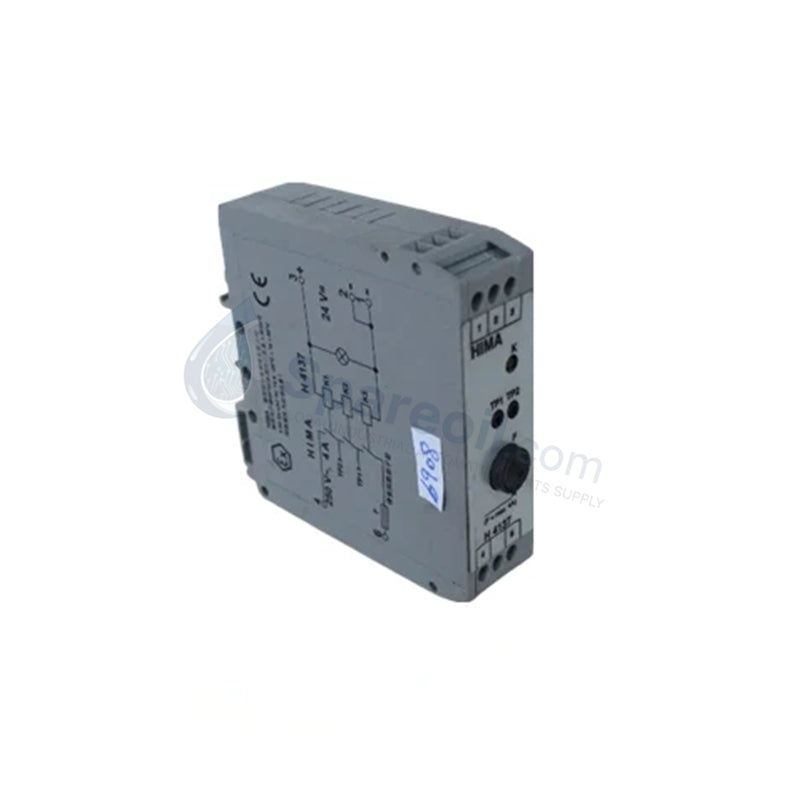

HIMA H4137 Industrial Safety Relay Module

The HIMA H4137, also cataloged as the H4137 Switching Relay Module (Part No: 992413702), operates as a dedicated hardware component for safety-critical signal switching within HIMax and HIMatrix safety systems platforms. Configured to deliver floating normally open (NO) contact execution, the hardware processes a 24 VDC nominal logic command to isolate or energize discrete sub-circuits. The device enforces physical separation boundaries between distinct electrical systems to manage risk elements across emergency shutdown and interlock loops.

Hardware Specifications

Parameter Specification
Model H4137
Brand HIMA
Origin Germany
Weight 0.1 kg
Dimensions 2.2 x 8.7 x 5.0 cm
Operating Temp -25 to +60 deg C
Power Consumption 24 VDC (-15% to +20%), <= 40 mA drive current
Relay Count 1 channel with floating NO contact
Response / Reset Time Approx. 8 ms response / Approx. 6 ms reset
Insulation Resistance 1000 MOhm
Electrical / Mechanical Life >= 100,000 cycles / >= 10,000,000 cycles
Degree of Protection IP20 (according to IEC/EN 60529)
Standards Certification IEC 61508 SIL 3, DIN VDE 0116, EN 50156, DIN EN 50178

Triple Modular Redundancy and Fail-Safe State Execution

The functional design of the H4137 safety relay is fundamentally engineered for strict fail-safe state execution under logic fault or power loss conditions. Certified to meet IEC 61508 SIL 3 parameters, the internal component matrix interacts directly with upstream triple modular redundancy (TMR) 2oo3 architecture logic outputs to confirm signal validity before contact closure. Structural galvanic isolation allows safe separation of control-side electronics from high-power field loops. When the 24 VDC input command is removed or interrupted, the potential-free mechanical armature returns automatically via spring force to its default open safe state within an 8 ms response threshold, ensuring predictable de-energization of the field circuit.

Frequently Asked Questions

Q: What are the installation restrictions concerning hot-swapping the H4137 module within an active safety system?

A: The H4137 operates as an independent terminal component. It cannot be extracted or replaced while the control loop is active without causing an open-circuit fault on that specific safety channel. All associated safety interlocks must be placed into a bypassed state at the host controller level prior to performing physical replacement.

Q: How should inductive field loads be handled to maximize the electrical lifecycle of the floating contacts?

A: External surge suppression devices, such as free-wheeling diodes for DC circuits or RC snubbers for AC loops, must be wired directly in parallel with the inductive field load. This architecture suppresses back-EMF arcing across the gold-plated contacts, preserving the native 100,000 electrical cycle operational lifetime.

Q: Why do the original factory documentation and the product label specify an IP20 rating while some assembly notes refer to IP65?

A: The bare H4137 relay module is built with an open-architecture configuration conforming to IP20 specifications, requiring installation within a clean, unpolluted control enclosure. IP65 or higher environmental ratings are only achieved when the module is fully enclosed within a sealed, stainless-steel field junction box with proper cable entry fittings.

Field Installation Guidelines

  • DIN Rail Calibration: Slide the module housing onto the target 35 mm DIN rail structure. Ensure the retention lock snaps firmly onto the metal rail edge to maintain a stable, vibration-tolerant physical mount inside the panel.
  • Shield Wire Management: Terminate all incoming instrument signal cable shields at the single centralized panel ground bus bar. Do not allow the shield braid to contact the local relay housing to avoid introducing ground potential differences.
  • Conductor Separation: Maintain strict segregation between the low-voltage 24 VDC logic drive inputs and any high-voltage AC or high-current DC wiring connected across the floating relay contacts to prevent inductive signal cross-talk.
  • Conduit Connection Bounds: When integrating field cables into the main enclosure housing the relays, ensure exactly 5 full threads of engagement on all rigid NPT conduit joints to sustain the environmental seal and comply with structural hazardous area safety codes.
