Honeywell FC-TSKUNI-1624 16x24VDC Knife Terminal FTA

Availability: 99 left in stock

Product Overview The Honeywell FC-TSKUNI-1624 functions as a universal Field Termination Assembly (FTA) specifically engineered for Honeywell RUSIO (Remote Universal Safe I/O)...

SKU: FC-TSKUNI-1624

Manufacturer: Honeywell
Product No.: FC-TSKUNI-1624
Product Type: Industrial Control Wiring
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

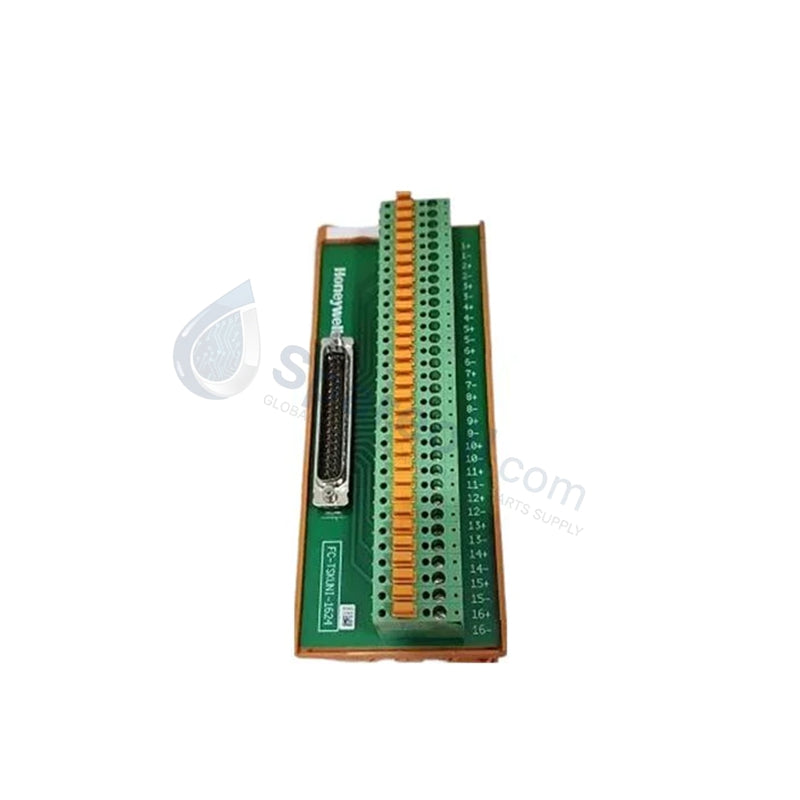

The Honeywell FC-TSKUNI-1624 functions as a universal Field Termination Assembly (FTA) specifically engineered for Honeywell RUSIO (Remote Universal Safe I/O) channels. This module establishes a secure bridge between field devices and the Safety Manager system, providing sixteen independent channels for 24VDC digital signaling. By utilizing a high-density 37-pole Sub-D interface and specialized knife terminals, it facilitates clean wire management and deterministic signal routing. We supply this unit as 100% Brand New and Original, ensuring your safety-critical loops maintain maximum integrity.

Technical Specifications

Attribute	Details
Manufacturer	Honeywell
Model Number	FC-TSKUNI-1624
Channel Count	16 Channels (16 x 24VDC)
Connector Type	37-pole Sub-D Male Connector
Terminal Type	16 sets of two Knife Terminals (A+ / A-)
Wire Size Range	0.2 - 4 mm² (AWG 28 - AWG 12)
Tightening Torque	Max 0.6 Nm (0.44 ft-lb)
Mounting	DIN EN Rails TS32 / TS35 x 7.5
Dimensions	175 x 70 x 57 mm (L x W x H)
Approvals	CE, UL, CSA (TUV Pending)

Engineering Advantages

Integrated Knife Disconnects: The module features sixteen sets of knife terminals. This design allows technicians to physically isolate individual field loops for testing or maintenance without removing wires, significantly reducing the risk of accidental short circuits during troubleshooting.
Simplified RUSIO Integration: The 37-pole Sub-D male connector ensures a rapid, error-free connection to Honeywell RUSIO modules. This standardized interface eliminates point-to-point internal wiring, drastically accelerating the commissioning phase of safety-instrumented systems.
Versatile Wire Handling: The screw terminals accommodate a wide range of wire sizes from AWG 28 to AWG 12. This flexibility allows engineers to use various cable types for long-distance field runs or compact cabinet wiring without requiring specialized ferrules for every connection.
Universal DIN Rail Compatibility: The snap-in provision supports both TS32 and TS35 rails. This dual-rail compatibility ensures the module fits into existing legacy cabinets and modern control enclosures alike, simplifying hardware standardization across the plant.
Robust Mechanical Footprint: With a used rail length of 176 mm and a ruggedized housing, the FC-TSKUNI-1624 withstands the mechanical stresses of industrial environments. It provides a stable termination point that resists vibration-induced loosening of field connections.

FAQs

What is the primary function of the knife terminals on the FC-TSKUNI-1624?

The knife terminals provide a manual disconnection point for each of the 16 channels. You can open the "knife" to isolate the field-side circuit from the RUSIO module for loop testing or maintenance, ensuring the safety of both the equipment and the personnel.

Does this module require a specific connector for the system side?

Yes. The FC-TSKUNI-1624 utilizes a standard 37-pole Sub-D male connector. It typically connects to the Honeywell Safety Manager I/O modules via a matching female-ended system cable, which ensures high-integrity signal transmission.

Can I install this on a standard TS35 DIN rail?

Absolutely. The module features universal snap-in provisions that fit standard TS35 x 7.5 and TS32 DIN EN rails. This makes it easy to mount in any standard industrial control panel.

How can I verify that this part is new and original?

Every FC-TSKUNI-1624 we provide is 100% Brand New and Original, shipping in its factory-sealed Honeywell packaging. We include a 12-month factory-standard warranty and provide full traceability for every unit to guarantee it meets original manufacturer specifications.
