Product Overview

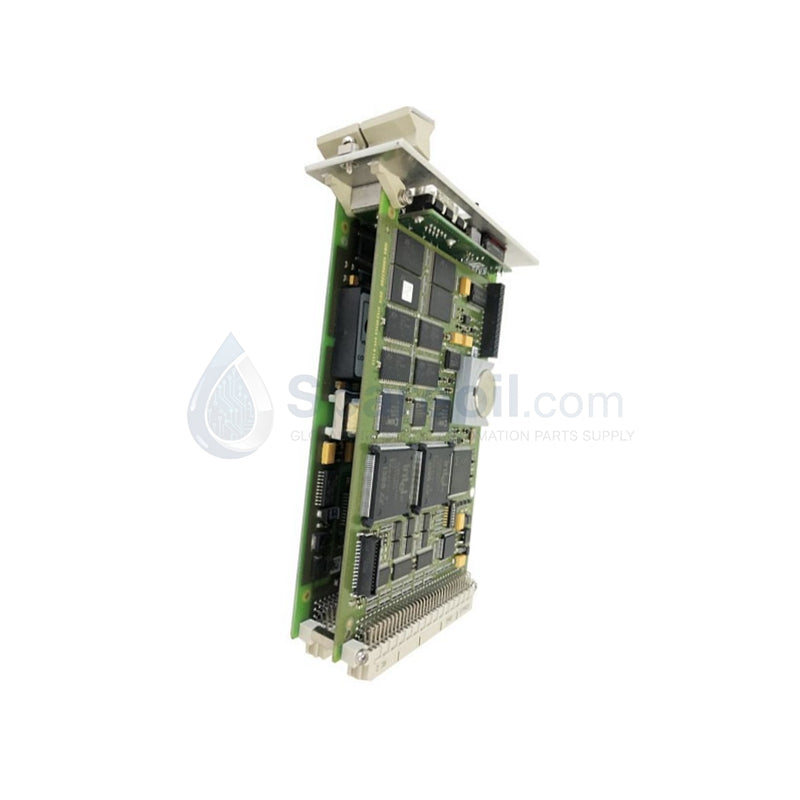

The HIMA F8650A operates as the high-integrity Central Processing Unit (CPU) core module for HIMA's legacy HIQuad and Planar safety-instrumented platforms. This central module handles active real-time logic execution, sensor monitoring, and critical emergency shutdown (ESD) routines. By anchoring its computation engine across two separate, clock-synchronized 32-bit INTEL microprocessors, the F8650A achieves internal 1oo2D (One out of Two with Diagnostics) hardware-level fault tolerance. Industrial processing facilities utilize this centralized card to manage safety interlocks, supervise automated burner management sequences, and protect heavy rotating machinery from catastrophic operational failures.

Technical Specifications

Engineering Advantages

Clock-Synchronized Twin Microprocessors Enforce True 1oo2D Safety

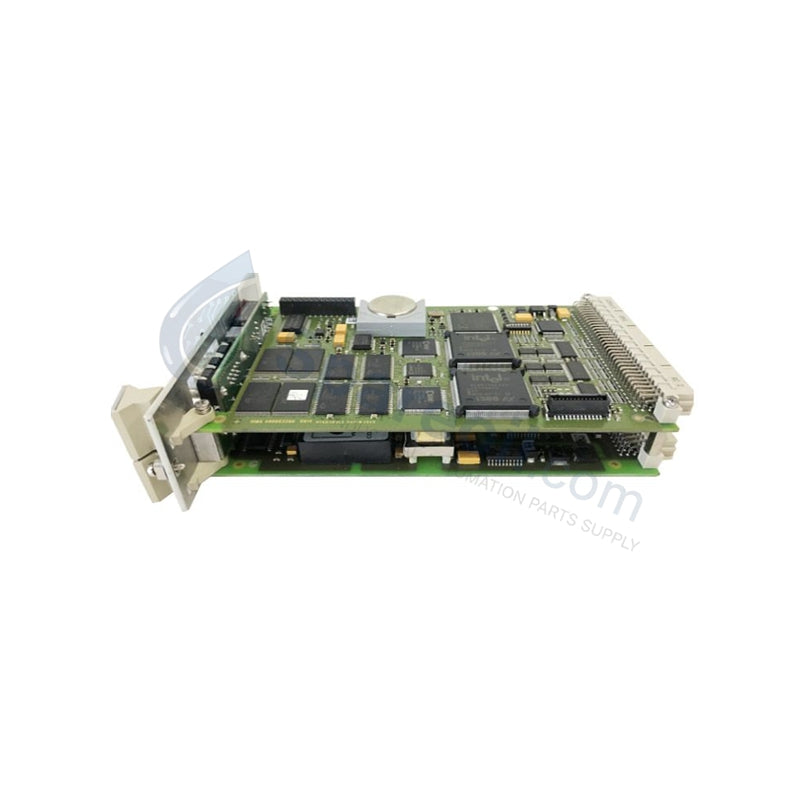

The F8650A splits safety calculations simultaneously across two dedicated 32-bit INTEL 386EX microprocessors operating in strict clock synchronization at 25 MHz. Every logic step, math function, and timer block executes in parallel on both chips. Hardware comparison circuits evaluate the results between the twin execution pipelines in real time. If the internal diagnostic checks identify a computing drift, a single-bit flip, or an unresolvable code contradiction between the microprocessors, the module triggers its fail-safe routines immediately to isolate the sector.

Dedicated Short-Circuit Proof Watchdog Output Safely Drops Critical Power

To guarantee an absolute fail-safe fallback condition, the F8650A incorporates an independent, safety-related hardware watchdog output rated at 24 VDC up to 500 mA. This robust monitor channel remains actively energized under normal, error-free system operating conditions. If the central module experiences a critical processor error, backplane crash, or primary software lockup, the internal watchdog circuit opens its contacts in less than 10 milliseconds. This action instantly kills power to auxiliary interposing relays, driving downstream field solenoids and fuel valves into their de-energized safe shutoff states.

Dual Galvanically Isolated RS-485 Pipelines Block Harsh Field Noise

Long serial communication links traversing factory floors often intercept massive electromagnetic interference (EMI) from heavy motors, high-voltage switchgear, and grounding spikes. The F8650A protects its primary calculation core by embedding comprehensive electrical isolation barriers across its two independent RS-485 serial ports. These isolation blocks keep external high-voltage electrical noise and transient potential loops out of the inner 5V logic bus, ensuring clean data transmission to configuration tools like ELOP II while shielding the processor from network-borne component damage.

FAQs

• Which HIMA software engineering tools configure and program the F8650A?

  The F8650A central module integrates with HIMA's legacy ELOP II engineering tool software environment, as well as specific revisions of the HiProject suite. These utilities allow safety engineers to write and compile logic programs using standard function block diagrams, run offline simulations, manage online safety force settings, and pull real-time error logs directly from the processor's internal registers.

• What information can maintenance technicians pull from the 4-digit matrix display?

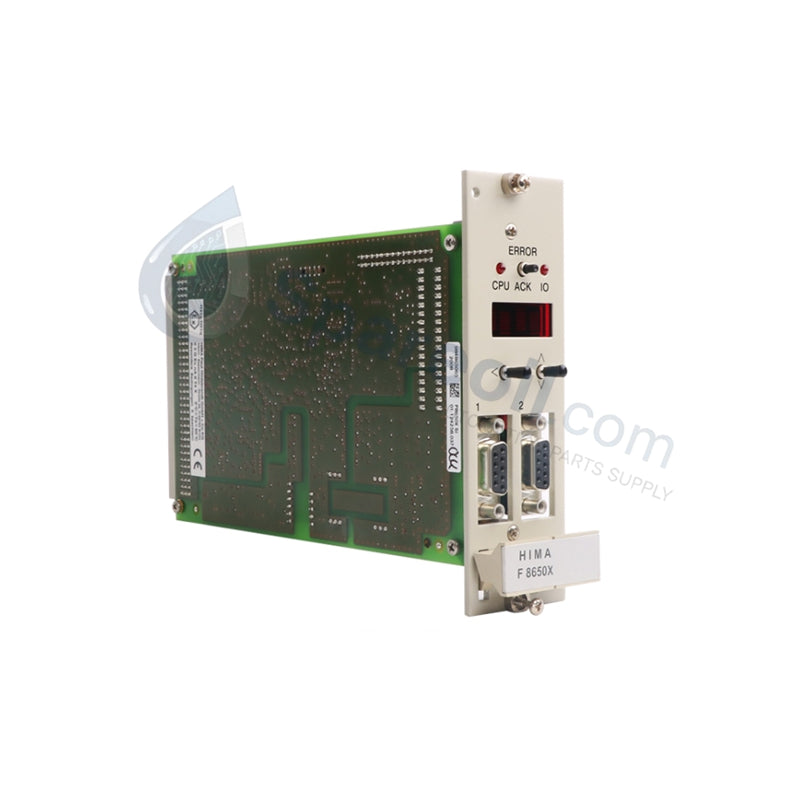

  The integrated 4-digit matrix alphanumeric display on the faceplate acts as a direct diagnostic portal into the processor's health status. Maintenance personnel can toggle the display to view active system status codes, pinpoint current configuration errors, identify precise channel faults across distant I/O racks, or read active firmware revision steps without connecting a separate programming laptop to the cabinet interface.

• Can this module be hot-swapped if a plant configuration uses a redundant setup?

  Yes. When installed inside a properly structured, redundant central rack framework, the F8650A supports hot-swap replacement. If an internal component fault occurs, the redundant companion central card assumes full processing command of the active safety bus automatically. Technicians can then extract the faulted F8650A module and push a brand new, original factory replacement unit into the live slot without dropping power to the rack or interrupting continuous plant protection.
