MP3101S2 Triconex TMR Main Processor Module

MP3101S2 Triconex TMR Main Processor Module

Availability: 10 left in stock

Product Overview The Triconex MP3101S2 functions as the central intelligence for Triple Modular Redundant (TMR) safety systems. This Main Processor Module executes...

SKU: MP3101S2

Manufacturer: Triconex
Product No.: MP3101S2
Product Type: Triple Modular Redundancy
Product Origin: USA
Payment:T/T, Western Union
Weight: 4200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Triconex MP3101S2 functions as the central intelligence for Triple Modular Redundant (TMR) safety systems. This Main Processor Module executes complex safety logic, coordinates high-speed communication across the system backplane, and manages 30 distinct linkage points. We supply this unit as 100% brand new and original, ensuring it meets the rigorous SIL 3 certification requirements for mission-critical applications. Designed to operate on standard industrial power (90-264 VAC), the MP3101S2 delivers a reliable 0.5-second scan cycle, providing the rapid response times necessary for emergency shutdown (ESD) and burner management systems (BMS).

Technical Specifications

The MP3101S2 integrates advanced processing power with high-voltage versatility:

Feature	Specification Details
Model Number	MP3101S2
Manufacturer	Triconex (Schneider Electric)
Input Voltage	90–264 VAC (Universal Input)
Frequency Range	47–63 Hz
Scan Cycle	0.5 Second Standard
Connectivity	30 Linkage Points
Architecture	Triple Modular Redundancy (TMR)
Safety Rating	SIL 3 Compliant
Operating Temp	–40 °C to +70 °C
Weight	9.40 lbs (4.2 kg)
Condition	100% Brand New Original

Engineering Advantages

Triplicated Voting Logic: The MP3101S2 employs three independent processing paths. The system hardware-votes on every instruction, allowing the module to identify and mask a single-path failure instantly. This ensures the safety function remains active even during internal hardware faults.
Universal Power Compatibility: Supporting a wide input range of 90-264 VAC, the module integrates seamlessly into global power infrastructures without requiring additional step-down transformers or specialized power conditioning.

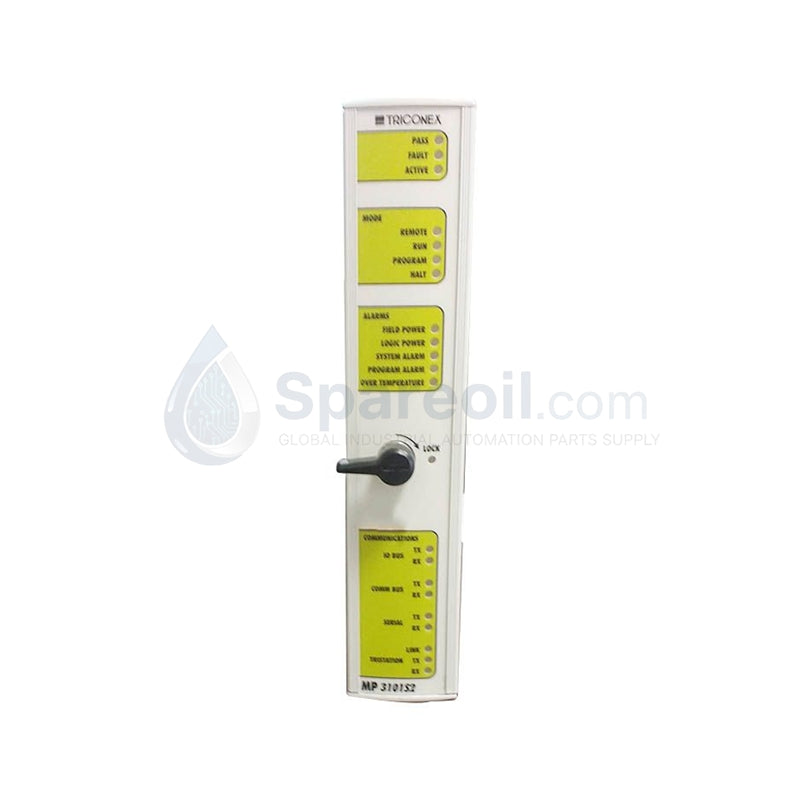

Integrated Self-Diagnostics: Extensive built-in self-tests (BIST) monitor the processor's health, memory integrity, and communication port status. Front-panel LED indicators provide real-time status, drastically reducing the time required for system audits and troubleshooting.
Industrial Hardening: Engineered for extreme environments, the MP3101S2 withstands shocks up to 30 g and operates across a wide temperature spectrum. The electrical isolation between the processor and the backplane prevents field-side electrical surges from damaging the core logic solver.

FAQs

What is the significance of the "S2" designation in this model?

The S2 designation often indicates a specific revision or sub-series within the 3101 family, typically featuring optimized firmware or updated hardware components for improved communication with newer Triconex I/O modules.
Can I replace a standard 3101 module with an MP3101S2?

While the MP3101S2 maintains backwards compatibility with most Triconex racks, you must verify your current TriStation software version and firmware compatibility to ensure seamless logic migration and TMR synchronization.
How does the 0.5-second scan cycle impact safety performance?

The fixed 0.5-second scan cycle provides a deterministic response time. This allows engineers to calculate precise Safety Integrity Level (SIL) loop response times, ensuring the system shuts down hazardous processes well within the defined "Safe State" time limits.
