PSCCM22AAN Yokogawa ProSafe-PLC Series Datasheet & Technical Manual

Availability: 99 left in stock

Yokogawa PSCCM22AAN ProSafe-PLC Critical Control Module The Yokogawa PSCCM22AAN, also cataloged as the PSCCM22AAN Critical Control Module, serves as the...

SKU: PSCCM22AAN

Manufacturer: Yokogawa
Product No.: PSCCM22AAN
Product Type: Safety CPU Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

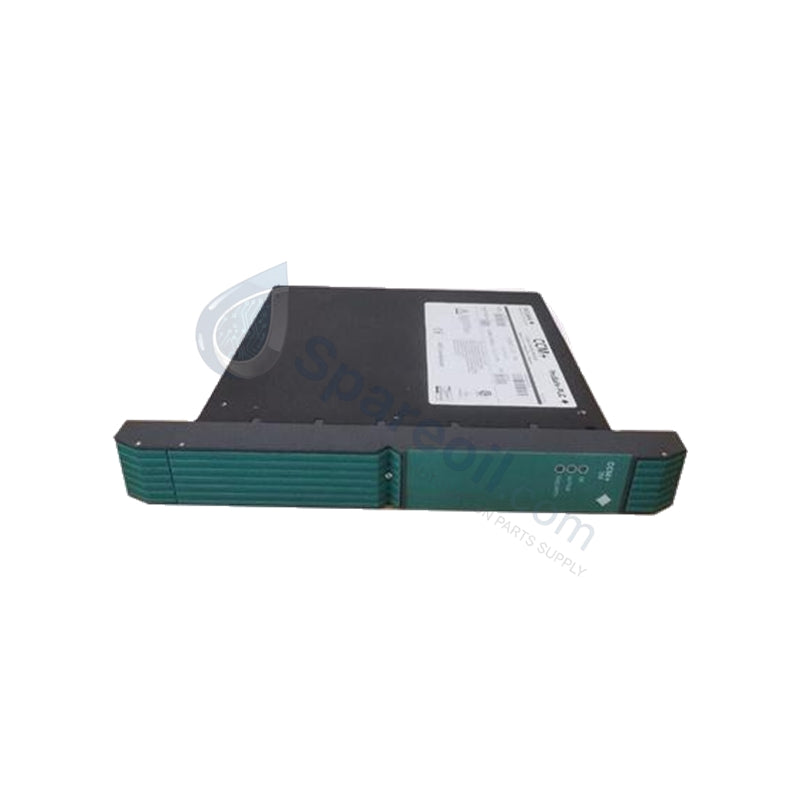

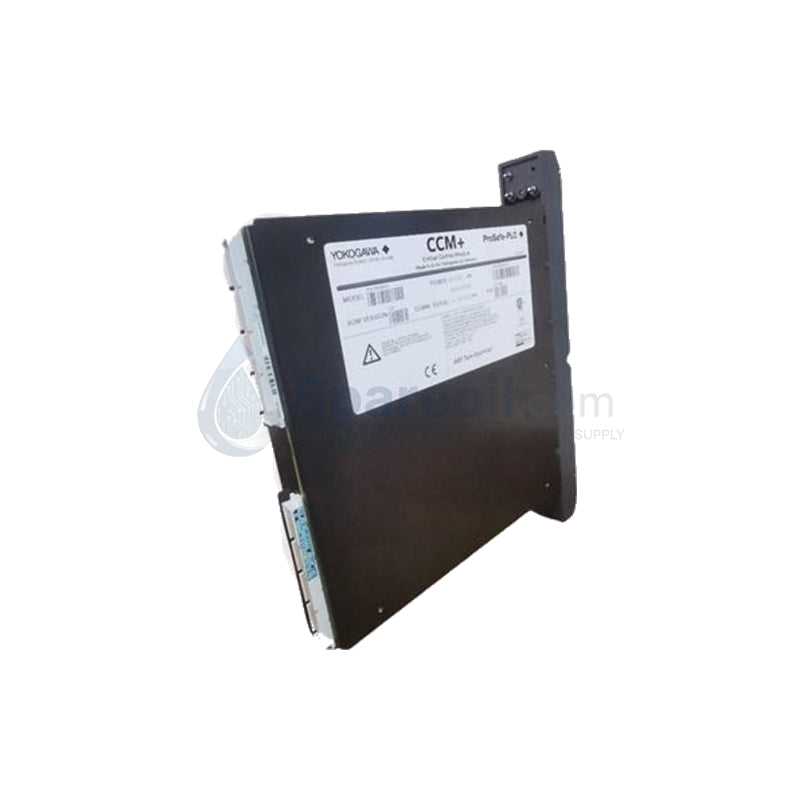

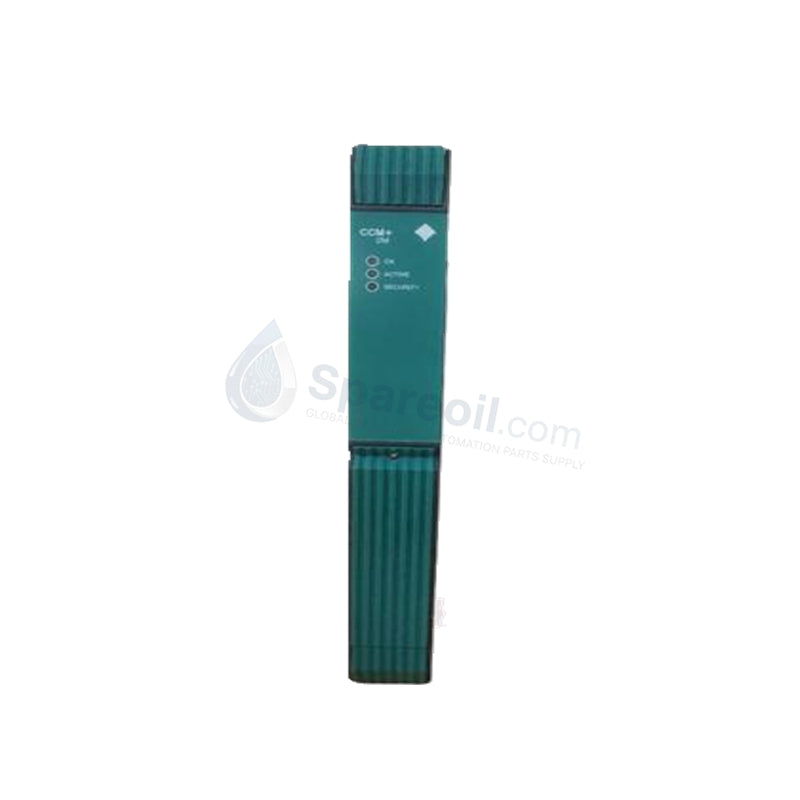

Yokogawa PSCCM22AAN ProSafe-PLC Critical Control Module

The Yokogawa PSCCM22AAN, also cataloged as the PSCCM22AAN Critical Control Module, serves as the primary PSCCM22 Safety CPU utilized to execute emergency shutdown (ESD) and high-integrity interlock functions across ProSafe-PLC safety instrumented system platforms.

Hardware Specifications

Parameter	Specification
Model	PSCCM22AAN (Revision 4)
Brand	Yokogawa
Origin	Japan
Weight	1.9 kg
Dimensions	5.1 cm x 25.4 cm x 30.5 cm
Operating Temp	-20 to +60 deg C (Storage range: -40 to +85 deg C)
Power Consumption	24 VDC Nominal (+-10% range); Rated at 0.60 A (Maximum operational load: <= 10 W)
Architecture	Dual-processor safety execution engine
Safety Integrity Level	SIL3 certified (Compliance parameters: IEC 61508 / IEC 61511)
Memory Capacity	8 MB RAM + 2 MB Flash memory matrix
Local Interface Bus	Integrated ProSafe-PLC backplane communication busway
Network Protocols	Modbus TCP (Ethernet Interface) and Modbus RTU (RS-485 Serial)
Enclosure Protection	Industrial-grade metal housing rated to IP20 status
Operating Humidity	5% to 95% RH, non-condensing

Safety Instrumented System (SIS) Properties

The Yokogawa PSCCM22AAN is a SIL3-certified core safety CPU that utilizes dual-processor redundancy loops to manage critical process inputs without single points of hardware failure. The internal architecture uses a fault-tolerant design that combines separate hardware-level diagnostics with automated fail-safe state execution mechanisms. Rather than operating as a general-purpose signal conditioner, the module evaluates Boolean ladder logic and function block diagrams (FBD) through synchronized processing pipelines, running millisecond-level safety MCU scans to enforce real-time self-diagnostics, galvanic isolation limits, and automatic failover routines across the safety network.

Frequently Asked Questions

Q: How does the internal processor arrangement maintain SIL3 certification constraints during an active component fault?

A: The module executes safety logic inside a dual-processor architecture where both 32-bit RISC processing tracks cross-check calculations on every instruction cycle. If a mismatch is detected, the internal hardware diagnostics trigger a fail-safe state execution, transferring control to a redundant module or forcing outputs to a predetermined de-energized shutdown status.

Q: Can the PSCCM22AAN execute diagnostic passthrough functions for field smart instrumentation?

A: Yes. The safety CPU backplane architecture supports HART protocol data streams from field devices. This configuration allows asset management software to pull instrument health, valve signatures, and diagnostic registers directly through the module without interfering with the primary safety logic execution.

Q: What are the electrical power constraints regarding the dual redundant input feeds for this safety CPU?

A: The module operates on a nominal 24 VDC line with a continuous current draw of 0.60 A. The backplane interface contains redundant input routing diode arrays, allowing the unit to draw balanced current from two separate utility feeds to ensure continuous operation if one power source drops out.

Field Installation Guidelines

Chassis Slot Mechanical Seating: Guide the IP20 metal chassis carefully into the designated slot of the primary ProSafe-PLC rack assembly. Push the module firmly inward until the backplane multi-pin array locks completely, then hand-tighten the integrated upper and lower mounting screws.
Redundant Feed Cable Routing: Connect the primary and secondary 24 VDC power lines through separate wire ducts. This physical separation prevents a single localized cabinet fire or electrical short from disabling both power inputs simultaneously.
Shield Grounding Framework: Terminate all serial RS-485 and Modbus TCP communication cable shields at the primary instrumentation grounding bus of the local enclosure panel. Maintain a clean, single-point ground connection to avoid creating ground loops that could disrupt high-speed data transmission.
Thermal Management Clearance: Ensure all top and bottom convection cooling louvers on the rack enclosure remain unobstructed. Maintaining an unblocked vertical airflow path keeps ambient temperatures within the -20 to +60 deg C operating limits, protecting the internal components from premature degradation.
