6DD1601-0AE0 Siemens Processor Module

6DD1601-0AE0 Siemens Processor Module | New & Original Stock

Availability: 99 left in stock

Siemens 6DD1601-0AE0 SIMADYN D Processor Module The Siemens 6DD1601-0AE0, also cataloged as the 6DD1601-0AE0 Processor Module, operates as a dedicated...

SKU: 6DD1601-0AE0

Manufacturer: Siemens
Product No.: 6DD1601-0AE0
Product Type: Industrial Computer Boards
Product Origin: Germany
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

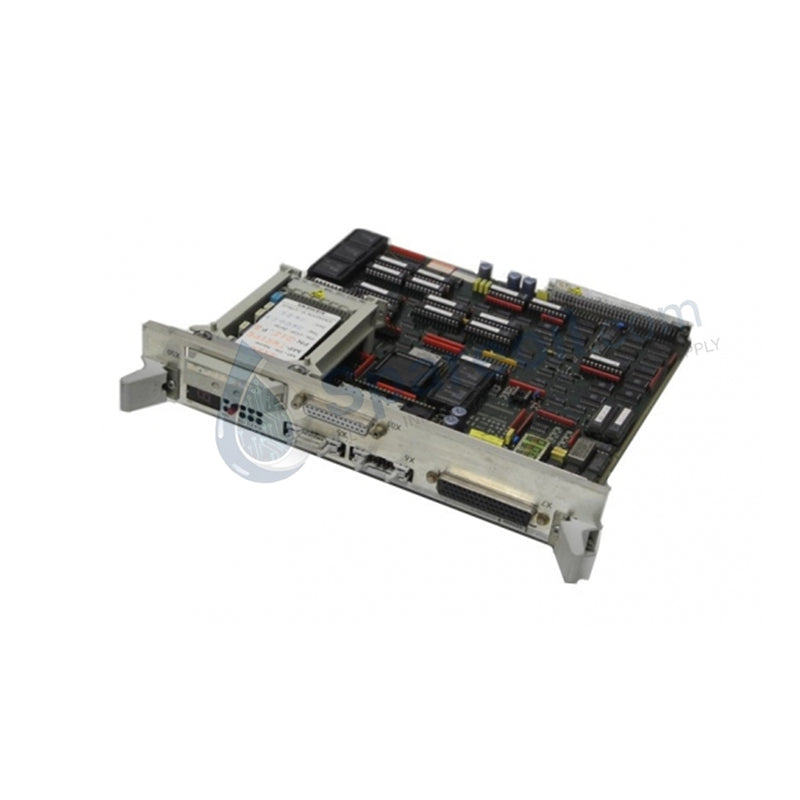

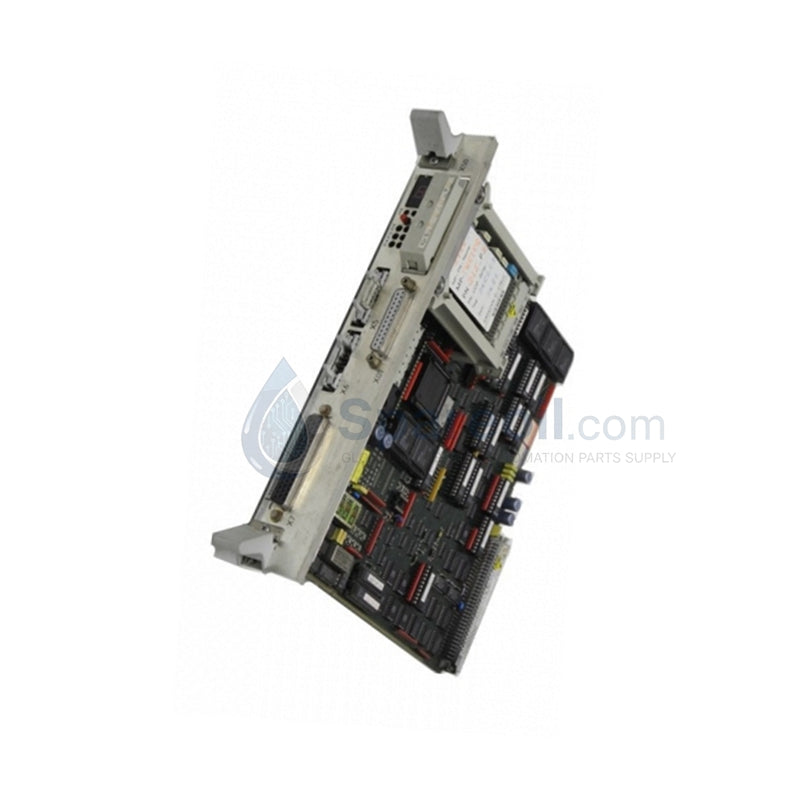

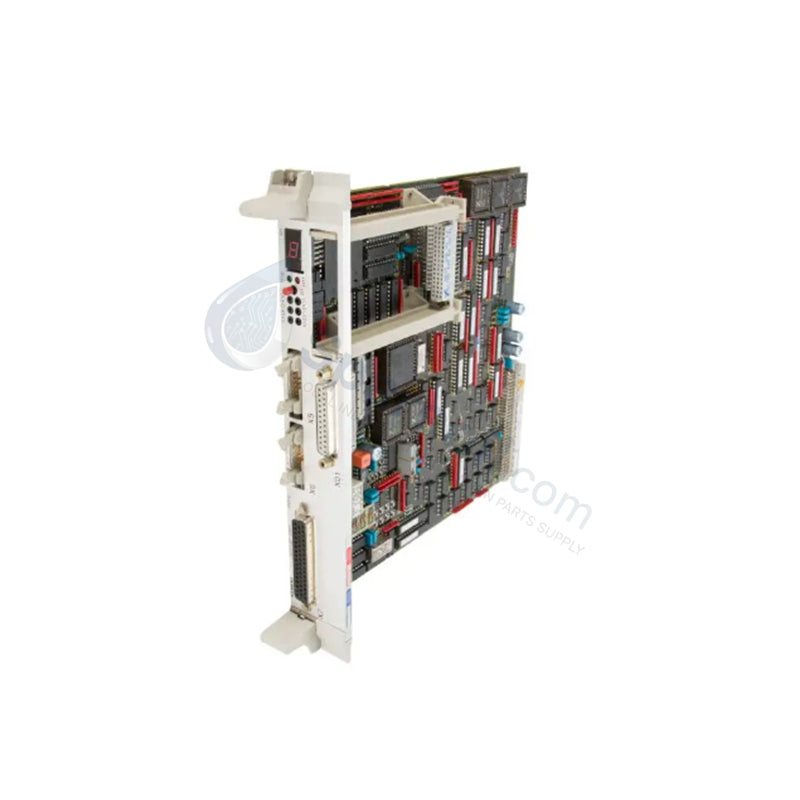

Siemens 6DD1601-0AE0 SIMADYN D Processor Module

The Siemens 6DD1601-0AE0, also cataloged as the 6DD1601-0AE0 Processor Module, operates as a dedicated hardware component for localized processing tasks within SIMADYN D control system platforms.

Hardware Specifications

Parameter	Specification
Model	6DD1601-0AE0
Brand	Siemens
Origin	Germany
Weight	0.5 kg (1.23 lbs)
Dimensions	27.9 cm x 5.1 cm x 27.9 cm (11.0 in x 2.0 in x 11.0 in)
Operating Temp	Standard industrial limits per SIMADYN D specification
Power Consumption	Subrack backplane bus derived
Series	SIMADYN D PG16
User Interface	Integrated LED indicators and alphanumeric display
Tariff Code	8537109060

Backplane Bus Communication Velocity and Deterministic Networks

The 6DD1601-0AE0 utilizes specialized internal bus coupling hardware to maintain deterministic synchronization with parallel modules across the subrack backplane. This architecture is engineered to optimize backplane bus communication velocity, enabling rapid processing cycles necessary for real-time applications linked over Profinet or PROFIBUS networks. High-density data packets are processed deterministically without causing transmission delays on the central bus. System uniformity is preserved via stringent firmware flash compatibility matching across all active modules installed on the rack segments.

Frequently Asked Questions

Q: What function do the integrated LED indicators and display serve on the front panel?

A: The front panel elements provide real-time hardware status, system faults, and processing diagnostics directly from the execution core without requiring an external programming terminal connection.

Q: Does this processor module support hot-swapping during subrack operation?

A: No. Power to the SIMADYN D subrack must be completely isolated before inserting or removing the 6DD1601-0AE0 module to prevent voltage transients on the backplane bus.

Q: How is the module firmware synchronized with the rest of the automation system?

A: Firmware validation is governed by the system parameterization software during startup, verifying firmware flash compatibility between the processing module and neighboring communication cards.

Field Installation Guidelines

Subrack Insertion: Align the module card edges precisely with the subrack vertical guide rails. Smoothly slide the unit inward until the rear DIN connectors mate securely with the passive backplane.
Locking Mechanisms: Fasten the front panel retaining screws to ensure continuous grounding continuity between the module faceplate and the subrack frame chassis.
ESD Handling: Maintain strict electrostatic discharge protocols, using a grounded wrist strap and conductive matting during installation, to safeguard the internal CMOS circuitry from permanent damage.
