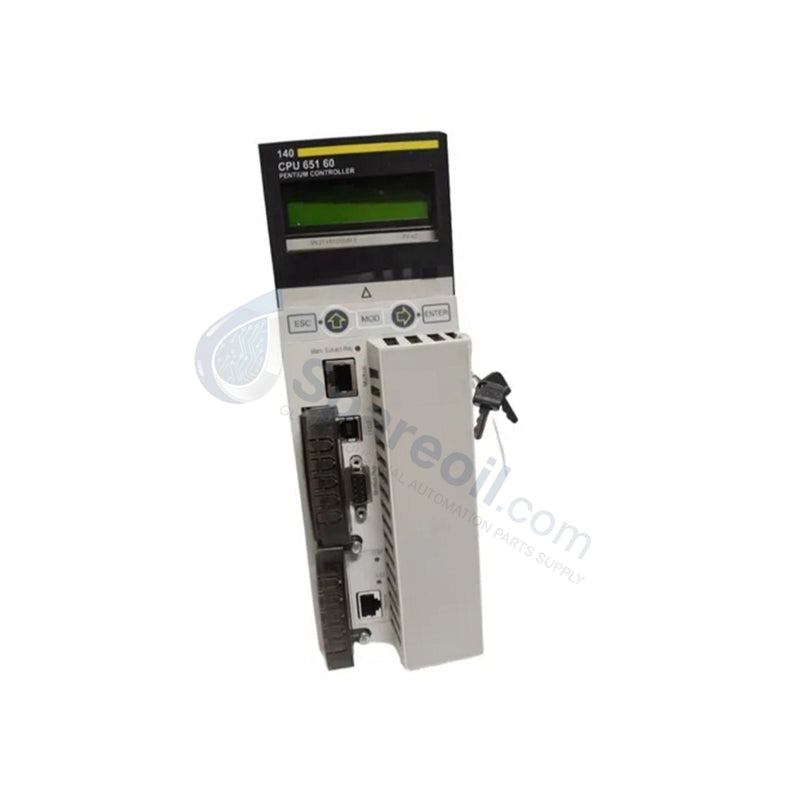

140CPU65160S Schneider Modicon Quantum Safety CPU

140CPU65160S Schneider Modicon Quantum Safety CPU | New Stock

Availability: 94 left in stock

Schneider 140CPU65160S Modicon Quantum Safety Controller The Schneider 140CPU65160S serves as the primary 140CPU65160S Unity safety processor utilized to execute...

SKU: 140CPU65160S

Manufacturer: Schneider
Product No.: 140CPU65160S
Product Type: CPU Processors
Product Origin: France
Payment:T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

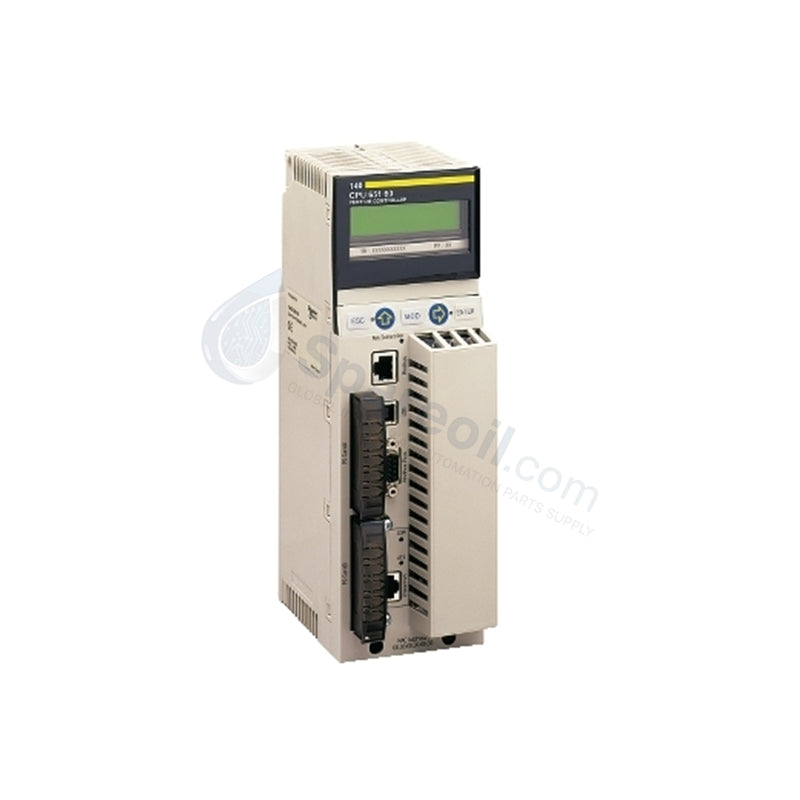

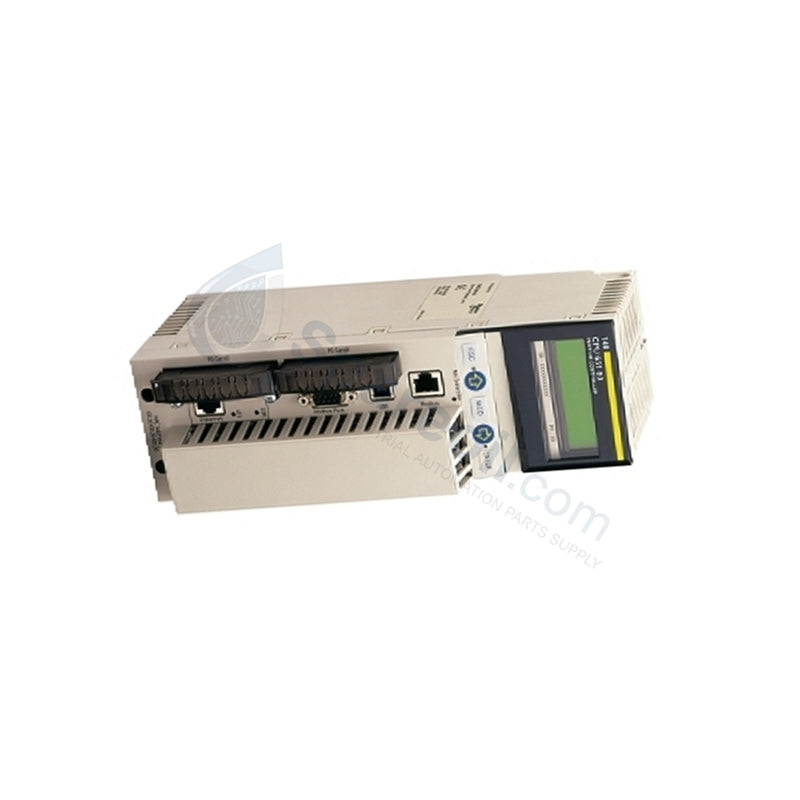

Schneider 140CPU65160S Modicon Quantum Safety Controller

The Schneider 140CPU65160S serves as the primary 140CPU65160S Unity safety processor utilized to execute certified safety functions for industrial process control across Modicon Quantum platform networks. The hardware features a 32-bit CPU block operating at a 266 MHz clock frequency, specifically configured to manage deterministic execution boundaries for safety-critical logic verification. Running under specialized safety firmware configurations, this chassis-mounted component coordinates physical and network data transfers across local slots and distributed remote drops while isolating process-control variables from protective logic blocks.

Hardware Specifications

Parameter	Specification
Model	140CPU65160S
Brand	Schneider Electric
Origin	France
Weight	0.91 kg (2.00 lbs) net weight / 2.00 kg shipping weight
Dimensions	398 mm x 41 mm x 152 mm
Operating Temp	0 to 60 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	Supported via Quantum backplane power distribution units
Clock Frequency	266 MHz
Internal RAM Total	1024 kB internal base memory (up to 2 MB RAM application capacity)
PCMCIA Expansion	Expandable up to 7168 kB program / 8 MB file storage via memory card slot
Local Rack Capacity	1 local rack configuration (supports 2, 4, 6, 10, or 16 slot backplane formats)
Local Network Ports	1 x Modbus Plus, 1 x USB, 1 x Modbus RS232/485 (RTU/ASCII), 6 x Ethernet TCP/IP local connections
Hardware Control	Key switch for memory port protection (ON/OFF)
Application Structure	1 cyclic/periodic master task with process control verification
Backup Battery Type	Lithium battery 990XCP98000 (1200 Ah capacity, 10 yr nominal life)
Local Interface	LCD display featuring 2 lines of 16 characters
Safety Certification	TÜV Rheinland certified
Protection Class	IP20

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The Schneider 140CPU65160S regulates complex process control and safety safety-interlocking execution states by matching network scan segments with native backplane bus communication velocity licenses. The unit distributes dual-task processing parameters natively over its 266 MHz core to optimize logic update intervals across expansive backplane configurations.

When interacting with Profinet / EtherNet/IP deterministic networks via the 6 integrated local Ethernet TCP/IP connection configurations, the controller processes safety-related data structures without propagation delay variations. This high-throughput port distribution supports rigorous I/O density scaling profiles over distributed remote sub-racks, allowing the primary task engine to update up to 1024 kB of active application RAM while maintaining system timing synchronization.

Frequently Asked Questions

Q: How does the internal memory architecture respond when the front-panel hardware key switch is toggled to the OFF position?

A: Toggling the memory port key switch to the OFF position electronically locks the local configuration memory block. This action prevents unauthorized logic modifications, firmware flash overwrites, or application downloads via the USB, Modbus, or Ethernet communication ports.

Q: What is the deterministic behavior of the safety task engine if a memory parity error occurs in the internal RAM?

A: The 140CPU65160S implements continuous internal RAM checking and error detection algorithms. Upon sensing an uncorrectable memory parity fault or safety integrity violation, the processor immediately executes a controlled shutdown sequence to force all connected safety I/O modules into their predefined fail-safe states.

Q: Can this safety processor co-exist with standard non-safety Modicon Quantum I/O modules in the same local rack?

A: Yes. The Unity Safety platform architecture permits mixed rack configurations where certified safety I/O modules and standard discrete or analog I/O modules reside on the same passive backplane structure, provided proper logic segregation is enforced within the programming software environment.

Field Installation Guidelines

Disconnect all primary power links feeding the destination Quantum chassis prior to inserting or extracting the CPU assembly.
Slide the module housing into the designated slots of the backplane structure and verify that the rear multi-pin bus connectors are seated perfectly before tightening the mechanical mounting screws.
Ensure that the 990XCP98000 lithium backup battery is properly connected to the internal terminal header to prevent user application and register loss during routine power cycle procedures.
Maintain a minimum separation distance of 30 cm between the communication copper paths (Modbus Plus, RS232/485, and Ethernet cables) and local high-voltage motor control lines to limit electromagnetic noise coupling.
Verify that the enclosure installation environment provides adequate convection cooling paths to prevent the ambient operating boundary from exceeding the 60 deg C hardware limitation.
