Redundant Programmable Controller Chassis

Redundant Programmable Controller Chassis | 1756-A13 Allen Bradley

Availability: 20 left in stock

Product Overview The Allen Bradley 1756-A13 serves as a standard 13-slot modular chassis for large-scale automation architectures within the ControlLogix...

SKU: 1756-A13

Manufacturer: Allen Bradley
Product No.: 1756-A13
Product Type: Programmable Controller Chassis
Product Origin: USA
Payment:T/T, Western Union
Weight: 6000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

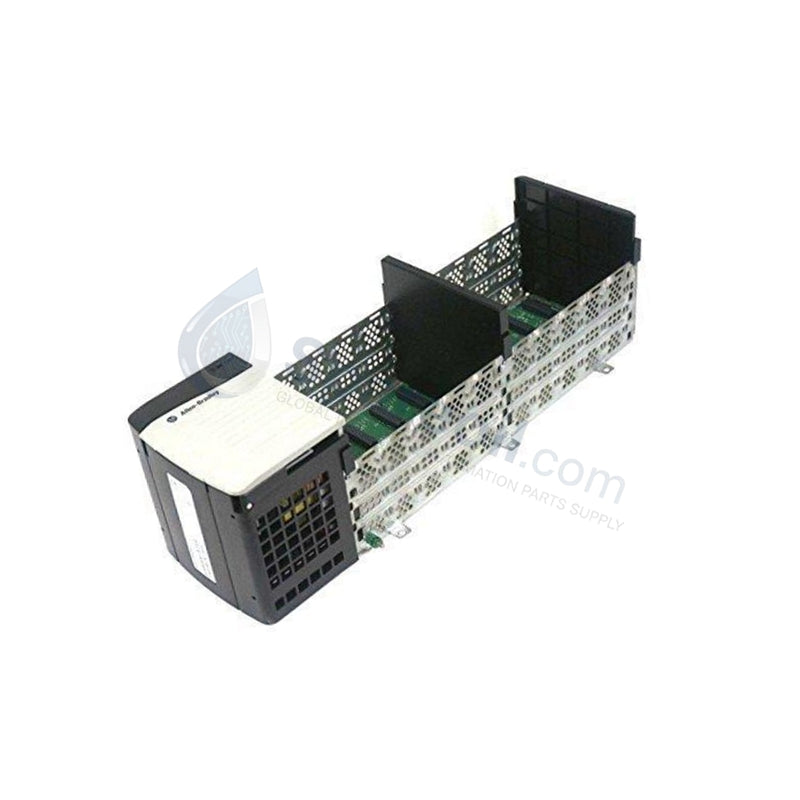

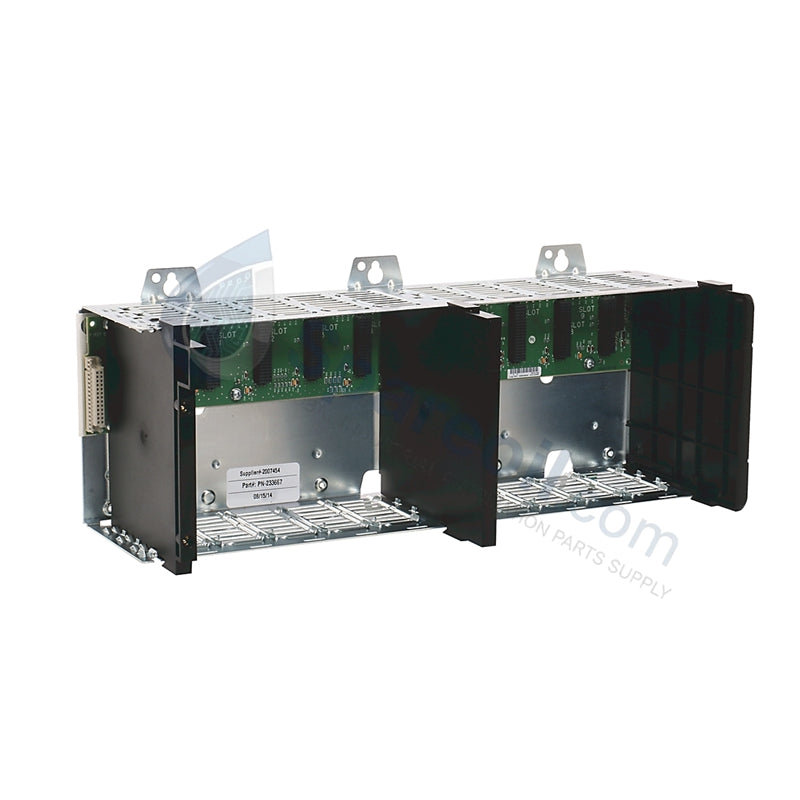

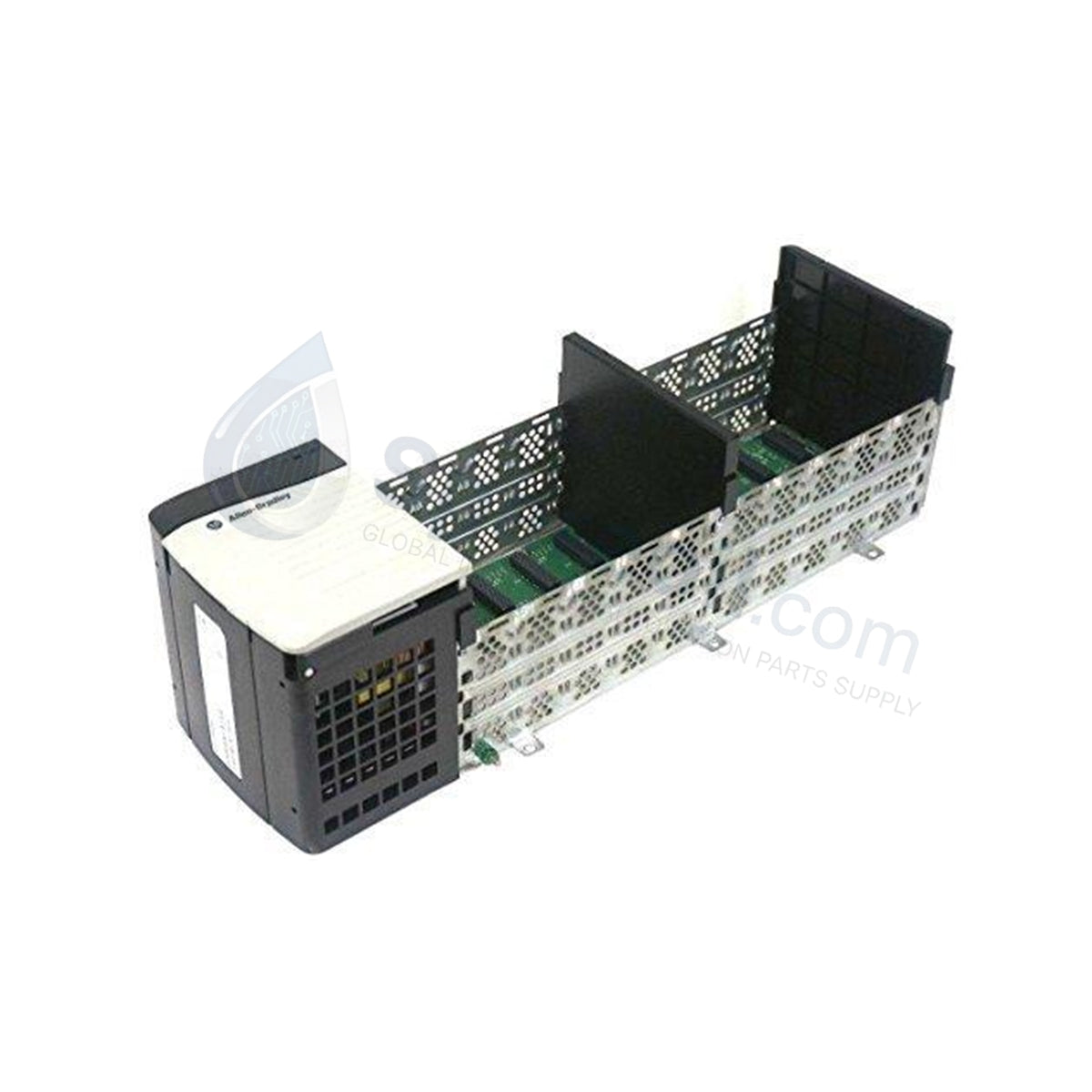

The Allen Bradley 1756-A13 serves as a standard 13-slot modular chassis for large-scale automation architectures within the ControlLogix platform. This physical frame houses, supplies backplane power to, and facilitates data distribution between ControlLogix processors, dense I/O modules, motion control cards, and high-bandwidth communication network modules. The hardware acts as the foundational backplane for plant-wide architectures, maximizing slot capacity inside a single rack to minimize multi-chassis bridge costs. We supply this product as a 100% brand new, factory-sealed unit in its original Rockwell Automation packaging to guarantee field-level electrical performance and long-term diagnostic durability.

Technical Specifications

Parameter	Specification Details
Manufacturer	Allen Bradley (Rockwell Automation)
Model Designation	1756-A13 ControlLogix
Core Chassis Profile	Standard High-Capacity Modular Rack
Available Module Slots	13 Slots
Mounting Orientation	Panel Mount Configuration
Integrated Backplane Type	High-Speed Serial Communication Bus
Backplane Current Delivery (5.1 VDC)	15 Amperes Maximum
Backplane Current Delivery (1.2 VDC)	1.5 Amperes Maximum
Backplane Current Delivery (24 VDC)	2.8 Amperes Maximum
Companion Power Supplies	1756-PA, 1756-PB, 1756-PC, 1756-PD, 1756-PF
Processor Series Compatibility	ControlLogix L6x, L7x, and L8x Systems
Operational Temperature Boundaries	0 to 60 Degrees Celsius
Storage Temperature Boundaries	-40 to 85 Degrees Celsius
Environmental Humidity Range	5 to 95 Percent Non-Condensing Relative Humidity
Agency Regulatory Compliance	UL, CE, CSA, ATEX, IECEx
Net Weight	6.0 kg (13 lbs)
Physical Envelope Dimensions	584 x 132 x 280 mm (23 x 5.2 x 11 in)

Engineering Advantages

Large process automation facilities and plant-wide EtherNet/IP networks demand high-density module layouts that often strain network communication synchronization. The 1756-A13 resolves this issue by integrating a 13-slot high-speed serial backplane that delivers continuous, deterministic data paths between multiple controllers and complex communication modules inside the same local rack. This high-capacity design allows engineers to centralize main control loops, high-speed counters, and multiple network adapters (such as 1756-EN2TR cards) without installing extra chassis-to-chassis communication bridges that add data transmission latency.

The industrial-grade steel and aluminum chassis frame isolates internal printed circuit boards from structural machinery vibrations, protecting sensitive components against trace cracks and loose connections in harsh factory conditions. To simplify installation in busy electrical cabinets, the panel-mount base features pre-drilled layout holes and a dedicated chassis grounding lug. This grounding connection safely channels electrostatic discharge and high-frequency noise away from the processor logic bus.

The left-side universal power supply interface accepts a wide range of standard 1756 power modules, including AC, DC, and specialized redundant power supplies. By utilizing redundant power supply configurations on this 13-slot base, process engineers protect large, critical I/O groupings from localized power outages. Furthermore, the standardized slot spacing provides open vertical ventilation channels, encouraging natural convection airflow to dissipate heat effectively even when the rack operates under full electrical loads at 60 Degrees Celsius.

FAQs

Can technicians mix older ControlLogix modules with newer L8x processors within the 1756-A13 chassis?

Yes. The 1756-A13 backplane maintains full backward and forward compatibility across the entire ControlLogix ecosystem. It allows the simultaneous installation of legacy L6x or L7x hardware alongside modern L8x series processors and advanced EtherNet/IP communication interfaces without causing data corruption or slot interface conflicts.
What installation steps prevent heat buildup when mounting a fully loaded 1756-A13 inside an enclosure?

Field technicians must maintain a minimum clearance of 50.8 mm (2.0 in) along the top and bottom of the chassis, and 101.6 mm (4.0 in) along the sides. This spacing ensures proper convective airflow through the open ventilation channels, preventing the high-density module configurations from exceeding the maximum 60 Degrees Celsius operational temperature limit.
Does this 13-slot chassis support hot-swapping (Removal and Insertion Under Power) for all standard modules?

The 1756-A13 chassis fully supports RIUP capabilities, allowing maintenance crews to replace malfunctioning I/O or communication cards while the remaining modules continue to receive regulated power from the backplane. However, operators must follow plant safety guidelines regarding hazardous locations before changing modules under live electrical conditions.
