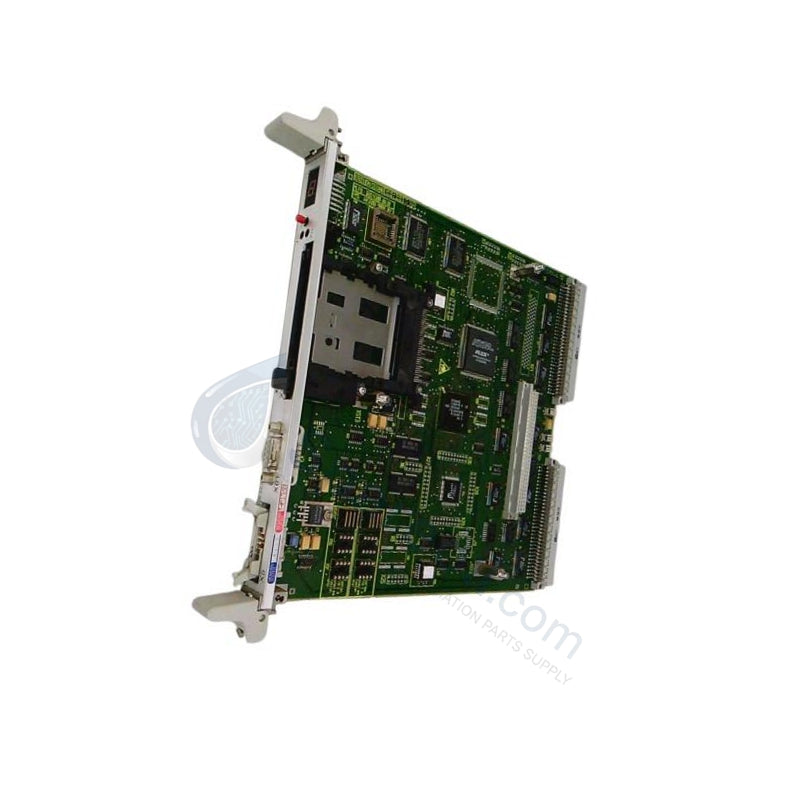

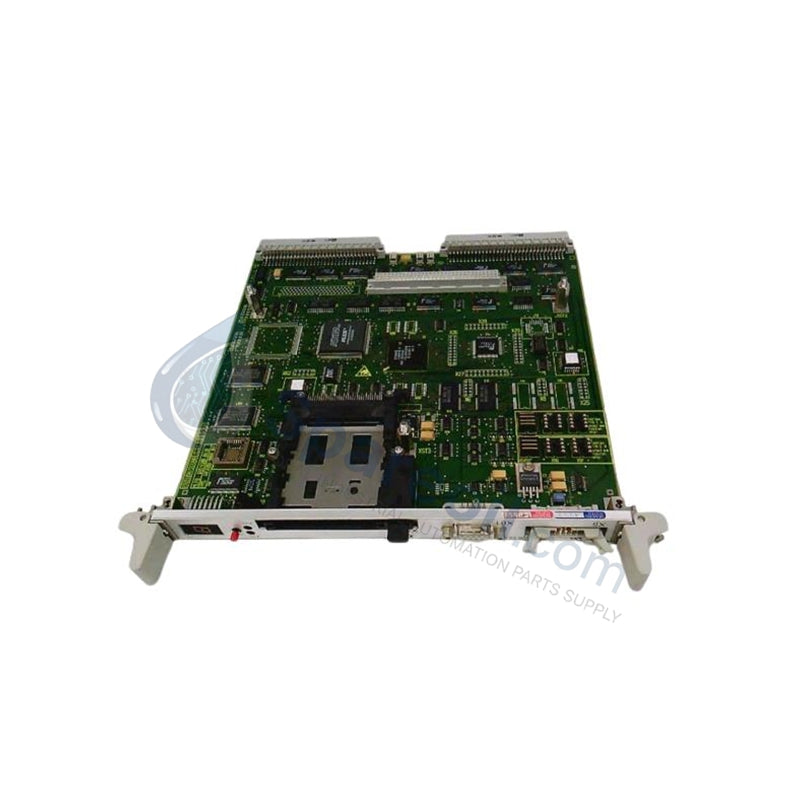

6DD1600-0AJ0 Siemens 32-Bit CPU Module

6DD1600-0AJ0 Siemens 32-Bit CPU Module | New & Original Stock

Availability: 99 left in stock

Siemens 6DD1600-0AJ0 SIMADYN D CPU Module The Siemens 6DD1600-0AJ0, also cataloged as the 6DD1600-0AJ0 Central Processing Unit, operates as a...

SKU: 6DD1600-0AJ0

Manufacturer: Siemens
Product No.: 6DD1600-0AJ0
Product Type: CPU Processors
Product Origin: Germany
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Siemens 6DD1600-0AJ0 SIMADYN D CPU Module

The Siemens 6DD1600-0AJ0, also cataloged as the 6DD1600-0AJ0 Central Processing Unit, operates as a dedicated hardware component for 32-bit arithmetic computation and signal processing within SIMADYN D control platforms.

Hardware Specifications

Parameter	Specification
Model	6DD1600-0AJ0
Brand	Siemens
Origin	Germany
Weight	0.4 kg (1.15 lbs)
Dimensions	27.9 cm x 2.5 cm x 25.4 cm (11.0 in x 1.0 in x 10.0 in)
Operating Temp	0 to 55 deg C
Power Consumption	System backplane derived
Architecture	32-bit execution processor
Signal Interface	Binary, absolute, and incremental inputs
Backplane Link	L-bus and C-bus connections

Backplane Bus Communication Velocity and Deterministic Networks

The 6DD1600-0AJ0 implements direct high-speed interfacing via parallel L-bus and C-bus structures to maximize backplane bus communication velocity across modular frames. This multi-bus layout accommodates real-time execution of complex closed-loop control algorithms synchronously connected across Profinet or PROFIBUS DP deterministic networks. The 32-bit hardware processing core permits high I/O density scaling while maintaining fixed, sub-millisecond execution cycles. All sub-module interfaces are governed by synchronized firmware flash compatibility parameters to eliminate phase delays during multi-axis or complex loop calculations.

Frequently Asked Questions

Q: How does the 6DD1600-0AJ0 communicate with peripheral I/O modules within the rack?

A: The module executes high-speed parallel data transfers using the integrated local L-bus for fast I/O processing and the central C-bus for communication with coordinator modules and memory components.

Q: What input types are natively processed by the hardware interfaces of this module?

A: The processor features dedicated onboard hardware logic to decode binary inputs, absolute encoder feedback signals, and incremental pulse generator tracks without adding overhead to the main CPU cycle.

Q: Can the firmware of this module be updated to match newer SIMADYN D components?

A: Firmware synchronization is achieved through memory submodule replacement or standard programming tool uploads to maintain exact operational firmware flash compatibility across the system bus.

Field Installation Guidelines

Subrack Alignment: Insert the module vertically into the designated SIMADYN D subrack slot. Use the top and bottom card guides to ensure precise orthogonal alignment before pushing the card home into the L-bus and C-bus backplane connectors.
Shielding and Grounding: Terminate all absolute and incremental encoder shields directly to the subrack grounding rail using low-impedance shielding clamps. Do not ground encoder shields at multiple external points to prevent ground loop currents.
Electrostatic Discharge (ESD) Prevention: Wear a grounded wrist strap when handling the card edges or setting physical jumpers on the printed circuit board assembly to prevent damage to the high-density CMOS components.
